AAA Trailers – Flat Top Refrigerated Trailer - 22 Pallet in Melbourne

Overview: Flat Top Refrigerated Trailer - 22 Pallet

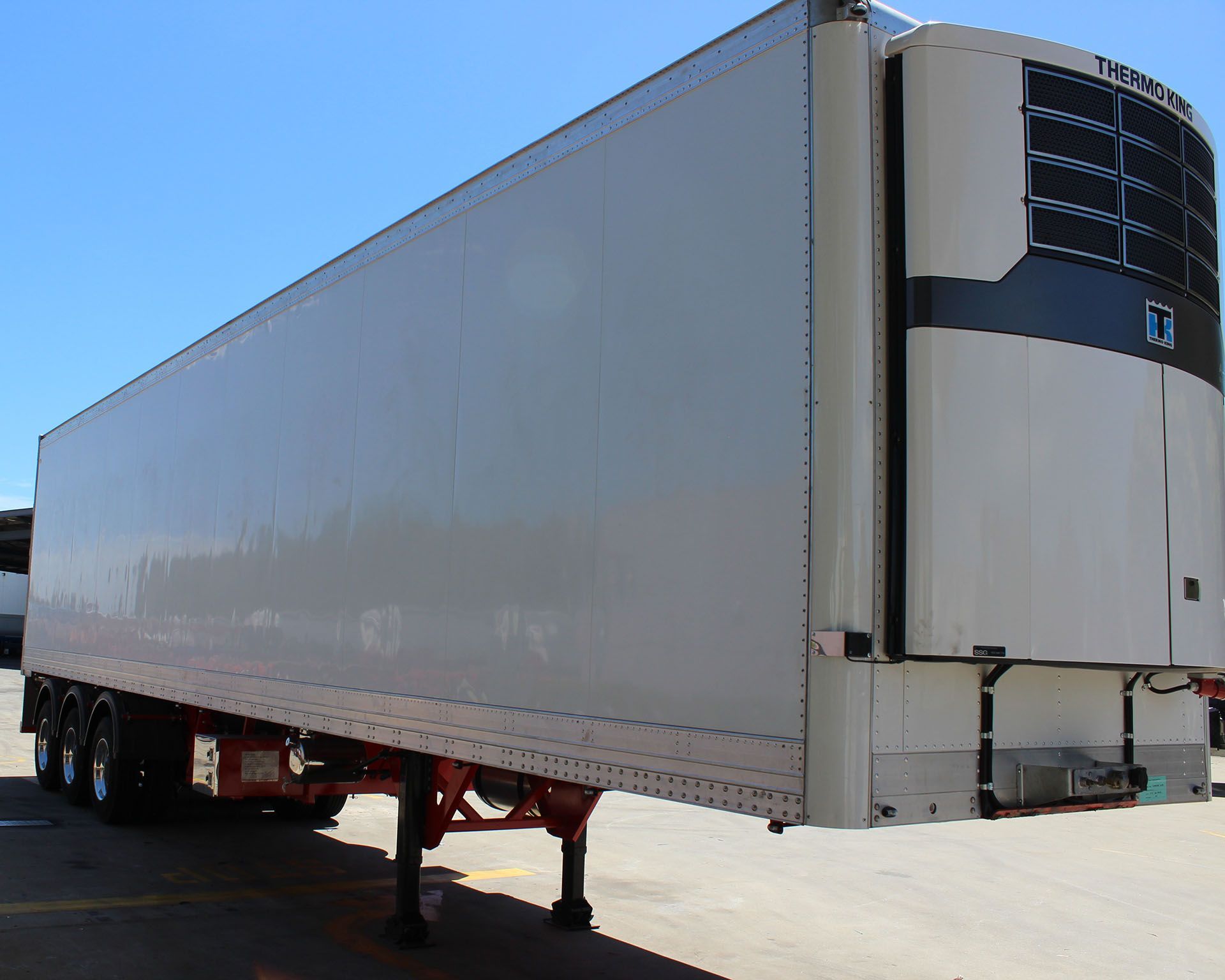

Purpose-built for heavy schedules and temperature-sensitive freight, this 22-pallet flat top refrigerated trailer delivers both high payload capacity and reliable climate control. With a 47-tonne ATM, approximately 9.3-tonne tare, and a 13.72m deck length, it’s a workhorse for hauling everything from fresh produce to frozen goods, whether running regional distribution, Melbourne metro deliveries, or long-haul interstate freight. The Thermo King unit can be set up in single or dual-zone mode, making it ideal for mixed-temperature loads.


A high-tensile steel chassis, insulated aluminium panel walls, and heavy-duty extruded aluminium duct floor safeguard cargo integrity while ensuring long-term durability. K-Hitch tri-axle airbag suspension, 22.5” drum brake axles, and a multi-volt EBS braking system keep it stable and compliant across city traffic, regional routes, and Australia’s busiest freight corridors.


Standard features include pallet loading bars for double-stacking, LED lighting, a stainless steel water tank, and toolboxes. For more specialised freight tasks, optional upgrades are available, giving operators the flexibility to keep loads moving efficiently across Victoria and nationwide.

Backed by 12-Month Warranty

47T

ATM

23.5T

GTM

13.72m

Length

SPECIFICATIONS

Category Details
ruler with arrow

Dimensions & Capacity

ATM: 47T

GTM: 23.5T

Tare Weight: Approx. 9.3T

Total Length: 13.72m
steel beam

Construction & Frame

Mainframe: High-tensile steel grade

Floor: HD Extruded Duct Aluminium Floor

Walls: Aluminium Panel with Polvurethane Insulation

Side Wall Insulation: 45mm

Roof, Floor, Front Wall Insulation: 100mm

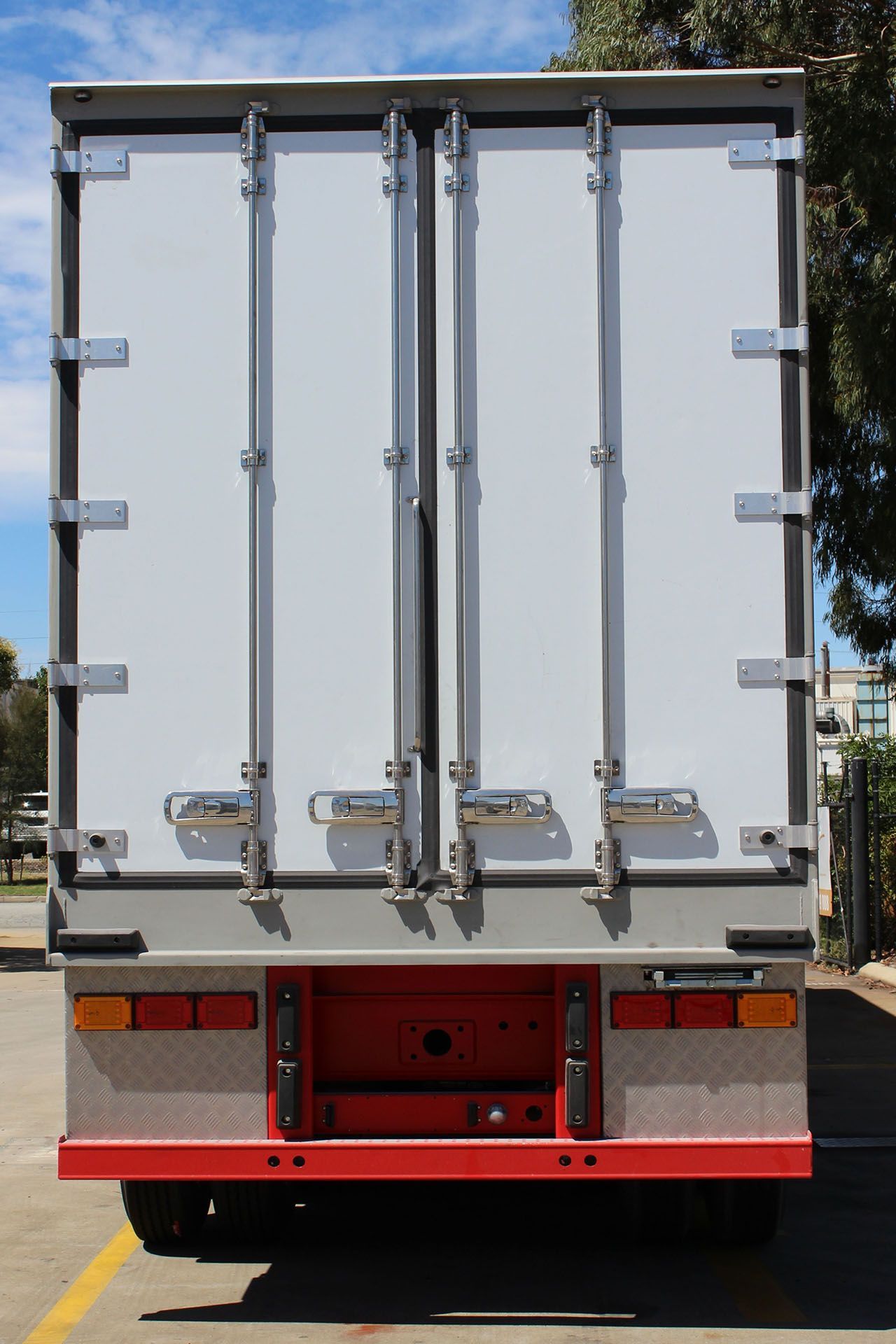

Rear Door Insulation: 76mm

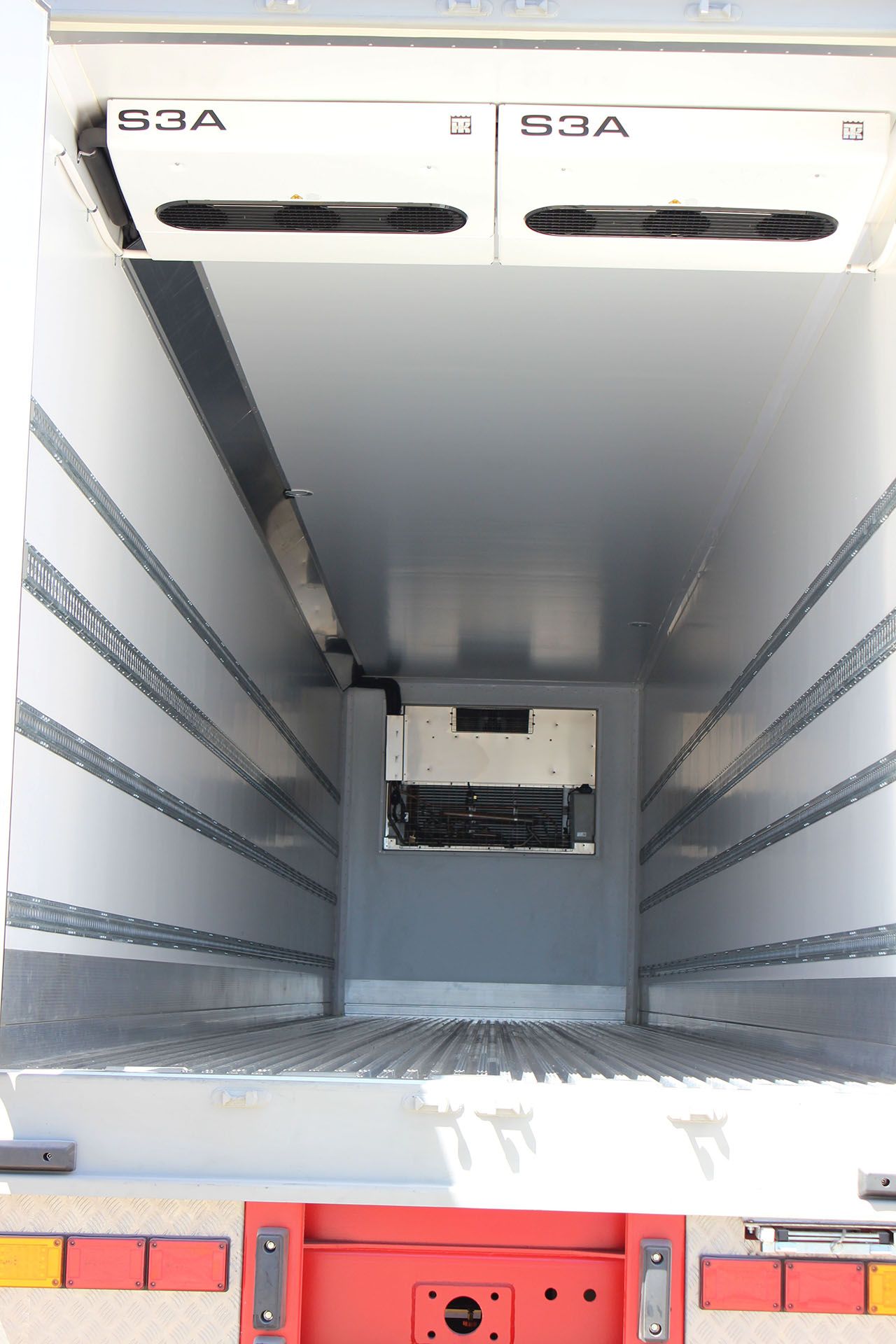

Loading Bars: Loading bars for double stacking pallets

Kingpin: Dual-position 50mm bolt-in (90mm optional)
shaft

Axles, Suspension & Braking

Axles: K-Hitch 22.5” drum brake axles

Suspension: K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)

Landing Legs: K-Hitch 2-speed

Brake Kit: EBS multi-volt 12/24V

Spare Wheel Carrier: Dual (spare wheels optional)
wheel

Wheels & Tyres

Wheels: 10/285 PCD dual steel rims (aluminium optional)

Tyres: 11R22.5
electric sign

Electrical, Lighting & Safety

Lighting: Full LED

Mudguards: Plastic radius guards with AAA Trailers mudflaps, quarter guards front and rear
snowflake

Refrigeration Unit

Refrigerated Unit: Thermo King Unit of Choice

Configuration: Single Zone/Dual Zone
magnifying glass with letter 'i' on it

Onboard Equiptment

Toolboxes: Steel with stainless steel “T” handles for storing loading bars

Water Tank: 30L stainless steel
document wtih gear and pen

Optional Extras

Road train bracket, coupling, air and electrical

Get Your Flat Deck Trailer in Melbourne Today

Tell us what you need to haul and we’ll match you with the right flat deck trailer in Melbourne. Our team makes the process easy with friendly service and no-nonsense advice.

What They Say About Our Truck Trailers

Why Choose AAA Trailers for Your Refrigerated Trailer in Melbourne?

Maximum Cooling Performance

Polyurethane-insulated walls, roof, floor, and doors maintain consistent temperatures.

Durable Build

High-tensile steel frame and heavy-duty aluminium flooring for strength and longevity.

Loading Flexibility

Fitted with loading bars for double stacking and efficient pallet handling.

Unit Compatibility

Compatible with Thermo King single or dual-zone refrigeration systems.

Operator Ready

Equipped with K-Hitch running gear, EBS brakes, LED lighting, toolboxes, and water tanks.

Frequently Asked Questions

  • Are the trailers new or used?

    All Flat Top Refrigerated Trailer – 22 Pallet units are supplied as brand-new builds, never reconditioned or previously owned. Each trailer goes through a detailed build process, complete inspection, and road test to confirm it’s ready for immediate use in your fleet.

  • Do you offer financing options for truck trailers?

    Yes. We offer flexible and competitive finance options for the Flat Top Refrigerated Trailer – 22 Pallet, making it easier to secure the right trailer without tying up working capital. You can also have your preferred broker assess the trailer before finalising the purchase.

  • Can I customise the specifications of the trailers I order?

    Yes. You can choose your preferred paint finish at no extra cost and add from a selection of optional features to match your freight requirements. Please note that custom-built units will require longer lead times than stock trailers ready for dispatch.

  • Do you have a warranty policy for your truck trailers?

    Every Flat Top Refrigerated Trailer – 22 Pallet is covered by a 12-month warranty against defects in materials or workmanship under standard operating conditions. If a fault occurs, we arrange swift repairs or part replacements to keep you operational.

  • What are the delivery times for ordered trailers?

    Some Flat Top Refrigerated Trailer – 22 Pallet models may be available for fast delivery across Melbourne, throughout Victoria, and nationwide. Where a new build is required, the average lead time is up to three months from deposit payment.

  • Do you provide after-sales service and support?

    Yes. We offer ongoing after-sales assistance, including operational advice, technical support, and servicing coordination to keep your Flat Top Refrigerated Trailer – 22 Pallet working at peak performance on freight runs throughout Victoria and across Australia.
