Curtainsider Trailers in Adelaide

Curtainsider trailers (also known as tautliners) feature retractable curtain sides that slide open for quick forklift loading and unloading from either side of the trailer. Unlike rigid-sided trailers, the polyweld load restraint curtains can be pulled back completely, giving you full-width access to your freight without needing to load from the rear only. This makes them ideal for busy freight and logistics operations where speed and efficiency matter. AAA Trailers offers curtainsider trailers for sale in Adelaide with various deck configurations to suit different freight requirements.

AAA Trailers supplies a complete range of curtainsider trailers for sale in Adelaide, including:

Straight Deck Models:

• 12-Pallet Lead (A) Trailer (11.7m) - 7.3T tare, ideal for A-double and B-double lead applications
• 22-Pallet B-Trailer (13.8m) - 8.6T tare, our most popular configuration for general linehaul

Drop Deck Models:

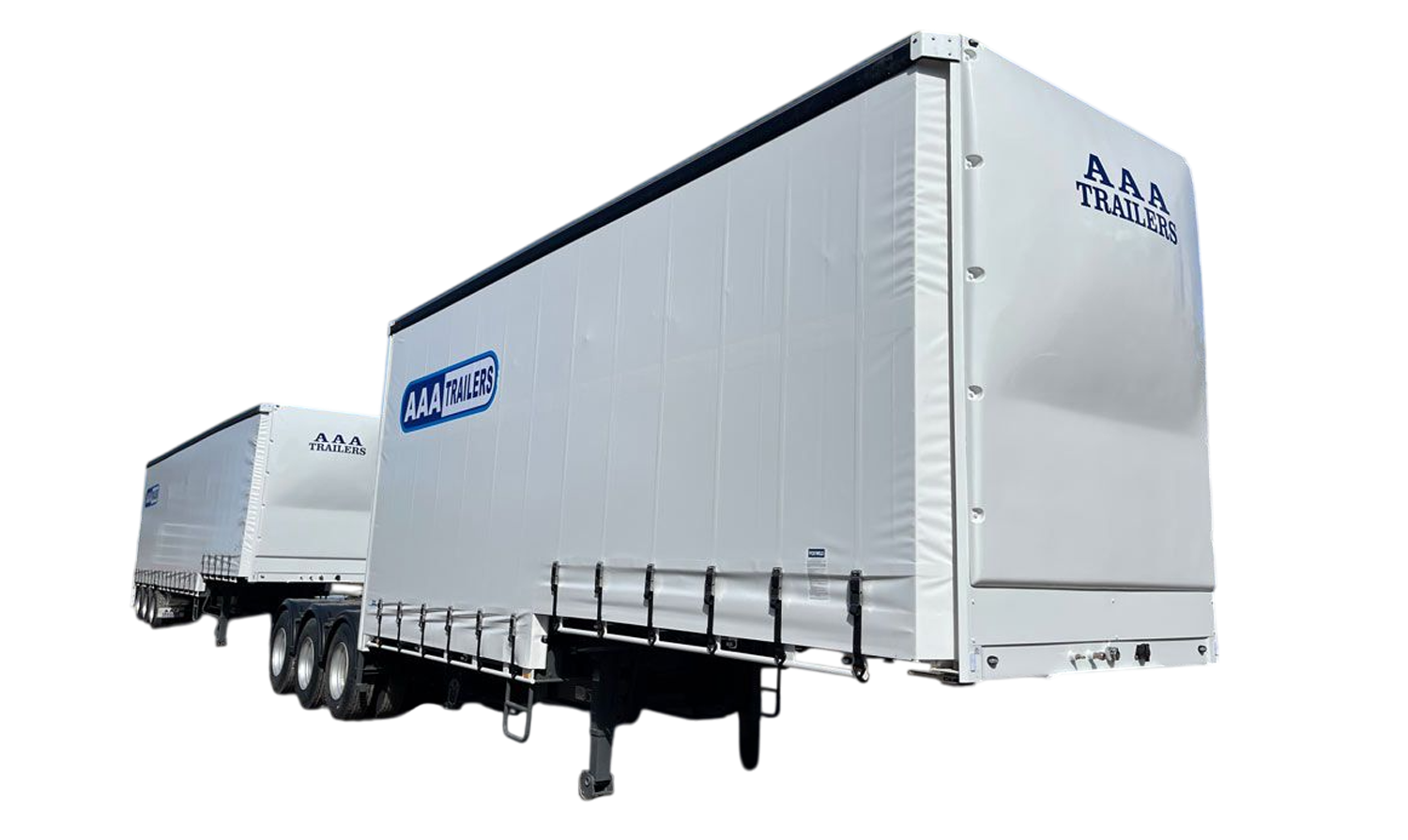

• Drop Deck 12-Pallet Lead (A) Trailer (11.7m) - 8.9T tare, provides extra clearance for varied freight
• Drop Deck 22-Pallet B-Trailer (13.8m) - 10.5T tare, high-capacity workhorse

Drop Deck with Rolling Posts & Removable Uprights:

• Lead (A) Trailer with Rolling Posts (11.7m) - 8.9T tare, fastest side access
• Double Drop Deck B-Trailer with Rolling Posts (13.8m) - 10.5T tare, maximum flexibility for mixed and oversized freight

All models feature 47T ATM, 23.5T GTM, high-tensile steel construction, and forklift-rated chequer plate floors.

The key difference is deck height and freight clearance:

Straight Deck Curtainsiders:

• Standard deck height throughout
• Lighter tare weight (7.3T to 8.6T)
• Best for standard palletised freight
• Easier to load with standard forklifts
• More payload capacity due to lighter construction

Drop Deck Curtainsiders:

• Lowered deck design
• Heavier tare (8.9T to 10.5T)
• Extra vertical clearance for taller or oversized freight
• Better for mixed loads with varying heights
• Improved stability with lower centre of gravity

Choose straight deck for standard pallet work and maximum payload. Choose drop deck when you need extra clearance or regularly handle mixed freight heights.

Rolling posts and removable uprights are advanced loading features available on select AAA curtainsider models:

Rolling Curtain Posts:

• Curtain posts mounted on tracks that slide along the trailer length
• Allows curtains to be moved completely out of the loading zone
• Provides unobstructed side access for forklifts and cranes
• Speeds up loading and unloading significantly

Removable Uprights:

• Vertical support posts that can be completely removed
• Creates a fully open-sided trailer when needed
• Perfect for oversize freight, machinery, or awkward loads
• Reinstall when you need the structure for standard curtain operation

These features are particularly valuable for operators handling mixed freight types or working to tight delivery windows where speed matters.

Curtainsider trailers are versatile workhorses suitable for:

• Palletised general freight and FMCG
• Building materials and construction supplies
• Retail goods and consumer products
• White goods and furniture
• Agricultural products and rural freight
• Industrial equipment and machinery
• Mixed loads requiring multiple drop points
• Temperature-stable goods (non-refrigerated)

The quick side access makes them ideal for multi-drop delivery routes across Adelaide metro, regional SA, and interstate corridors where you need to load and unload efficiently at multiple locations.

All AAA curtainsider models have:

• ATM: 47 tonnes
• GTM: 23.5 tonnes

Approximate payload varies by configuration:

• Straight Deck 12-pallet: ~7.3T tare = ~16.2T payload
• Straight Deck 22-pallet: ~8.6T tare = ~14.9T payload
• Drop Deck 12-pallet: ~8.9T tare = ~14.6T payload
• Drop Deck 22-pallet: ~10.5T tare = ~13T payload
• Drop Deck with Rolling Posts (Lead): ~8.9T tare = ~14.6T payload
• Double Drop Deck with Rolling Posts (B): ~10.5T tare = ~13T payload

Actual payload depends on your specific configuration, optional extras, and compliance with state-based mass limits.

All AAA curtainsider trailers feature:

• Suspension: K-Hitch tri-axle airbag suspension (FUWA FW520 8-leaf spring optional on some models)
• Axles: K-Hitch 22.5" drum brake axles
• Brakes: EBS multi-volt 12/24V braking system
• Tyres: 11R22.5 or 255/70R22.5 (model dependent) on 10/285 PCD dual steel rims
• Wheels: Steel rims standard (aluminium optional upgrade)

This combination delivers smooth handling, predictable tracking, and reliable braking performance whether you're running Adelaide metro routes, regional SA hauls, or interstate linehaul.

Standard inclusions on all AAA curtainsider models:

• High-tensile steel mainframe
• 5mm forklift-rated steel chequer plate floor
• Polyweld load restraint curtains (single base colour)
• C-channel coaming with tie rail
• Side gate pockets with hanging aluminium side gates
• K-Hitch 2-speed landing legs
• Dual-position 50mm bolt-in kingpin (on B-trailers; 90mm optional)
• EBS multi-volt 12/24V braking system
• Full LED lighting package
• 30L stainless steel water tank
• Steel toolboxes with stainless steel "T" handles (1-2 depending on model)
• Plastic radius guards with AAA Trailers mudflaps
• Spare wheel carrier(s) (spare wheels optional)

Yes. While standard curtainsiders come with single base colour polyweld load restraint curtains, AAA Trailers offers custom curtain options including:

• Custom colours to match your fleet branding
• Company logos and graphics
• Signwriting and promotional messaging

High-visibility or reflective options

Custom curtain work is quoted separately based on your specific requirements. This is a popular option for fleet operators wanting to maintain consistent branding across their Adelaide and interstate operations.

Absolutely. Most AAA curtainsider models can be fitted with optional road train kits, which include:

• Road train coupling hardware
• Air and electrical connections
• Ring feeder (on select models)
• Road train / long vehicle signage

This makes them suitable for B-double, A-double, and road train operations commonly used for long-haul freight work across South Australia and interstate routes. The 12-pallet lead (A) models are specifically designed for lead trailer applications in multi-combination setups.

Available optional upgrades include:

• Road train kit (coupling, air, electrical)
• Ring feeder
• Custom paint on coaming rails
• Custom curtains with graphics (quoted separately)
• Road train / long vehicle signage
• Hard-wired flashing beacon
• Hub odometer
• Spare wheels (steel or alloy)
• Aluminium wheels (upgrade from steel)
• 90mm kingpin upgrade

Our Adelaide team at 10 Millers Road, Wingfield can help you select the right options based on your freight type, routes, and operational requirements.

Consider these factors:

12-Pallet Lead (A) Trailer if you're:

• Running multi-combination setups (A-double, B-double)
• Need a dedicated lead trailer
• Working shorter metro or regional routes
• Want lower tare weight for better payload
• Operating in tighter urban delivery zones

22-Pallet B-Trailer if you're:

• Running full-size linehaul operations
• Need maximum pallet capacity
• Hauling interstate or long regional routes regularly
• Operating single trailer or as rear in combinations
• Moving high-volume freight between distribution centres

Both configurations can be fitted with road train kits, but the 12-pallet models are optimised for lead trailer duties in multi-trailer combinations.

Curtainsiders offer several advantages:

• Loading speed: Side access means faster forklift loading/unloading
• Flexibility: Can access freight from either side, not just the rear
• Multi-drop efficiency: Perfect for routes with multiple delivery points
• Load visibility: Easy to inspect cargo without unloading
• Versatility: Handle both standard pallets and irregular loads
• Weight: Generally lighter tare than fully panelled trailers
• Weather protection: Curtains still protect freight while offering access

For Adelaide freight operators running multi-drop routes or handling varied freight types, curtainsiders typically deliver better productivity than rigid-sided alternatives.

Yes. All AAA curtainsider trailers are manufactured using steel approved by Australian Standards and are fully compliant with Australian Design Rules (ADR). They're built to meet the demands of Australian transport operators and road conditions, from Adelaide metro work to harsh outback and interstate environments.

Every AAA curtainsider trailer is backed by our comprehensive 12-month warranty, covering defects and faulty workmanship under normal use and maintenance. During the warranty period, AAA Trailers will repair or replace any defective products or parts at no cost to you, giving you peace of mind from day one of operation.

Getting a quote is straightforward:

• Call our Adelaide team on 1300 333 888
• Visit us at 10 Millers Road, Wingfield SA 5013
• Complete the "Get A Quote" form on our website

Our team will discuss your freight types, typical routes, pallet capacity needs, and any specific requirements (like road train kits or custom curtains) to recommend the right curtainsider configuration for your operation.
