Tag Trailers

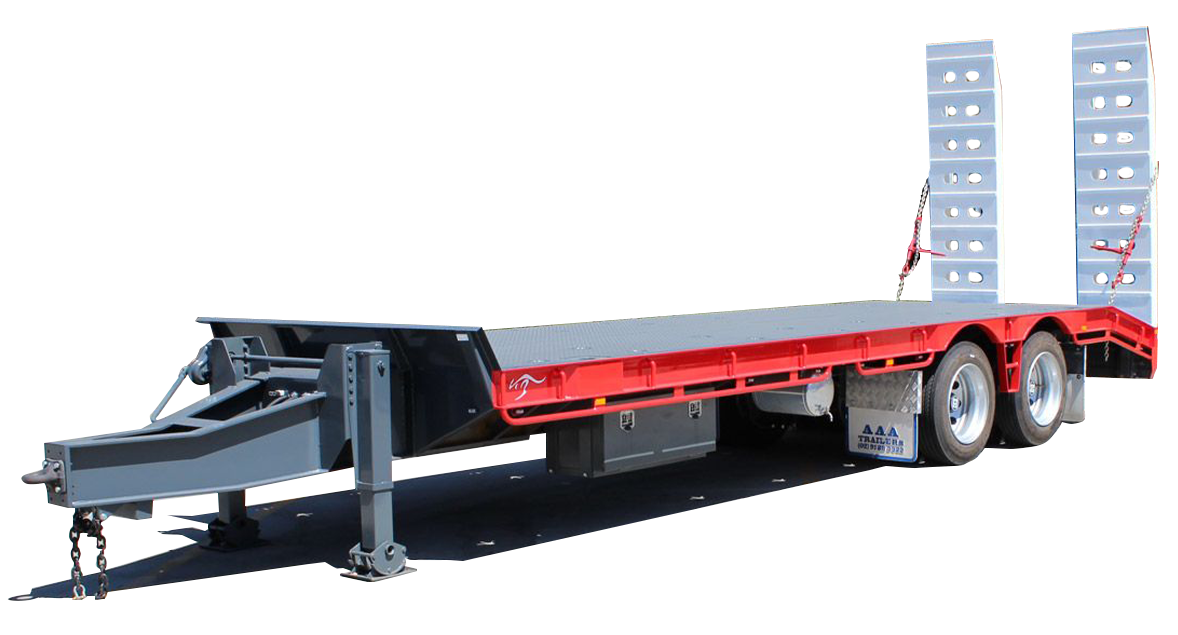

AAA TRAILERS - TANDEM AXLE TAG TRAILER
| Specifications | Details |
|---|---|
| Capacity |
ATM: 24T GTM: 16.5T Approx tare weight: 5.9T |
| Length |
10.4m Overall 8.2m Deck |
| Mainframe | High-tensile steel grade |
| Floor | 5mm steel chequer plate, forklift-rated |
| Coupling |
Pintle hook |
| Coaming | C-channel with tie rail |
| Tie-down points |
Integrated into the floor |
| Brake kit | EBS multi-volt 12/24V |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch tri-axle FUWA FW520 8-leaf spring |
| Landing legs | K-Hitch 2-speed |
| Wheels | 10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 255/70R22.5 |
| Spare wheel carrier | Single (spare wheel optional) |
| Lighting |
Full LED |
| Toolboxes |
2 steel with stainless steel “T” handles |
| Mudguards |
Alloy quarter guards front and rear with AAA Trailers mudflaps |
| Ramps |
Bi-fold with 12V electric power pack, N150 battery, and built-in Anderson plug |
| Optional Extras |
|

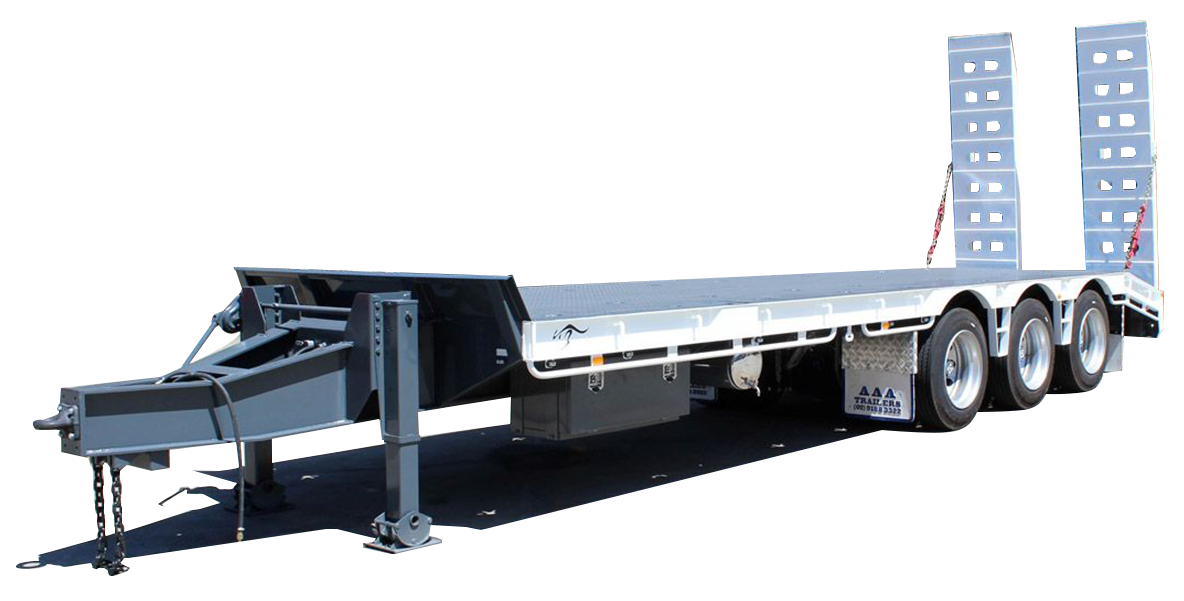

AAA TRAILERS - TRI AXLE TAG TRAILER
| Specifications | Details |
|---|---|
| Capacity |
ATM: 28T GTM: 20T Approx tare weight: 7T |
| Length |
10.9m Overall 8.74m Deck |
| Mainframe | High-tensile steel grade |
| Floor | 5mm steel chequer plate, forklift-rated |
| Coupling | Pintle hook |
| Coaming | C-channel with tie rail |
| Tie-down points | Integrated into the floor |
| Brake kit | EBS multi-volt 12/24V |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch tri-axle FUWA FW520 8-leaf spring |
| Landing legs |
K-Hitch 2-speed |
| Wheels |
10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 255/70R22.5 |
| Spare wheel carrier |
Single (spare wheel optional) |
| Lighting | Full LED |
| Toolboxes | 2 steel with stainless steel “T” handles |
| Mudguards |
Alloy quarter guards front and rear with AAA Trailers mudflaps |
| Ramps | Bi-fold with 12V electric power pack, N150 battery, and built-in Anderson plug (lay-flat ramps optional) |
| Optional Extras |
|
