Side Tipper Trailers in Adelaide

Side tipper trailers are bulk haulage trailers that discharge their load by tipping sideways rather than lifting from the rear. They use hydraulic rams to tilt the entire bowl to one side, allowing quick unloading of bulk materials like grain, sand, gravel, ore, coal, and aggregates. The side-tipping action provides fast, controlled discharge and eliminates the need to reverse into specific positions, making them ideal for quarries, mines, construction sites, and agricultural operations. Side tippers are particularly popular in Australia for their efficiency in handling high-volume bulk freight across varied terrain and conditions.

AAA Trailers supplies side tipper trailers for sale in Adelaide across multiple configurations:

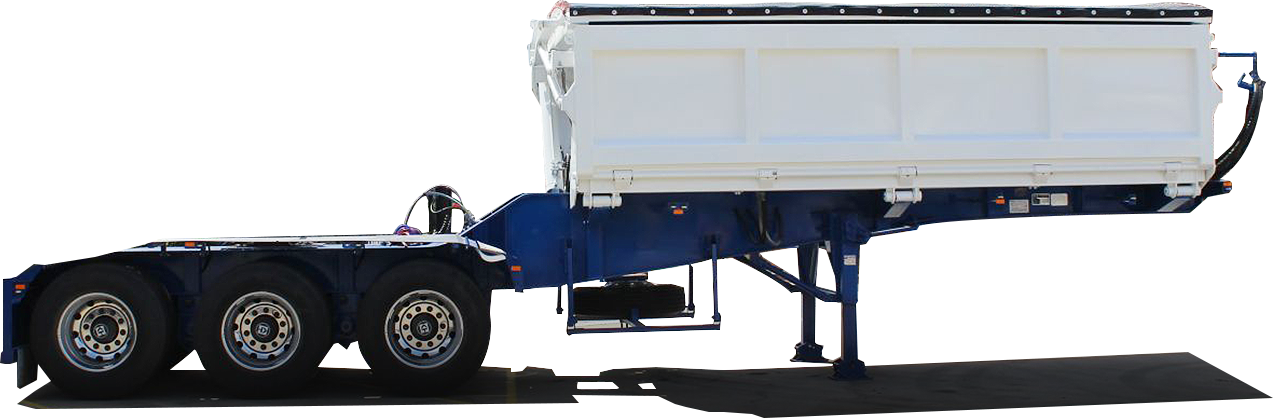

Lead (A) Trailer - 5m Bowl:

• Hydraulic lid version (9T tare) or electric roll tarp version (8.8T tare)
• Compact design for lead trailer applications
• Ideal for road train and B-double configurations

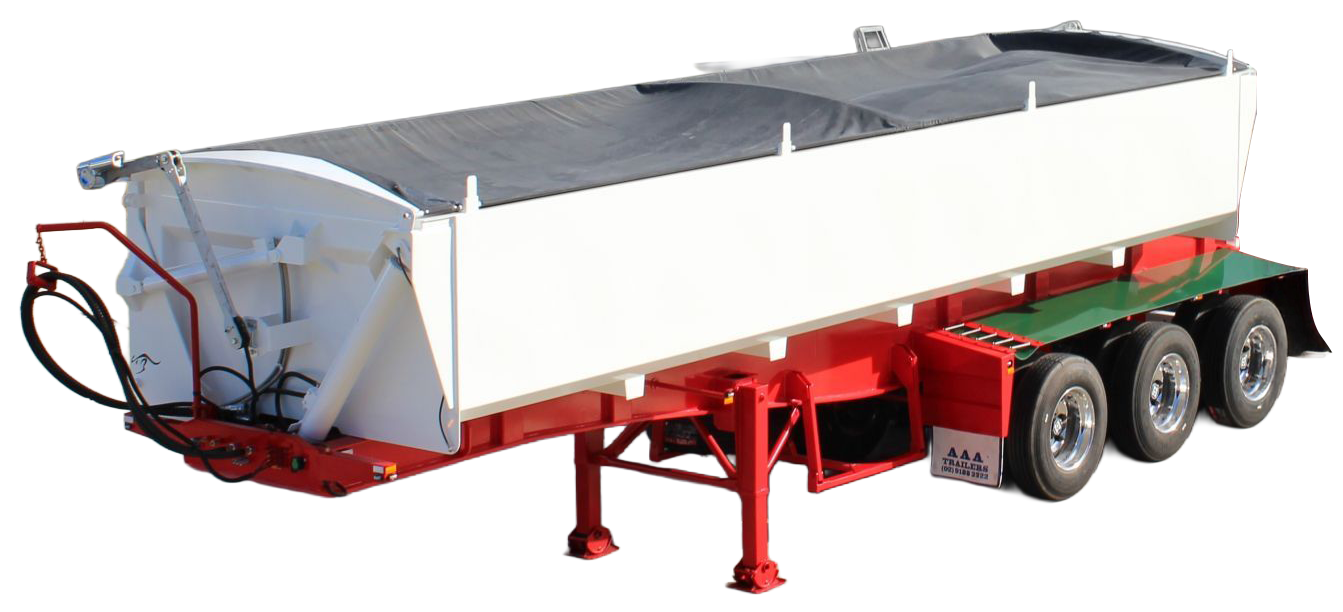

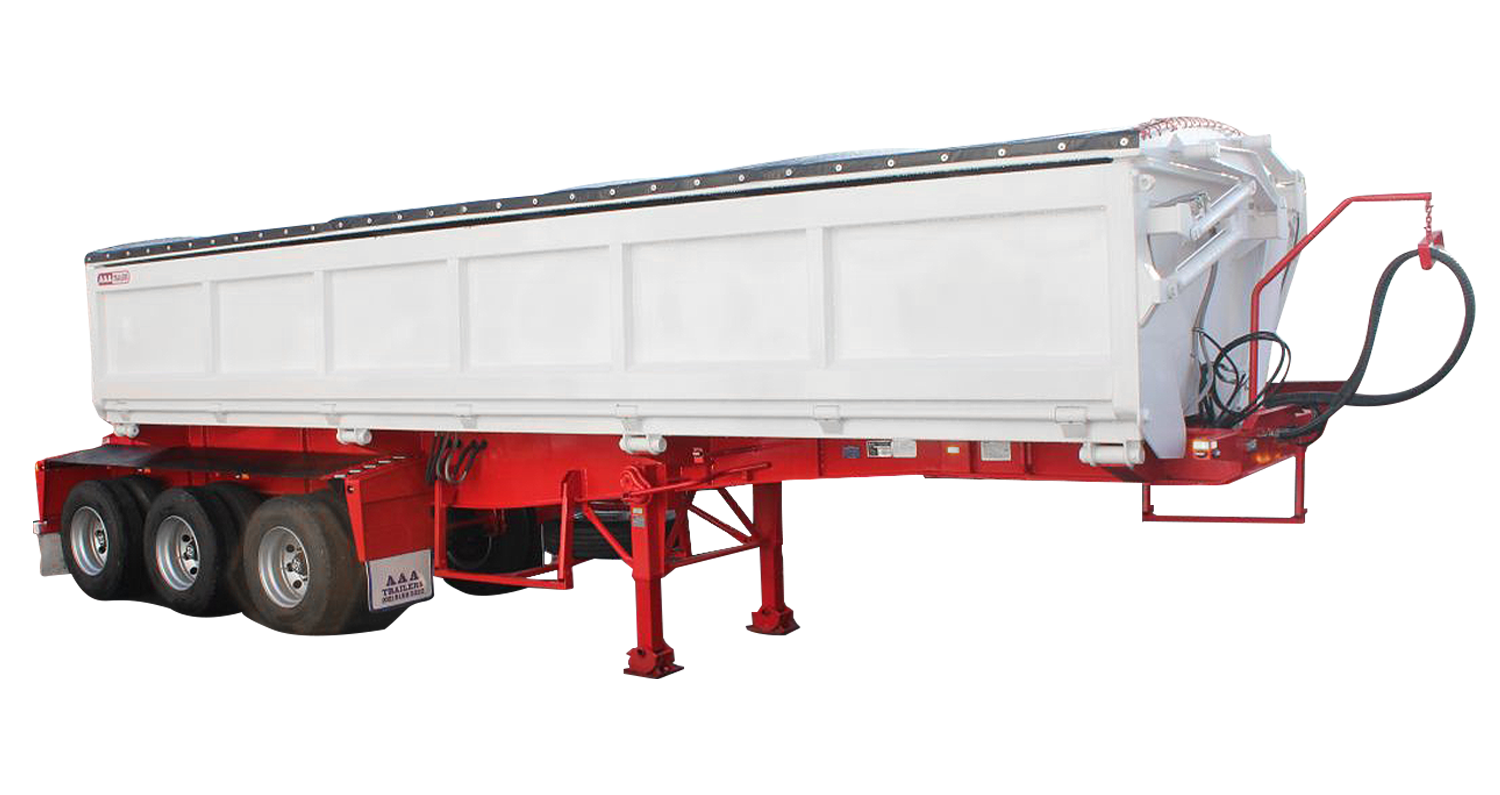

Standard 9.75m - 8m Bowl:

• Hydraulic lid version (9.9T tare) or electric roll tarp version (9.8T tare)
• Mid-size workhorse for general bulk haulage
• Balanced capacity and manoeuvrability

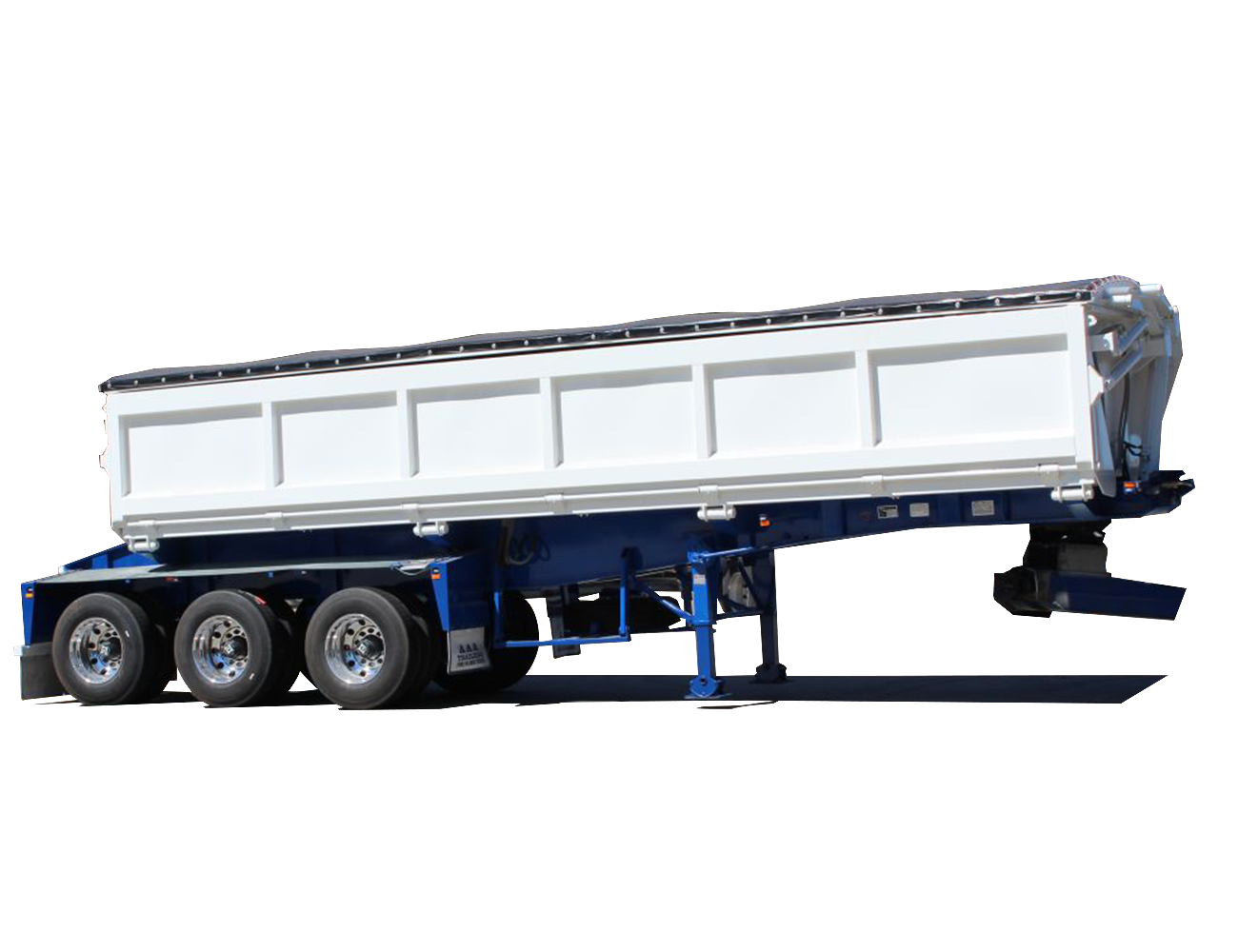

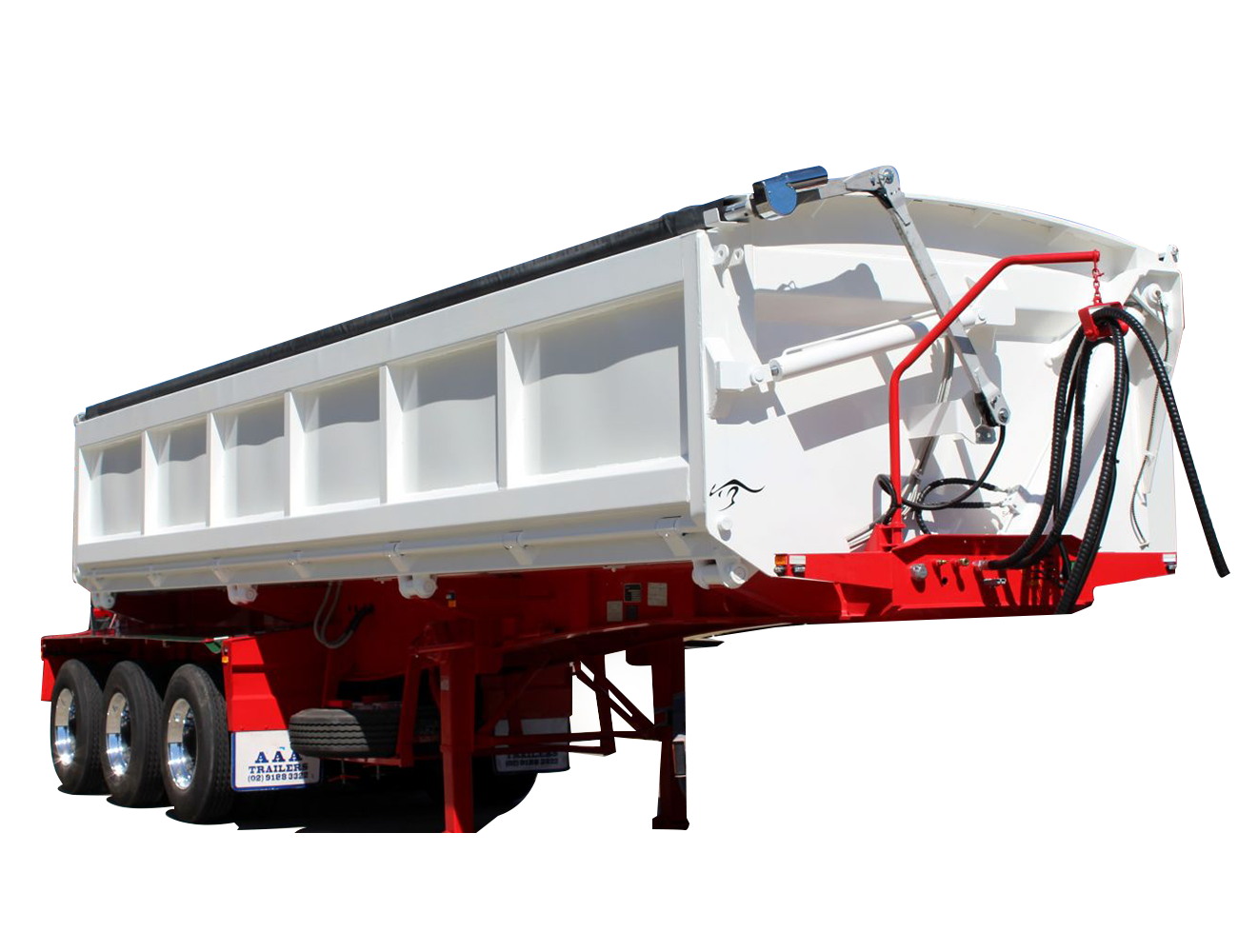

Extended 10.29m - 8.5m Bowl:

• Hydraulic lid version (10.3T tare) or electric roll tarp version (10.1T tare)
• Maximum bowl capacity for heavy-volume work
• Best for operators prioritising payload per trip

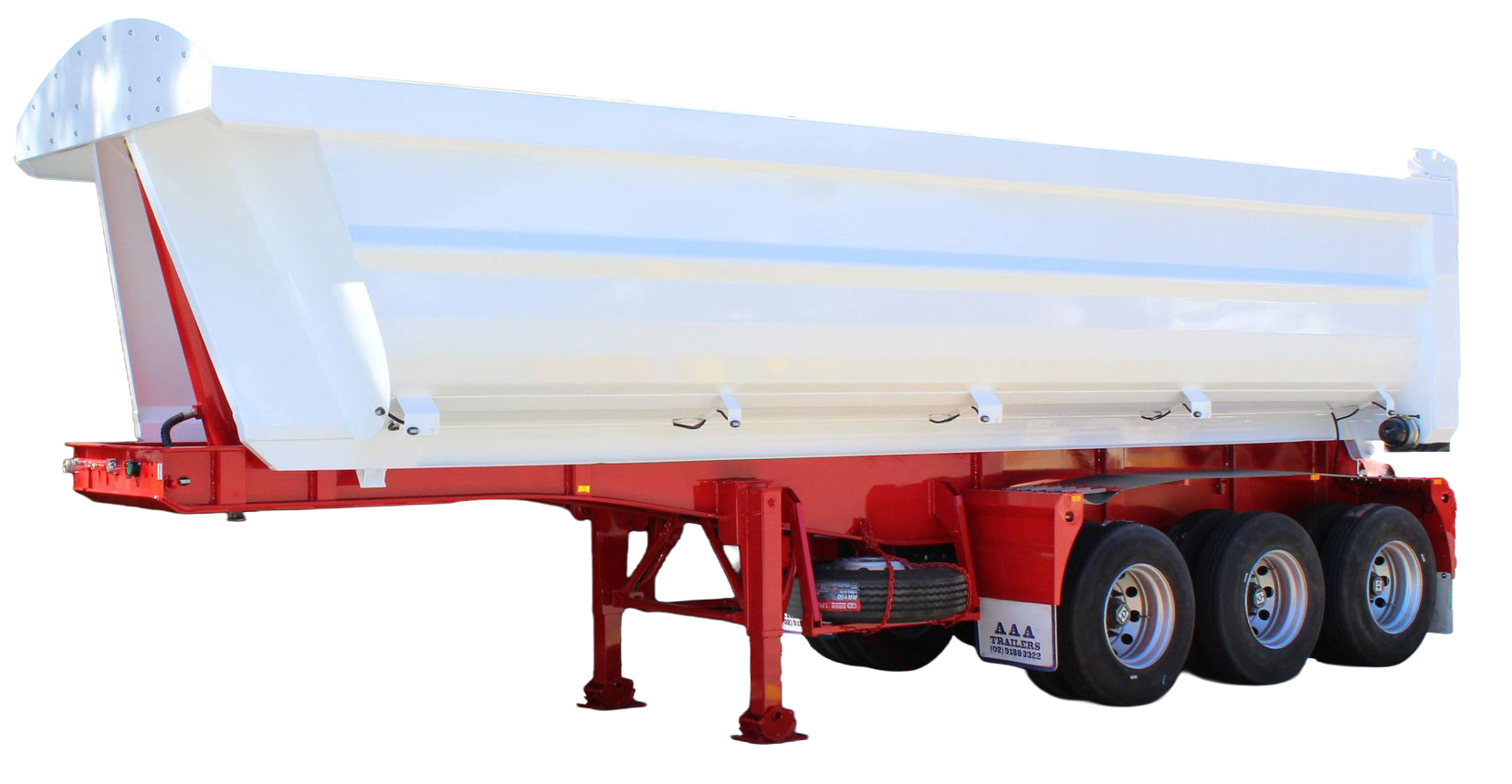

End Tipper - 8.5m Bowl:

• Rear-discharge alternative (8.7T tare)
• Lightest tare weight for maximum payload
• Optional electric roll tarp available

All models share 47T ATM, 23.5T GTM, and 450-grade steel construction.

Hydraulic Lid:

• Fully sealed, weather-tight enclosure
• Remote operation from in-cab
• Superior load security and dust containment
• Heavier construction (slightly higher tare)
• Best for weather-sensitive loads like grain

Electric Roll Tarp:

• Side-to-side covering with remote operation
• Faster to open and close
• Lighter weight for better payload
• Lower initial cost
• Ideal when speed matters more than full sealing

Both systems eliminate manual tarp handling and improve workplace safety by keeping operators on the ground.

Side tippers handle diverse bulk materials:

• Grain (wheat, barley, canola, oats)
• Quarry products (sand, gravel, crushed rock)
• Mining materials (ore, coal, overburden)
• Construction aggregates
• Fertiliser and agricultural products
• Woodchips and biomass
• Recycled materials
• Salt and minerals
• Any free-flowing bulk product

The 450-grade steel construction with 6mm floors withstands abrasive materials, while side tipper trailers for sale in Adelaide are particularly popular in grain haulage, mining, and quarry work across South Australia.

AAA offers three bowl lengths:

5m Bowl (Lead A Trailer):

• Compact design for multi-combination use
• Better weight distribution in road trains
• Ideal as lead trailer in B-doubles

8m Bowl (9.75m Overall):

• Standard size for most bulk haulage
• Good balance of capacity and manoeuvrability
• Popular for grain and quarry work

8.5m Bowl (10.29m Overall & End Tipper):

• Maximum volumetric capacity
• Best for light, bulky materials
• Optimises revenue per trip

Choose based on your typical materials, density of loads, and whether you're running single or multi-combination.

With 47T ATM and 23.5T GTM, payload varies by configuration:

• Lead (A) with Electric Tarp: ~8.8T tare = ~14.7T payload
• Lead (A) with Hydraulic Lid: ~9T tare = ~14.5T payload
• 9.75m with Electric Tarp: ~9.8T tare = ~13.7T payload
• 9.75m with Hydraulic Lid: ~9.9T tare = ~13.6T payload
• 10.29m with Electric Tarp: ~10.1T tare = ~13.4T payload
• 10.29m with Hydraulic Lid: ~10.3T tare = ~13.2T payload
• End Tipper: ~8.7T tare = ~14.8T payload

The end tipper offers the best payload due to its lighter construction, while hydraulic lid models trade slight weight for superior load containment.

Side Tippers:

• Discharge by tipping sideways
• Don't need to reverse to specific position
• Faster unloading in most situations
• Better for sites with limited access
• More common in Australian bulk haulage

End Tippers:

• Discharge by lifting rear (like a dump truck)
• Lighter tare weight (~8.7T vs 9-10T)
• Better payload capacity
• Require clear rear access for tipping
• Suitable when unloading zone allows rear discharge
• Adelaide operators choose based on typical unloading sites, materials handled, and whether maximum payload or operational flexibility matters more.

All AAA side tipper and end tipper trailers feature 450-grade high-strength steel:

Bowl Construction:

• Floor: 6mm (side tippers) or 5mm wear-resistant (end tipper)
• Door/rear panel: 6mm
• Side panels: 4mm full-height
• Front/rear ends: 6mm
• Skid plate: 12mm (some models)

This 450-grade specification provides excellent abrasion resistance for handling aggregates, ore, and other abrasive materials while maintaining structural integrity through thousands of tipping cycles.

All AAA side tipper models feature:

• Suspension: K-Hitch FUWA FW520 8-leaf spring (airbag optional)
• Axles: K-Hitch 22.5" drum brake axles
• Brakes: EBS multi-volt 12/24V braking system (most models)
• Tyres: 11R22.5 on 10/285 PCD dual rims
• Rims: Steel standard (aluminium optional)
• Landing legs: K-Hitch 2-speed

The 8-leaf spring suspension is specifically chosen for bulk haulage, providing robust performance under heavy, shifting loads across rough quarry access roads and agricultural tracks.

Yes. All AAA side tipper models can be fitted with road train equipment and signage. The Lead (A) 5m bowl model is specifically designed for multi-combination use as a lead trailer in:

• B-double configurations
• A-double setups
• Road train combinations

This makes them ideal for Adelaide operators running grain or minerals to port, or mining operations requiring maximum payload across long distances in South Australia's outback regions.

Standard inclusions across the range:

• 450-grade steel bowl construction
• K-Hitch FUWA FW520 8-leaf spring suspension
• K-Hitch 22.5" drum brake axles
• EBS multi-volt 12/24V braking (most models)
• K-Hitch 2-speed landing legs
• 50mm bolt-in kingpin (90mm optional)
• Full LED lighting package
• Either hydraulic lid or electric roll tarp system (model dependent)
• 10/285 PCD dual steel rims (aluminium optional)
• 11R22.5 tyres

The choice between hydraulic lid and electric tarp is made at purchase based on your operational requirements.

Available optional upgrades include:

• Hub odometer for tracking and maintenance scheduling
• Road train / long vehicle signage
• Spare wheels (steel or alloy)
• Aluminium wheels (upgrade from steel rims)
• 90mm kingpin upgrade
• Airbag suspension (upgrade from spring)
• Electric roll tarp (end tipper only)

Our Adelaide team at 10 Millers Road, Wingfield can help you select options based on your typical loads, routes, and operational requirements.

Consider your operational needs:

• 5m Bowl Lead (A): Multi-combination work, road trains, B-doubles
• 9.75m Standard: General bulk haulage, balanced capacity and handling
• 10.29m Extended: Maximum volume, light bulky materials, revenue optimisation
• End Tipper: Maximum payload priority, suitable rear-discharge sites

Then decide between hydraulic lid (weather protection, sealed loads) or electric tarp (speed, lighter weight, lower cost).

Side tippers serve multiple sectors across Adelaide and South Australia:

• Agriculture: Grain haulage from farms to silos or ports
• Mining: Ore, coal, and overburden transport
• Quarrying: Sand, gravel, crushed rock delivery
• Construction: Aggregate supply to building sites
• Road construction: Base materials and asphalt aggregates
• Recycling: Bulk recyclable materials
• Fertiliser distribution: Agricultural inputs
• Manufacturing: Bulk raw material delivery

Any operation moving high-volume bulk materials benefits from side tippers' efficient loading and rapid discharge capabilities.

Side tippers use hydraulic rams mounted beneath the bowl to tilt the entire body sideways (typically to the driver's side). The process:

• Operator positions trailer in discharge area
• Hydraulic system engages from truck power
• Bowl tilts 45-50 degrees
• Material flows out by gravity
• Bowl returns to horizontal position
• Ready to move in seconds

This is faster than reversing end tippers into position and allows unloading in confined spaces where rear access isn't available.

Absolutely. Side tippers are extremely popular for grain transport in South Australia. Benefits for grain work include:

• Hydraulic lid models provide weather protection
• Quick discharge at receival points
• Suitable for farm-to-silo and silo-to-port work
• Road train capability for long-haul efficiency
• 450-grade steel resists grain's mild abrasiveness
• Fast turnaround during harvest season

Adelaide operators servicing SA's grain belt rely heavily on side tippers for their efficiency during critical harvest periods.

Yes. All AAA side tipper and end tipper trailers are manufactured using steel approved by Australian Standards and comply with Australian Design Rules (ADR). They meet Heavy Vehicle National Law (HVNL) requirements and are suitable for operation across all Australian states and territories.

Every AAA side tipper trailer is backed by our comprehensive 12-month warranty covering defects and faulty workmanship under normal use and maintenance. During the warranty period, AAA Trailers will repair or replace any defective products or parts at no cost to you.

8-Leaf Spring (Standard):

• More robust for extreme bulk haulage
• Better for rough quarry and mine site access
• Lower maintenance requirements
• Proven reliability in harsh conditions
• Standard fitment on all models

Airbag (Optional Upgrade):

• Smoother ride quality
• Better for sealed road work
• Adjustable for varying loads
• Preferred for grain haulage
• Available as optional upgrade

Adelaide operators in mining and quarrying typically choose spring; grain hauliers often prefer airbag.

Getting a quote is straightforward:

• Call our Adelaide team on 1300 333 888
• Visit us at 10 Millers Road, Wingfield SA 5013
• Complete the "Get A Quote" form on our website

Our team will discuss your typical materials, bowl size requirements, whether you need hydraulic lid or electric tarp, and any road train considerations to recommend the right side tipper configuration for your bulk haulage operation.
