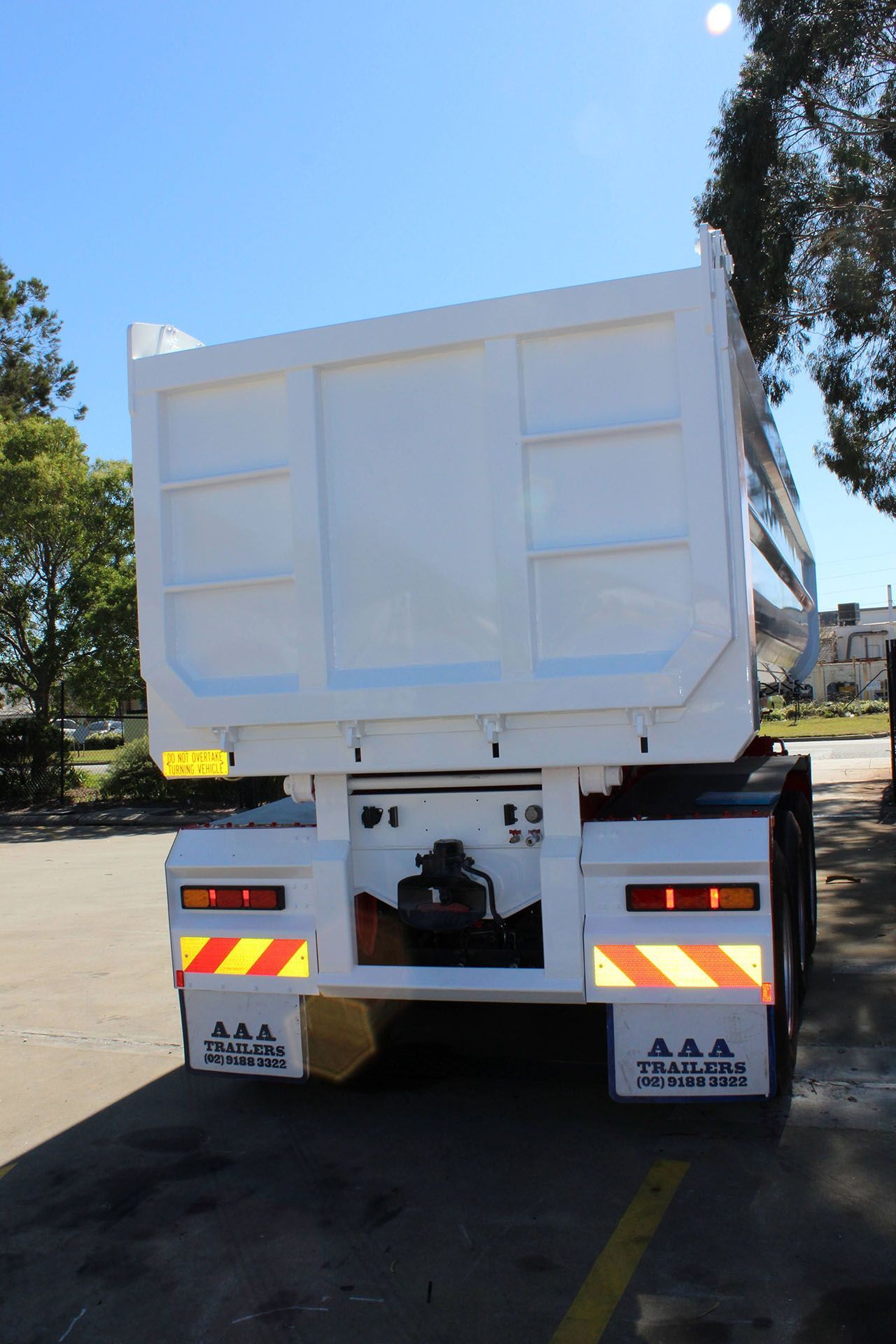

Overview: End Tipper Trailer

Hauling bulk loads day in, day out calls for gear that’s built to cop the punishment and keep earning. The AAA End Tipper Trailer is purpose-built for Adelaide operators running everything from quarry work to heavy bulk freight on metro, regional, and interstate runs. With a 47-tonne ATM and a tare of just 8.7 tonnes, it offers a strong payload advantage without sacrificing toughness.

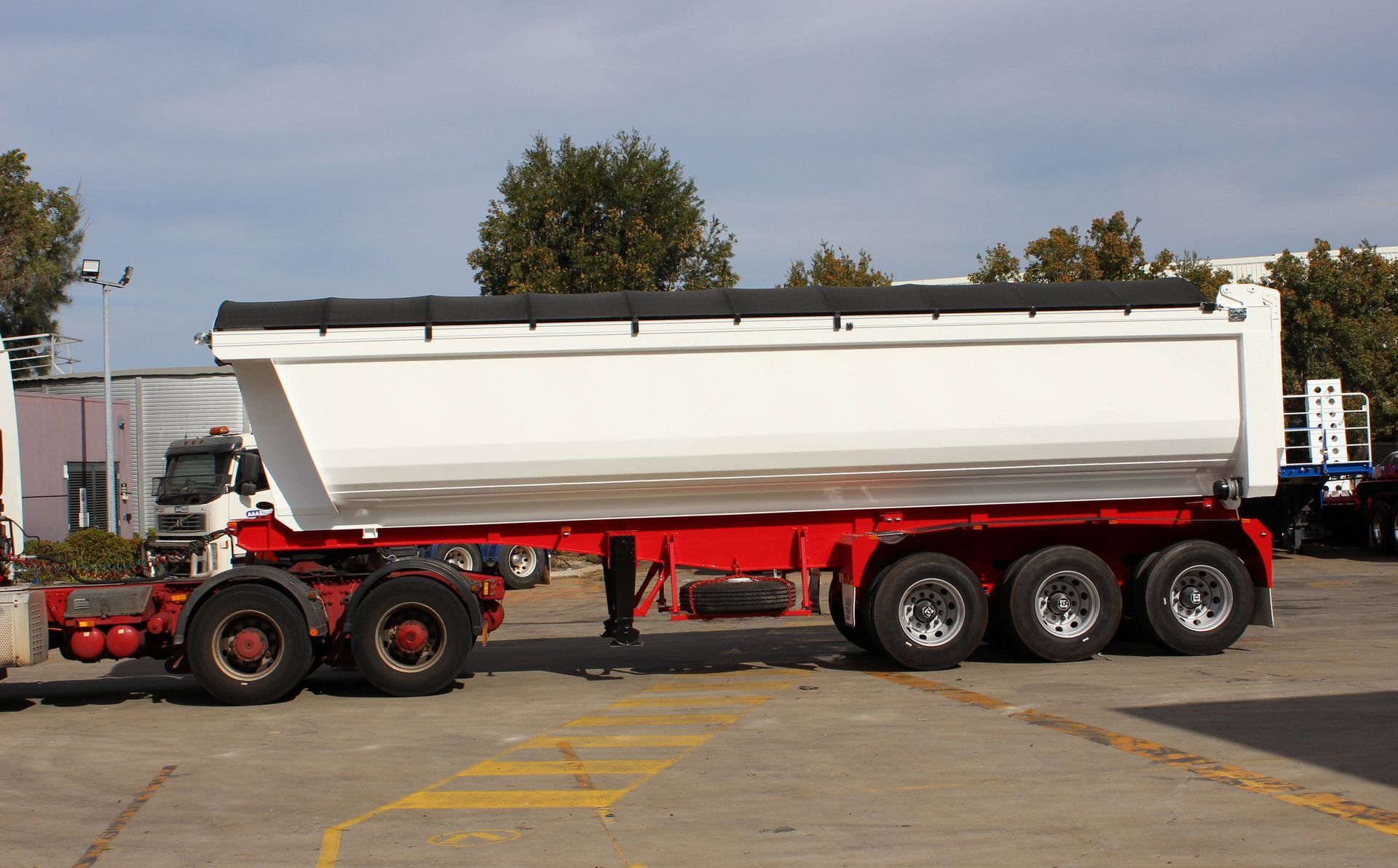

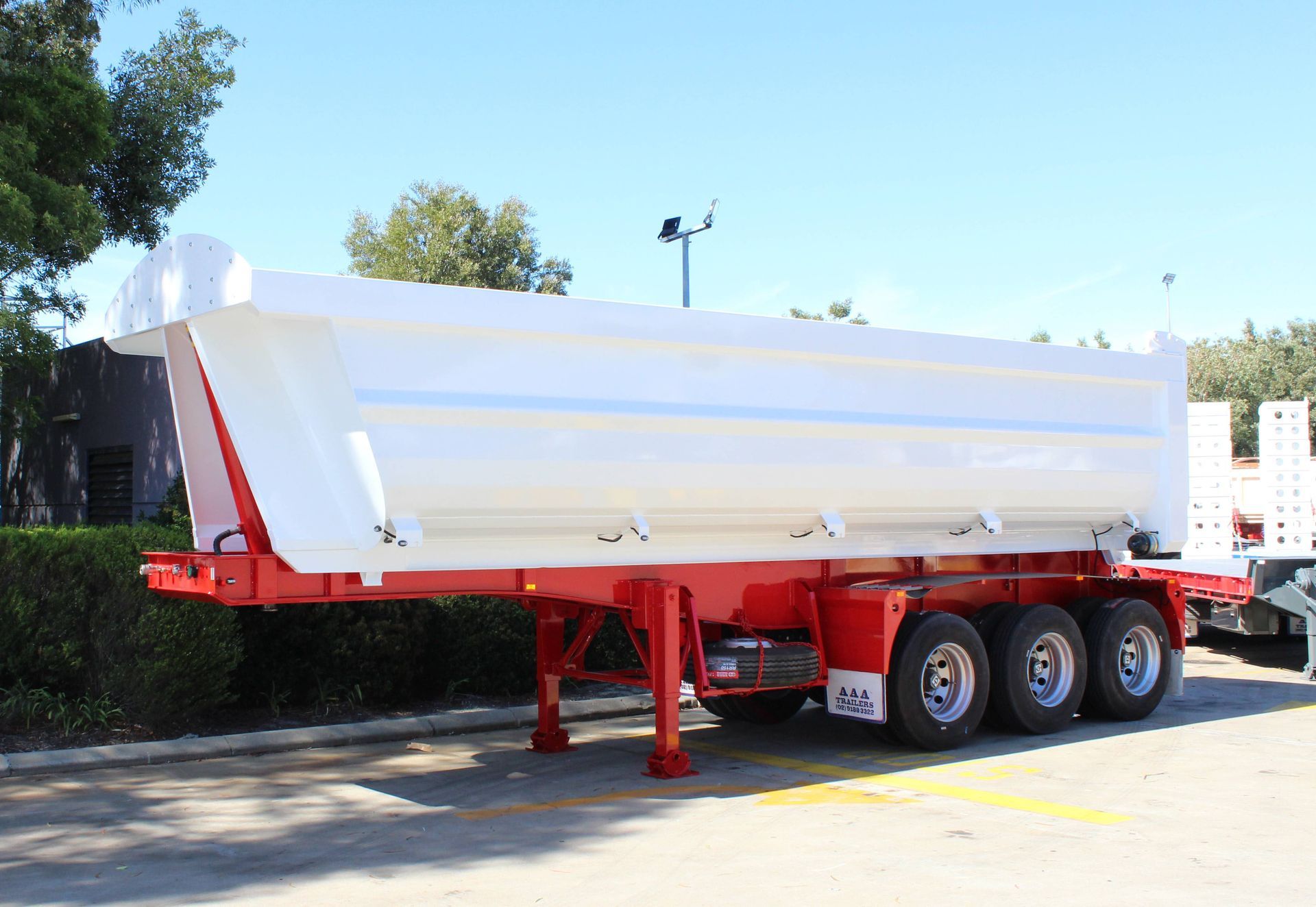

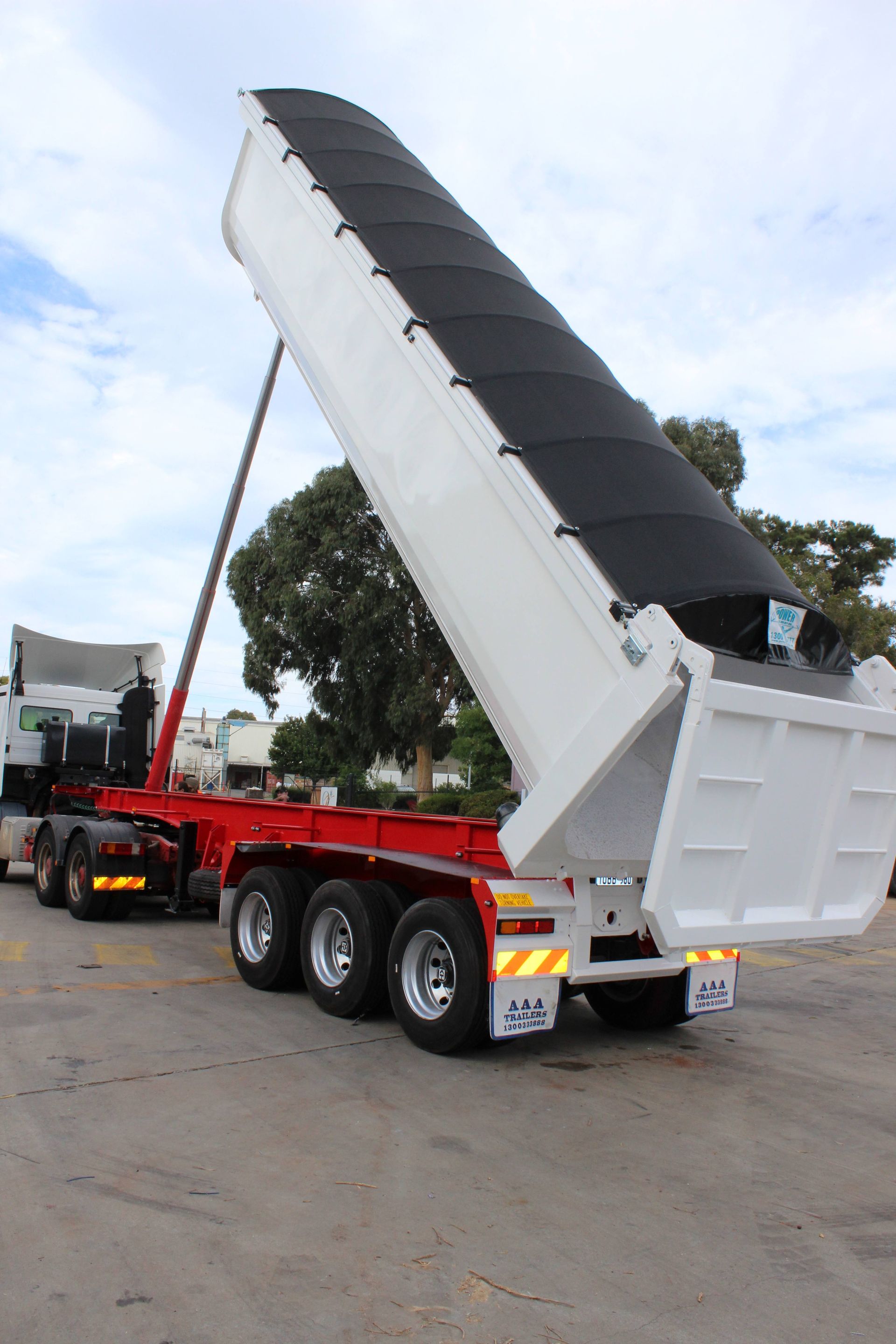

Its 450-grade wear-resistant steel construction takes on abrasive materials without flinching. A 5mm wear plate floor, 4mm side walls, 6mm high-strength headboard, and 5mm reinforced rear door hold your load steady until it’s time to tip. The 9.43-metre body with an 8.5-metre bowl makes loading straightforward and tipping clean, keeping turnaround tight even on demanding schedules.

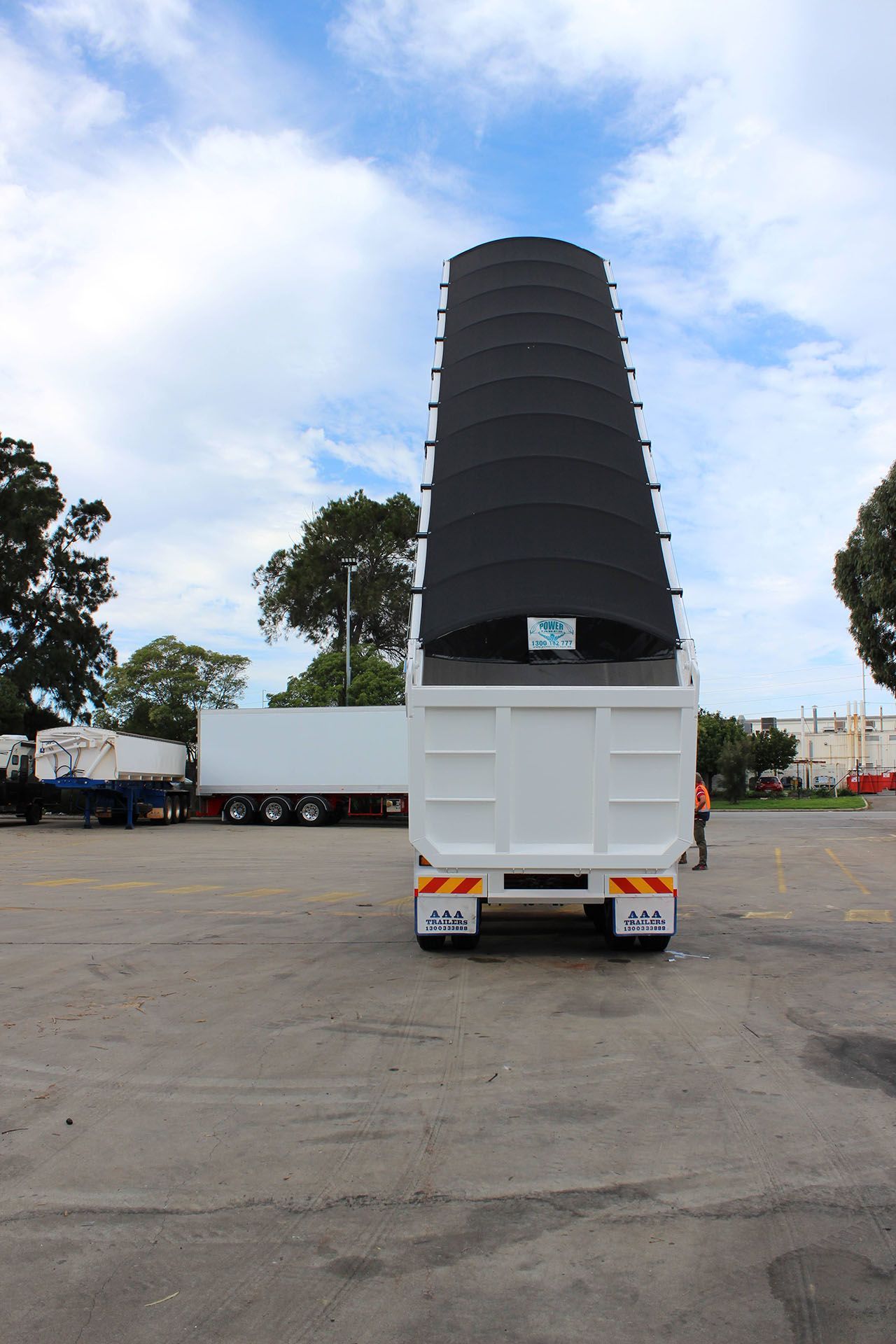

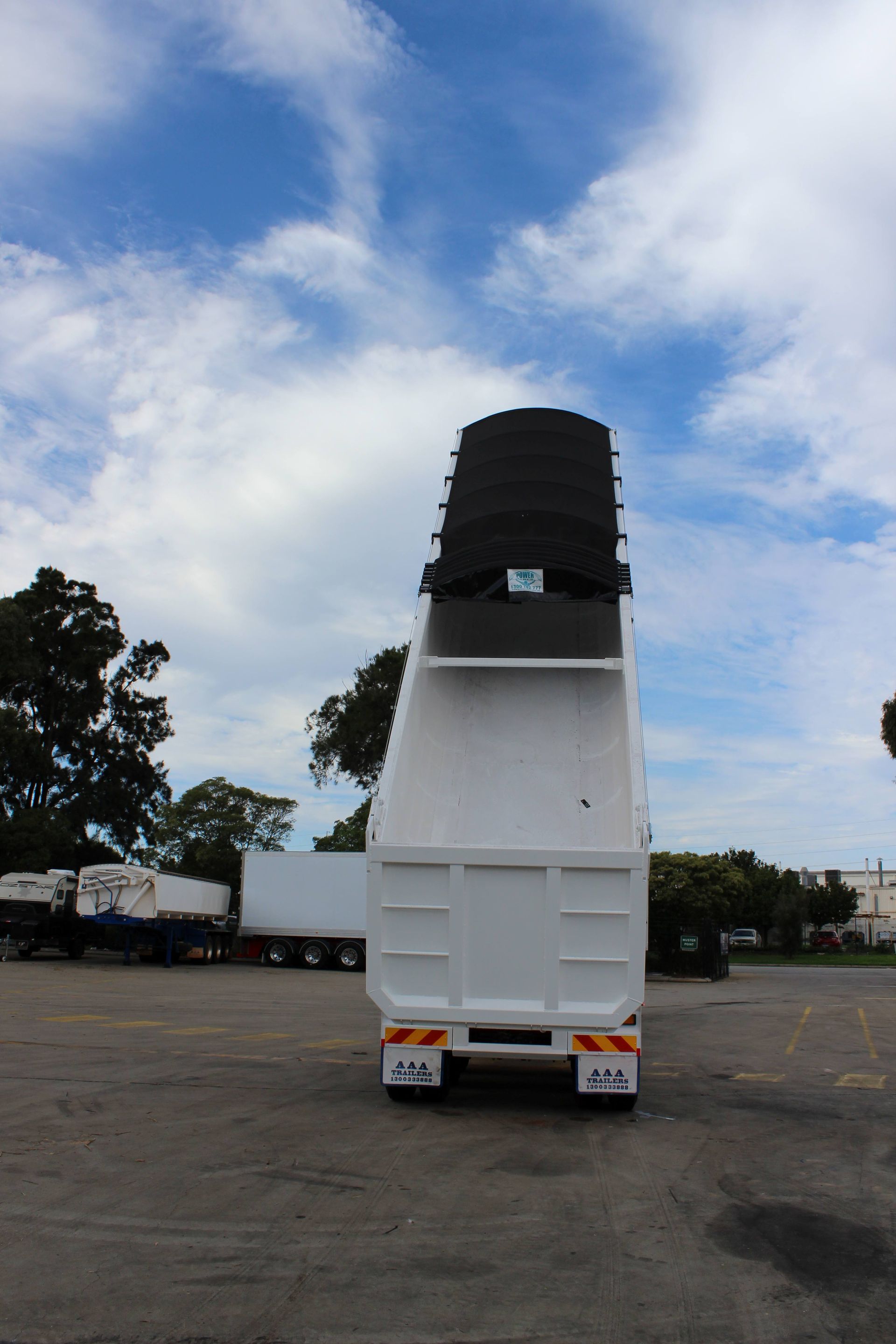

Fit it with the optional end-to-end electric roll tarp for quick, weatherproof coverage, and you’ve got a trailer ready for long-haul corridors, high-frequency metro drops, or running in a full road train. This is a no-nonsense workhorse built to keep your freight moving in all conditions.

Backed by 12-Month Warranty

47T

ATM

23.5T

GTM

9.43m

Length

SPECIFICATIONS

Category Details
ruler with arrow

Capacity & Dimensions

ATM: 47T

GTM: 27T

Tare Weight: Approx. 12.5T

Total Length: 13.72m (including ramps)

Lower Deck: 9.4m

Upper Deck: 3.95m

Deck Widener: 2500mm – 3500mm

steel beam

Construction Frame

Mainframe: High-tensile steel grade

Floor: 5mm steel chequer plate, forklift-rated

Coaming: 5-inch with tie rail

Kingpin: Dual-position 50mm bolt-in (90mm optional)

shaft

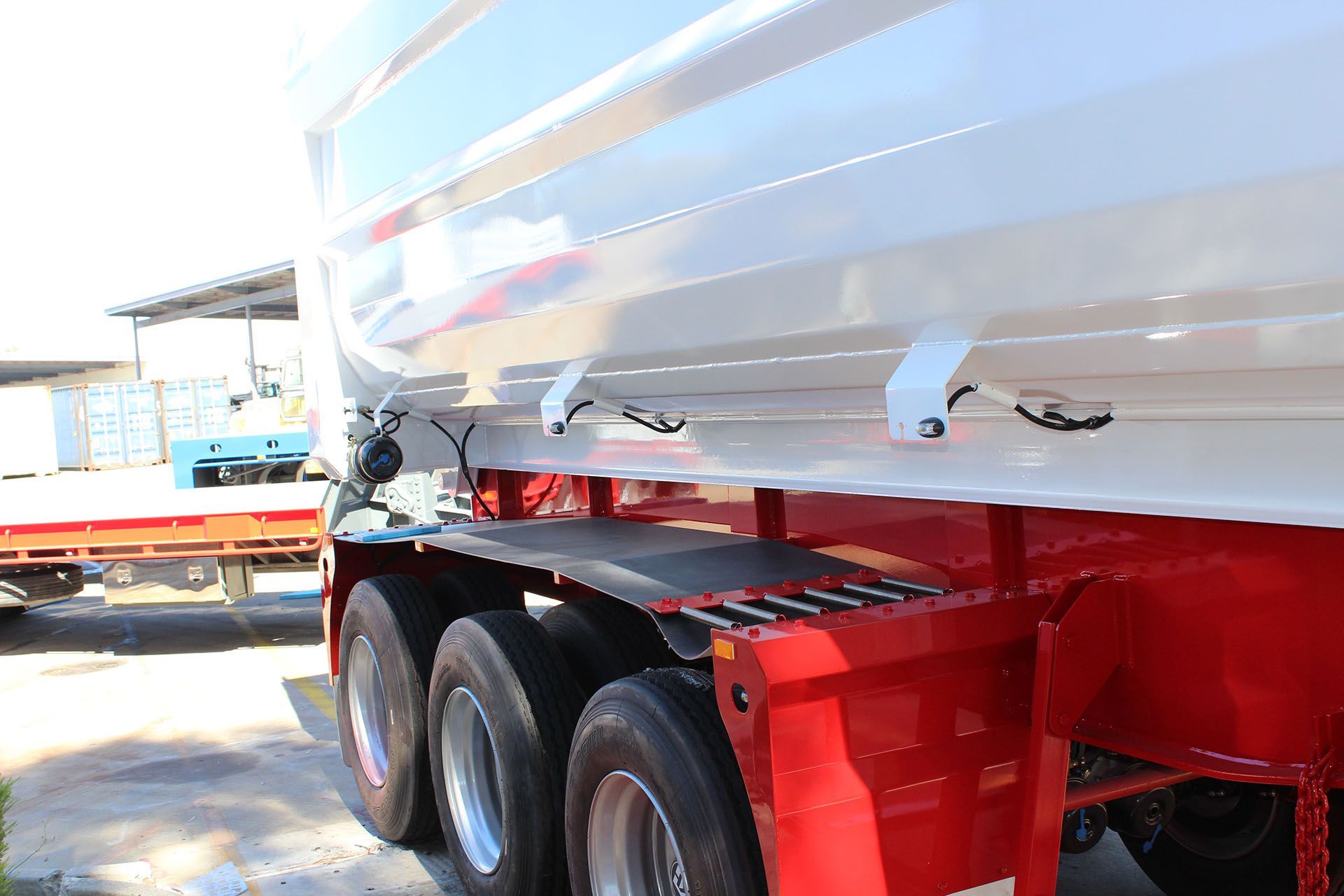

Axles, Suspension & Wheels

Axles: K-Hitch 17.5” drum brake axles

Suspension: K-Hitch tri-axle airbag

Landing Legs: K-Hitch 2-speed

Wheels: 10/225 PCD dual steel

Spare Wheel Carrier: Dual (spare wheels optional)

electric sign

Lighting & Electrical

Lighting: Full LED

Road Train Bracket: Coupling, air, and electrical (optional)

magnifying glass with letter 'i' on it

Standard Equipment

Brake Kit: EBS multi-volt 12/24V

Gates: Front gate: 1,200mm steel

Container Pins: 3-way

Water Tank: 30L stainless steel

Toolboxes: 2 steel with stainless steel “T” handles

Mudguards: Quarter guards front and rear with AAA Trailers mud flaps

gate

Optional Extras

Road train kit

Ring feeder

Custom paint – coaming rails

Oversize signs

Hub odometer

Spare wheel: steel or alloy

Get Your End Tipper Trailer in Adelaide Today

Whether you’re hauling bulk materials across Adelaide, working regional jobs, or running interstate, our end tipper trailers are built to handle the workload. If you have questions or need a hand choosing the right unit for your operation, our friendly team is ready to help.

What They Say About Our Truck Trailers

Why Choose AAA Trailers End Tippers in Adelaide?

Robust Construction

Built with 450-grade steel, reinforced walls, and wear-resistant floors for heavy-duty loads.

Proven Performance

Equipped with K-Hitch axles, FUWA suspension, and EBS braking for reliable control.

Operator-Friendly Features

Standard inclusions such as LED lighting and 2-speed landing legs, with an optional electric roll tarp.

Durable Components

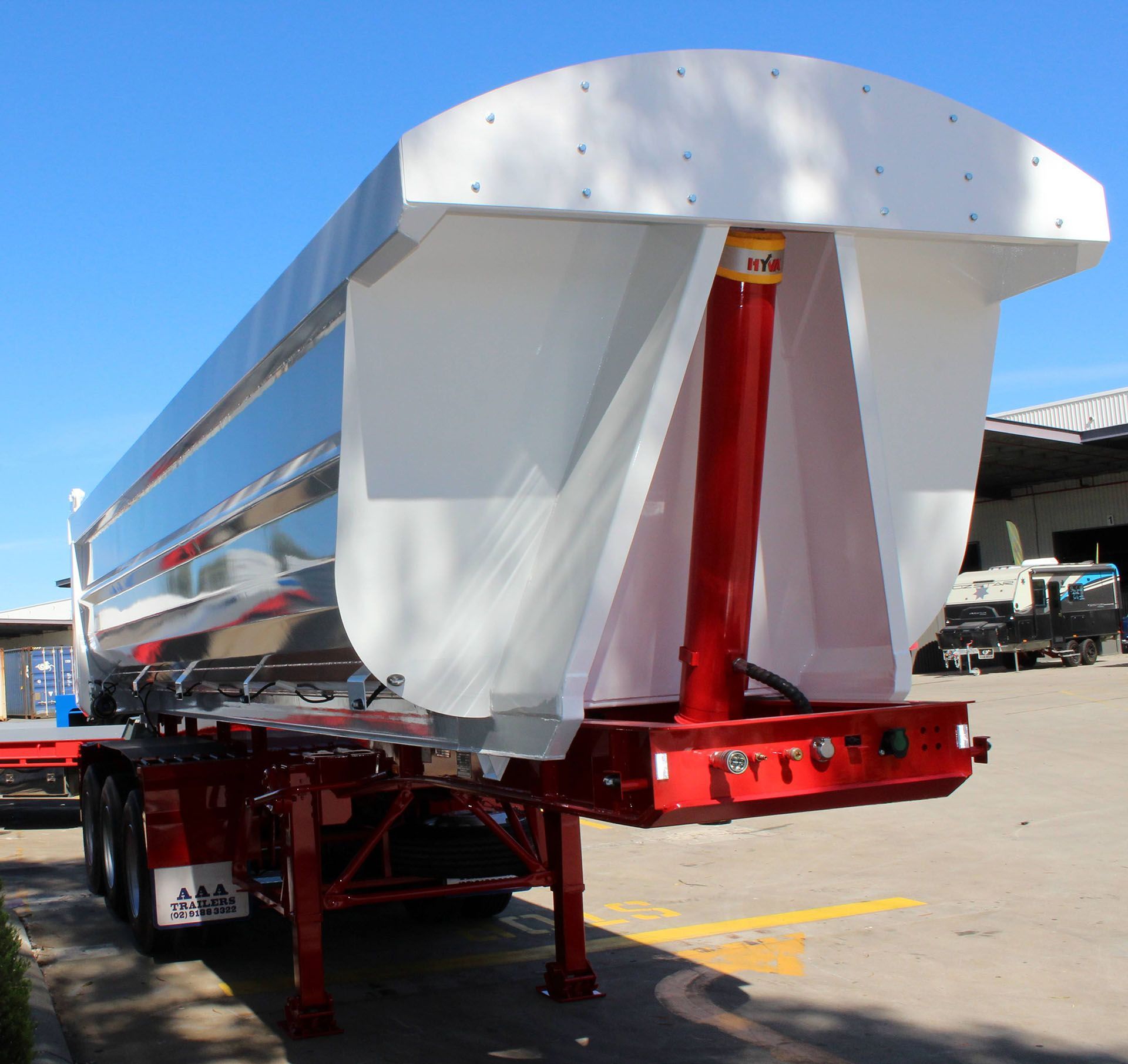

Strong headboard, reinforced rear door, and 12mm skid plate provide extra protection.

Customisable Options

Select from steel or alloy wheels, air suspension, and a range of add-ons.

Frequently Asked Questions

  • Are the end tipper trailers new or used?

    Every End Tipper we supply is completely new and ready for work the moment it leaves our yard. Each trailer is assembled by our skilled crew, inspected thoroughly from front to back, and approved before handover. You’re not just buying equipment, you’re taking delivery of a unit prepared for the jobs ahead. With a fresh build, every weld, hinge, and operating part is untouched and has never faced the wear and tear of heavy-duty use.

  • Do you offer financing options for your end tipper trailers in Adelaide?

    Yes. We offer competitive finance packages for the End Tipper. If you prefer to use your own broker, they can organise an inspection before purchase. This way, you know exactly what you’re getting and can buy with confidence in both its quality and value. For Adelaide operators, we focus on keeping the process straightforward, clear, and free from unnecessary complications.

  • Can I customise the specifications of the end tipper trailers I order?

    Absolutely. You can select your preferred paint colour at no extra charge and choose from a range of optional extras to suit your freight tasks. Custom-built trailers take longer to produce than stock units, as they are manufactured from the ground up to your exact needs. The finished unit will be built for your operation, not a standard off-the-shelf option.

  • Do you have a warranty policy for your end tipper trailers?

    Yes. All End Tippers come with a 12-month warranty covering defects in materials or workmanship under standard operating conditions. If an issue comes up during that time, we will promptly repair or replace the affected components. This is part of our commitment to back our builds and keep your operation moving.

  • What are the delivery times for ordered end tipper trailers in Adelaide?

    We often have stock ready for quick delivery in Adelaide. If your trailer needs to be built, the usual turnaround is up to three months from deposit. This allows us to uphold strict quality standards without rushing, ensuring you receive a trailer built for years of dependable service.

  • Do you provide after-sales service and support?

    Yes. Our support continues long after delivery. We can provide operational guidance, arrange servicing, and help keep your trailer performing at its best. We prioritise long-term support because dependable equipment keeps your business running efficiently.
