AAA Trailers 45’ Drop Deck With Bi-Fold Ramps in Adelaide

Overview: 45’ Drop Deck Trailer With Bi-Fold Ramps

When you’re carting plant, vehicles, or mixed freight around Adelaide or across WA, you need a trailer that can cop a hiding and keep on rolling. The AAA Trailers 45-foot Drop Deck with Bi-Fold Ramps packs a 47T ATM and 10.7T tare, giving you serious payload capacity without compromising handling.


With a 9.4m lower deck and 3.95m upper deck, there’s room for everything from machinery to palletised freight. The forklift-rated chequer plate floor makes loading straightforward, while electric bi-fold ramps get gear on and off in no time. LED work lights keep things bright after dark, and stainless steel toolboxes keep your kit safe. Add optional front and side gates for even more flexibility on the job.


K-Hitch tri-axle airbag suspension and a multi-volt EBS braking system give you a smooth ride and solid control, whether you’re doing metro deliveries or pushing through long interstate runs. The dual-position kingpin and 3-way container pins make switching between tasks a breeze, so you’re ready for whatever load comes next.

Backed by 12-Month Warranty

47T

ATM

27T

GTM

13.72m

Length

SPECIFICATIONS

Category Details
ruler with arrow

Dimensions & Capacity

ATM: 47T

GTM: 27T

Tare Weight: Approx. 10.7T

Total Length: 13.72m (including ramps)

Lower Deck: 9.4m

Upper Deck: 3.95m
steel beam

Construction & Frame

Mainframe: High-tensile steel grade

Floor: 5mm steel chequer plate, forklift-rated

Coaming: 5-inch with tie rail or C Channel with tie rail

Kingpin: Dual-position 50mm bolt-in (90mm optional)
shaft

Axles, Suspension & Braking

Suspension: K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)

Axles: K-Hitch 22.5” or 19.5” drum brake axles

Brake Kit: EBS multi-volt 12/24V

Wheels: 10/285 or 8/275 PCD dual steel rims (aluminium optional)

Tyres: 255/70R22.5 or 265/70R19.5

Landing Legs: K-Hitch 2-speed
electric sign

Electrical, Lighting & Safety

Lighting: Full LED

Brake System: EBS 12/24V

Road Train Bracket: Coupling, air, and electrical (optional)

Mudguards: Quarter guards front and rear with AAA Trailers mud flaps

Spare Wheel Carrier: Dual (spare wheels optional)

Hub Odometer: Optional

Hard-Wired Flashing Beacon: Optional
magnifying glass with letter 'i' on it

Onboard Equipment

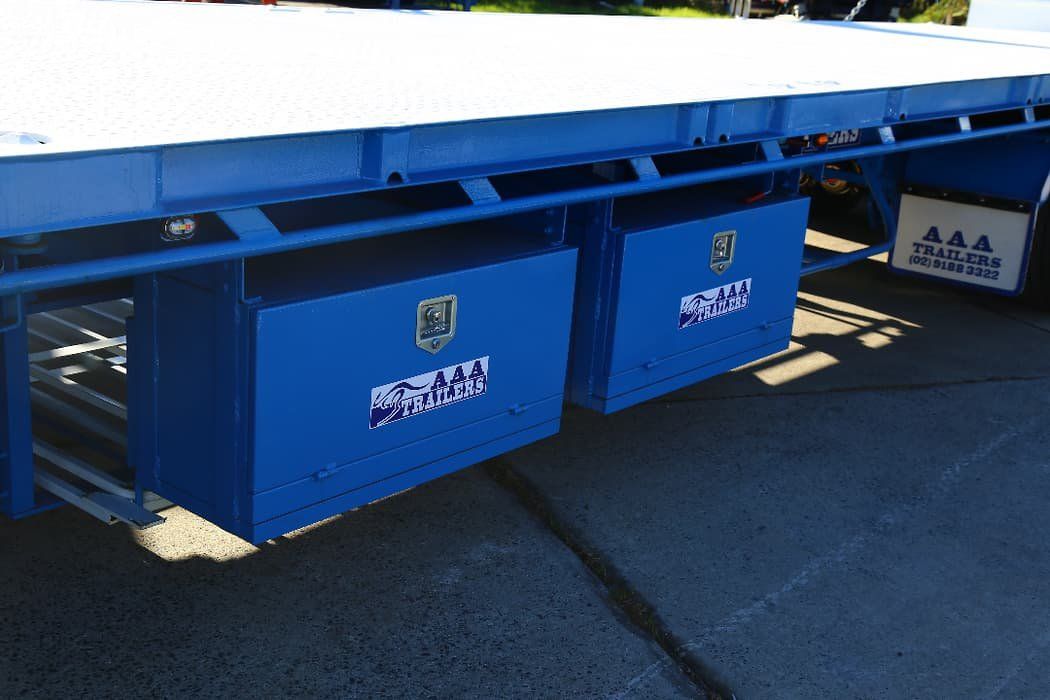

Toolboxes: 2 steel with stainless steel “T” handles

Water Tank: 30L stainless steel
ramp

Ramps

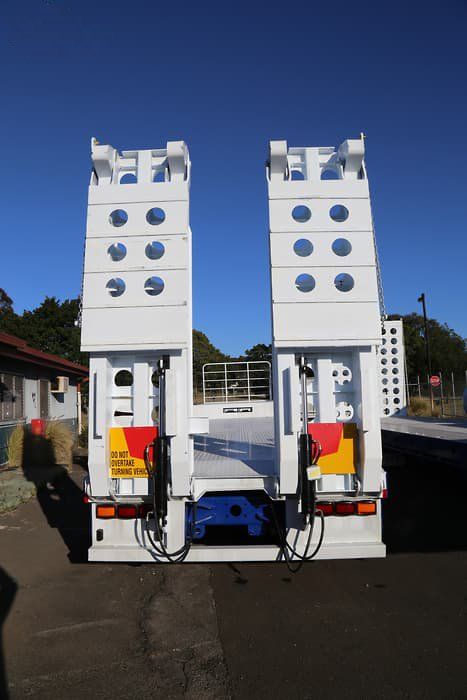

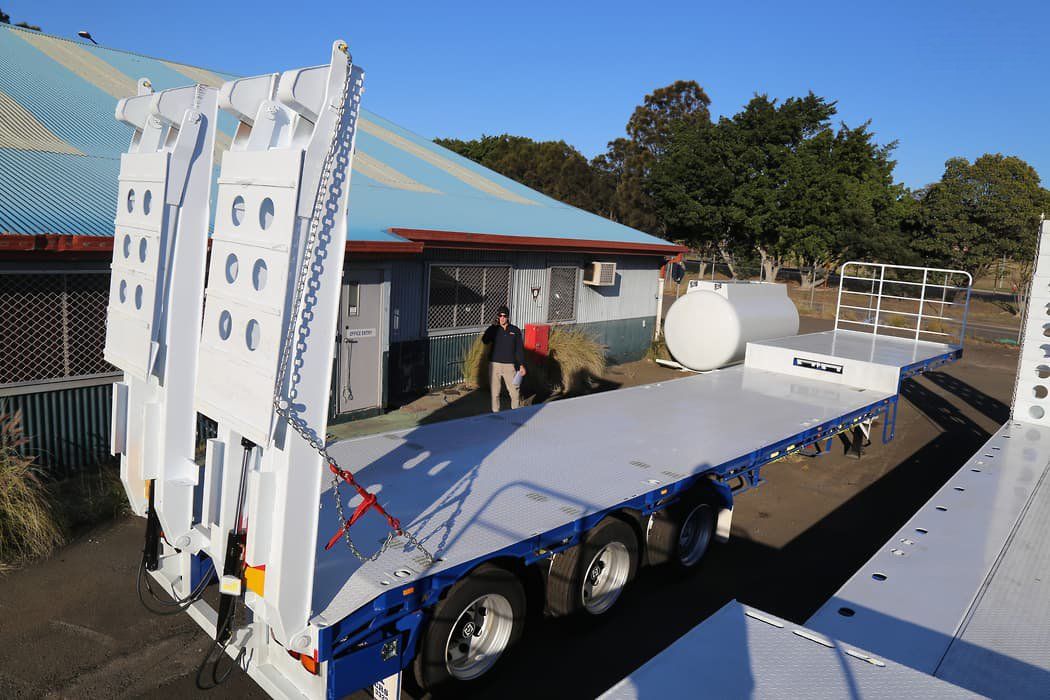

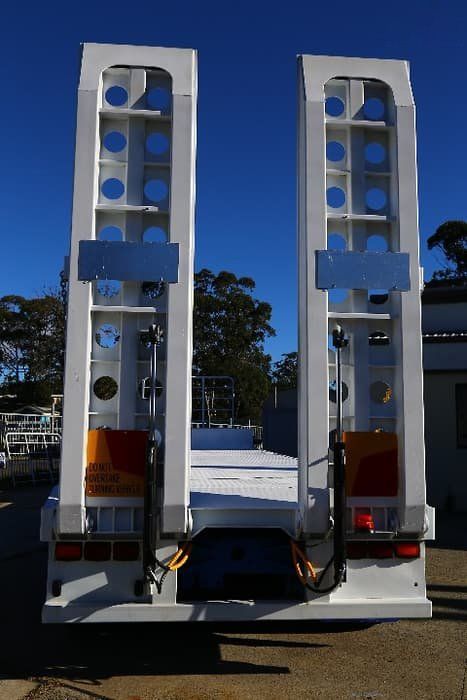

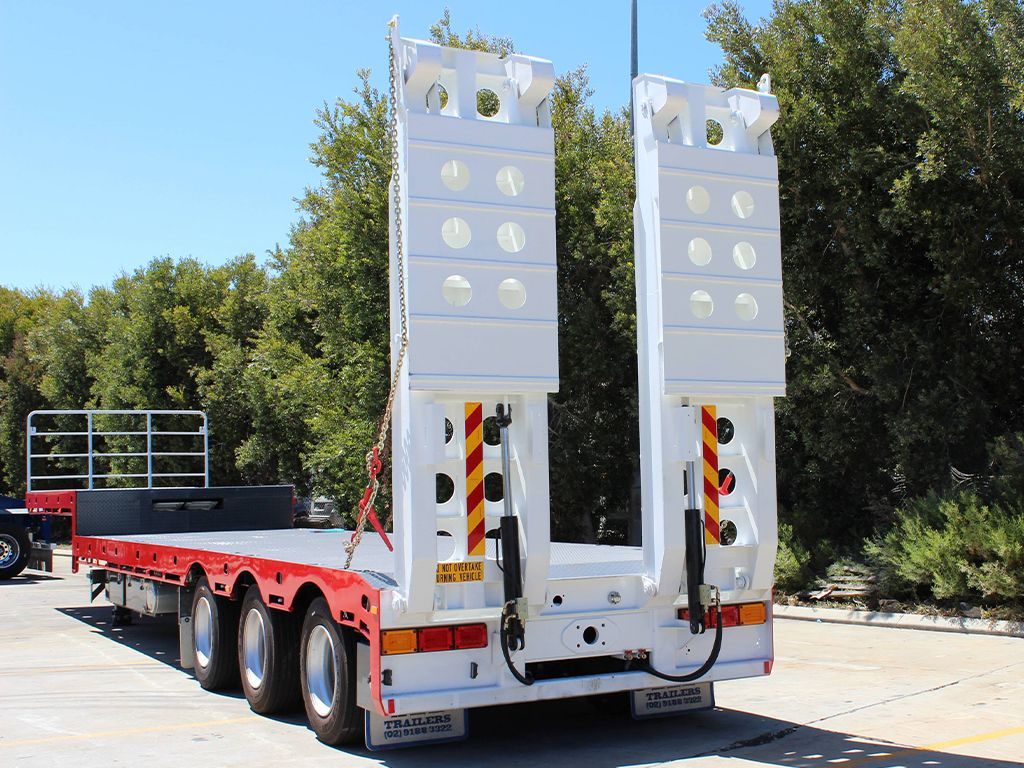

Standard Bi-Fold Ramps:

12V electric power pack

N150 battery with built-in Anderson plug

Optional Ramp Configurations:

3-piece fold-down upper deck ramps

Slide-out upper deck ramps

Forward fold ramps

3-piece flip-over upper deck ramps

No ramps
gate

Gates & Load Handling

Front Gate: 1,200mm steel

Side Gates: Side gate pockets (side gates optional)

Container Pins: 3-way
document wtih gear and pen

Optional Extras

Road train kit

Ring feeder

Side gates

Custom paint – coaming rails

Forward fold ramp option

Hard-wired flashing beacon

Road train / long vehicle signs

Spare wheel: steel or alloy

Get Your Drop Deck Trailer in Adelaide Today

We understand the loads you’re moving and the conditions you’re working in. If you have questions or need a hand choosing the right drop deck trailer for your job, our friendly team is here to help. Get in touch and let’s find the trailer that works best for you.

What They Say About Our Truck Trailers

Why AAA Trailers for Your Next Drop Deck Trailer in Adelaide?

12-Month Warranty

All drop decks come with a full 12-month warranty for peace of mind.

Strong Construction

Built with high-tensile steel and forklift-rated flooring for long-lasting strength.

Ready for Australian Roads

Fitted with quality components and tested suspension to handle harsh conditions.

Flexible Ramp Choices

Options include bi-fold, slide-out, or fold-down ramps with diesel or electric operation.

Reliable Support

Backed by a responsive team ready to help whenever you need it.

Frequently Asked Questions

  • Are the drop deck trailers new or used?

    All 45’ Drop Deck Trailers with Bi-Fold Ramps we supply are brand new, built for work from day one. Each one is assembled and fully tested by our experienced team before leaving the yard, so you’re not just buying a trailer. You’re also investing in something ready to roll. With a fresh build, you know every weld, ramp, and fitting has never been worked hard before you.

  • Do you offer financing options for your drop deck truck trailers in Adelaide?

    Yes. We offer competitive finance options for the 45’ Drop Deck with Bi-Fold Ramps. If you’d rather work through your own broker, they’re welcome to inspect the trailer before purchase. This way, you can be sure you’re getting the right trailer at the right value. It’s all about making the buying process as simple and transparent as possible.

  • Can I customise the specifications of the drop deck trailers I order?

    Absolutely! You can pick a custom colour at no extra charge and add optional features to match your operation’s needs. Custom builds take more time than stock units, as they’re built from the ground up to your exact requirements. The result is a trailer that’s uniquely yours and built to suit your work, not just any work.

  • Do you have a warranty policy for your drop deck trailers?

    Yes. Every Adelaide drop deck trailer comes with a 12-month warranty covering defects in materials and workmanship under normal operating conditions. If a problem arises during that time, we’ll repair or replace the affected parts promptly. It’s our way of backing the gear we build and keeping you moving without unnecessary downtime.

  • What are the delivery times for ordered drop deck trailers in Adelaide?

    We often have trailers ready for immediate delivery in Adelaide. If we need to build yours, expect up to three months from deposit to completion. That timeframe allows us to get every detail right without rushing the build, so you receive a trailer that will go the distance.

  • Do you provide after-sales service and support?

    Yes. Our team offers ongoing assistance, from operational tips to organising servicing, so your trailer stays in top condition. We’re here to help long after the handover, because keeping your trailer working hard means keeping your business moving.
