Quad Axle Low Loaders

Quad AxLE Low Loaders

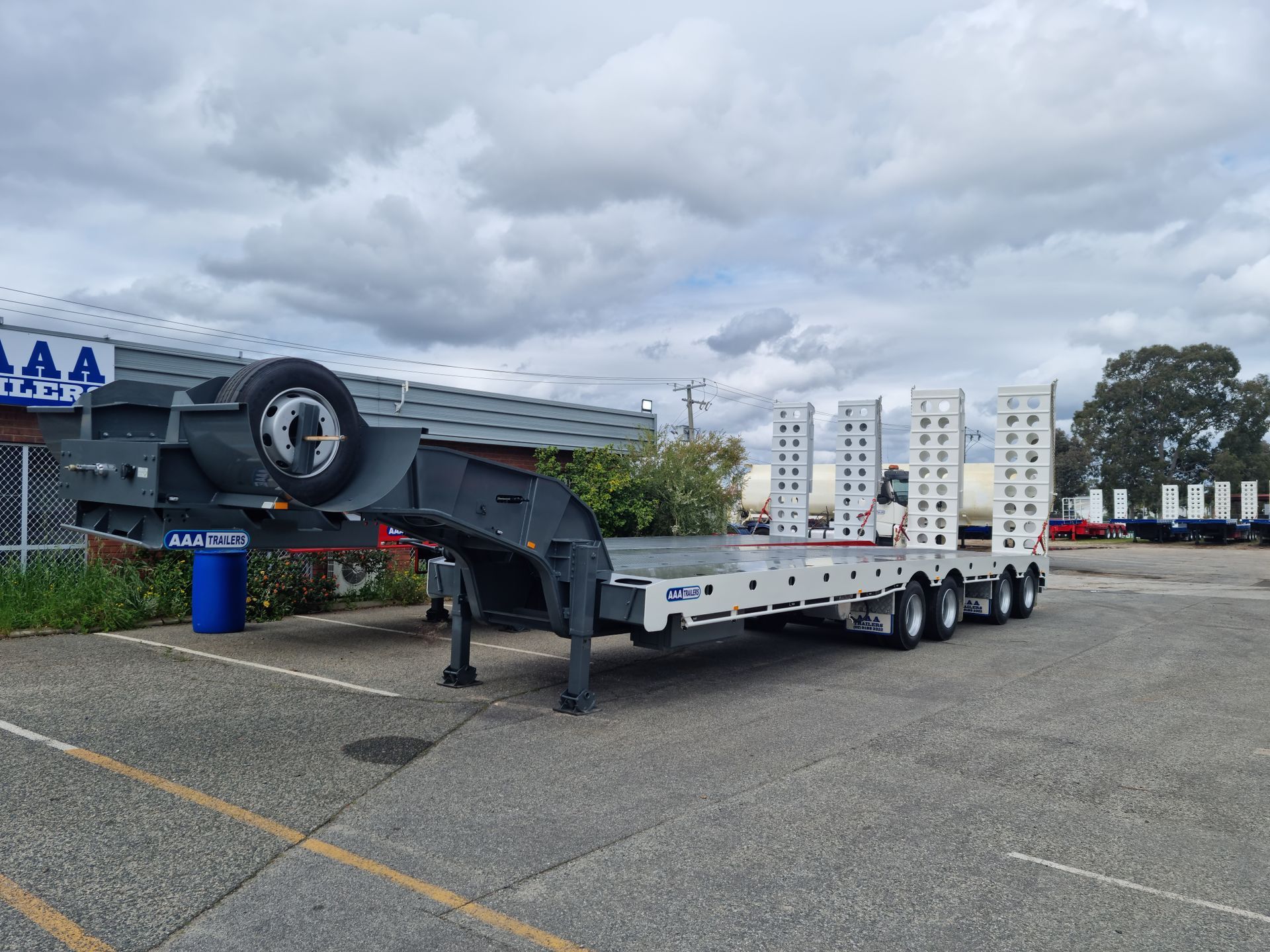

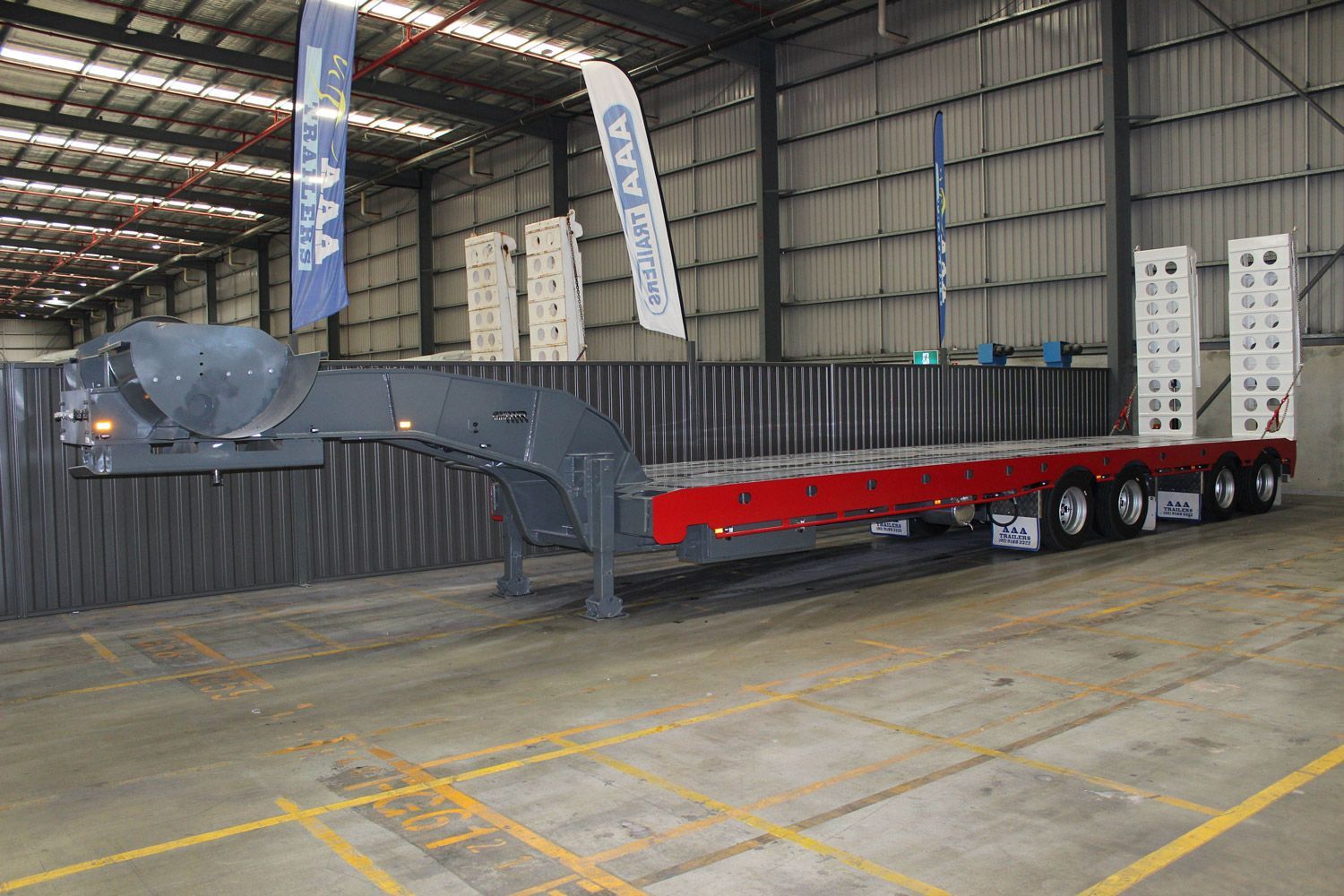

AAA 2024 QUAD AXLE LOW LOADER WIDENER 2.5-3.5M

Specifications Details

Make

AAA Trailers

Model

Quad axle low loader deck widener with bi-fold ramps

Colour

Red, blue or custom options available

Length

Overall length 51 ft (15518mm) - including the ramps

Lower deck 10914mm

Width

Exterior: 2500mm – 3500mm

Deck Height

19.5 inch: 995mm

17.5 inch : 895mm

Capacity (ATM)

60 tonnes

Capacity (GTM)

25-37 tonnes

Tare Weight

14.9 tonnes

Brakes

Drum

Coupling

50mm or 90mm 2 position bolt in K-Hitch king pin

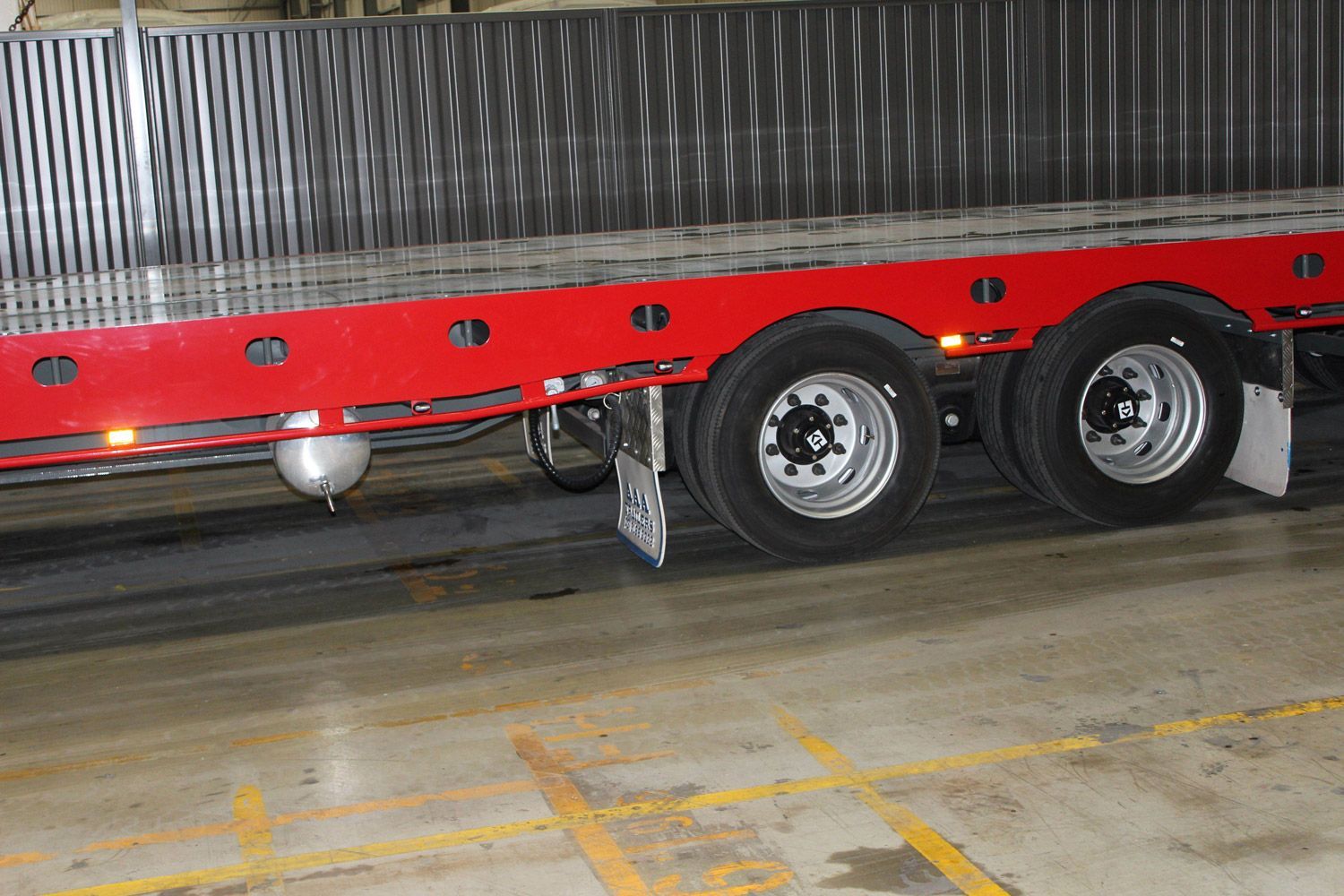

Suspension

  • K-Hitch airbag suspension KT 250 U
  • 11 tonnes rated K-Hitch axles

Warranty

12 months

Tyre Size

265/70R19.5, 235/75R17.5

Rim Type

Steel or aluminium (option)

Pay load -+

32 tonnes without load share dolly, 47 with load share dolly dependent on your state regulations

Spec/Accessories

  • LED lights
  • Two heavy-duty toolboxes
  • Diesel 10.5 hp engine and hydraulic pump
  • Spare wheel holders mounted to gooseneck that hold 4x spare tires

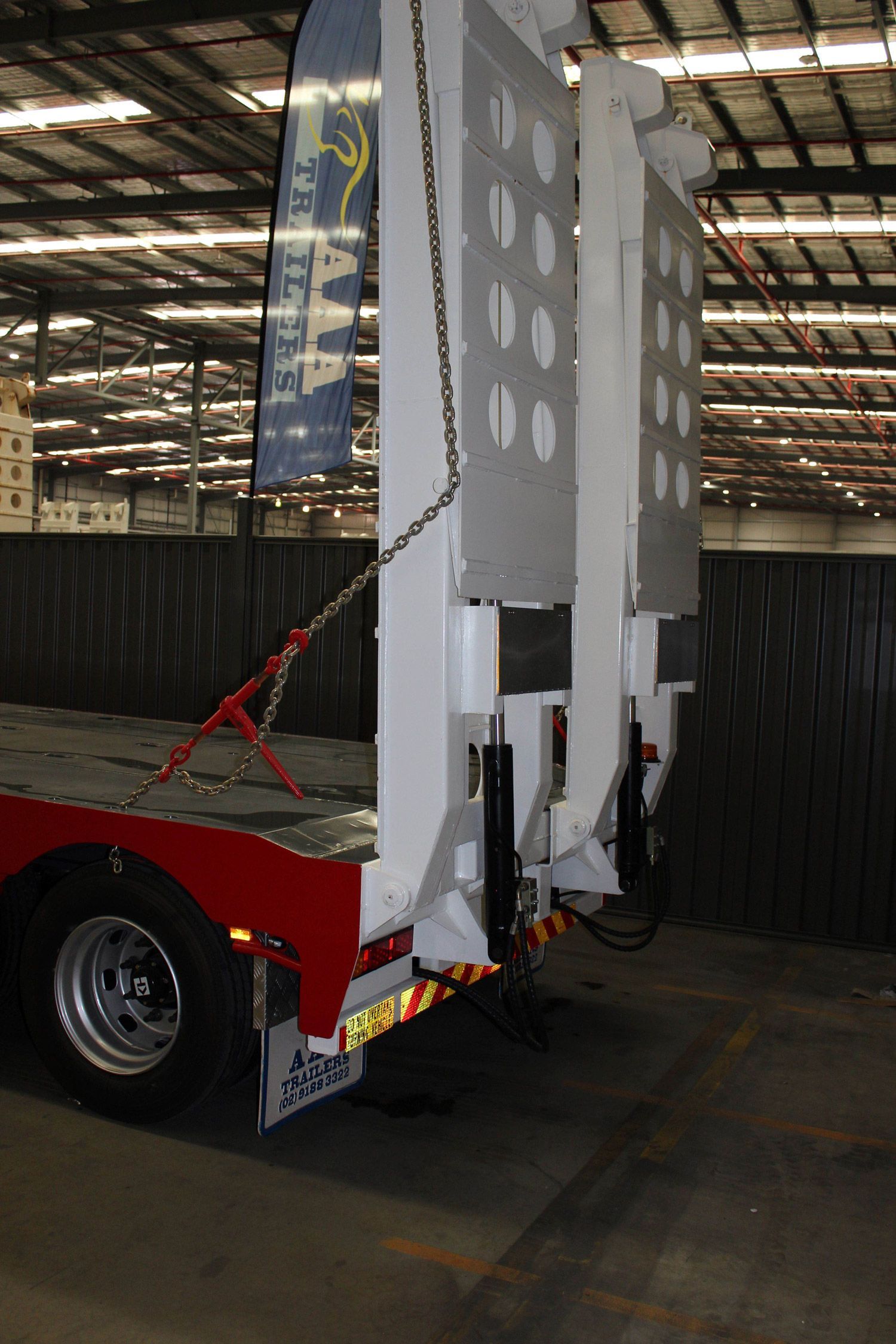

  • Bi-fold ramps
  • Sea container pins for 20’

Optional Extras

  • 3-way air dump valve
  • Fire extinguisher
  • Reverse alarm
  • 30 litre polished alloy water tank
  • Spare wheels
  • LED beacon light
  • Oversize/road train signs
  • Custom painting
Get A Quote

AAA 2024 REAR STEER QUAD AXLE LOW LOADER WIDENER 2.5-3.5M WITH LIFT UP AXLE

Specifications Details

Length Usable Deck length

11,200 mm

Width Closed

2500mm

Fully Widened

3500mm

Height Deck Height

900mm on 17.5-inch rims

Capacity

(ATM) 60 tonnes (GTM) 25 tonnes (upgrades available in Western Australia)

Tare Weight

15.4 tonnes complete with ramps and spare wheel

Upper Side

  • Bi-fold ramps. 900mm wide and fully extended 4700mm
  • Side coaming 8mm thick cold-rolled sheet steel. Tensile strength = 650mPa
  • Flooring 8mm cold-rolled flat sheet steel – high tensile 650mPa.
  • Under-floor construction consists of heavy-duty I-beam cross-members, with industrial C-100 channel under-floor runners for extra support.
  • Skid-plate 16mm thick oscillating skid-plate, with two position bolt-in king pin boss-plates fitted as standard

Hydraulic System

  • 4x 50mm x deck widening cylinders
  • 1x 10hp diesel engine power pack as standard for airbag Electric power pack for spring suspension is standard
  • Unit features Italian-made spool valves as standard

Under Side

  • Chassis beams I-beam construction: 25mm thick flange plates (350mPa),
  • 10mm webbing plate (450mPa) – half the chassis webbing is double plated for strength and durability ready for those rough roads.
  • Landing gear K-Hitch 2 speed legs
  • King pin K-Hitch 2 position bolt in 50mm or 90mm available

Axles and Suspension

  • High-quality SAF axles imported from Europe
  • Lift up front axle air-operated
  • Steering axle on the rear
  • Full Wabco EBS control system
  • 3-way air dump valve for ease of loading
Get A Quote
