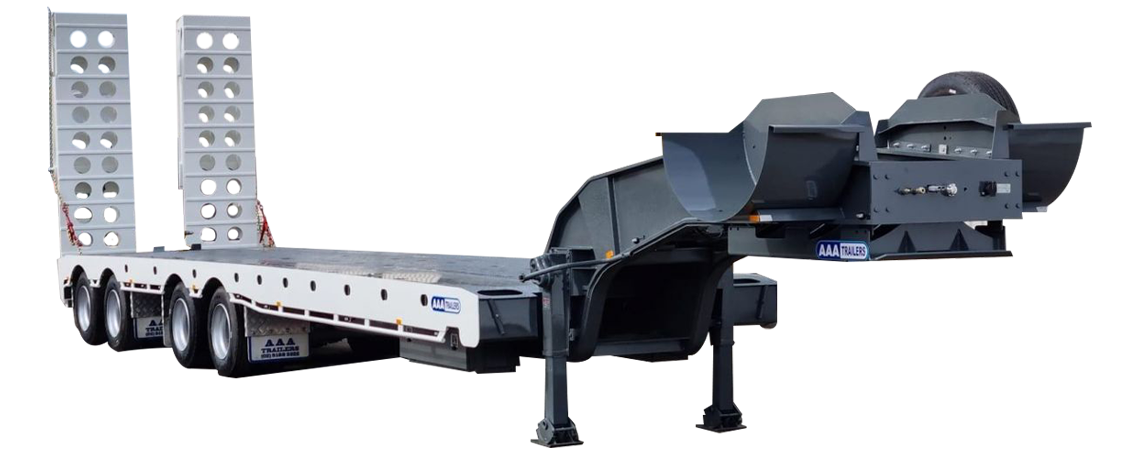

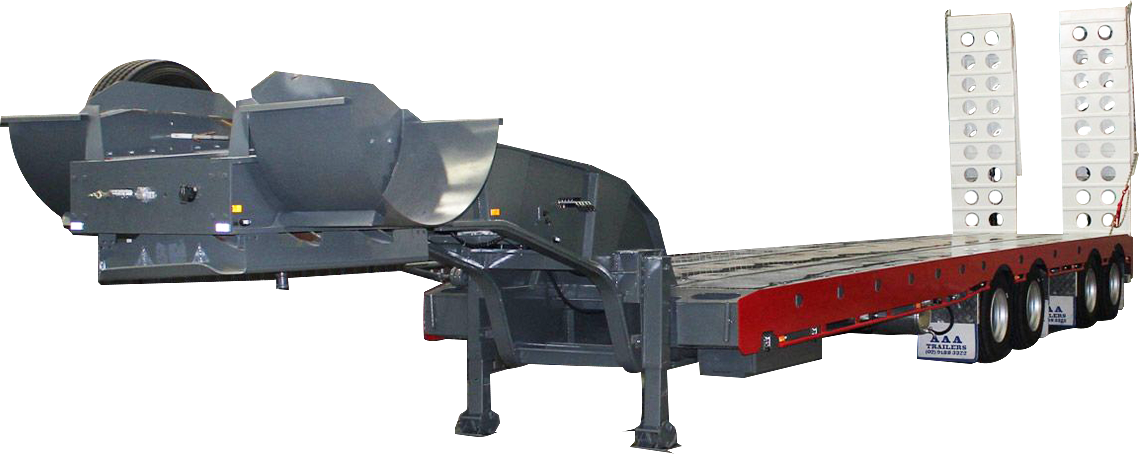

Overview: Quad Axle Low Loader Deck Widener With Bi-Fold Ramps

Engineered for the toughest heavy haulage work, the Quad Axle Low Loader Deck Widener delivers a massive 60-tonne ATM and a tare weight of 14.9 tonnes, giving it the muscle to move machinery, plant, and oversize freight with confidence. The deck extends from 2.5m to 3.5m, providing the versatility needed for varied load sizes across Melbourne, throughout Victoria, or anywhere in Australia. A high-tensile steel mainframe, forklift-rated 5mm chequer plate floor, and 20ft container pins form a rock-solid platform for demanding transport tasks.


K-Hitch quad airbag suspension, drum brake axles, and a multi-volt EBS braking system work together to keep the trailer stable and responsive under full load. Hydraulic bi-fold ramps, powered by a 10.5HP diesel engine and pump, make loading and unloading smooth and efficient, while alloy quarter guards, LED lighting, and multiple toolboxes add convenience on the job. Optional extras are available to configure the trailer for your exact operational requirements.

Backed by 12-Month Warranty

60T

ATM

36T

GTM

15.5m

Length

SPECIFICATIONS

Category Details
ruler with arrow

Capacity & Dimensions

ATM: 60T

GTM: 36T

Tare Weight: Approx. 14.9T

Total Length: 15.5m

Deck Length: 10.9m

Widener Range: 2500mm – 3500mm
steel beam

Construction

Mainframe: High-tensile steel grade

Floor: 5mm steel chequer plate, forklift-rated

Coaming: 5-inch with tie rail
shaft

Axles, Suspension & Wheels

Axles: K-Hitch drum brake axles

Suspension: K-Hitch quad airbag

Wheels: 8/225 PCD dual steel rims (aluminium optional)

Tyres: 265/70R19.5

Spare Wheel Carrier: Four (spare wheels optional)
electric sign

Braking & Electrical

Brake Kit: EBS multi-volt 12/24V

Lighting: Full LED
magnifying glass with letter 'i' on it

Other Equipment

Container Pins: 20FT container

Kingpin: Dual-position 50mm bolt-in (90mm optional)

Landing Legs: K-Hitch 2-speed

Toolboxes: 2 steel with stainless steel “T” handles

Water Tank: 30L stainless steel

Mudguards: Alloy quarter guards with AAA Trailers mudflaps

Engine & Pump: 10.5HP diesel engine with hydraulic pump (operates widener and bi-fold ramps)
document wtih gear and pen

Optional Extras

Custom paint – coaming rails

Hard-wired flashing beacon

Oversize signs

Hub odometer

Spare wheel: steel or alloy

Get Your Quad Axle Low Loader Trailer in Melbourne Today

Your next quad axle low loader is just a conversation away. We’ll help you choose the right configuration, handle the details, and get it delivered so you can put it straight to work.

What They Say About Our Truck Trailers

Why AAA Trailers for Your Next Quad Axle Low Loader Trailer in Melbourne?

Lower Deck Stability

Ideal for oversized equipment and heavy plant, offering a lower centre of gravity for safer hauling.

Adjustable Deck Wideners

Hydraulic decks extend from 2.5m to 3.5m, giving flexibility for various load widths.

Durable Ramp Options

Bi-fold ramps with hydraulic support, available in both diesel and electric operation.

Robust Axle Configurations

Tri or quad axle setups with either airbag or mechanical suspension.

Built for Compliance

ADR-approved with steer and lift axle options for regulated transport.

Frequently Asked Questions

  • Are the quad axle low loader trailers new or used?

    Every quad axle low loader trailer we supply across Melbourne, Victoria, and Australia-wide is brand new. Never second-hand. Each one is assembled by skilled technicians, then thoroughly inspected and tested so you receive a unit that’s work-ready from day one.

  • Do you offer financing options for your quad axle low loader trailers?

    Absolutely. We offer competitive finance options to help you get your quad axle low loader trailer into service without unnecessary delays. You’re also welcome to bring in your own broker for an independent inspection before committing, giving you complete confidence in your purchase.

  • Can I customise the specifications of the quad axle low loader trailers I order?

    Yes, you can. From a custom paint colour at no extra cost to optional upgrades that suit your specific jobs, we can configure your trailer to your needs. Just keep in mind: custom builds take longer than standard stock because we construct them from the ground up to your exact specifications.

  • Do you have a warranty policy for your quad axle low loader trailers?

    Every quad axle low loader trailer is backed by a 12-month warranty that covers defects in materials and workmanship under normal operating conditions. If something goes wrong in that period, we’ll repair or replace the affected part promptly so you can get back to work.

  • What are the delivery times for ordered quad axle low loader trailers?

    We often have models available for immediate delivery across Melbourne and Victoria. If we need to build one to order, the lead time is generally up to three months from the time your deposit is received—quality builds take time, but they’re worth the wait.

  • Do you provide after-sales service and support?

    Yes, we do. Our support doesn’t stop when you take delivery. Whether you need operational advice, help arranging servicing, or answers to technical questions, our team is always ready to assist so your trailer stays in peak condition.
