AAA Trailers – Flat Top B Trailer - 22 Pallet in Melbourne

Overview: Flat Top B Trailer - 22 Pallet

When the job calls for volume, versatility, and reliability, the 22-pallet Flat Top B Trailer steps up. Built for container runs, mixed cargo, and heavy-duty freight work, it’s engineered to keep pace with the toughest schedules on regional and interstate haulage lanes.


With a 47-tonne ATM, approx. 9-tonne tare, and a high-tensile steel mainframe, forklift-rated 3mm–5mm steel chequer plate floor (model dependent), and 20ft container pins provide the durability and flexibility needed for daily operations.

K-Hitch tri-axle airbag suspension, 22.5” drum brake axles, and a multi-volt EBS braking system provide sure-footed control in varied conditions. Out of the gate, it comes equipped with steel gates, LED lighting, stainless water tank, and dual steel toolboxes.


Need more? Optional upgrades—like road train kits, ring feeders, and custom configurations—allow you to fine-tune it for your freight profile, keeping you moving on any route throughout Melbourne, across Victoria, or anywhere in Australia.

Backed by 12-Month Warranty

47T

ATM

23.5T

GTM

13.72m

Length

SPECIFICATIONS

Category Details
ruler with arrow

Dimensions & Capacity

ATM: 47T

GTM: 23.5T

Tare Weight: Approx. 9T

Total Length: 13.72m
steel beam

Construction & Frame

Mainframe: High-tensile steel grade

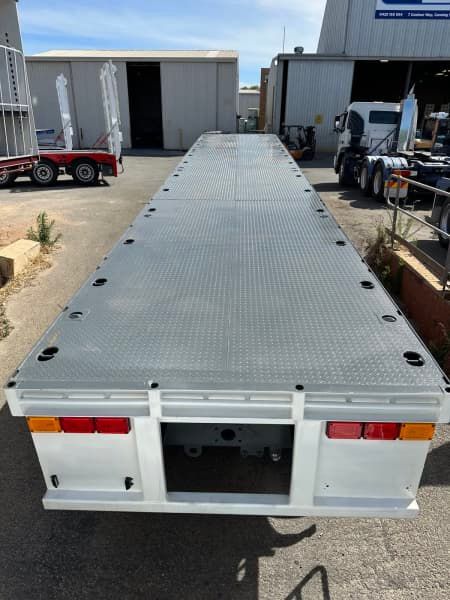

Floor: 3mm–5mm steel chequered plate, forklift-rated (model dependent)

Coaming: 5-inch with tie rail (C-channel optional)

Kingpin: Dual-position 50mm bolt-in (90mm optional)
shaft

Axles, Suspension & Braking

Axles: K-Hitch 22.5” drum brake axles

Suspension: K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)

Landing Legs: K-Hitch 2-speed

Brake Kit: EBS multi-volt 12/24V

Spare Wheel Carrier: Dual (spare wheels optional)
wheel

Wheels & Tyres

Wheels: 10/285 PCD dual steel rims (aluminium optional)

Tyres: 11R22.5
electric sign

Electrical, Lighting & Safety

Lighting: Full LED

Mudguards: Plastic radius guards with AAA Trailers mudflaps, quarter guards front and rear

Hub Odometer: Optional

Hard-Wired Flashing Beacon: Optional
magnifying glass with letter i inside

Onboard Equipment

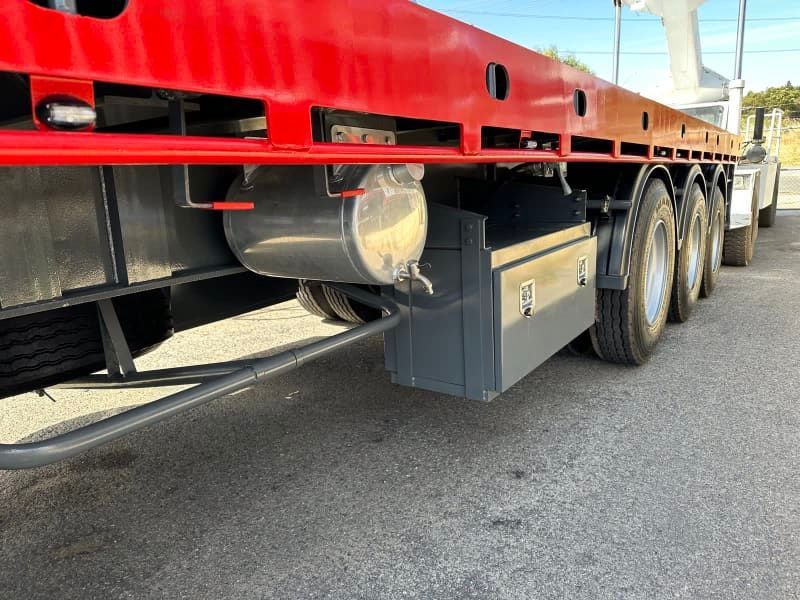

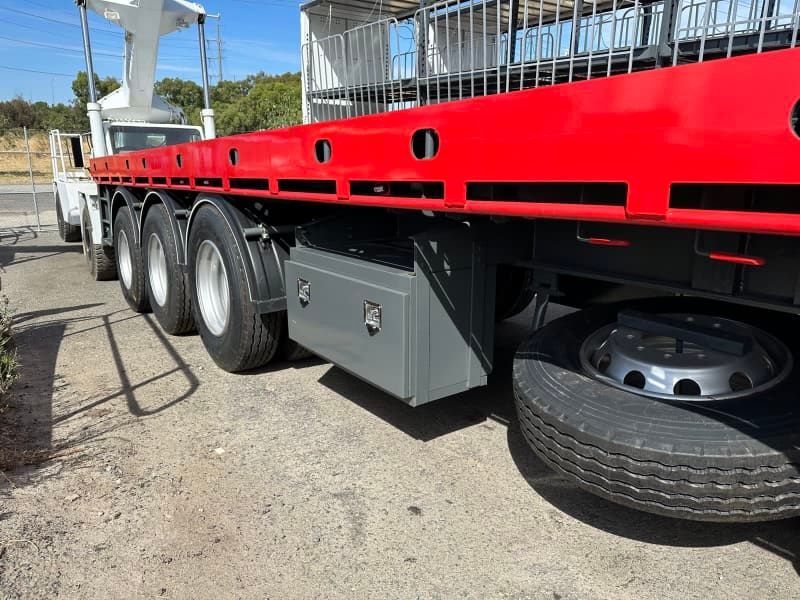

Toolboxes: 2 steel with stainless steel “T” handles

Water Tank: 30L stainless steel
gate

Gates & Load Handling

Front and Rear Gates: 1,200mm steel

Side Gates: Side gate pockets (side gates optional)

Container Pins: 3-way
document wtih gear and pen

Optional Extras

Road Train Kit

Ring Feeder

Side Gates

Custom Paint - Coaming Rails

Hard Wired Flashing Beacon

Road Train / Long Vehicle Signs

Hub Odometer

Spare Wheel: Steel or Alloy

Get Your Flat Deck Trailer in Melbourne Today

Tell us what you need to haul and we’ll match you with the right flat deck trailer in Melbourne. Our team makes the process easy with friendly service and no-nonsense advice.

What They Say About Our Truck Trailers

Why AAA Trailers for Your Next Flat Deck Trailer in Melbourne?

Versatile Haulage

From pallet freight to heavy machinery, these flat decks are built to handle a wide range of loads.

Strong Yet Lightweight

High-tensile frames and forklift-rated chequer plate floors (3mm–5mm, model dependent) provide maximum strength without excess weight.

Load-Ready Features

Standard inclusions like container pins, twist locks, gate pockets, and tie rails for secure transport.

12-Month Warranty

Every flat deck is backed by a full 12-month warranty for peace of mind.

Nationwide Trust

Proven reliability with transport operators across Australia.

Frequently Asked Questions

  • Are the trailers new or used?

    All Flat Top B Trailer – 22 Pallet units we supply are brand-new builds, never second-hand or refurbished. Each trailer goes through a detailed assembly process, is fully inspected, and road-tested so it’s ready to go to work as soon as it joins your fleet.

  • Do you offer financing options for truck trailers?

    Yes. We provide flexible, competitive finance options for the Flat Top B Trailer – 22 Pallet, giving you the ability to secure the trailer you need without tying up working capital. You can also have your own broker assess the trailer before purchase for complete peace of mind.

  • Can I customise the specifications of the trailers I order?

    Yes. You can choose a custom paint finish at no extra charge, along with optional extras to match your freight profile. Please note that made-to-order builds will take longer to complete than stock trailers already available for delivery.

  • Do you have a warranty policy for your truck trailers?

    Every Flat Top B Trailer – 22 Pallet is covered by a 12-month warranty against defects in materials or workmanship under standard operating conditions. If something goes wrong, our team will organise quick repairs or replacements to minimise downtime.

  • What are the delivery times for ordered trailers?

    At times, Flat Top B Trailer – 22 Pallet models are ready for fast delivery across Melbourne, Victoria, and nationwide. If a fresh build is required, production and delivery typically take up to three months from deposit payment.

  • Do you provide after-sales service and support?

    Yes. We offer ongoing assistance for your Flat Top B Trailer – 22 Pallet, including technical guidance, servicing arrangements, and operational support to help keep your trailer performing reliably on freight runs across Victoria and Australia-wide.
