AAA Trailers – Quad Axle Low Loader Deck Widener With Front Lift-Up, Rear Steer Axle & Bi-Fold Ramps in Adelaide

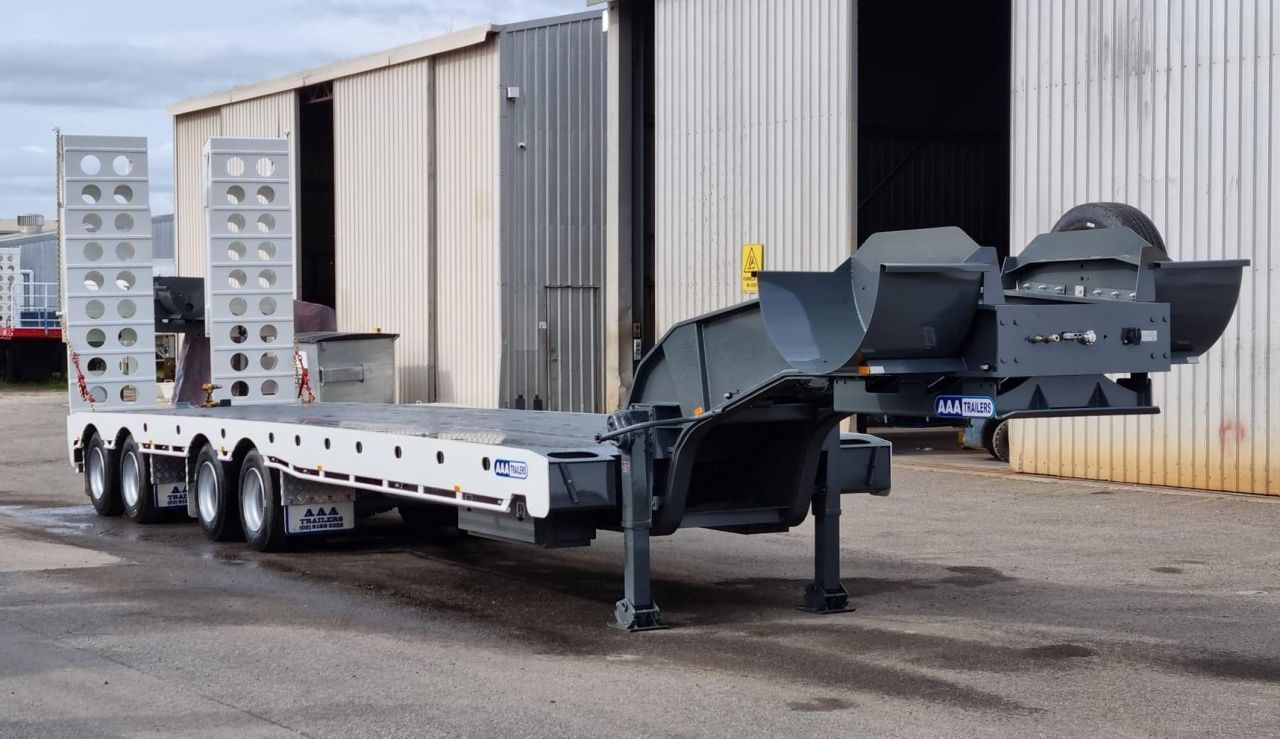

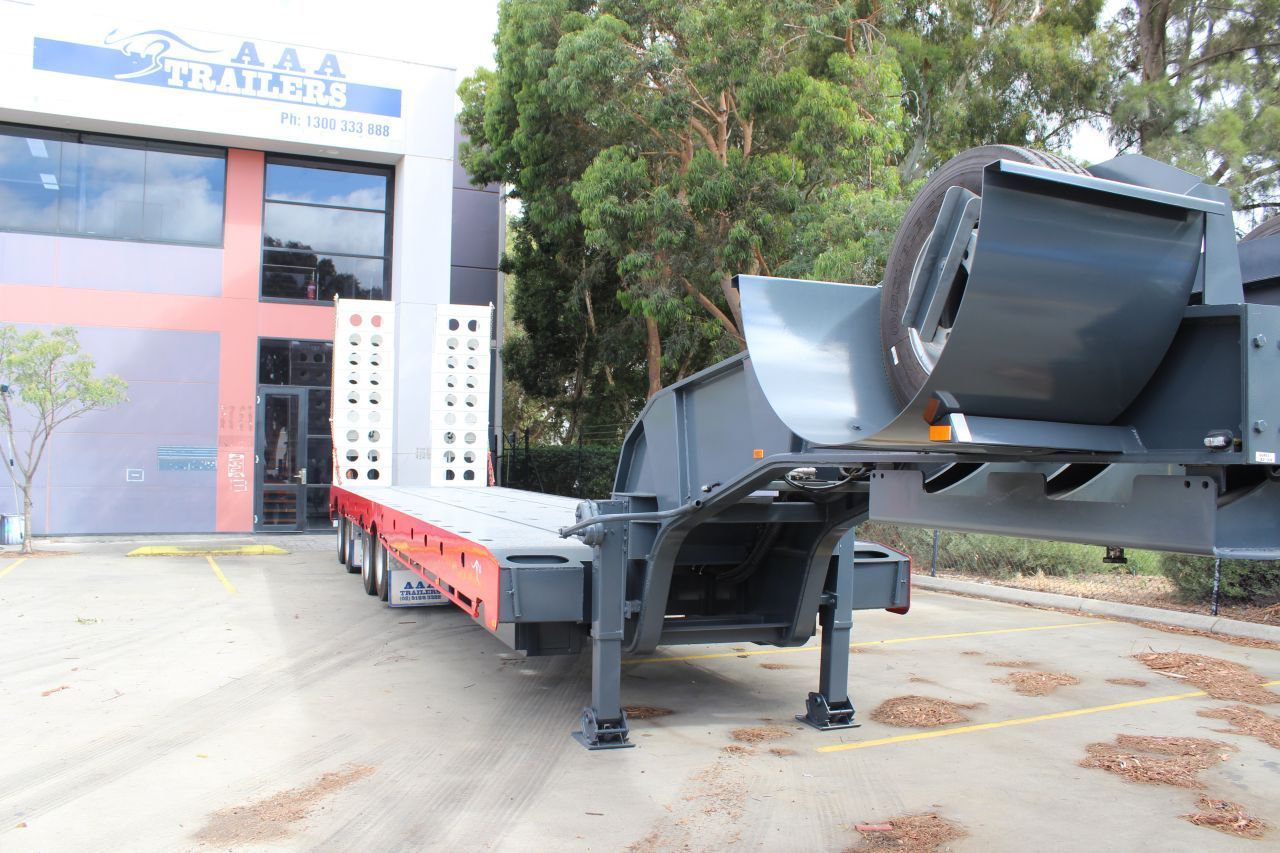

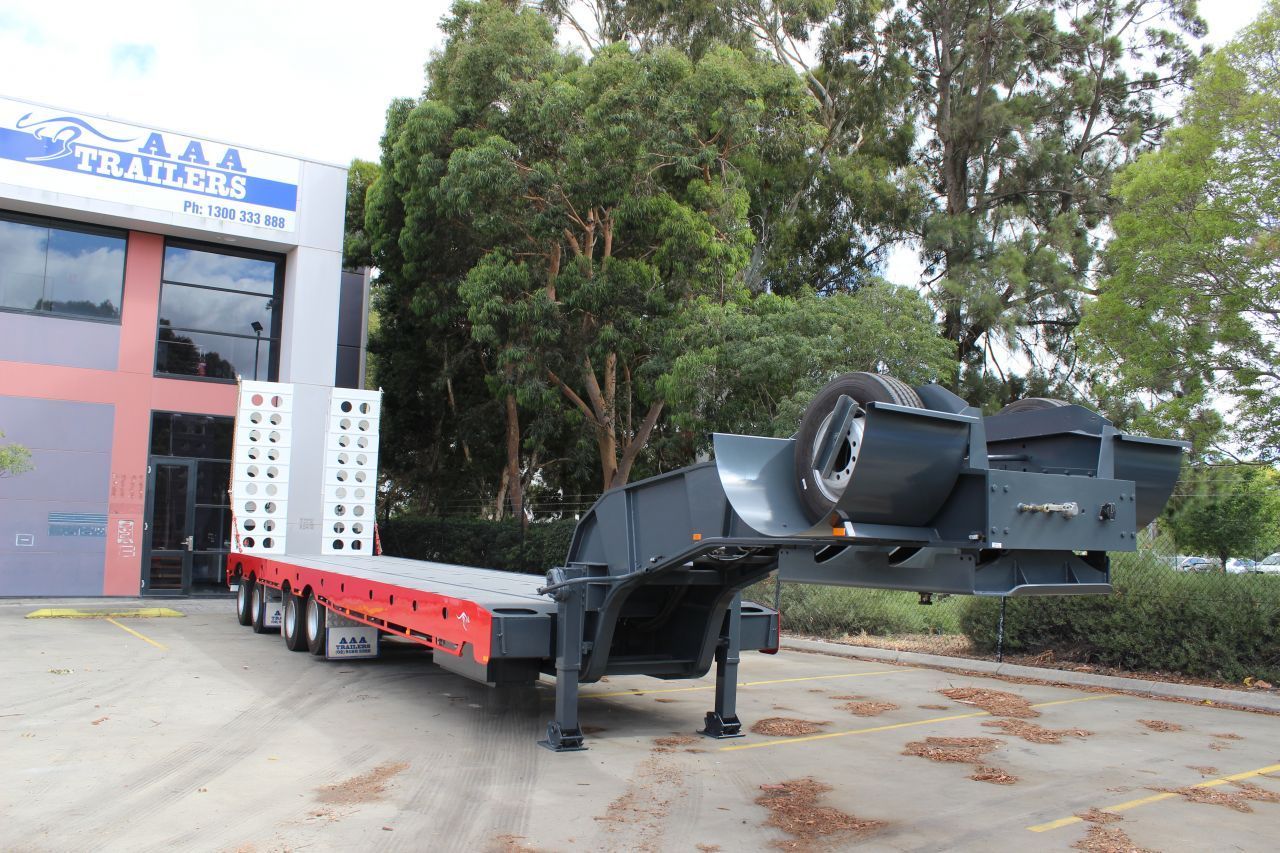

Overview: Quad Axle Low Loader Trailer With Front Lift-Up, Rear Steer Axle & Bi-Fold Ramps

Shifting heavy iron through Adelaide’s freight corridors or squeezing into tight job sites? This quad axle deck widener is built to take on the biggest loads while giving you the manoeuvrability to get in and out without drama. It’s the kind of gear that makes moving machinery, plant, and oversize freight a smoother run, whether you’re on metro deliveries or long-haul heavy haul routes.


Up front, the EBS-controlled lift axle lightens the load on tyres when empty, while the rear steer axle helps you swing into awkward approaches without scrubbing rubber. With a 60-tonne ATM, 10.9-metre deck, and widening capability from 2.5 to 3.5 metres, it’s ready for everything from excavators to crushing gear.


The high-tensile steel chassis and forklift-rated 5 mm chequer plate deck give you a strong, stable platform, while the 10.5 HP diesel-powered hydraulic system operates both the widening function and bi-fold ramps for quick, safe loading. SAF drum brake axles and quad airbag suspension keep it steady under max payload, even when the roads get rough.


For Adelaide operators who want grunt, control, and durability in one hard-working unit, this trailer’s built to deliver load after load.

Backed by 12-Month Warranty

60T

ATM

36T

GTM

15.5m

Length

SPECIFICATIONS

Category Details
ruler with arrow

Capacity & Dimensions

ATM: 47T

GTM: 27T

Tare Weight: Approx. 12.5T

Total Length: 13.72m (including ramps)

Lower Deck: 9.4m

Upper Deck: 3.95m

Deck Widener: 2500mm – 3500mm

steel beam

Construction Frame

Mainframe: High-tensile steel grade

Floor: 5mm steel chequer plate, forklift-rated

Coaming: 5-inch with tie rail

Kingpin: Dual-position 50mm bolt-in (90mm optional)

shaft

Axles, Suspension & Wheels

Axles: K-Hitch 17.5” drum brake axles

Suspension: K-Hitch tri-axle airbag

Landing Legs: K-Hitch 2-speed

Wheels: 10/225 PCD dual steel

Spare Wheel Carrier: Dual (spare wheels optional)

electric sign

Lighting & Electrical

Lighting: Full LED

Road Train Bracket: Coupling, air, and electrical (optional)

magnifying glass with letter 'i' on it

Standard Equipment

Brake Kit: EBS multi-volt 12/24V

Gates: Front gate: 1,200mm steel

Container Pins: 3-way

Water Tank: 30L stainless steel

Toolboxes: 2 steel with stainless steel “T” handles

Mudguards: Quarter guards front and rear with AAA Trailers mud flaps

gate

Optional Extras

Road train kit

Ring feeder

Custom paint – coaming rails

Oversize signs

Hub odometer

Spare wheel: steel or alloy

Get Your Quad Axle Low Loader Trailer in Adelaide Today

Looking for a quad axle low loader that’s built to get straight to work? Our Adelaide team is here to help. Whether you’ve got questions, need advice, or want guidance on choosing the right trailer for your jobs, we’re only a call or message away.

What They Say About Our Truck Trailers

Why AAA Trailers for Your Next Quad Axle Low Loader Trailer in Adelaide?

Lower Deck Stability

Ideal for oversized plant and machinery, with a lower centre of gravity for safer hauling.

Adjustable Deck Wideners

Hydraulic decks extend from 2.5m to 3.5m, giving flexibility for varying load widths

Durable Ramp System

Bi-fold ramps with hydraulic support, available in diesel or electric operation.

Robust Axle Configurations

Choose from tri or quad axle setups with either airbag or mechanical suspension.

Built for Compliance

ADR-approved with steer and lift axle options to meet regulated transport needs.

Frequently Asked Questions

  • Are the quad axle low loader trailers new or used?

    Each Quad Axle Low Loader Deck Widener with Front Lift-Up, Rear Steer Axle and Bi-Fold Ramps we deliver in Adelaide is a brand-new build, straight from our workshop with no prior service. Experienced tradespeople handle everything from fabrication to the final inspection, so by the time it’s in your yard, it’s already proven ready for work. You’re getting equipment set to earn from the first job, whether you’re carting machinery, plant, or oversize loads.

  • Do you offer financing options for your quad axle low loader trailers?

    Yes. We provide flexible finance packages to help you get your trailer on the road without putting strain on your cashflow. If you’d rather go through your own broker, they can arrange an inspection before you proceed, giving you extra confidence before signing. Our aim is to keep the process clear, quick, and without unnecessary holdups, so you can focus on your haulage work.

  • Can I customise the specifications of the quad axle low loader trailers I order?

    Absolutely. From free custom paint finishes to a selection of add-ons that match your exact freight needs, we can build a trailer to your specifications. Since these are constructed from the ground up, they will take longer to complete than stock models, but the payoff is a trailer that’s purpose-built for your operation.

  • Do you have a warranty policy for your quad axle low loader trailers?

    Yes. Every Quad Axle Low Loader Deck Widener with Front Lift-Up, Rear Steer Axle and Bi-Fold Ramps comes with a 12-month warranty covering defects in materials or workmanship under normal operating use. If something goes wrong in that time, we’ll handle repairs or arrange a replacement promptly. For us, a warranty is more than paperwork as it represents our commitment to back every unit we build.

  • What are the delivery times for ordered quad axle low loader trailers?

    We often have models in Adelaide ready for fast turnaround. For new builds, the usual lead time is up to three months from deposit. We take the time to maintain strict build quality, so you get a trailer built to last for years of demanding work.

  • Do you provide after-sales service and support?

    Yes. We stay connected well after delivery to provide operational advice, help book servicing, and assist with any technical questions. The goal is to keep your trailer earning and minimise downtime, so your freight keeps moving without delays.
