AAA Trailers – Quad Axle Low Loader Deck Widener With Bi-Fold Ramps in Adelaide

Overview: Quad Axle Low Loader Deck Widener With Bi-Fold Ramps

Moving machinery so big and heavy that a standard float just won’t get the job done? The Quad Axle Low Loader Deck Widener is purpose-built for heavy haulage operators in Adelaide who need serious capacity and rock-solid stability. With a 60-tonne ATM and a 14.9-tonne tare, it’s got the muscle to carry excavators, dozers, crushers, or any oversize plant across metro, regional, or interstate runs.


The deck extends from 2.5 metres to 3.5 metres, giving you the width for wide loads without compromising road compliance. A high-tensile steel mainframe, forklift-rated 5 mm chequer plate deck, and 20-foot container pins provide a secure base for any payload.

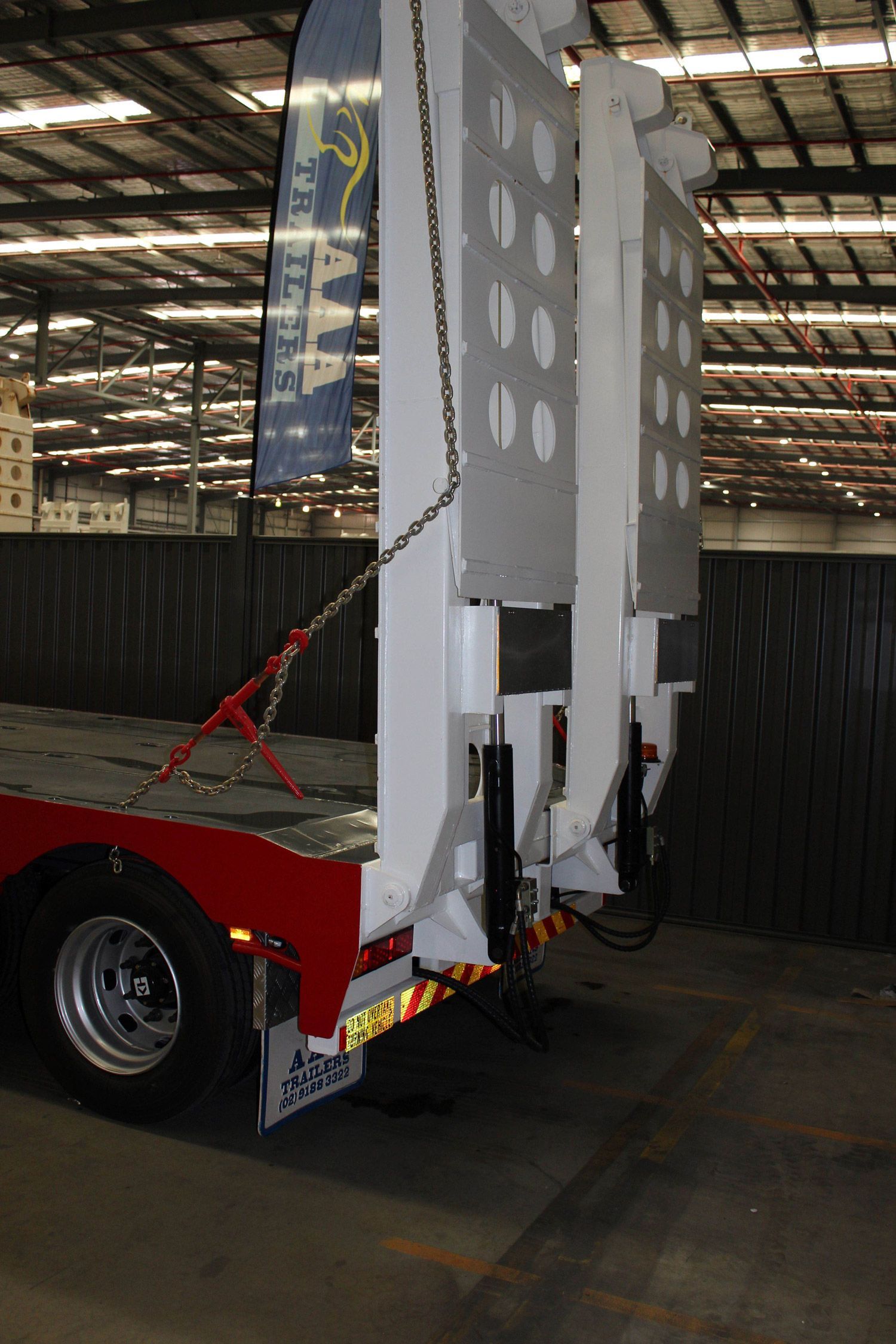

Underneath, K-Hitch quad-axle airbag suspension, drum brake axles, and a multi-volt EBS braking system deliver predictable handling and strong braking, even at full capacity. Hydraulic bi-fold ramps, powered by a 10.5 HP diesel pack, make loading and unloading controlled and efficient, while alloy quarter guards, LED work lights, and multiple lockable toolboxes keep you geared up for long hauls.


With optional extras to match your work requirements, this low loader is ready to start earning from the first load.

Backed by 12-Month Warranty

60T

ATM

36T

GTM

15.5m

Length

SPECIFICATIONS

Category Details
ruler with arrow

Capacity & Dimensions

ATM: 60T

GTM: 36T

Tare Weight: Approx. 14.9T

Total Length: 15.5m

Deck Length: 10.9m

Widener Range: 2500mm – 3500mm

steel beam

Construction

Mainframe: High-tensile steel grade

Floor: 5mm steel chequer plate, forklift-rated

Coaming: 5-inch with tie rail

shaft

Axles, Suspension & Wheels

Axles: K-Hitch drum brake axles

Suspension: K-Hitch quad airbag

Wheels: 8/225 PCD dual steel rims (aluminium optional)

Tyres: 265/70R19.5

Spare Wheel Carrier: Four (spare wheels optional)

electric sign

Braking & Electrical

Brake Kit: EBS multi-volt 12/24V

Lighting: Full LED

magnifying glass with letter 'i' on it

Other Equipment

Container Pins: 20FT container

Kingpin: Dual-position 50mm bolt-in (90mm optional)

Landing Legs: K-Hitch 2-speed

Toolboxes: 2 steel with stainless steel “T” handles

Water Tank: 30L stainless steel

Mudguards: Alloy quarter guards with AAA Trailers mudflaps

Engine & Pump: 10.5HP diesel engine with hydraulic pump (operates widener and bi-fold ramps)

document wtih gear and pen

Optional Extras

Custom paint – coaming rails

Hard-wired flashing beacon

Oversize signs

Hub odometer

Spare wheel: steel or alloy

Get Your Quad Axle Low Loader Trailer in Adelaide Today

Looking for a quad axle low loader that’s built to get straight to work? Our Adelaide team is here to help. Whether you’ve got questions, need advice, or want guidance on choosing the right trailer for your jobs, we’re only a call or message away.

What They Say About Our Truck Trailers

Why AAA Trailers for Your Next Quad Axle Low Loader Trailer in Adelaide?

Lower Deck Stability

Ideal for oversized plant and machinery, with a lower centre of gravity for safer hauling.

Adjustable Deck Wideners

Hydraulic decks extend from 2.5m to 3.5m, giving flexibility for varying load widths.

Durable Ramp System

Bi-fold ramps with hydraulic support, available in diesel or electric operation.

Robust Axle Configurations

Choose from tri or quad axle setups with either airbag or mechanical suspension.

Built for Compliance

ADR-approved with steer and lift axle options to meet regulated transport needs.

Frequently Asked Questions

  • Are the quad axle low loader trailers new or used?

    Every quad axle low loader trailer we supply in Adelaide rolls out as a fresh build, straight from our workshop with zero prior use. Skilled tradespeople handle every stage of the process, from fabrication to final checks, so by the time it reaches you, it’s already been proven fit for the job. This is an investment in gear that’s ready to start pulling its weight from day one, whether you’re shifting machinery, plant, or oversize freight.

  • Do you offer financing options for your quad axle low loader trailers?

    Yes. We’ve got finance options designed to get your trailer into service quickly without tying up your cashflow. Prefer to go through your own broker? No problem. They can inspect the trailer before you commit to give you added assurance before you sign on the dotted line. We keep the process simple, transparent, and free from unnecessary roadblocks so you can get on with the work that matters.

  • Can I customise the specifications of the quad axle low loader trailers I order?

    You can. From no-cost custom paintwork to optional extras that fit your exact freight profile, we’ll build a trailer to your specs. Because these are built from the chassis up, they’ll take longer than stock units, but you’ll get a piece of equipment that’s built around your jobs, not the other way around. The end result is a trailer that fits your operation like a glove.

  • Do you have a warranty policy for your quad axle low loader trailers?

    All of our quad axle low loader trailers include a 12-month warranty covering faults in workmanship or materials under standard operating conditions. If there’s an issue during that time, we’ll sort repairs or a replacement without delay. For us, the warranty is more than fine print. It’s also proof we stand behind every trailer that leaves our yard.

  • What are the delivery times for ordered quad axle low loader trailers?

    We regularly have units available in Adelaide for quick turnaround. If yours needs to be built, the typical lead time is around three months from deposit. That’s because we’d rather take the time to get it right than rush something out the door. When you’re relying on a trailer for years of heavy haulage, that attention to detail pays off.

  • Do you provide after-sales service and support?

    We do. Whether it’s helping you get the most out of your trailer, organising a service schedule, or answering technical queries, we’re here long after handover day. Our goal is to keep your gear earning and your downtime low, so you can keep freight moving without a hitch.
