AAA Trailers – Tandem Axle Load Share Dolly in Adelaide

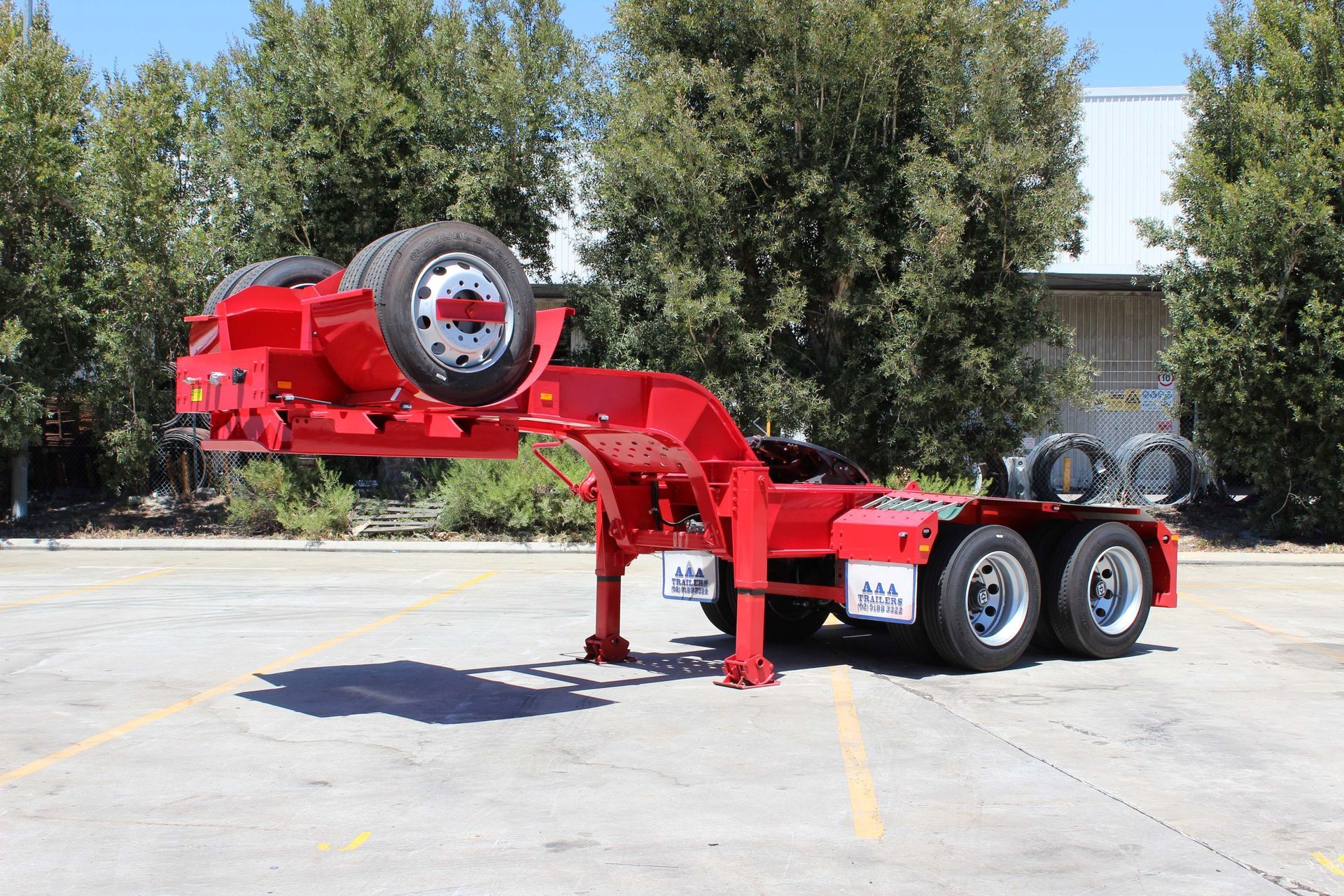

Overview: Tandem Axle Load Share Dolly Trailer

When your prime mover is pulling big numbers through Adelaide’s freight network, you need a dolly that keeps the whole rig in check. The Tandem Axle Load Share Dolly is built to keep your road train steady, spread the load evenly, and deliver a smooth, predictable tow from the bitumen to the backroads. With an 18-tonne ATM and GTM, it helps cut down on wear, boosts ride comfort, and keeps your long-haul schedule running on time.


Underneath, K-Hitch 22.5” drum brake axles team with a K-Hitch tri-axle airbag suspension for controlled handling and dependable stopping power under heavy loads. A dual-position 50mm bolt-in king pin is standard, with a 90mm upgrade available for specialised setups. It rides on 255/70R22.5 tyres with dual steel rims, with the option to upgrade to alloy for lighter tare and better fuel economy.


Full LED lighting keeps you visible in all conditions, while optional extras like a hub odometer and spare wheel (steel or alloy) let you fine-tune it to your fleet. From Adelaide metro drops to cross-border road train runs, this dolly keeps your prime mover and trailers working as one solid unit.

Backed by 12-Month Warranty

18T

ATM

18T

GTM

6.4m

Length

SPECIFICATIONS

Category Details
ruler with arrow

Dimensions & Capacity

ATM: 18T

GTM: 18T

Tare Weight: Approx. 4.5T

Length: 6.4m
steel beam

Construction & Frame

Kingpin: Dual-position 50mm bolt-in (90mm optional)
shaft

Axles, Suspension & Braking

Axles: K-Hitch 22.5” drum brake axles

Suspension: K-Hitch tri-axle airbag

Brake Kit: EBS multi-volt 12/24V (optional)

Wheels: 10/285 PCD dual steel rims (aluminium optional)

Tyres: 255/70R22.5

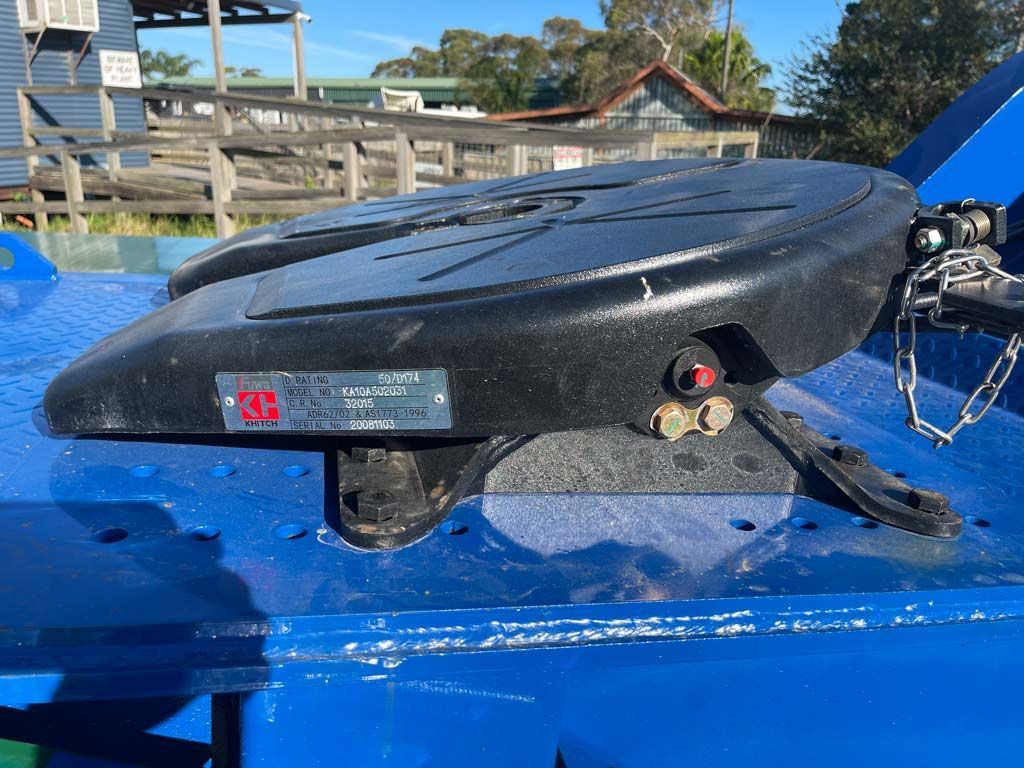

Turntable: K-Hitch 50mm bolt-in (90mm optional)
electric sign

Electrical, Lighting & Safety

Lighting: Full LED
document wtih gear and pen

Optional Extras

Hub odometer

Spare wheel: steel or alloy

Get Your Dolly Trailer in Adelaide Today

If you have questions, need advice, or want guidance on choosing the right dolly trailer for your work, just give us a call or send us a message. Our team is always happy to help.

What They Say About Our Truck Trailers

Why Choose AAA Trailers for Your Dolly in Adelaide

Essential Link to Your Fleet

Connects semi-trailers into road train combinations with ease.

Strong Kingpin & Turntable

Heavy-duty construction provides safe articulation and dependable load transfer.

Flexible Axle Setups

Available in tandem, tri, and load-share configurations to suit your requirements.

Road Train Ready

Fully compliant with air, electrical, and safety standards for long-haul work.

Trusted Engineering

Compatible with leading trailer brands and combinations across Australia.

Frequently Asked Questions

  • Are the tandem axle load share dolly trailers new or used?

    The Tandem Axle Load Share Dolly Trailers we supply to our clients in Adelaide and all of Australia is a brand-new build. They leave our workshop with no history of use. Experienced teams handle every stage of the manufacturing, from the initial fabrication through to the final inspection, so when it arrives in your yard, it’s already proven ready for the road. You’re getting equipment prepared to go straight to work from the first job, whether coupling trailers for interstate linehaul, regional freight, or heavy-duty transport.

  • Do you offer financing options for your tandem axle load share dolly trailers?

    Yes. We offer a variety of competitive finance options to help you get your dolly into operation without putting unnecessary pressure on your cashflow. If you prefer to work with your own broker, they can arrange a pre-purchase inspection for added confidence before you proceed. We keep the process clear, quick, and free from needless delays so you can stay focused on keeping freight moving.

  • Can I customise the specifications of the tandem axle load share dolly trailers I order?

    Absolutely. From no-cost paint finishes to a range of optional features that match your freight requirements, we can build a dolly to your exact needs. Since these are manufactured from the chassis up, the production time is longer than stock units, but the result is equipment specifically built for your jobs and working conditions.

  • Do you have a warranty policy for your tandem axle load share dolly trailers?

    Yes. Every Tandem Axle Load Share Dolly includes a 12-month warranty covering faults in materials or workmanship under standard operating conditions. If any problem occurs within that time, we’ll organise repairs or a replacement promptly. For us, a warranty is more than just paperwork, it’s our commitment to back every unit we manufacture.

  • What are the delivery times for ordered tandem axle load share dolly trailers?

    We often have models in Adelaide ready for fast dispatch. For new builds, the normal lead time is up to three months from deposit. This gives us the opportunity to maintain strict quality control so you receive a dolly that will perform reliably for years.

  • Do you provide after-sales service and support?

    Yes. Our service continues long after delivery. We are available to provide operational advice, arrange servicing schedules, and answer technical questions. The goal is to keep your dolly working at its best so your freight stays on track without downtime.
