Double Drop Deck Curtain Sider B-Trailer (With Rolling Posts & Removable Uprights) in Sydney

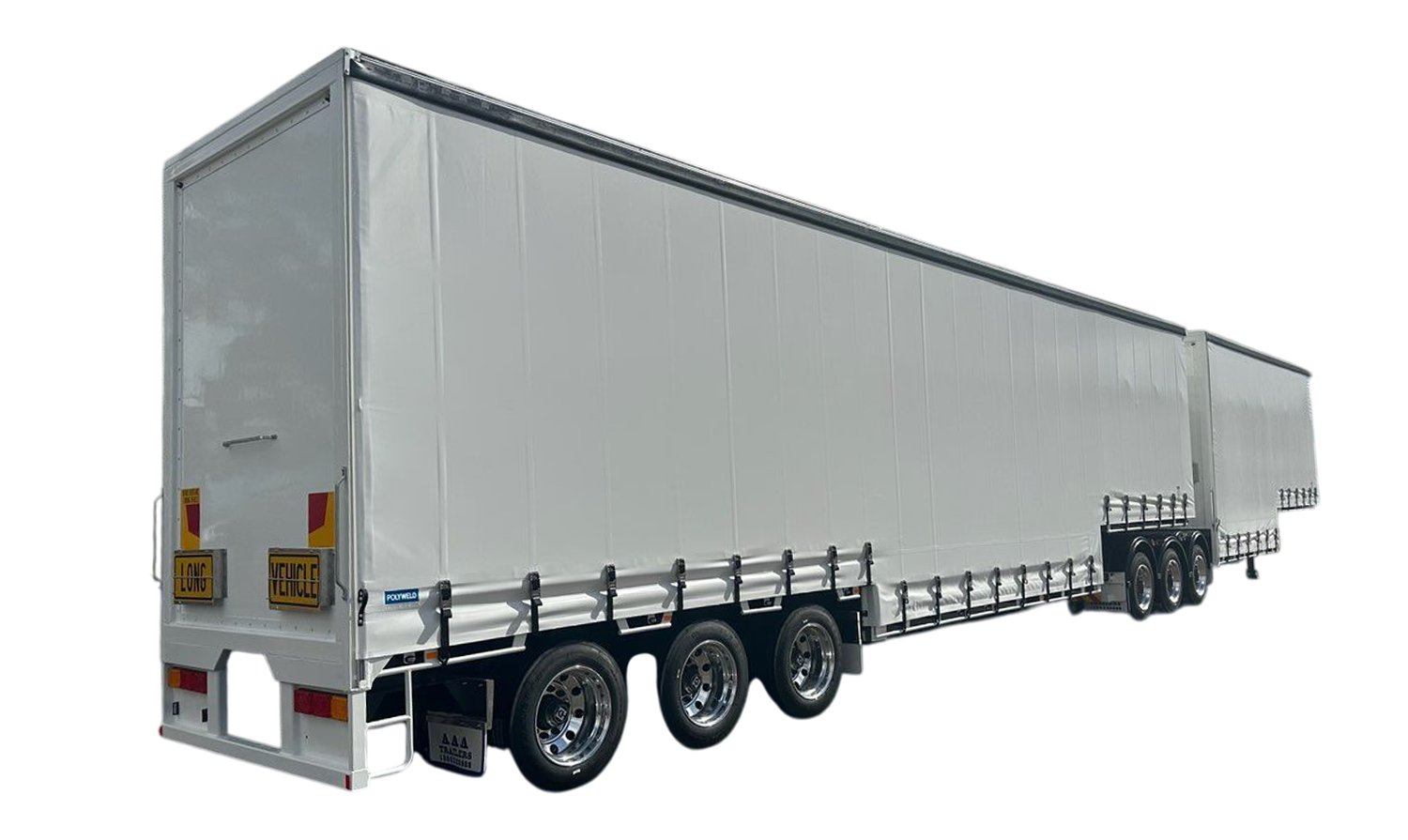

Overview: Double Drop Deck Curtain Sider B-Trailer

Built for serious long-haul and high-volume freight, this 22-pallet B-trailer combines capacity with flexibility. The double drop deck configuration, rolling curtain posts, and removable uprights make side loading and unloading straightforward, even for awkward or oversize freight. At 13.8 metres in total length with a high-tensile steel mainframe and forklift-rated chequer plate floor, it’s designed to withstand the demands of Australian road transport.


Fitted with K-Hitch tri-axle airbag suspension, 22.5” drum brake axles, and a multi-volt EBS braking system, this trailer delivers stable handling and dependable braking performance. Polyweld load restraint curtains, hanging aluminium side gates, LED lighting, stainless water tank, and dual spare wheel carriers come standard. A range of optional extras is available, allowing operators to set up the trailer to suit specific freight and fleet requirements.

Backed by 12-Month Warranty

Double Drop Deck Curtain Sider B-Trailer in Sydney

47T

ATM

23.5T

GTM

13.8m

Length

SPECIFICATIONS

Category Details
ruler with arrow

Dimensions & Capacity

ATM: 47T

GTM: 23.5T

Tare Weight: Approx. 10.5T

Total Length: 13.8m

Curtainsider Style: Double Drop Deck with Rolling Curtain Posts
steel beam

Construction & Frame

Mainframe: High-tensile steel grade

Floor: 5mm steel chequered plate, forklift-rated

Coaming: C-channel with tie rail

Main Uprights: Removable for unrestricted loading

Kingpin: Dual-position 50mm bolt-in (90mm optional)
shaft

Axles, Suspension & Braking

Axles: K-Hitch 22.5” drum brake axles

Suspension: K-Hitch tri-axle airbag

Landing Legs: K-Hitch 2-speed

Brake Kit: EBS multi-volt 12/24V

Spare Wheel Carrier: Dual (spare wheels optional)
wheel

Wheels & Tyres

Wheels: 10/285 PCD dual steel rims (aluminium optional)

Tyres: 255/70R22.5
electric sign

Electrical, Lighting & Safety

Lighting: Full LED

Mudguards: Plastic radius guards with AAA Trailers mudflaps

Hub Odometer: Optional
curtain

Curtain System

Curtains: Polyweld load restraint, single base colour
gate

Gates & Load Handling

Gates: Side gate pockets with hanging aluminium side gates
document wtih gear and pen

Optional Extras

Curtains: Polyweld load restraint, single base colour

Gates: Side gate pockets with hanging aluminium side gates

Road Train Kit

Get Your Drop Deck Curtainsider Trailer in Sydney Today

We are happy to help you secure the right drop deck curtainsider trailer for your transport needs. Talk to our team for friendly, informed advice.

What They Say About Our Truck Trailers

Why Choose AAA Trailers Drop Deck Curtainsiders in Sydney?

12-Month Warranty

All drop decks come with a full 12-month warranty for peace of mind.

Heavy-Duty Build

Built tough with high-tensile steel and forklift-rated flooring for long-term durability.

Engineered for Australia

Designed for harsh road conditions, with quality components and tested suspension.

Flexible Ramp Systems

Bi-fold, slide-out, or fold-down ramps with diesel or electric operation for easier loading.

Fast Local Support

Backed by a responsive Sydney-based team for quick help and servicing.

Frequently Asked Questions

  • Are the trailers new or used?

    All our drop deck curtainsider trailers are brand new, assembled and tested by experienced technicians before handover in Sydney.

  • Do you offer financing options for truck trailers?

    Yes. We have competitive finance options available, and you’re welcome to have your chosen broker inspect the trailer before purchase.

  • Can I customise the specifications of the trailers I order?

    Yes. You can choose a custom colour at no extra cost. Custom builds take longer than stock models as they are built from the ground up.

  • Do you have a warranty policy for your truck trailers?

    Each trailer is backed by a 12-month warranty covering manufacturing defects and workmanship issues under normal operating conditions. Faulty parts will be repaired or replaced during this time.

  • What are the delivery times for ordered trailers?

    Many models are available for immediate delivery. If not in stock, lead times can be up to three months from the date of deposit.

  • Do you provide after-sales service and support?

    Yes. Our team can assist with any enquiries or servicing needs at any time. Feel free to reach out to us anytime.
