AAA Trailers 45’ Quad-Axle Drop Deck Widener With Front Lift Up & Rear Steer Axle in Sydney

Overview: 45’ Quad-Axle Drop Deck Widener With Front Lift Up & Rear Steer Axle

When heavy haulage meets oversize freight, this quad-axle drop deck widener is ready to take on the toughest Australian transport conditions. With a 60-tonne ATM, 36-tonne GTM, and an approximate tare weight of 14 tonnes, it delivers serious load capacity. The deck widens from 2.5m to 3.5m, providing flexibility for machinery, equipment, and other wide loads. A high-tensile steel mainframe, forklift-rated 5mm steel chequer plate floor, and dual-position kingpin make it a versatile performer in the field.


The SAF quad-axle airbag suspension works in tandem with 17.5” drum brake axles and a multi-volt EBS braking system for stability and control. A 60-tonne rated bi-fold ramp setup, powered by a diesel pack, makes loading and unloading straightforward, while the rear steer axle and front lift-up axle improve manoeuvrability and reduce tyre scrub. Additional features include 3-way container pins, stainless toolboxes, LED lighting, stainless water tank, and quarter guards with AAA mud flaps.


Optional extras such as road train kits, ring feeders, custom paint, and oversize signs allow operators to configure the trailer to their specific haulage requirements.

Backed by 12-Month Warranty

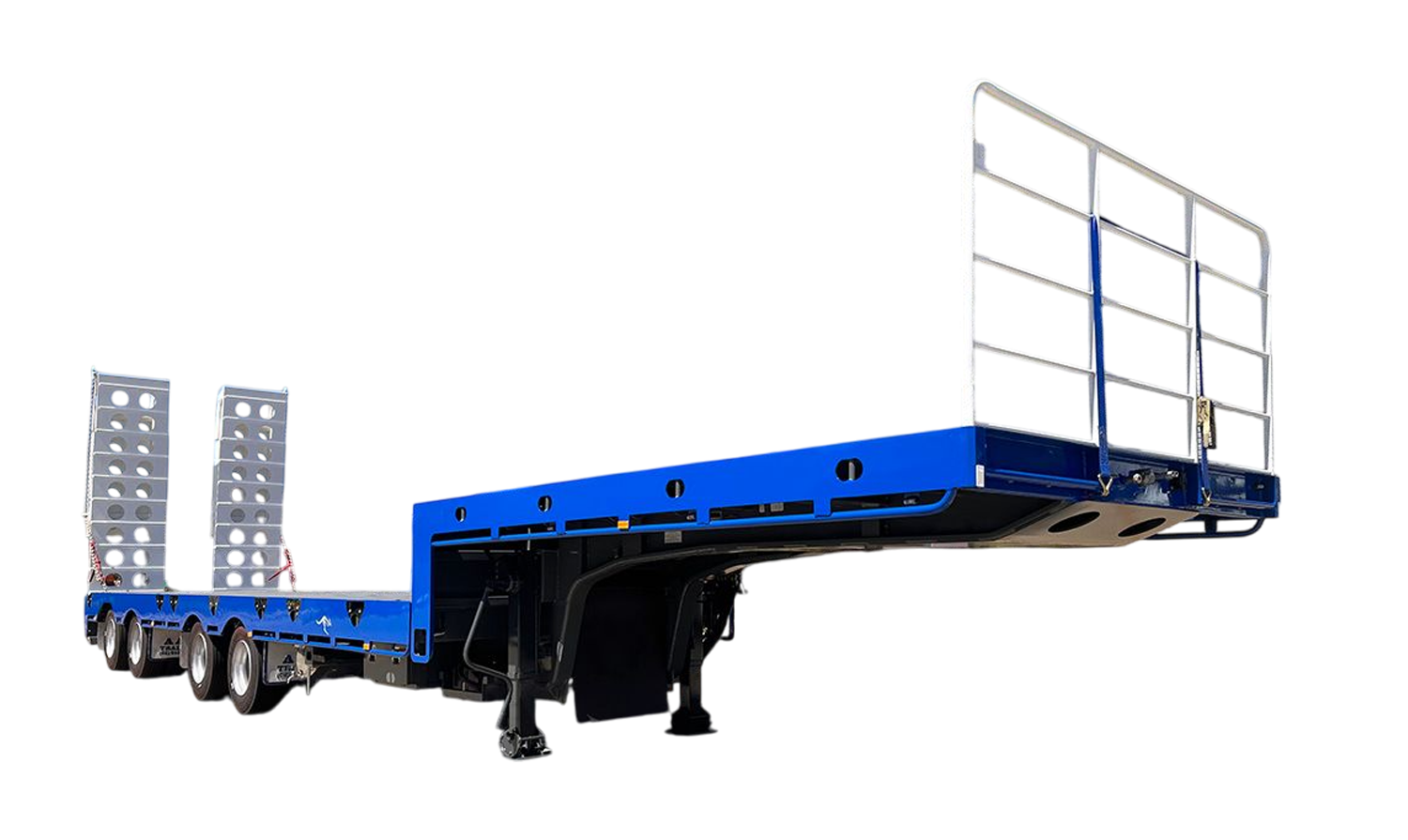

45’ Quad-Axle Drop Deck Widener With Front Lift Up and Rear Steer Axle in Sydney

60T

ATM

36T

GTM

13.72m

Length

SPECIFICATIONS

Category Details
ruler with arrow

Dimensions & Capacity

ATM: 60T

GTM: 36T

Tare Weight: Approx. 14T

Total Length: 13.72m (including ramps)

Lower Deck: 9.4m

Upper Deck: 4m

Deck Widener: 2,500mm – 3,500mm
steel beam

Construction & Frame

Mainframe: High-tensile steel grade

Floor: 5mm steel chequer plate, forklift-rated

Coaming: 5-inch with tie rail

Kingpin: Dual-position 50mm bolt-in (90mm optional)
shaft

Axles, Suspension & Braking

Axles: SAF 17.5” drum brake axles

Suspension: SAF quad axle airbag

Landing Legs: K-Hitch 2-speed

Brake Kit: EBS multi-volt 12/24V

Spare Wheel Carrier: Spare wheel holder (spare wheel optional)
wheel

Wheels & Tyres

Wheels: 10/225 PCD dual steel rims (aluminium optional)

Tyres: 235/75R17.5
electric sign

Electrical, Lighting & Safety

Lighting: Full LED

Road Train Bracket: Coupling, air, and electrical (optional)

Mudguards: Quarter guards front and rear with AAA Trailers mud flaps

Hub Odometer: Optional

Hard-Wired Flashing Beacon: Optional
magnifying glass with letter 'i' on it

Onboard Equipment

Toolboxes: 2 steel with stainless steel “T” handles

Water Tank: 30L stainless steel
ramp

Ramps

Standard Bi-Fold Ramps:

60 T-rated ramps

Diesel powerpack to operate widener and ramps (hydraulics to truck optional)

Optional Ramp Configurations:

3-piece fold-down upper deck ramps

Slide-out upper deck neck ramps

3-piece flip-over upper deck ramps

No ramps
gate

Gates & Load Handling

Front Gate: 1,200mm steel

Container Pins: 3-way
document wtih gear and pen

Optional Extras

Road Train Kit

Ring Feeder

Custom Paint - Coaming Rails

Forward Fold Ramp Option

Hard Wired Flashing Beacon

Oversize Signs

Hub Odometer

Spare Wheel: Steel or Alloy
