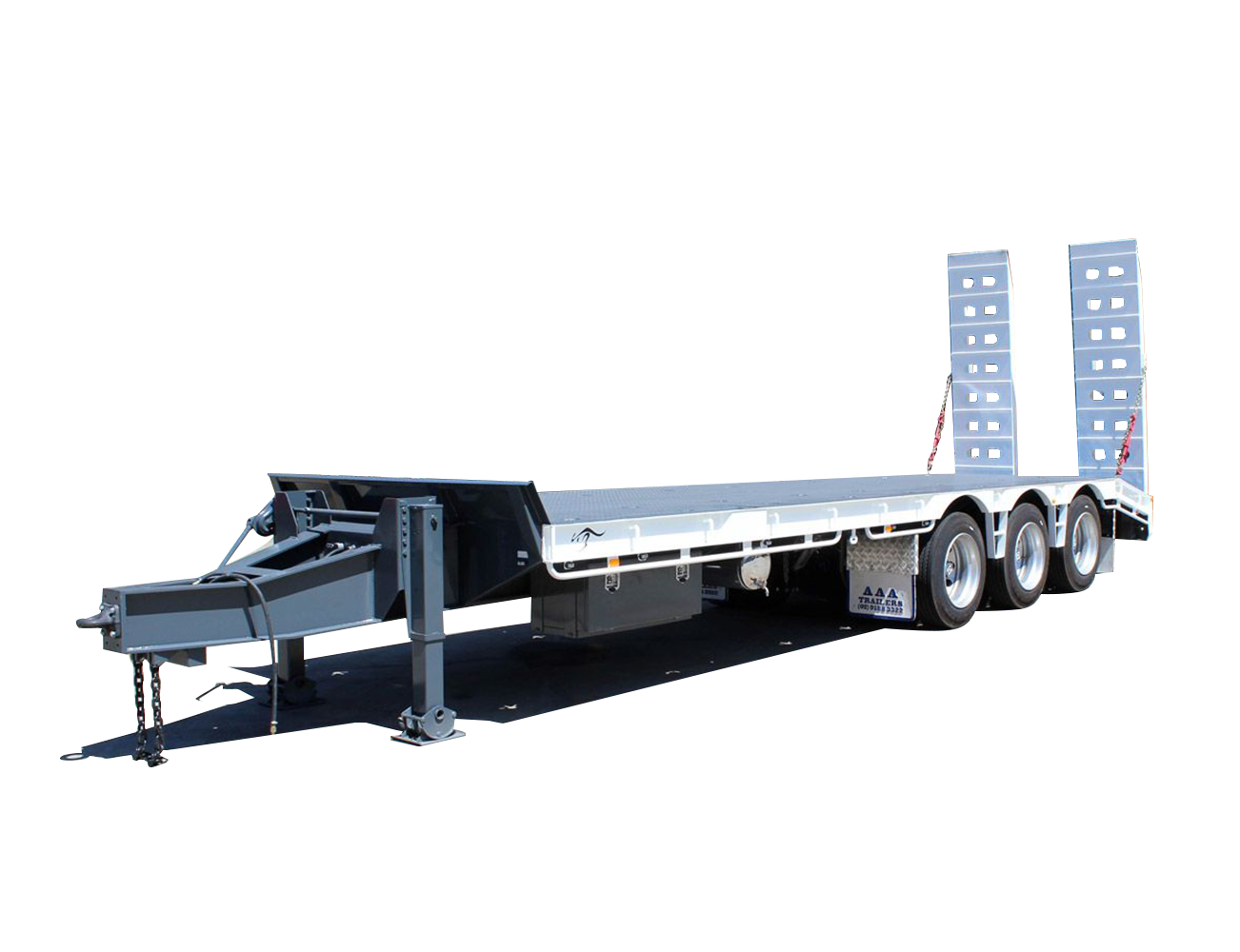

AAA TRAILERS TRI AXLE TAG TRAILER
The AAA Tag Trailer Tri Axle offers enhanced performance to ensure that your cargo arrives safely and efficiently to its destination. Features a 9.0m deck length and 2.49m width. With high tensile steel grade mainframe, 5mm steel chequer plate forklift rated floor, and 20' container pins, this trailer combines strength and versatility in a single unit. Equipped with electric hydraulic power pack for ramps, K-Hitch tri-axle, spring suspension, and 2-speed landing legs for improved functionality and performance. Perfect for all your heavy-duty transport needs.
AAA Trailers is proudly Australian owned and operated.
Additional info:
- This unit comes with a 12-month warranty.
- Pre- and post-sales service available.
- We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
- Additional charges will apply if you require trailer registration and transportation.
- Rego and on-road cost not included.
| Specifications | Details |
|---|---|
| Capacity | ATM: 28T GTM: 20T Approx tare weight: 7T |
| Length | 10.9m Overall 8.74m Deck |
| Mainframe | High-tensile steel grade |
| Floor | 5mm steel chequer plate, forklift-rated |
| Coupling | Pintle hook |
| Coaming | C-channel with tie rail |
| Tie-down points | Integrated into the floor |
| Brake kit | EBS multi-volt 12/24V |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch tri-axle FUWA FW520 8-leaf spring |
| Landing legs | K-Hitch 2-speed |
| Wheels | 10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 255/70R22.5 |
| Spare wheel carrier | Single (spare wheel optional) |
| Lighting | Full LED |
| Toolboxes | 2 steel with stainless steel “T” handles |
| Container Pins | 20ft |
| Mudguards | Alloy quarter guards front and rear with AAA Trailers mudflaps |
| Ramps | Bi-fold with 12V electric power pack, N150 battery, and built-in Anderson plug |
| Optional Extras |
|
Frequently Asked Questions
What is the ATM and GTM of this tri axle tag trailer?
This trailer has an ATM of 28 tonnes and a GTM of 20 tonnes, with an approximate tare weight of 7 tonnes.
What size container pins does this trailer take?
It's fitted with 20ft container pins, suited to standard 20ft container transport.
What kind of ramps come with this trailer?
Bi-fold ramps powered by a 12V electric power pack, with an N150 battery and a built-in Anderson plug.
Does this trailer use airbag or spring suspension?
This trailer runs K-Hitch tri-axle FUWA FW520 8-leaf spring suspension as standard.
Is trailer registration included in the price?
No. Rego and on-road costs are not included in the listed price. Additional charges apply if you require trailer registration and transport.
Am I covered by warranty on this trailer?
Yes, this tag trailer is backed by a 12-month warranty against manufacturing defects and faulty workmanship under normal use. If a fault shows up within that period, AAA Trailers repairs or replaces the affected parts at no cost, and you've got pre- and post-sales support the whole way through.
Where can I get this trailer serviced?
AAA Trailers has support locations across the country, including Sydney, Perth, Adelaide, Melbourne, and Brisbane. Every unit is assembled at the Sydney, NSW and Perth, WA workshops, built with reputable imported running gear and Australian Standard approved steel.
How long will it take to get this trailer?
This trailer is usually held in stock and ready to go. If there's a shortage when you order, expect a wait of up to three months from your deposit date.
Can I get this trailer in a different colour or spec?
Yes, colour changes come at no extra cost. A custom specification takes longer to turn around since it's built from scratch, so get in touch with AAA Trailers to talk through what your operation needs.
Can I finance this trailer?
Yes, flexible financing is available on this trailer and across the AAA range. You're also welcome to bring your own finance broker in to inspect it before you commit.
