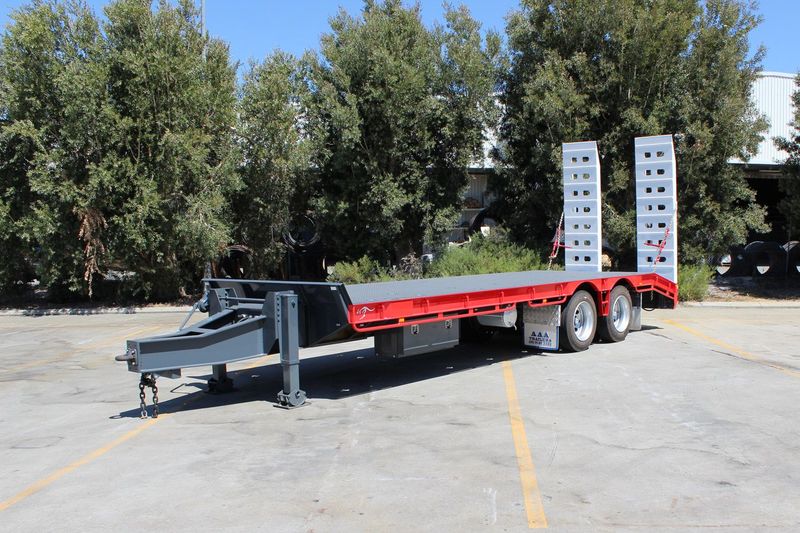

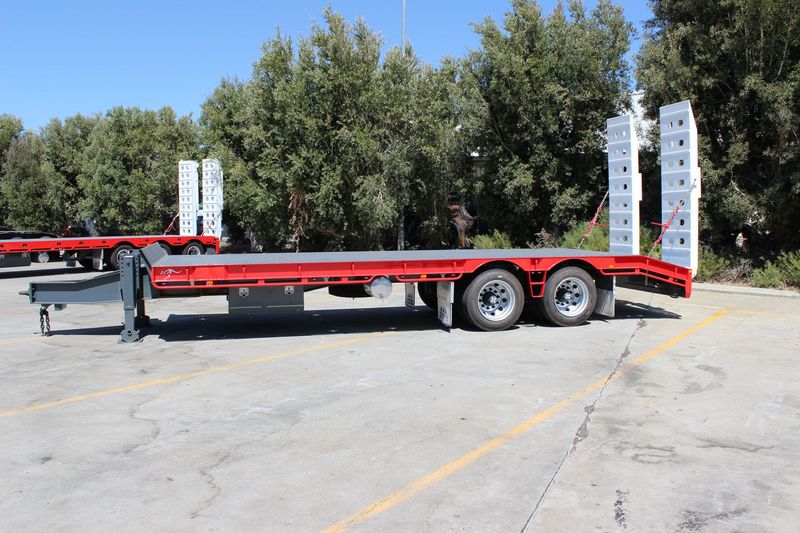

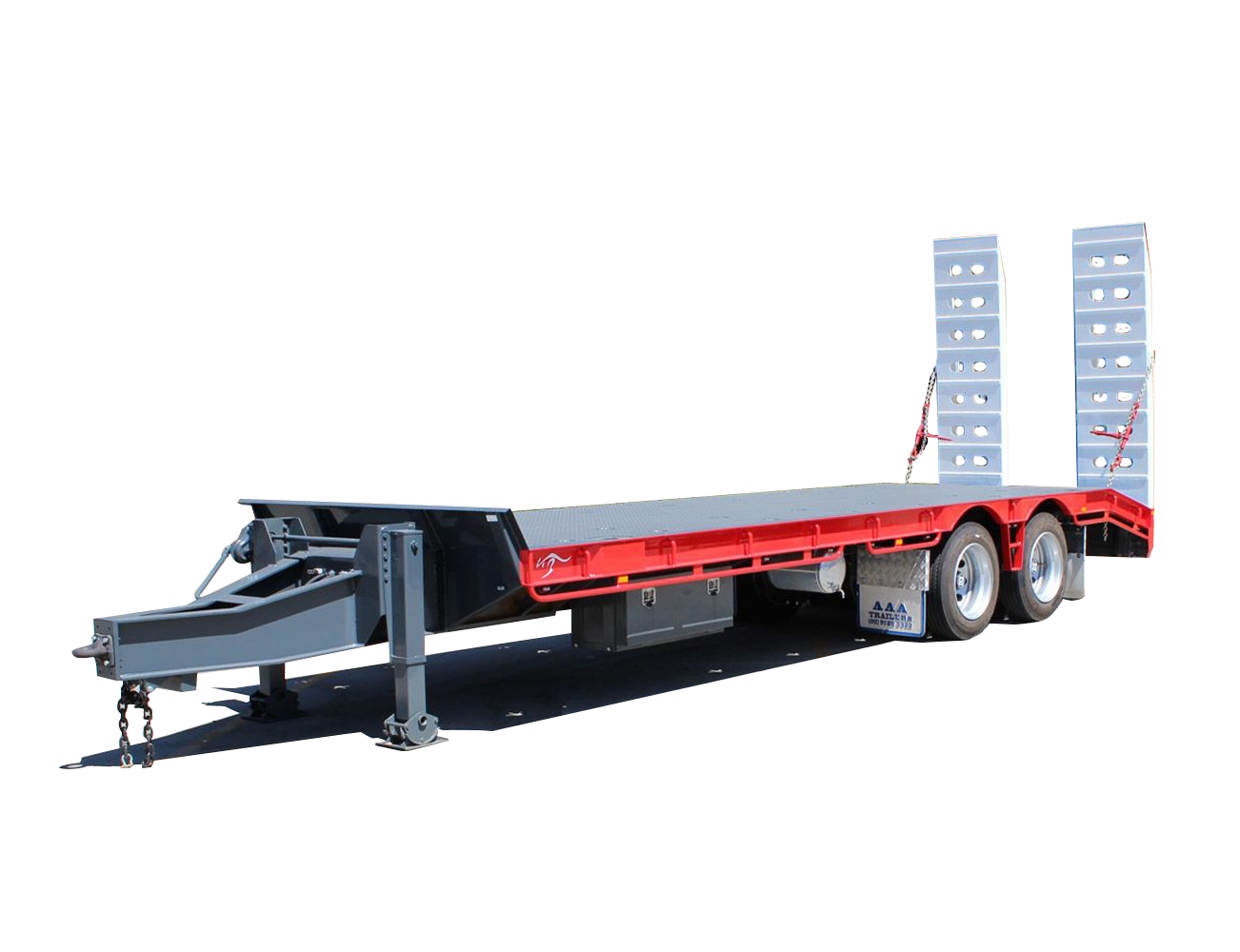

AAA TRAILERS TANDEM AXLE TAG TRAILER
The AAA Tandem Axle Tag Trailer is engineered for versatility and strength to ensure that your cargo is safe during transport. Features an 8.50m deck length and 2.49m width. With high tensile steel grade mainframe, 5mm steel chequer plate forklift rated floor, and 20' container pins, this tandem axle tag trailer is the definition of quality. If that's not enough, it's also equipped with electric hydraulic power pack for ramps, K-Hitch spring suspension, and 2-speed landing legs. Ideal for various transport applications.
AAA Trailers is proudly Australian owned and operated.
Additional info:
- This unit comes with a 12-month warranty.
- Pre- and post-sales service available.
- We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
- Additional charges will apply if you require trailer registration and transportation.
- Rego and on-road cost not included.
| Specifications | Details |
|---|---|
| Capacity | ATM: 24T GTM: 16.5T Approx tare weight: 5.9T |
| Length | 10.4m Overall 8.2m Deck |
| Mainframe | High-tensile steel grade |
| Floor | 5mm steel chequer plate, forklift-rated |

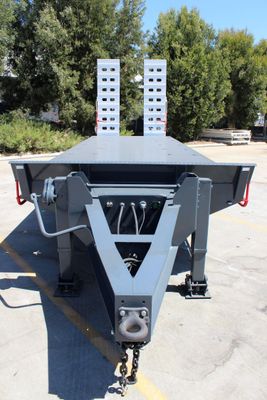

| Coupling | Pintle hook |
| Coaming | C-channel with tie rail |
| Tie-down points | Integrated into the floor |
| Brake kit | EBS multi-volt 12/24V |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch tri-axle FUWA FW520 8-leaf spring |
| Landing legs | K-Hitch 2-speed |
| Wheels | 10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 255/70R22.5 |
| Spare wheel carrier | Single (spare wheel optional) |
| Lighting | Full LED |
| Toolboxes | 2 steel with stainless steel “T” handles |
| Container Pins | 20ft |
| Mudguards | Alloy quarter guards front and rear with AAA Trailers mudflaps |
| Ramps | Bi-fold with 12V electric power pack, N150 battery, and built-in Anderson plug |
| Optional Extras |
|
Frequently Asked Questions
What weight can this tandem axle tag trailer carry?
It's rated to an ATM of 24 tonnes and a GTM of 16.5 tonnes, with a tare weight of around 5.9 tonnes once empty.
Does this trailer take standard shipping containers?
Yes, it's fitted with 20ft container pins for standard 20ft container transport.

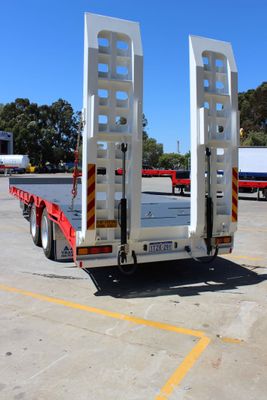

How do the ramps work on this trailer?
The bi-fold ramps run off a 12V electric power pack with an N150 battery and a built-in Anderson plug, so they're ready to operate without needing a separate power source.
What's included if I need to register this trailer?
Nothing extra by default. Rego and on-road costs sit outside the listed price, and transport or registration is quoted separately if you need it arranged.
What happens if something goes wrong under warranty?
Every trailer is covered for 12 months against manufacturing defects and faulty workmanship under normal use. If a covered fault comes up, AAA Trailers repairs or replaces the affected parts at no charge, with pre- and post-sales support available the whole time.
Can I get parts or servicing outside of Sydney or Perth?
Trailers are assembled at the Sydney, NSW and Perth, WA workshops, but support runs across the country, with locations in Sydney, Perth, Adelaide, Melbourne, and Brisbane.
Is this trailer ready to ship straight away?
Generally yes, stock is kept on hand. If there's a shortage at the time you order, it can take up to three months from your deposit to get one built and delivered.
Can this trailer be built to a specific colour or spec?
Colour changes are free of charge. A fully custom build takes longer to turn around, since it's built from scratch, so get in touch to talk through what you need.
Are there finance options for this trailer?
Yes, flexible financing is available on this trailer and the rest of the AAA range, and you're welcome to bring your own finance broker along to inspect it first.
