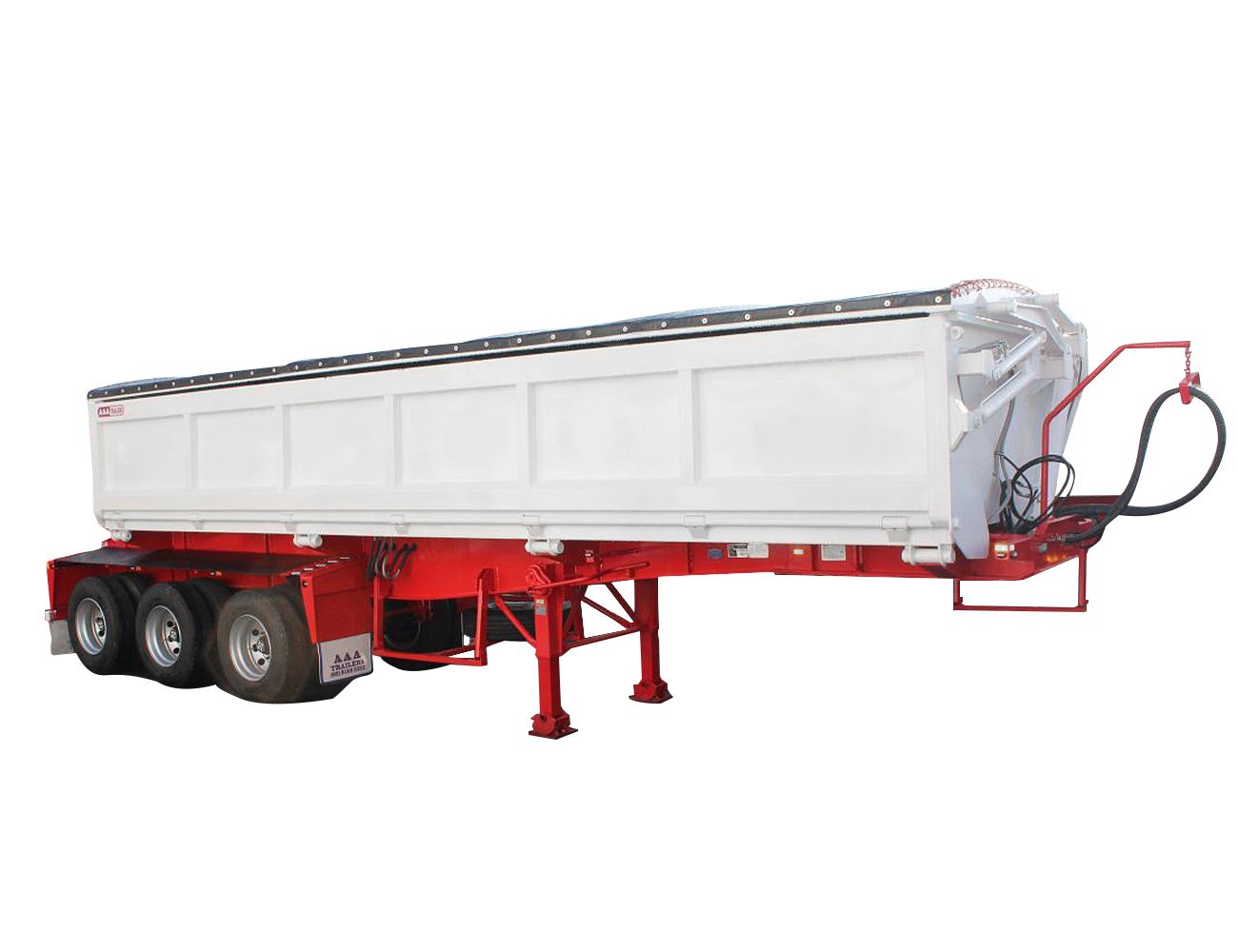

AAA TRAILERS SIDE TIPPER 9.75M
The AAA Side Tipper 9.75M is a high-performance trailer built for dependable side tipping, available with a hydraulic lid or electric roll tarp. With an 8m bowl and overall length of 9.75m, it offers an ATM of 47 tonnes and a GTM of 23.5 tonnes. Constructed from 450 Grade steel with a 5mm floor, door, 8mm front and rear, and 4mm full side panels. Features K-Hitch 22.5" drum brake axles, FUWA FW520 8-leaf spring suspension, EBS brake kit, and full LED lighting. Ideal for heavy-duty applications across Australia.
AAA Trailers is proudly Australian owned and operated.
Additional info:
- This unit comes with a 12-month warranty.
- Pre- and post-sales service available.
- We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
- Additional charges will apply if you require trailer registration and transportation.
- Rego and on-road cost not included.
Specs:
Side Tipper 9.75m with Hydraulic Lid
| Specifications | Details |
|---|---|
| Capacity | ATM: 47T GTM: 23.5T Tare weight: 9.9T |
| Length | 9.75m |
| Bowl length | 8m |
| Steel flooring & panels 450 Grade | 5mm steel floor, door, 8mm front and rear 4mm steel full side panel |
| Brakes | Drum |
| Kingpin | Single-position 50mm bolt-in (90mm optional) |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch FUWA FW520 8-leaf spring (air optional) |
| Landing legs | K-Hitch 2-speed |
| Rims | 10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 11R22.5 |
| Brake kit | EBS multi-volt 12/24V |
| Lighting | Full LED |
Side Tipper 9.75m with Electric Roll Tarp
| Specifications | Details |
|---|---|
| Capacity | ATM: 47T GTM: 23.5T Tare weight: 9.8T |
| Length | 9.75m |
| Bowl length | 8m |
| Steel flooring & panels 450 Grade | 5mm steel floor, door, 8mm front and rear 4mm steel full side panel |
| Brakes | Drum |
| Kingpin | Single-position 50mm bolt-in (90mm optional) |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch FUWA FW520 8-leaf spring (air optional) |
| Landing legs | K-Hitch 2-speed |
| Rims | 10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 11R22.5 |
| Brake kit | EBS multi-volt 12/24V |
| Electric roll tarp | Side to side with remotes |
| Lighting | Full LED |
| Optional Extras |
|
Frequently Asked Questions
What's the difference between the hydraulic lid and electric roll tarp versions?
Both share the same 47T ATM, 23.5T GTM, 8m bowl and 450 Grade steel construction. The hydraulic lid version covers the load with a lid mechanism, while the electric roll tarp uses a side-to-side remote-operated tarp instead. Tare weight is marginally different between the two, 9.9T for the hydraulic lid and 9.8T for the electric roll tarp.
What's the payload capacity of this side tipper?
With a 47T ATM and 9.8-9.9T tare weight depending on configuration, this side tipper can carry a payload of roughly 37 tonnes.
How thick is the steel on this trailer?
Built from 450 Grade steel throughout, with a 5mm floor and door, 8mm front and rear panels, and 4mm full side panels.
Is the electric roll tarp easy to operate?
Yes, it runs side to side and is controlled by remote, so the tarp can be opened and closed without needing to climb onto the trailer.
Do I need to arrange registration myself?
Yes, rego and on-road costs sit outside the listed price. Registration or transport gets quoted separately if you need it organised.
What does the warranty cover on this side tipper?
Both configurations come with a 12-month warranty against manufacturing defects and faulty workmanship under normal use. If a covered fault turns up, AAA Trailers handles the repair or replacement at no charge, with pre- and post-sales support available the whole way through.
Where is this trailer built and supported?
Built at the Sydney, NSW and Perth, WA workshops with imported running gear and Australian Standard approved steel, with support locations across Sydney, Perth, Adelaide, Melbourne, and Brisbane.
How long is the wait for a new order?
Most configurations are kept in stock. If there's a shortage when you order, it can take up to three months from your deposit to have one built.
Can I get this side tipper in a custom colour?
Yes, colour changes are free of charge. A fully custom spec takes longer since it's built from scratch, so reach out to talk through what you need.
Is finance available on this trailer?
Yes, financing is available on this side tipper and the rest of the AAA range, and you're welcome to bring in your own broker to inspect it first.
