AAA TRAILERS QUAD AXLE LOW LOADER DECK WIDENER WITH FRONT LIFT-UP, REAR STEER AXLE AND BI-FOLD RAMPS
+4
+3
+2

AAA TRAILERS QUAD AXLE LOW LOADER DECK WIDENER WITH FRONT LIFT-UP, REAR STEER AXLE AND BI-FOLD RAMPS

Store / Low Loader Trailers
AU$159 000.00
Optional Extras
In stock
Product Details

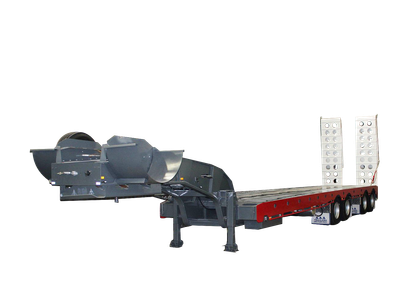

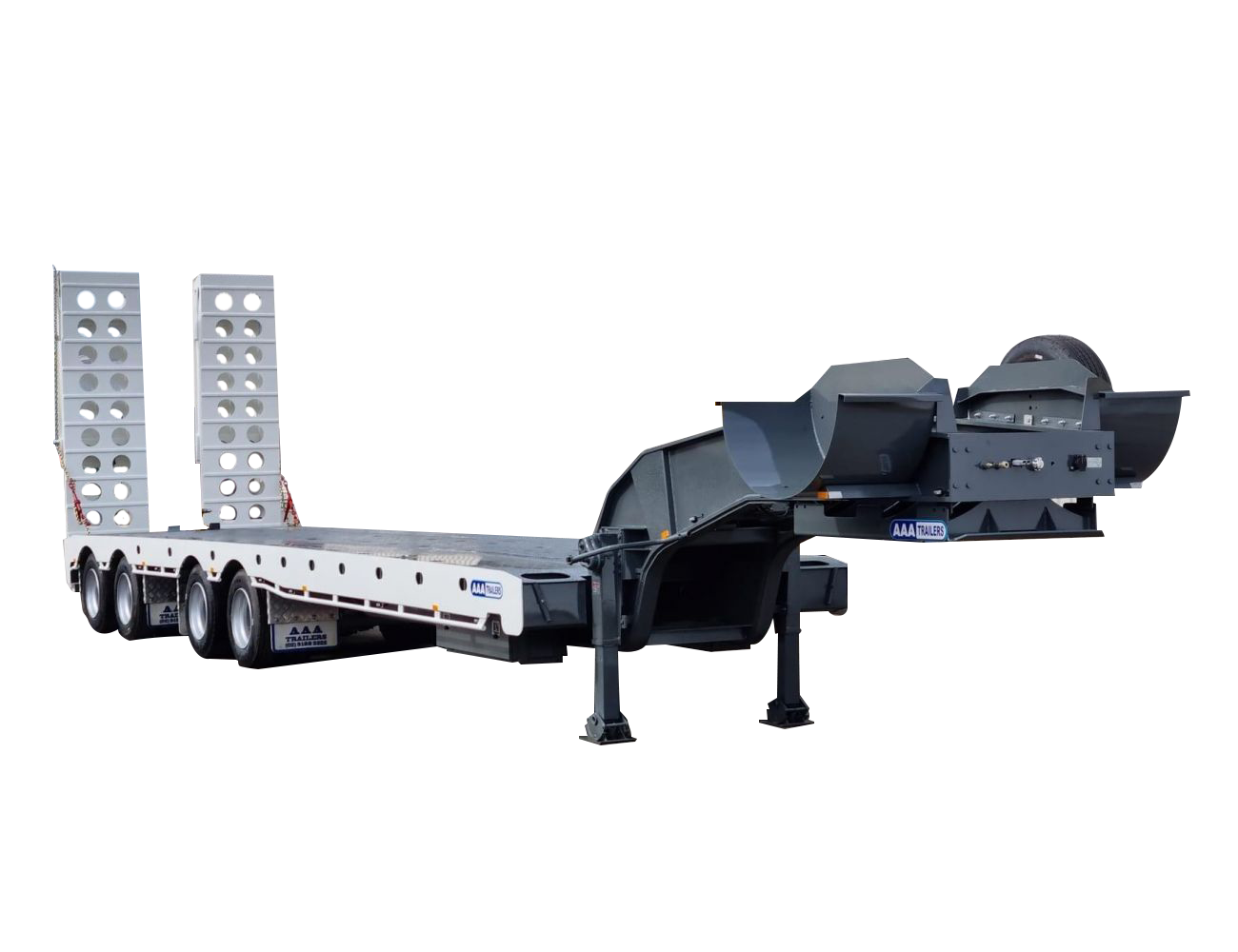

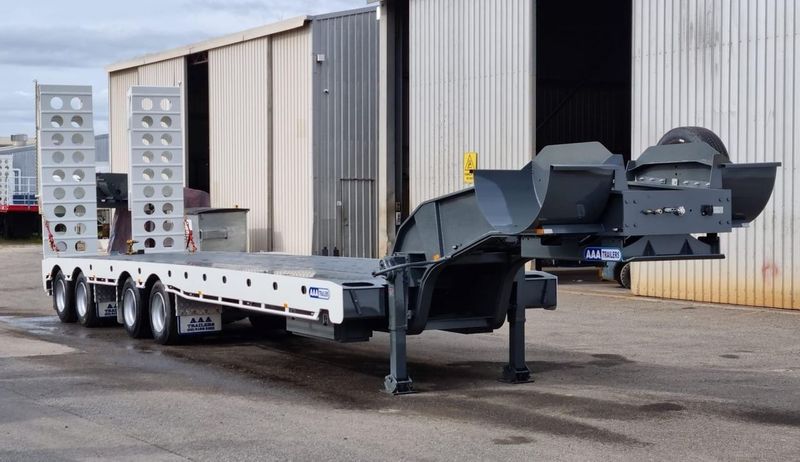

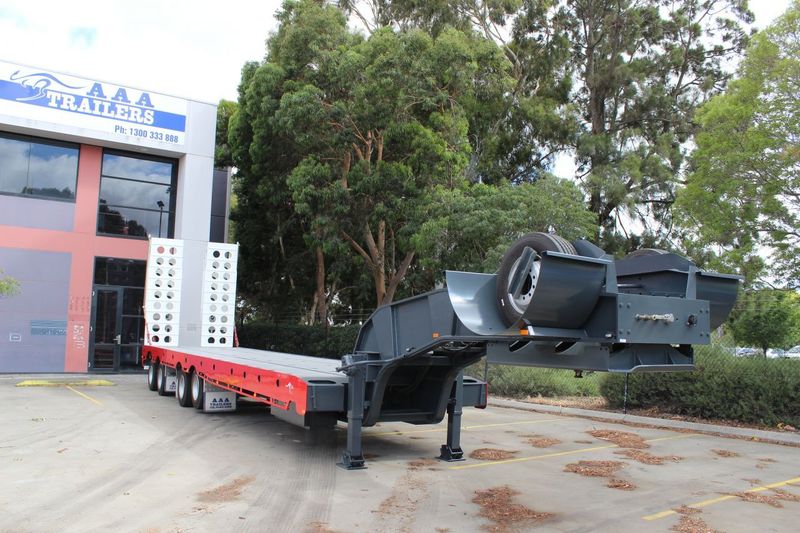

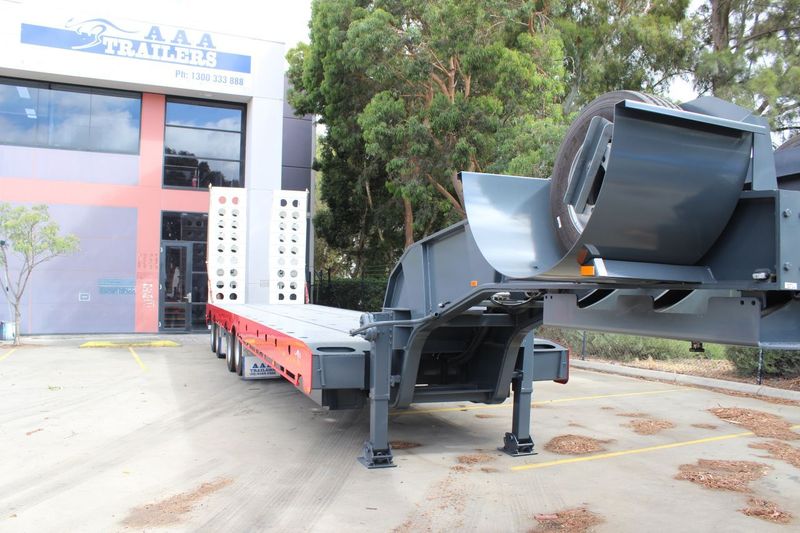

The AAA Quad Axle Low Loader Deck Widener With Front Lift-up, Rear Steer Axle and Bi-fold Ramps delivers an outstanding level of manoeuvrability and capacity, making it an excellent choice for your various hauling needs across the country. It has a usable deck length of 11,200 mm and widens from 2500mm to 3500mm. Capable of handling an ATM of 60 tonnes and a GTM of 25 tonnes (upgradable in WA). It features high-quality SAF axles imported from Europe and a full Wabco EBS control system. With a tare weight of 15.4 tonnes, including ramps and a spare wheel.


AAA Trailers is proudly Australian owned and operated.


Additional info:

  • This unit comes with a 12-month warranty.
  • Pre- and post-sales service available.
  • We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
  • Additional charges will apply if you require trailer registration and transportation.
  • Rego and on-road cost not included.


Specifications Details
Capacity ATM: 60T
GTM: 36T
Approx tare weight: 15.2T
Length 15.5m
Deck 10.9m
Mainframe High-tensile steel grade
Floor 5mm steel chequer plate, forklift-rated
Kingpin Dual-position 50mm bolt-in (90mm optional)
Coaming 5-inch with tie rail
Brake kit EBS multi-volt 12/24V
Container pins 20FT container
Axles SAF drum brake axles
Suspension SAF quad airbag
Steering & lift Front lift, rear steer operates from EBS
Wheels 10/225 PCD dual steel rims (aluminium optional)
Tyres 235/75R17.5
Spare wheel carrier Four (spare wheels optional)
Lighting Full LED
Water tank 30L stainless steel
Toolboxes 2 steel with stainless steel “T” handles
Mudguards Alloy quarter guards with AAA Trailers mudflaps
Engine & pump 10.5HP diesel engine with hydraulic pump operates widener and bi-fold ramps
Optional extras
  • Custom Paint - Coaming Rails
  • Hard Wired Flashing Beacon
  • Oversize Signs
  • Hub Odometer
  • Spare Wheel: Steel or Alloy
