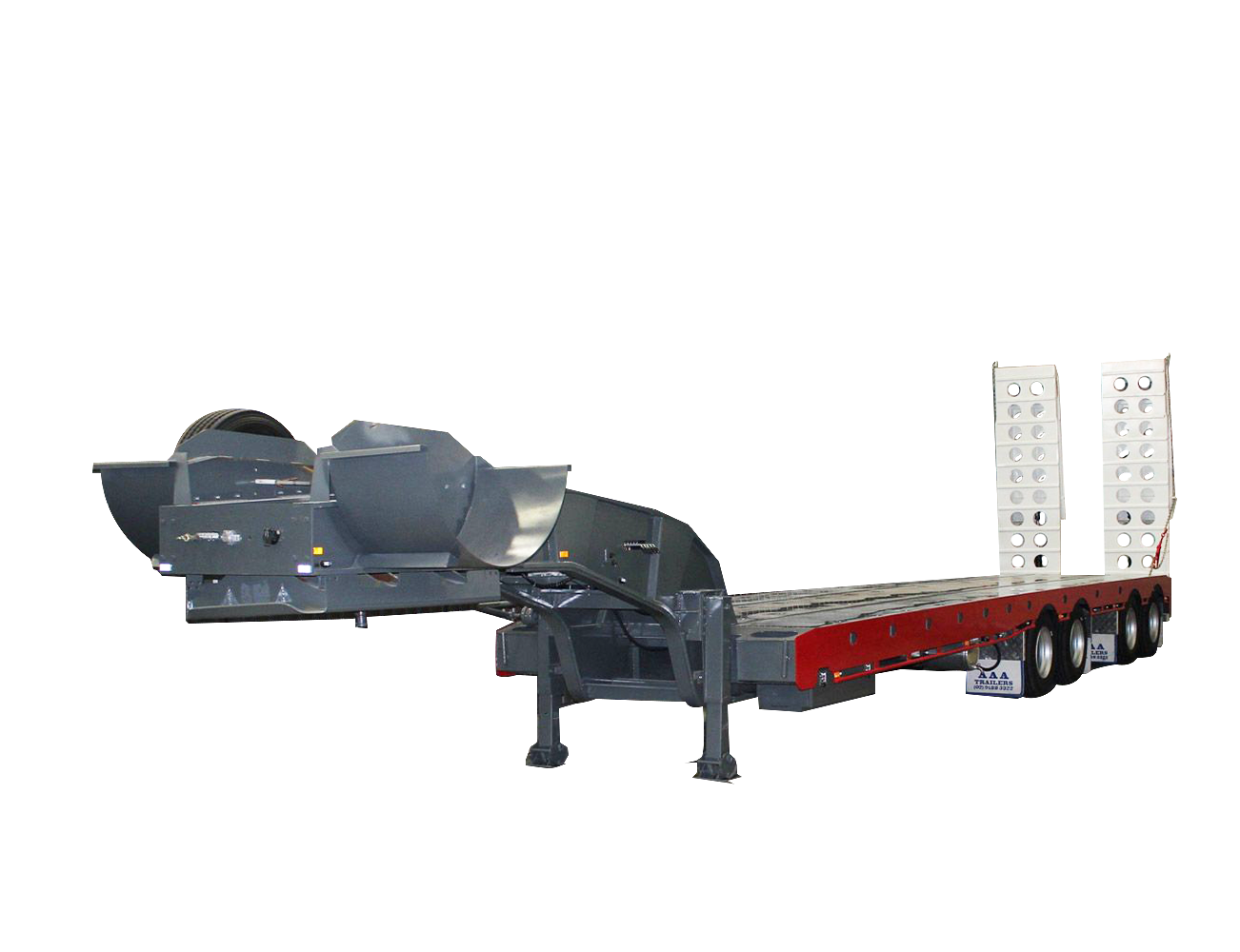

AAA Trailers Quad Axle Low Loader Deck Widener with Bi-Fold Ramps, front quarter view with gooseneck raised
+6
+5
+4
+3
+2

AAA TRAILERS QUAD AXLE LOW LOADER DECK WIDENER WITH BI-FOLD RAMPS

Store / Low Loader Trailers
AU$129 000.00
Optional Extras (To be Quoted)
In stock
Product Details

The AAA Quad Axle Low Loader Deck Widener with Bi-fold Ramps offers robust performance for your various haulage needs, with an overall length of 15.5m and a capacity (ATM) of 60 tonnes and a GTM of 36 tonnes. It features K-Hitch airbag suspension KT 250 U, 11 tonnes rated K-Hitch axles, drum brakes, and has a tare weight of 14.9 tonnes. This trailer provides a payload of 32 tonnes without a load share dolly and 47 tonnes with a load share dolly, subject to state regulations.


AAA Trailers is proudly Australian owned and operated.


Additional info:

  • This unit comes with a 12-month warranty.
  • Pre- and post-sales service available.
  • We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
  • Additional charges will apply if you require trailer registration and transportation.
  • Rego and on-road cost not included.


Specifications Details
Capacity ATM: 60T
GTM: 36T
Approx tare weight: 14.9T
Length 15.5m
Deck 10.9m
Widener 2500mm - 3500mm
Mainframe High-tensile steel grade
Floor 5mm steel chequer plate, forklift-rated
Kingpin Dual-position 50mm bolt-in (90mm optional)
Coaming 5-inch with tie rail
Brake kit EBS multi-volt 12/24V
Container pins 20FT container
Axles K Hitch drum brake axles
Suspension K Hitch quad airbag
Wheels 8/225 PCD dual steel rims (aluminium optional)
Tyres 265/70R19.5
Spare wheel carrier Four (spare wheels optional)
Lighting Full LED
Water tank 30L stainless steel
Toolboxes 2 steel with stainless steel “T” handles
Mudguards Alloy quarter guards with AAA Trailers mudflaps
Engine & pump 10.5HP diesel engine with hydraulic pump operates widener and bi-fold ramps
Optional extras
  • Custom Paint - Coaming Rails
  • Hard Wired Flashing Beacon
  • Oversize Signs
  • Hub Odometer
  • Spare Wheel: Steel or Alloy

"

Frequently Asked Questions

How does this differ from the Front Lift-Up, Rear Steer version?

Both share the same 60T ATM, 36T GTM and low loader deck widener design. This version doesn't have the front lift-up, rear steer axle feature, making it the simpler of the two low loader wideners.

What payload can this trailer carry?

Payload is around 32 tonnes without a load share dolly, or up to 47 tonnes when paired with one, subject to state regulations.

How much can the deck be widened?

From 2500mm out to 3500mm for oversize loads.

What powers the widener and ramps?

A 10.5HP diesel engine with a hydraulic pump operates both the widener and the bi-fold ramps.

What container pins does this trailer use?

A single 20ft container pin configuration.

Is trailer registration included in the price?

No, rego and on-road costs sit outside the listed price. Registration and transport are quoted as an additional charge if required.

What does the warranty cover?

This trailer carries 12 months of cover against manufacturing defects and faulty workmanship under normal use, with AAA Trailers repairing or replacing affected parts free of charge, plus pre- and post-sales support.

Where is this trailer built and supported?

This trailer is built at the Sydney, NSW and Perth, WA workshops using imported running gear and Australian Standard approved steel, with AAA Trailers offering support across Sydney, Perth, Adelaide, Melbourne, and Brisbane.

How long is the wait for delivery?

Stock availability is usually immediate. Where there's a shortage, allow roughly three months from your deposit for the trailer to be built.

Is finance available for this trailer?

Yes, AAA Trailers offers financing on this trailer and throughout the range, and your own broker is welcome to inspect it beforehand.
