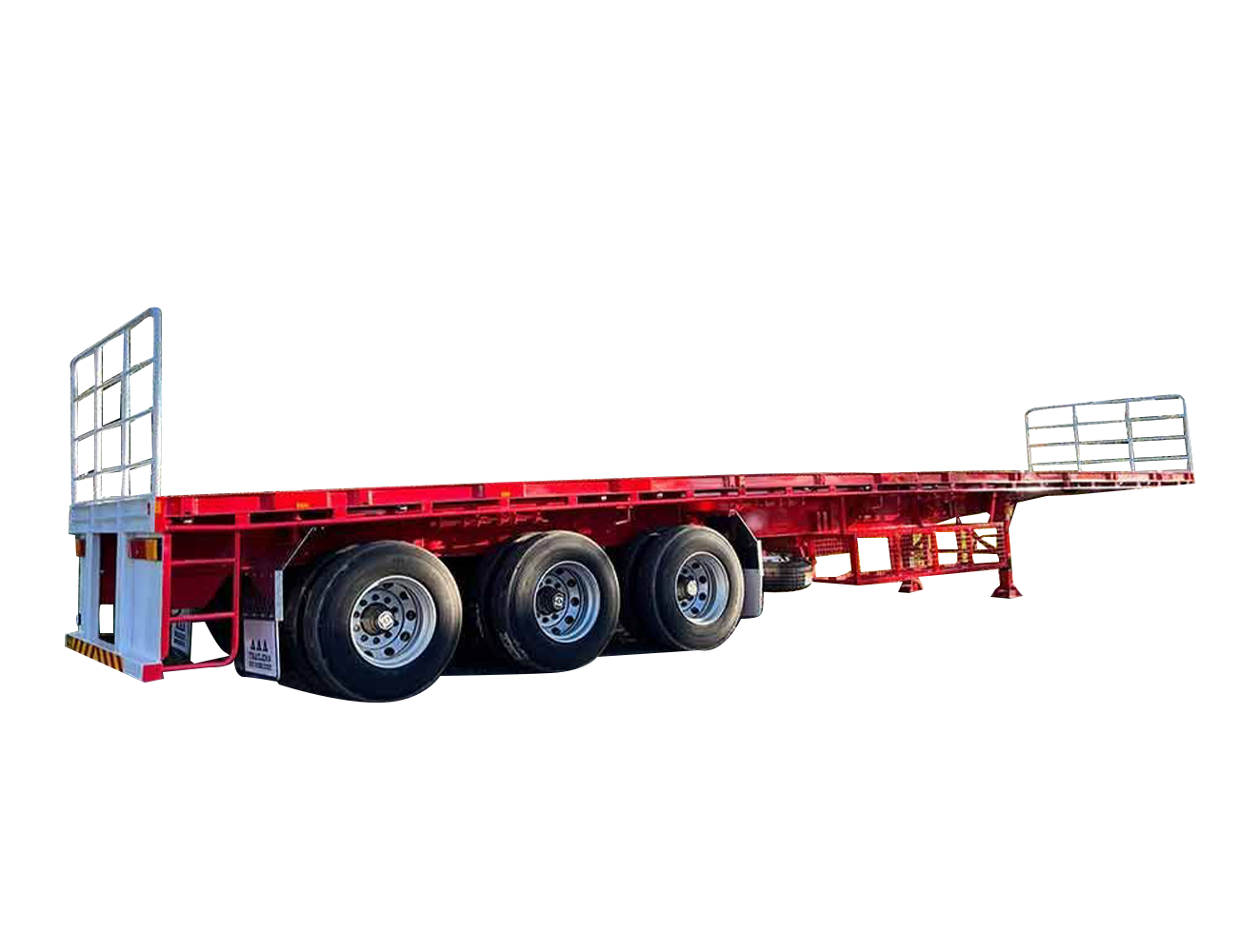

AAA TRAILERS FLAT TOP B-TRAILER 22 PALLET
The Flat Top B Trailer 22 Pallet is engineered for heavy-duty hauling performance. It features an ATM of 45-47 tonnes, a GTM of 20-23.5 tonnes, and a TARE of 9 tonnes. Equipped with K-Hitch airbag suspension KT250 and K-Hitch tri-axle with parallel bearings, this trailer ensures a smooth hauling experience. The 3mm–5mm forklift-rated chequer plate flooring (model dependent) and 3-way container pins provide the robustness and versatility needed for even the most demanding transport needs.
AAA Trailers is proudly Australian owned and operated.
Additional info:
- This unit comes with a 12-month warranty.
- Pre- and post-sales service available.
- We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
- Additional charges will apply if you require trailer registration and transportation.
- Rego and on-road cost not included.
| Specifications | Details |
|---|---|
| Capacity | ATM: 47T GTM: 23.5T Approx tare weight: 9T |
| Length | 13.72m |
| Mainframe | High-tensile steel grade |
| Floor | 3mm–5mm steel chequer plate, forklift-rated (model dependent) |
| Kingpin | Dual-position 50mm bolt-in (90mm optional) |
| Coaming | 5-inch with tie rail (C-channel optional) |
| Brake kit | EBS multi-volt 12/24V |
| Container pins | 3-way |
| Gates | Front and rear 1,200mm steel Side gate pockets (optional side gates) |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional) |
| Landing legs | K-Hitch 2-speed |
| Wheels | 10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 11R22.5 |
| Spare wheel carrier | Dual (spare wheels optional) |
| Lighting | Full LED |
| Water tank | 30L stainless steel |
| Toolboxes | 2 steel with stainless steel “T” handles |
| Mudguards | Plastic radius guards with AAA Trailers mudflaps, quarter guards front and rear |
| Optional extras |
|
Frequently Asked Questions
How many pallets does this B-Trailer carry?
This flat top is configured as a 22 pallet B-Trailer, with a 13.72m overall length.
What's the payload capacity?
With up to 47T ATM and roughly 9T tare weight, this trailer can carry a payload of around 38 tonnes.
Why does the floor thickness vary between 3mm and 5mm?
Floor thickness depends on the specific model configuration ordered. Both options are forklift-rated, so check with AAA Trailers about which suits your typical loads.
Can I add side gates to this trailer?
Side gate pockets come standard, with side gates available as an optional extra.
Can I choose spring suspension instead of airbag?
Yes, this trailer runs K-Hitch tri-axle airbag suspension as standard, with FUWA FW520 8-leaf spring available as an optional alternative.
Is trailer registration included in the price?
No, rego and on-road costs sit outside the listed price. Registration and transport are quoted as an additional charge if required.
What does the warranty cover on this trailer?
This B-Trailer is covered for 12 months against manufacturing defects and faulty workmanship under normal use, with faulty parts repaired or replaced by AAA Trailers at no cost, plus pre- and post-sales support.
Where can I get this trailer serviced?
Built at the Sydney, NSW and Perth, WA workshops from imported running gear and Australian Standard approved steel, with support available across Sydney, Perth, Adelaide, Melbourne, and Brisbane.
How long is the wait for delivery?
Stock is usually on hand for this configuration. If there's a shortage, expect a build time of up to three months from your deposit.
Can I order this trailer in a custom colour?
Colour changes are free of charge. A fully custom configuration takes extra time since it's built from the ground up, so contact AAA Trailers to talk through the details.
Is finance available for this trailer?
Yes, AAA Trailers offers finance on this B-Trailer and the rest of the range, and your own broker is welcome to inspect it beforehand.
