AAA TRAILERS FLAT TOP A-TRAILER 12 PALLET

Name: AAA Flat Top A-Trailer 12 Pallet | AAA Trailers
SKU: 00006
Price: 70000.0 AUD
Availability: InStock

Store / Flat Deck Trailers

AU$70 000.00

Optional Extras (To be Quoted)

Side Gates

Custom Paint - Coaming Rails

Hard Wired Flashing Beacon

Road Train / Long Vehicles Signs

Hub Odometer

Spare Wheel - Steel

Spare Wheel - Alloy

In stock

Product Details

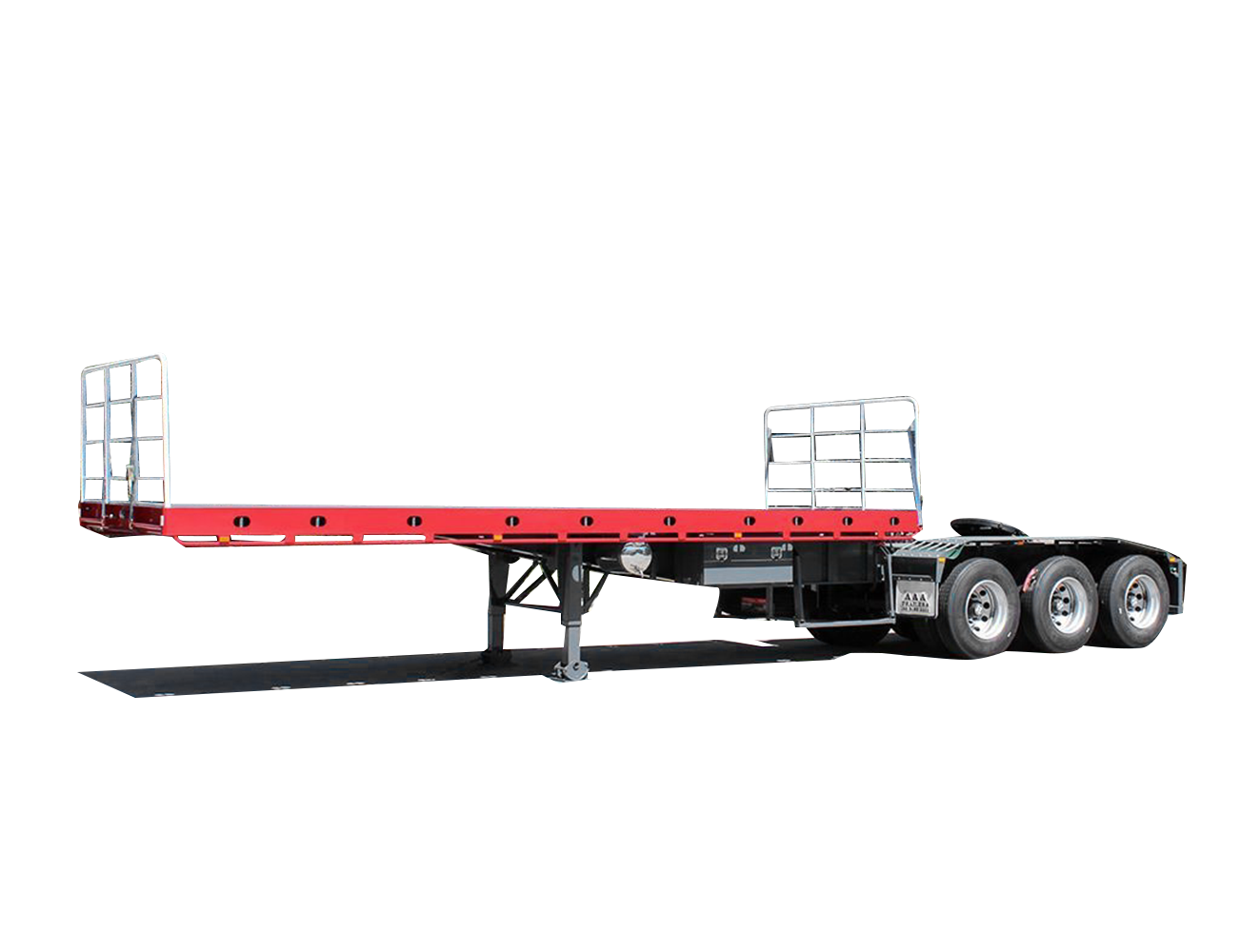

The Flat Top A-Trailer 12 Pallet with Airbag Suspension is engineered for optimal performance. Measuring 11.4 metres long and 2.5 metres wide. It features a high tensile steel grade mainframe and a 3mm–5mm steel chequer plate forklift-rated floor (model dependent). The 3-way container pins ensure secure and adaptable load handling, which makes it ideal for diverse transport requirements. This trailer delivers stability and reliability for those with demanding haulage needs.

AAA Trailers is proudly Australian owned and operated.

Additional info:

This unit comes with a 12-month warranty.
Pre- and post-sales service available.
We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
Additional charges will apply if you require trailer registration and transportation.
Rego and on-road cost not included.

Specifications	Details
Capacity	ATM: 47T GTM: 23.5T Approx tare weight: 7.9T
Length	11.4m
Deck	7.4m
Mainframe	High-tensile steel grade
Floor	3mm–5mm steel chequer plate floor, forklift-rated (model dependent)
Turntable	K-Hitch 50 mm bolt in (90mm optional)
Kingpin	Dual-position 50mm bolt-in (90mm optional)
Coaming	5-inch with tie rail (C-channel optional)
Brake kit	EBS multi-volt 12/24V
Container pins	Standard 20ft
Gates	Front and rear 1,200mm steel Side gate pockets (optional side gates)
Axles	K-Hitch 22.5” drum brake axles
Suspension	K-Hitch tri-axle airbag
Landing legs	K-Hitch 2-speed
Wheels	10/285 PCD dual steel rims (aluminium optional)
Tyres	11R 22.5
Spare wheel carrier	Dual (spare wheels optional)
Lighting	Full LED
Water tank	30L stainless steel
Toolboxes	2 steel with stainless steel “T” handles
Mudguards	Quarter guards front and rear with AAA Trailers mudflaps
Optional extras	Side Gates Custom Paint - Coaming Rails Hard Wired Flashing Beacon Road Train / Long Vehicles Signs Hub Odometer Spare Wheel: Steel or Alloy

Frequently Asked Questions

How many pallets does this A-Trailer carry?

This flat top is configured as a 12 pallet A-Trailer, with an 11.4m overall length and a 7.4m deck.

What's the payload capacity?

With a 47T ATM and roughly 7.9T tare weight, this trailer can carry a payload of around 39 tonnes.

Why does the floor thickness vary between 3mm and 5mm?

Floor thickness depends on the specific model configuration you order. Both options are forklift-rated, so speak with AAA Trailers about which suits your typical loads.

Can I add side gates to this trailer?

Side gate pockets come standard, with side gates available as an optional extra if you need them.

Is C-channel coaming available instead of the standard option?

Yes, this trailer comes standard with 5-inch coaming and tie rail, with C-channel available as an optional alternative.

Is trailer registration included in the price?

No, rego and on-road costs are quoted separately from the trailer price. If registration or transport is needed, that's arranged as an additional charge.

What does the warranty cover on this trailer?

Manufacturing defects and faulty workmanship under normal use are covered for 12 months, with faulty parts repaired or replaced by AAA Trailers at no cost. Pre- and post-sales support is included throughout.

Where can I get this trailer serviced?

Every unit is assembled at the Sydney, NSW and Perth, WA workshops using imported running gear and Australian Standard approved steel, with ongoing support available across Sydney, Perth, Adelaide, Melbourne, and Brisbane.

How long is the wait for delivery?

Most configurations are ready from stock. During a shortage, expect roughly three months from your deposit date until the trailer is built and delivered.

Can I order this trailer in a custom colour?

Yes, at no additional cost. A more involved custom spec takes longer to turn around since it's built from scratch, so get in touch to discuss what you're after.

Is finance available for this trailer?

Yes, financing is available on this flat top A-Trailer and across the AAA range, and you're free to bring your own finance broker along to inspect it beforehand.
