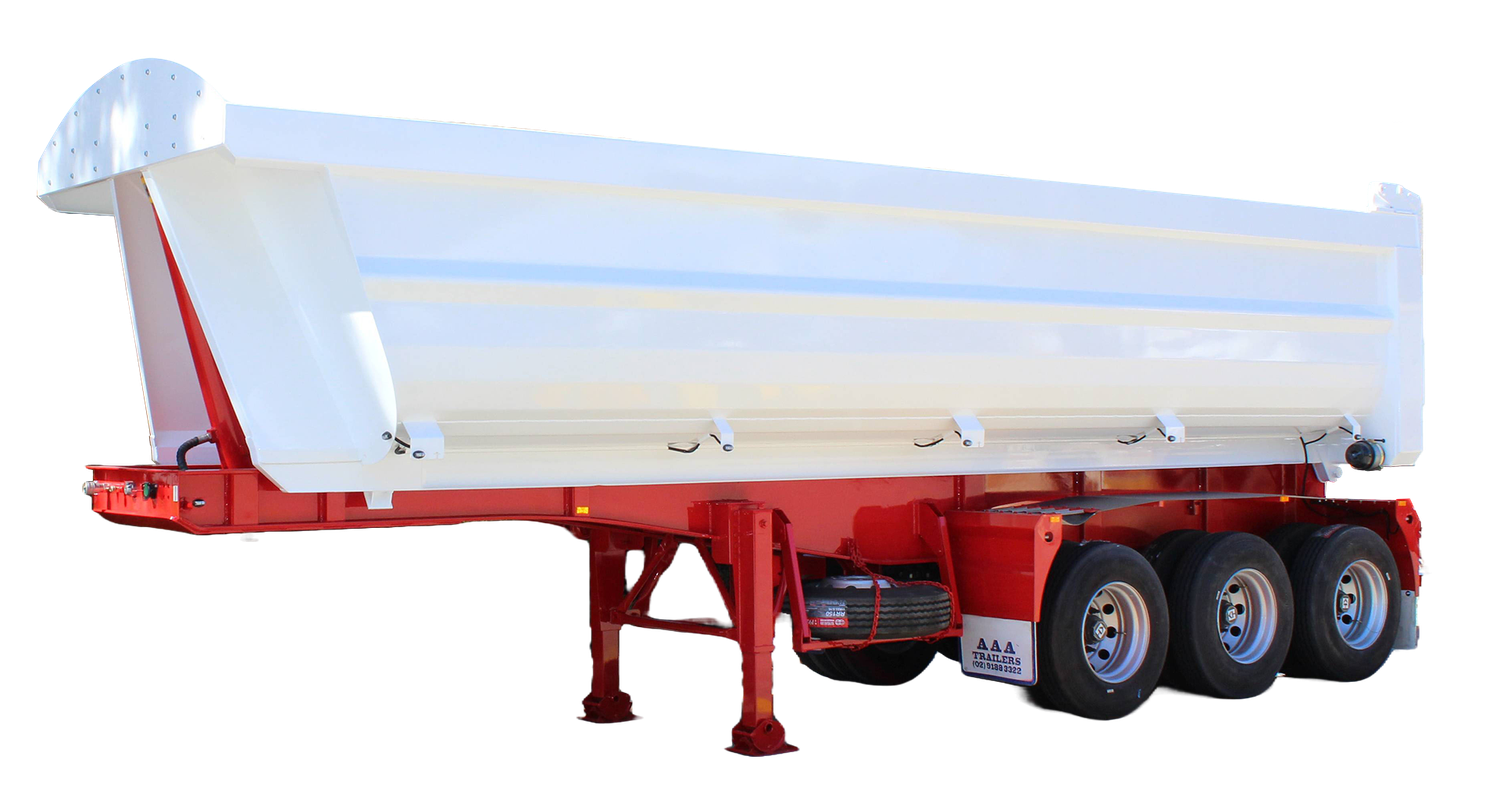

AAA TRAILERS END TIPPER
AAA TRAILERS END TIPPER
The AAA End Tipper Trailer is built for tough tipping tasks, offering a 9.43m body with an ATM of 47 tonnes and a GTM of 23.5 tonnes. Made from 450 Grade high-strength steel with a 5mm wear-resistant floor, 4mm side walls, 5mm rear door, and 6mm headboard for added durability. Equipped with K-Hitch 22.5" drum brake axles, FUWA FW520 8-leaf spring suspension, EBS brake kit, and full LED lighting. Optional end-to-end electric roll tarp available. Supplied and fitted in Australia, it's ideal for reliable end tipping performance nationwide.
AAA Trailers is proudly Australian owned and operated.
Additional info:
- This unit comes with a 12-month warranty.
- Pre- and post-sales service available.
- We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
- Additional charges will apply if you require trailer registration and transportation.
- Rego and on-road cost not included.
AAA Trailers is proudly Australian owned and operated.
| Specifications | Details |
|---|---|
| Capacity | ATM: 47T GTM: 23.5T Tare weight: 8.7T |
| Length | 9.43m |
| Steel flooring & panels 450 grade | Side wall 4mm, floor 5mm, wear-resistant steel Rear door 5mm, headboard 6mm, high-strength steel |
| Brakes | Drum |
| Kingpin | Single-position 50mm bolt-in (90mm optional) |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch FUWA FW520 8-leaf spring (air optional) |
| Landing legs | K-Hitch 2-speed |
| Rims | 10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 11R22.5 |
| Brake kit | EBS multi-volt 12/24V |
| Electric roll tarp | End-to-end tarp (optional) Supplied and fitted in Aust. |
| Lighting | Full LED |
| Skid plate | 12mm |
Frequently Asked Questions
What's the payload capacity of this end tipper?
With a 47T ATM and 8.7T tare weight, this end tipper can carry a payload of roughly 38 tonnes.
How thick is the steel construction?
Built from 450 Grade high-strength steel, with a 5mm wear-resistant floor, 4mm side walls, 5mm rear door, and a 6mm headboard for added durability where it takes the most impact.
Does this trailer come with a tarp?
An end-to-end electric roll tarp is available as an optional extra if you need one, it isn't fitted standard.
What protects the underside of the trailer?
A 12mm skid plate is fitted for protection during tipping and general operation.
Is registration included when I buy this trailer?
No, rego and on-road costs are separate from the listed price. Registration or transport is quoted as an additional charge if required.
What does the warranty cover?
This end tipper carries a 12-month warranty against manufacturing defects and faulty workmanship under normal use. Covered issues are repaired or replaced by AAA Trailers at no cost, with pre- and post-sales support included.
Where is this trailer built and supported?
Supplied and fitted in Australia, with assembly at the Sydney, NSW and Perth, WA workshops using imported running gear and Australian Standard approved steel. Support is available across Sydney, Perth, Adelaide, Melbourne, and Brisbane.
How long until I can get one?
Most orders are filled from stock. If there's a shortage when you order, expect up to three months from your deposit before it's built and delivered.
Can this trailer be painted a custom colour?
Yes, at no extra cost. A more involved custom build takes longer since it's made from scratch, so get in touch to discuss the specifics.
Is finance available for this trailer?
Yes, financing is available on this end tipper and the wider AAA range, and you're welcome to bring your own broker to inspect it beforehand.
