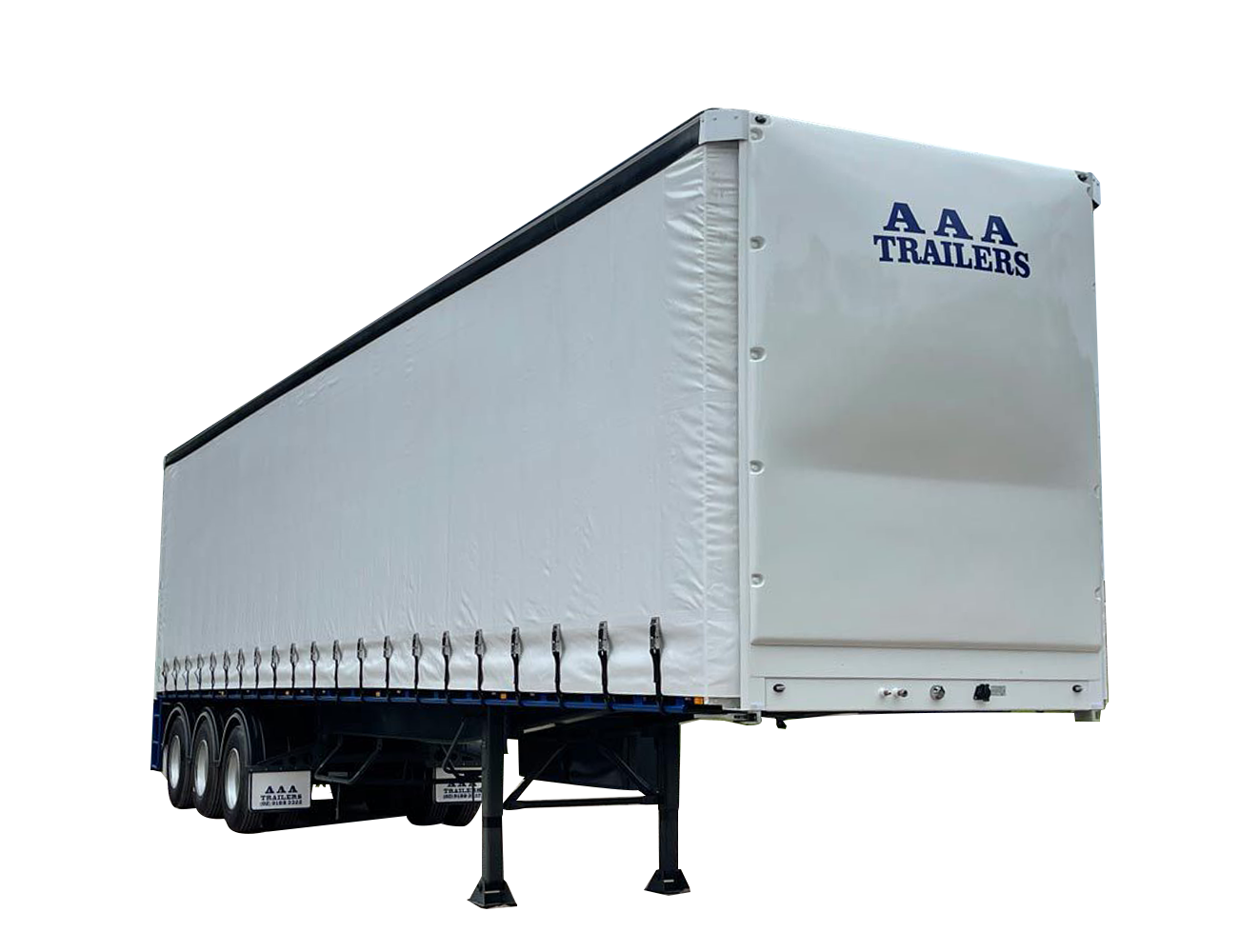

AAA TRAILERS CURTAINSIDER STRAIGHT DECK B-TRAILER 22 PALLET
The AAA Curtainsider Straight Deck B-Trailer 22 Pallet features K-Hitch airbag suspension and a high tensile steel grade mainframe. The 5mm steel chequer plate forklift rated floor and C-channel coaming with tie rail ensure exceptional durability and functionality for your various hauling needs. Equipped with load restraint curtains and aluminium hanging gates. Perfect for secure and efficient cargo transport across Australia.
AAA Trailers is proudly Australian owned and operated.
Additional info:
- This unit comes with a 12-month warranty.
- Pre- and post-sales service available.
- We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
- Additional charges will apply if you require trailer registration and transportation.
- Rego and on-road cost not included.
| Specifications | Details |
|---|---|
| Capacity | ATM: 47T GTM: 23.5T Approx tare weight: 8.6T |
| Length | 13.8m |
| Deck | 13.2m |
| Mainframe | High-tensile steel grade |
| Floor | 5mm steel chequer plate, forklift-rated |
| Kingpin | Dual-position 50mm bolt-in (90mm optional) |
| Coaming | C-channel with tie rail |
| Brake kit | EBS multi-volt 12/24V |
| Gates | Side gate pockets with hanging aluminium side gates |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch tri-axle airbag (Spring Optional) |
| Landing legs | K-Hitch 2-speed |
| Wheels | 10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 11R22.5 |
| Spare wheel carrier | Dual (spare wheels optional) |
| Lighting | Full LED |
| Water tank | 30L stainless steel |
| Toolboxes | 2 steel with stainless steel “T” handles |
| Mudguards | Plastic radius guards with AAA Trailers mudflaps |
| Curtains | Polyweld load restraint, single base colour |
| Optional extras |
|
Frequently Asked Questions
How is this different from the Drop Deck B-Trailer?
This is a straight deck configuration, a single continuous 13.2m deck with no mezzanine floors, unlike the drop deck version's tiered setup. It suits taller or bulkier freight that doesn't need stacking, while the drop deck version is built for maximising pallet count through mezzanine decks.
How many pallets does this B-Trailer carry?
This straight deck curtainsider is configured as a 22 pallet B-Trailer.
What's the payload capacity?
With a 47T ATM and roughly 8.6T tare weight, this trailer can carry a payload of around 38.4 tonnes.
What type of curtains and gates does this trailer use?
Polyweld load restraint curtains in a single base colour, with side gate pockets fitted with hanging aluminium side gates.
Can I get custom curtains or signwriting on this trailer?
Yes, custom curtains and signwriting with custom colours are both available as optional extras.
Can I choose spring suspension instead of airbag?
Yes, this trailer runs K-Hitch tri-axle airbag suspension as standard, with spring available as an optional alternative.
Is trailer registration included in the price?
No, rego and on-road costs sit outside the listed price. Registration and transport are quoted as an additional charge if required.
What does the warranty cover on this trailer?
This B-Trailer carries 12 months of warranty cover for manufacturing defects and faulty workmanship under normal use, with AAA Trailers repairing or replacing affected parts at no charge and pre- and post-sales support included.
Where can I get this trailer serviced?
This B-Trailer is assembled at the Sydney, NSW and Perth, WA workshops using imported running gear and Australian Standard approved steel, with AAA Trailers' support footprint covering Sydney, Perth, Adelaide, Melbourne, and Brisbane.
How long is the wait for delivery?
Most orders are dispatched from existing stock. During a shortage, allow up to three months from your deposit until the trailer is built.
Is finance available for this trailer?
Yes, this B-Trailer qualifies for finance across the AAA range, and you're welcome to have your own broker take a look first.
