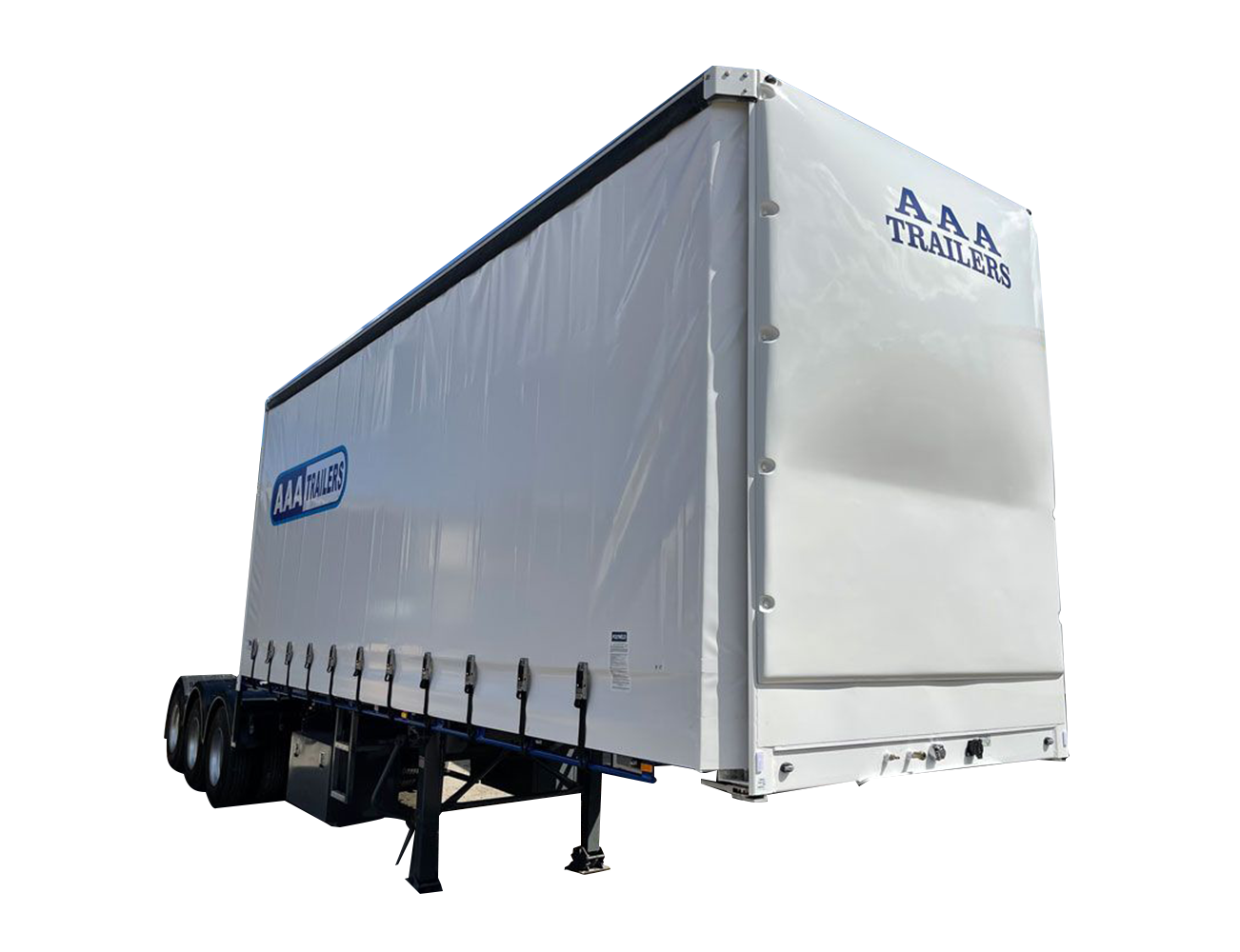

AAA TRAILERS CURTAINSIDER STRAIGHT DECK A-TRAILER 12 PALLET
The AAA Curtainsider Straight Deck A-Trailer 12 Pallet combines strength and reliability with a K-Hitch airbag suspension and a high tensile steel grade mainframe. The 5mm steel chequer plate forklift rated floor and C-channel coaming with tie rail provide the robustness needed to reliably haul all types of cargo. Load restraint curtains enhance cargo security. Ideal for various transport needs.
AAA Trailers is proudly Australian owned and operated.
Additional info:
- This unit comes with a 12-month warranty.
- Pre- and post-sales service available.
- We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
- Additional charges will apply if you require trailer registration and transportation.
- Rego and on-road cost not included.
| Specifications | Details |
|---|---|
| Capacity | ATM: 47T GTM: 23.5T Approx tare weight: 7.3T |
| Length | 11.7m |
| Deck | 7.3m |
| Mainframe | High-tensile steel grade |
| Floor | 5mm steel chequer plate, forklift-rated |
| Kingpin | Dual-position 50mm bolt-in (90mm optional) |
| Coaming | C-channel with tie rail |
| Brake kit | EBS multi-volt 12/24V |
| Gates | Side gate pockets with hanging aluminium side gates |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch tri-axle airbag |
| Landing legs | K-Hitch 2-speed |
| Wheels | 10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 11R22.5 |
| Spare wheel carrier | Dual (spare wheels optional) |
| Lighting | Full LED |
| Water tank | 30L stainless steel |
| Toolboxes | 1 steel with stainless steel “T” handles |
| Mudguards | Plastic radius guards with AAA Trailers mudflaps |
| Curtains | Polyweld load restraint, single base colour |
| Optional extras |
|
Frequently Asked Questions
How is this different from the Drop Deck A-Trailer?
This is a straight deck configuration, a single continuous 7.3m deck with no mezzanine floors, unlike the drop deck version's tiered setup. It suits taller or bulkier freight that doesn't need stacking.
How many pallets does this A-Trailer carry?
This straight deck curtainsider is configured as a 12 pallet A-Trailer, with an 11.7m overall length and a 7.3m deck.
What's the payload capacity?
With a 47T ATM and roughly 7.3T tare weight, this trailer can carry a payload of around 39.7 tonnes.
What type of curtains and gates does this trailer use?
Polyweld load restraint curtains in a single base colour, with side gate pockets fitted with hanging aluminium side gates.
Can I get custom curtains or signwriting on this trailer?
Yes, custom curtains and signwriting with custom colours are both available as optional extras.
Is trailer registration included in the price?
No, rego and on-road costs are separate from the listed price. If you need the trailer registered or transported, that's quoted as an additional charge.
What does the warranty cover on this trailer?
This A-Trailer is protected against manufacturing defects and faulty workmanship under normal use for 12 months, with affected parts repaired or replaced at no cost. Pre- and post-sales support comes as part of that.
Where can I get this trailer serviced?
Every unit is assembled at the Sydney, NSW and Perth, WA workshops using imported running gear and Australian Standard approved steel, with ongoing support available across Sydney, Perth, Adelaide, Melbourne, and Brisbane.
How long is the wait for delivery?
Most orders are filled from stock on hand. If there's a shortage when you order, it can take up to three months from your deposit before the trailer is built.
Is finance available for this trailer?
Yes, AAA Trailers provides financing on this A-Trailer and the wider range, and you're welcome to bring in your own broker to inspect it before you commit.
