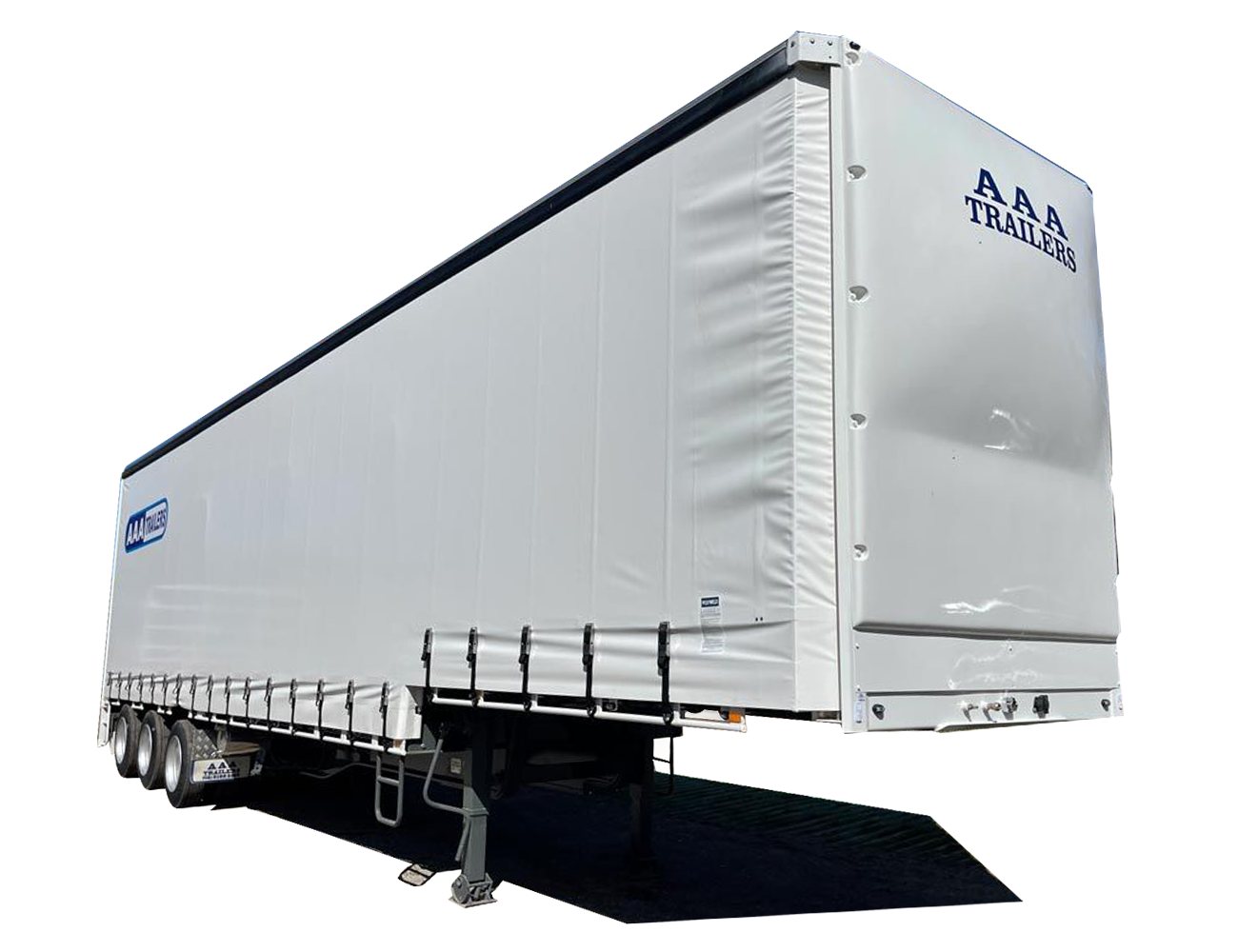

AAA TRAILERS CURTAINSIDER DROP DECK B-TRAILER 22 PALLET
The AAA Trailers Curtainsider Drop Deck B-Trailer 22 Pallet is engineered for maximum hauling efficiency. This 22 pallet B-Trailer features high tensile steel grade mainframe and 5mm steel chequer plate forklift rated floor. It includes C-channel coaming with tie rail and mezzanine floors through all stations (3 x decks). Load restraint curtains and aluminium hanging gates ensure secure transportation to and from any location in Australia.
AAA Trailers is proudly Australian owned and operated.
Additional info:
- This unit comes with a 12-month warranty.
- Pre- and post-sales service available.
- We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
- Additional charges will apply if you require trailer registration and transportation.
- Rego and on-road cost not included.
| Specifications | Details |
|---|---|
| Capacity | ATM: 47T GTM: 23.5T Approx tare weight: 10.5T |
| Length | 13.8m |
| Mainframe | High-tensile steel grade |
| Floor | 5mm steel chequer plate, forklift-rated |
| Kingpin | Dual-position 50mm bolt-in (90mm optional) |
| Coaming | C-channel with tie rail |
| Brake kit | EBS multi-volt 12/24V |
| Gates | Side gate pockets with hanging aluminium side gates |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch tri-axle airbag |
| Landing legs | K-Hitch 2-speed |
| Wheels | 10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 255/70R22.5 |
| Spare wheel carrier | Dual (spare wheels optional) |
| Lighting | Full LED |
| Water tank | 30L stainless steel |
| Toolboxes | 2 steel with stainless steel “T” handles |
| Mudguards | Plastic radius guards with AAA Trailers mudflaps |
| Curtains | Polyweld load restraint, single base colour |
| Optional extras |
|
Frequently Asked Questions
How many pallets does this B-Trailer carry?
This curtainsider is built as a 22 pallet B-Trailer configuration, with mezzanine floors running through all three deck stations for efficient load stacking.
What's the payload capacity?
With a 47T ATM and roughly 10.5T tare weight, this trailer can carry a payload of around 36.5 tonnes.
What type of curtains and gates does this trailer use?
Polyweld load restraint curtains in a single base colour come standard, along with side gate pockets fitted with hanging aluminium side gates.
Can I get custom curtain colours or signwriting?
Yes, both signwriting and custom colours are available as optional extras, and custom curtains can be quoted separately.
Is trailer registration included in the price?
No, rego and on-road costs sit outside the listed price. Registration and transport are quoted separately if you need them arranged.
What does the warranty cover on this trailer?
This B-Trailer carries a 12-month warranty covering manufacturing defects and faulty workmanship under normal use. AAA Trailers repairs or replaces any affected parts at no cost, with pre- and post-sales support included.
Where can I get this trailer serviced?
Every trailer is assembled at the Sydney, NSW and Perth, WA workshops, built with imported running gear and Australian Standard approved steel. Ongoing support is available across Sydney, Perth, Adelaide, Melbourne, and Brisbane.
How long is the wait for delivery?
Stock is generally on hand, so most orders are ready to go straight away. During a shortage, allow up to three months from your deposit for the trailer to be built.
Can I order this trailer in a custom colour?
Yes, colour changes don't cost extra. A fully custom specification takes longer to complete since it's built from scratch, so get in touch to talk through what you need.
Is finance available for this trailer?
Yes, financing is available on this B-Trailer and across the AAA range, and you're welcome to bring your own broker along to inspect it first.
