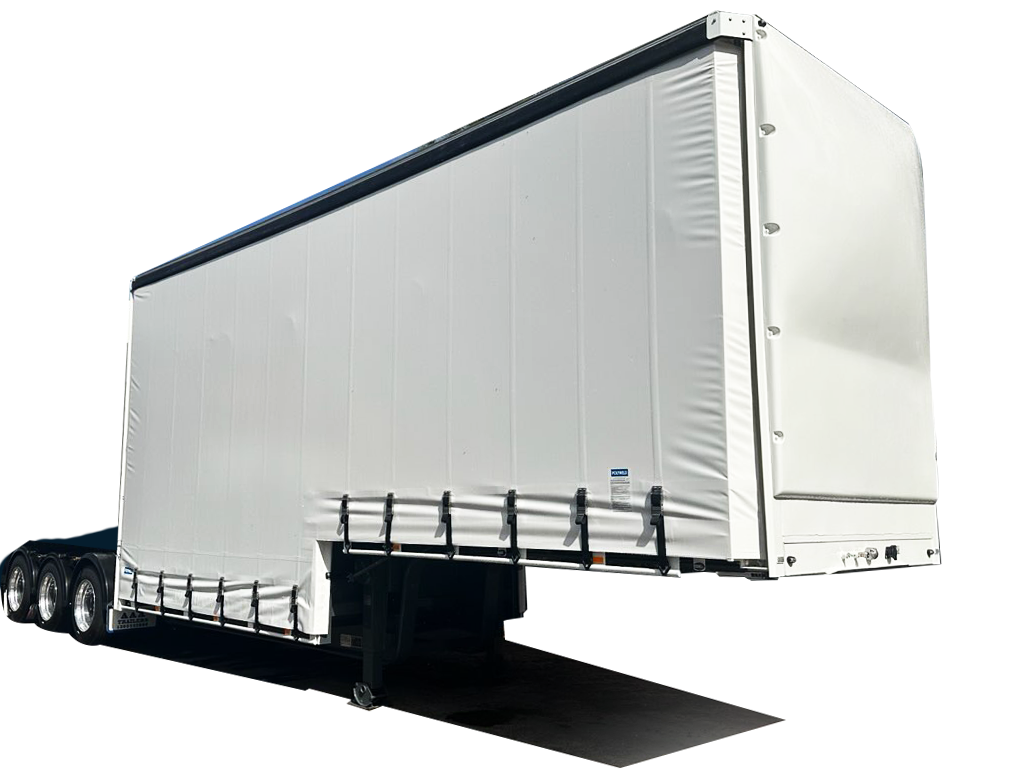

AAA TRAILERS CURTAINSIDER DROP DECK A-TRAILER 12 PALLET (ROLLING POSTS & REMOVABLE UPRIGHTS)

Name: AAA Curtainsider Drop Deck A-Trailer, 12 Pallet | AAA Trailers
SKU: 00031
Price: 128000.0 AUD
Availability: InStock

Store / Curtainsider Trailers

AU$128 000.00

Optional Extras (To be Quoted)

Road Train Kit

Ring Feeder

Signwriting & Custom Colours

Road Train / Long Vehicles Signs

Hub Odometer

Spare Wheel - Steel

Spare Wheel - Alloy

Custom Curtains

In stock

Product Details

The AAA Trailers Curtainsider Drop Deck A-Trailer 12 Pallet (Rolling Posts & Removable Uprights) is designed to maximise loading efficiency without compromising strength or safety. At 11.7m long, 7.6m deck, and 2.5m wide, this drop deck A-trailer offers outstanding flexibility with its rolling curtain posts and removable principal uprights, making it ideal for handling oversized or irregular freight.

Built with a high tensile steel frame and forklift-rated chequer plate floor, this trailer is engineered for performance across Australia's most challenging conditions. Rated to a 47 tonne ATM and 23.5 tonne GTM, it carries a genuine payload of around 38 tonnes. Features like aluminium hanging gates, full LED lighting, and load restraint curtains come standard for secure and compliant freight transport.

AAA Trailers is proudly Australian owned and operated.

Additional info:

This unit comes with a 12-month warranty.
Pre- and post-sales service available.
We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
Additional charges will apply if you require trailer registration and transportation.
Rego and on-road cost not included.

Specifications	Details
Capacity	ATM: 47T GTM: 23.5T Approx tare weight: 8.9T
Length	11.7m
Deck	7.6m
Curtainsider Style	Double drop deck with rolling curtain posts
Main Uprights	Removable for flexible access
Mainframe	High-tensile steel grade
Floor	5mm steel chequer plate, forklift-rated
Coaming	C-channel with tie rail
Brake kit	EBS multi-volt 12/24V
Gates	Side gate pockets with hanging aluminium side gates
Axles	K-Hitch 22.5” drum brake axles
Suspension	K-Hitch tri-axle airbag
Landing legs	K-Hitch 2-speed
Turntable	K-Hitch 50mm bolt in (90mm optional)
Kingpin	Dual-position 50mm bolt in (90mm optional)
Wheels	10/285 PCD dual steel rims (aluminium optional)
Tyres	11R22.5
Spare wheel carrier	Dual (spare wheels optional)
Lighting	Full LED
Water tank	30L stainless steel
Toolboxes	1 steel with stainless steel “T” handles
Mudguards	Plastic radius guards with AAA Trailers mudflaps
Curtains	Polyweld load restraint, single base colour
Optional extras	Road Train Kit Ring Feeder Custom Paint - Coaming Rails Road Train / Long Vehicles Signs Hub Odometer Spare Wheel: Steel or Alloy Custom Curtains (To be Quoted)

Frequently Asked Questions

What are rolling posts and removable uprights, and why do they matter?

The rolling curtain posts and removable main uprights let the curtain sides open up fully for side loading, useful for oversized or irregular freight that wouldn't fit through a standard Hockey curtainsider opening.

How many pallets does this A-Trailer carry?

This drop deck curtainsider is configured as a 12 pallet A-Trailer, with an 11.7m overall length and a 7.6m deck.

What's the payload capacity?

With a 47T ATM and roughly 8.9T tare weight, this trailer can carry a payload of around 38 tonnes.

What type of curtains and gates does this trailer use?

Polyweld load restraint curtains in a single base colour, with side gate pockets fitted with hanging aluminium side gates.

Can I get custom curtain colours on this trailer?

Yes, custom curtains can be quoted separately, and custom paint on the coaming rails is also available as an optional extra.

Is trailer registration included in the price?

No, rego and on-road costs are quoted separately from the trailer price. If registration or transport is needed, that's arranged as an additional charge.

What does the warranty cover on this trailer?

Manufacturing defects and faulty workmanship under normal use are covered for 12 months, with faulty parts repaired or replaced by AAA Trailers at no cost. Pre- and post-sales support is included throughout.

Where can I get this trailer serviced?

Every unit is assembled at the Sydney, NSW and Perth, WA workshops using imported running gear and Australian Standard approved steel, with ongoing support available across Sydney, Perth, Adelaide, Melbourne, and Brisbane.

How long is the wait for delivery?

Most configurations are ready from stock. During a shortage, expect roughly three months from your deposit date until the trailer is built and delivered.

Is finance available for this trailer?

Yes, financing is available on this curtainsider drop deck A-Trailer and across the AAA range, and you're free to bring your own finance broker along to inspect it beforehand.
