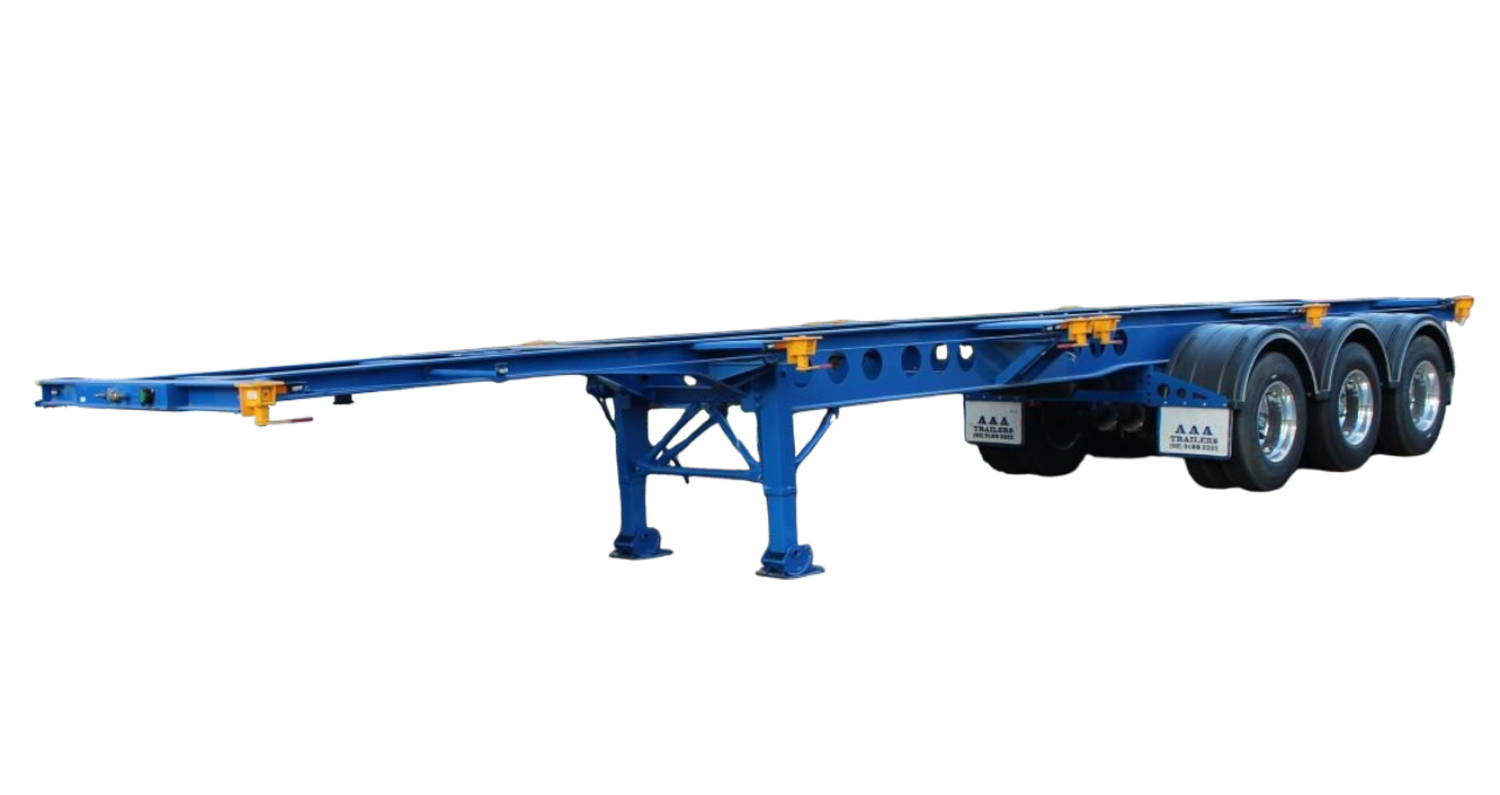

AAA TRAILERS 45' SKELETAL TRAILER
The AAA 45ft Skeletal trailer offers the robust performance you need for a wide range of demanding transport applications, extending from 12.2m closed to 13.72m extended for added flexibility. Features high tensile steel grade mainframe and 3-way twist locks (1x40', 2x20', 1x20'). Equipped with K-Hitch tri-axle, airbag suspension, turntable, and 2-speed landing legs. Includes 12 aluminium rims. Perfect for efficient and secure container transport across Australia.
AAA Trailers is proudly Australian owned and operated.
Additional info:
- This unit comes with a 12-month warranty.
- Pre- and post-sales service available.
- We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
- Additional charges will apply if you require trailer registration and transportation.
- Rego and on-road cost not included.
| Specifications | Details |
|---|---|
| Capacity | ATM: 47T GTM: 23.5T Approx tare weight: 5.3T |
| Length | 12.2m Closed 13.72m Extended |
| Mainframe | High-tensile steel grade |
| Kingpin | Single 50mm bolt-in (90mm optional) |
| Brake kit | EBS multi-volt 12/24V |
| Container pins | 3-way |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch tri-axle airbag |
| Landing legs | K-Hitch 2-speed |
| Wheels | 10/285 PCD dual Alloy rims |
| Tyres | 11R22.5 |
| Mudguards | Plastic radius guards with AAA mudflaps |
| Lighting | Full LED |
| Optional Extras |
|
Frequently Asked Questions
How is this different from the 40ft Skeletal Trailer?
This 45ft version extends from 12.2m closed to 13.72m extended, giving flexibility for longer container combinations. The 40ft version is a fixed length, with no extend capability.
What container sizes does this skeletal trailer take?
It's fitted with 3-way twist locks, accommodating one 40ft container, two 20ft containers, or one 20ft container in various configurations.
How many wheels does this trailer have?
It runs 12 aluminium rims across its tri-axle dual wheel configuration, all fitted standard rather than as an optional upgrade.
What's the payload capacity?
With a 47T ATM and roughly 5.3T tare weight, this trailer can carry a payload of around 41.7 tonnes.
Is trailer registration included in the price?
No, rego and on-road costs sit outside the listed price. If you need the trailer registered and transported, that's arranged as a separate charge.
What does the warranty cover on this trailer?
Manufacturing defects and faulty workmanship under normal use are covered for 12 months, with faulty parts repaired or replaced at no cost. Pre- and post-sales support is included throughout.
Where is this trailer built and supported?
Assembly happens at the Sydney, NSW and Perth, WA workshops, using imported running gear and Australian Standard approved steel. Ongoing support runs across Sydney, Perth, Adelaide, Melbourne, and Brisbane.
How long is the wait for delivery?
Stock is generally on hand, so most orders ship without delay. If there's a shortage at the time you order, it can take up to three months from your deposit before it's ready.
Is finance available for this trailer?
Yes, AAA Trailers offers financing on this skeletal trailer and the rest of the range, and you can bring your own broker along to inspect it first if you'd prefer.
