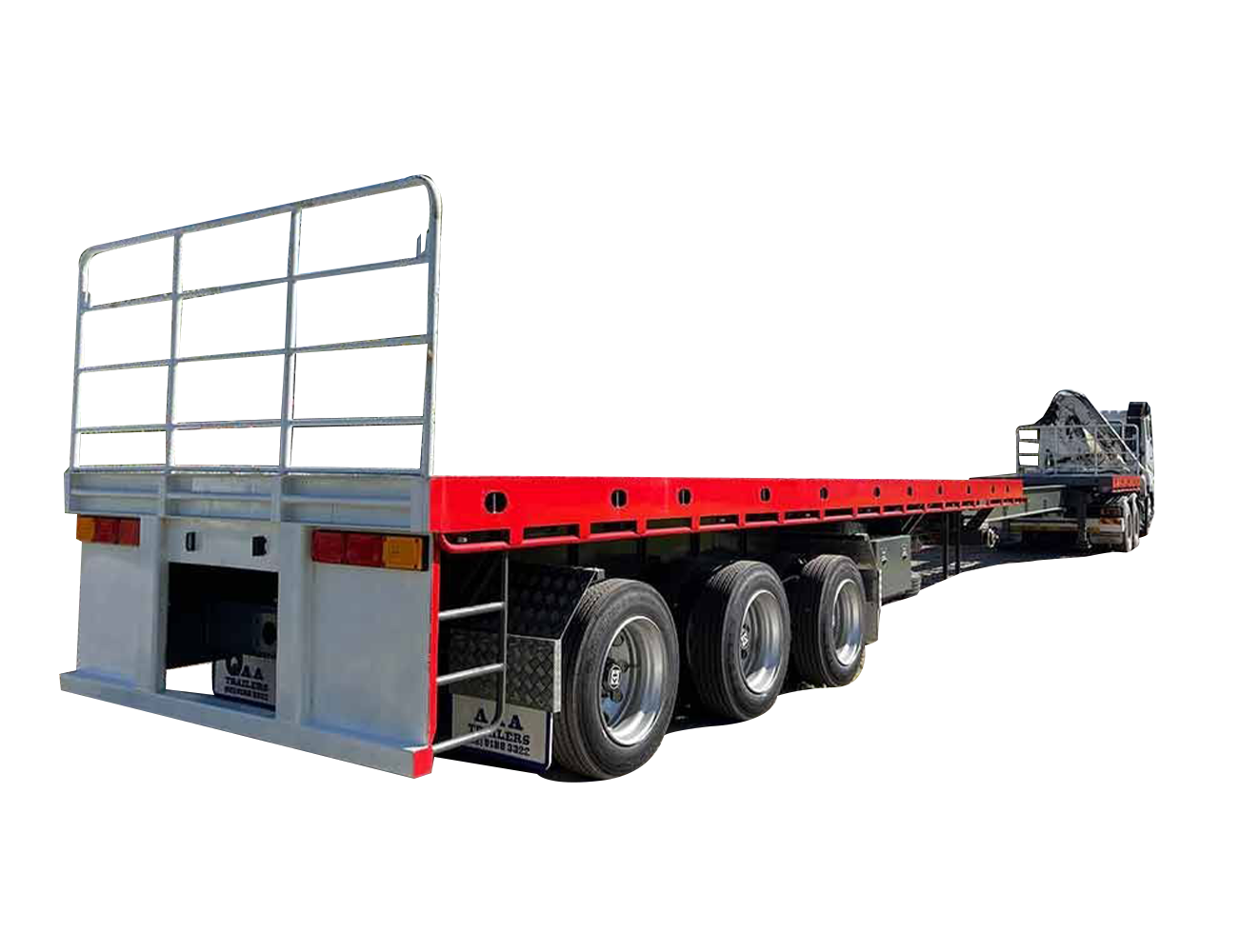

AAA TRAILERS 45' FLAT TOP EXTENDABLE
The 45ft Flat Top Extendable with Airbag Suspension offers a level of versatility and durability that is hard to match. It extends from 13.72 metres to 21.4 metres long, and features a high tensile steel grade mainframe and a 5mm steel chequer plate forklift rated floor. The 3-way container pins provide secure and flexible load management, which makes this trailer excellent for varying load lengths and types.
AAA Trailers is proudly Australian owned and operated.
Additional info:
- This unit comes with a 12-month warranty.
- Pre- and post-sales service available.
- We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
- Additional charges will apply if you require trailer registration and transportation.
- Rego and on-road cost not included.
| Specifications | Details |
|---|---|
| Capacity | ATM: 47T GTM: 23.5T Approx tare weight: 11T |
| Length | 13.72m (closed) 21.4m (extended) |
| Mainframe | High-tensile steel grade |
| Floor | 5mm steel chequer plate, forklift-rated |
| Kingpin | Dual-position 50mm bolt-in (90mm optional) |
| Coaming | 5-inch with tie rail (C Channel Optional) |
| Brake kit | EBS multi-volt 12/24V |
| Container pins | 3-way |
| Gates | Front and rear 1,200mm steel Side gate pockets (side gates and gate carrier optional) |
| Axles | K-Hitch 22.5” drum brake axles |
| Suspension | K-Hitch tri-axle airbag |
| Landing legs | K-Hitch 2-speed |
| Wheels | 10/285 PCD dual steel rims (aluminium optional) |
| Tyres | 11R22.5 |
| Spare wheel carrier | Dual (spare wheels optional) |
| Lighting | Full LED |
| Water tank | 30L stainless steel |
| Toolboxes | 2 steel with stainless steel “T” handles |
| Mudguards | Plastic radius guards with AAA Trailers mudflaps, quarter guards front and rear |
| Optional extras |
|
Frequently Asked Questions
How far does this flat top extend?
It extends from 13.72m closed out to 21.4m, giving you the flexibility to carry longer loads without needing a dedicated long trailer.
What's the payload capacity of this trailer?
With a 47T ATM and roughly 11T tare weight, this flat top extendable can carry a payload of around 36 tonnes.
Can I add side gates to this trailer?
Side gate pockets are fitted as standard, with side gates and a gate carrier available as optional extras.
What suspension does this trailer run?
K-Hitch tri-axle airbag suspension is standard, offering a smoother ride and better load protection than a fixed spring setup.
Do I need to arrange trailer registration separately?
Yes, rego and on-road costs aren't included in the listed price. Registration and transport are quoted as an additional charge if you need them arranged.
What's covered under the warranty?
This trailer is covered by a 12-month warranty against manufacturing defects and faulty workmanship under normal use. If a covered fault comes up, AAA Trailers repairs or replaces the affected parts at no cost, with pre- and post-sales support included.
Where does AAA Trailers operate from?
Trailers are assembled at the Sydney, NSW and Perth, WA workshops using imported running gear and Australian Standard approved steel, with support available across Sydney, Perth, Adelaide, Melbourne, and Brisbane.
How long is the wait to get one built?
Most orders are filled from stock. During a shortage, expect up to three months from your deposit before the trailer is built and delivered.
Can this trailer be ordered in a custom colour?
Yes, colour changes are free of charge. A more involved custom spec takes longer since it's built from scratch, so get in touch to discuss what you need.
Is finance available on this trailer?
Yes, financing is available on this trailer and across the AAA range, and you're welcome to bring your own broker along to inspect it beforehand.
