AAA TRAILERS 45' DROP DECK TRI-AXLE DECK WIDENER WITH BI-FOLD RAMPS

Store / Drop Deck Trailers
AU$85 000.00
Rims
Please choose
Optional Extras
In stock
Product Details

The 45' Drop Deck Tri-Axle Deck Widener with Bi-fold Ramps is an excellent choice for those looking to improve their transport capabilities. Comes with bi-fold ramps for easy loading and unloading. Handles an ATM of 45-47 tonnes and a GTM of 20-27 tonnes, depending on state regulations. Perfect for wide and heavy loads.


AAA Trailers is proudly Australian owned and operated.


Additional info:

  • This unit comes with a 12-month warranty.
  • Pre- and post-sales service available.
  • We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
  • Additional charges will apply if you require trailer registration and transportation.
  • Rego and on-road cost not included.


Specifications Details
Capacity ATM: 47T
GTM: 27T
Approx tare weight: 12.5T
Length Full length: 13.72m (including ramps)
Lower deck: 9.4m
Upper deck: 3.95m
Deck Widener 2500mm - 3500mm
Mainframe High-tensile steel grade
Floor 5mm steel chequer plate, forklift-rated
Kingpin Dual-position 50mm bolt-in (90mm optional)
Coaming 5-inch with tie rail
Brake kit EBS multi-volt 12/24V
Container pins 3-way
Gates Front gate: 1,200mm steel
Axles K-Hitch 19.5” or 17.5” drum brake axles
Suspension K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)
Landing legs K-Hitch 2-speed
Wheels 10/275 or 8/275 PCD dual steel rims (aluminium optional)
Tyres 265/70R19.5 or 235/75R17.5
Spare wheel carrier Dual (spare wheels optional)
Lighting Full LED
Water tank 30L stainless steel
Toolboxes 2 steel with stainless steel “T” handles
Mudguards Quarter guards front and rear with AAA Trailers mud flaps
Road train bracket Coupling, air, and electrical optional
Ramps
  • Bi-fold ramps with diesel powerpack (hydraulics to truck optional)
  • 3 pc fold-down upper deck ramps
  • Slide-out upper deck neck ramps (optional)
Optional Extras
  • Road Train Kit
  • Ring Feeder
  • Custom Paint - Coaming Rails
  • Forward Fold Ramp Option
  • No Ramps
  • Hard Wired Flashing Beacon
  • Oversize Signs
  • Hub Odometer
  • Spare Wheel
  • 3 Piece Flip-Over Upper Deck Ramps

Returns and Warranty Policy

Show More
Save this product for later
Share this product with your friends
Pin it
AAA TRAILERS 45' DROP DECK TRI-AXLE DECK WIDENER WITH BI-FOLD RAMPS
Store / Drop Deck Trailers
You May Also Like
AAA TRAILERS CURTAINSIDER DROP DECK B-TRAILER 22 PALLET (ROLLING POSTS & REMOVABLE UPRIGHTS)
AAA TRAILERS CURTAINSIDER DROP DECK B-TRAILER 22 PALLET (ROLLING POSTS & REMOVABLE UPRIGHTS)
AAA TRAILERS CURTAINSIDER DROP DECK B-TRAILER 22 PALLET (ROLLING POSTS & REMOVABLE UPRIGHTS)
AU$135 000.00
AAA TRAILERS 45' DROP DECK QUAD-AXLE DECK WIDENER WITH FRONT LIFT UP, REAR STEER AXLE AND BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK QUAD-AXLE DECK WIDENER WITH FRONT LIFT UP, REAR STEER AXLE AND BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK QUAD-AXLE DECK WIDENER WITH FRONT LIFT UP, REAR STEER AXLE AND BI-FOLD RAMPS
AU$155 000.00
AAA TRAILERS CURTAINSIDER DROP DECK A-TRAILER 12 PALLET (ROLLING POSTS & REMOVABLE UPRIGHTS)
AAA TRAILERS CURTAINSIDER DROP DECK A-TRAILER 12 PALLET (ROLLING POSTS & REMOVABLE UPRIGHTS)
AAA TRAILERS CURTAINSIDER DROP DECK A-TRAILER 12 PALLET (ROLLING POSTS & REMOVABLE UPRIGHTS)
AU$128 000.00

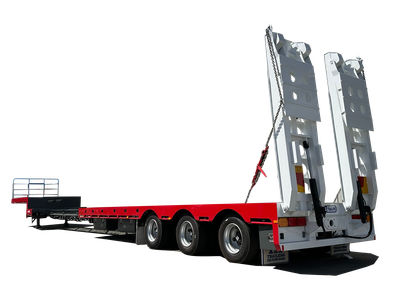

AAA TRAILERS 45' DROP DECK EXTENDABLE WITH BI-FOLD RAMPS
