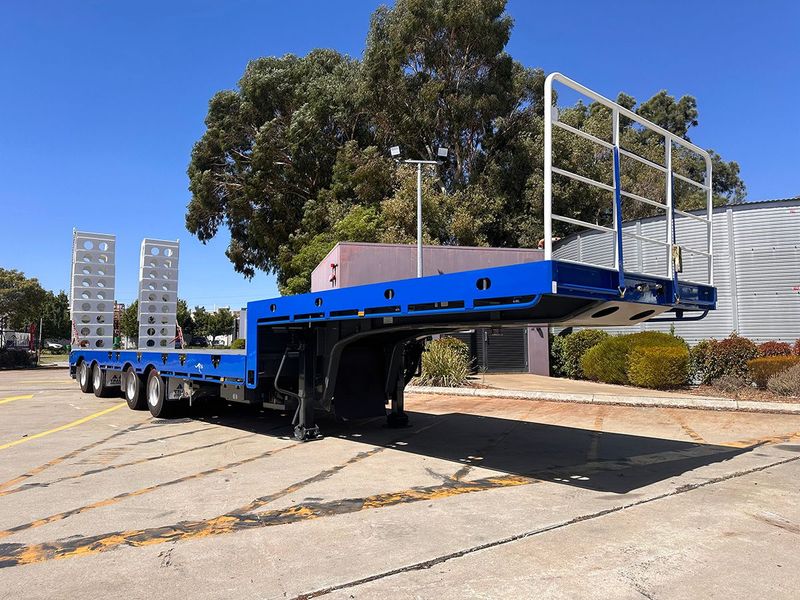

AAA TRAILERS 45' DROP DECK QUAD-AXLE DECK WIDENER WITH FRONT LIFT UP, REAR STEER AXLE AND BI-FOLD RAMPS

Store / Drop Deck Trailers
AU$155 000.00
Optional Extras
In stock
Product Details

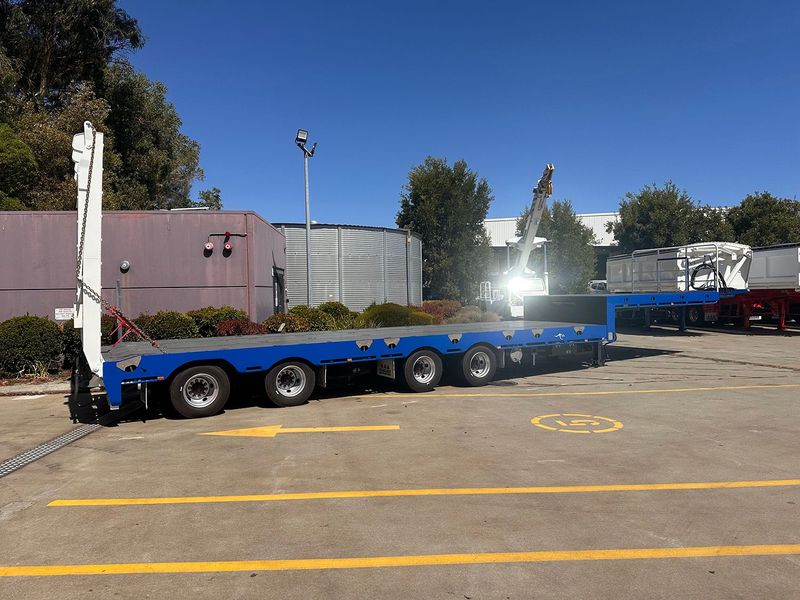

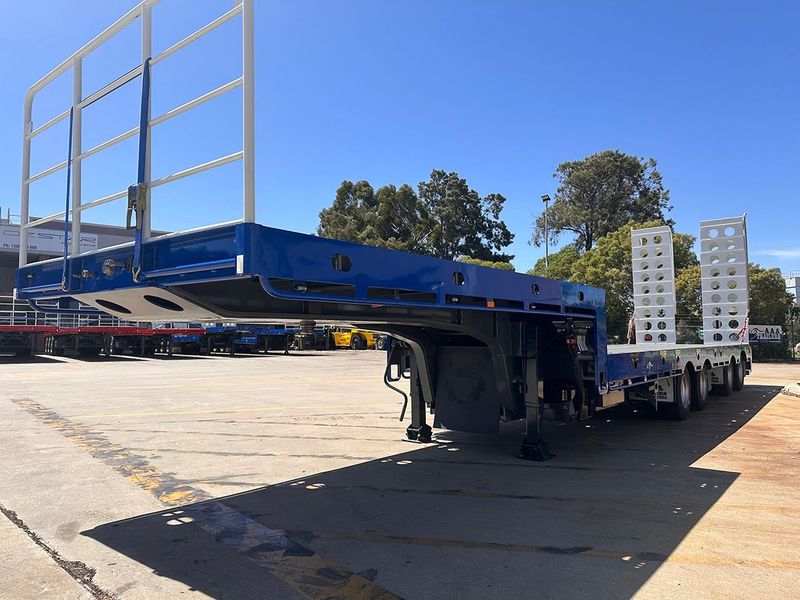

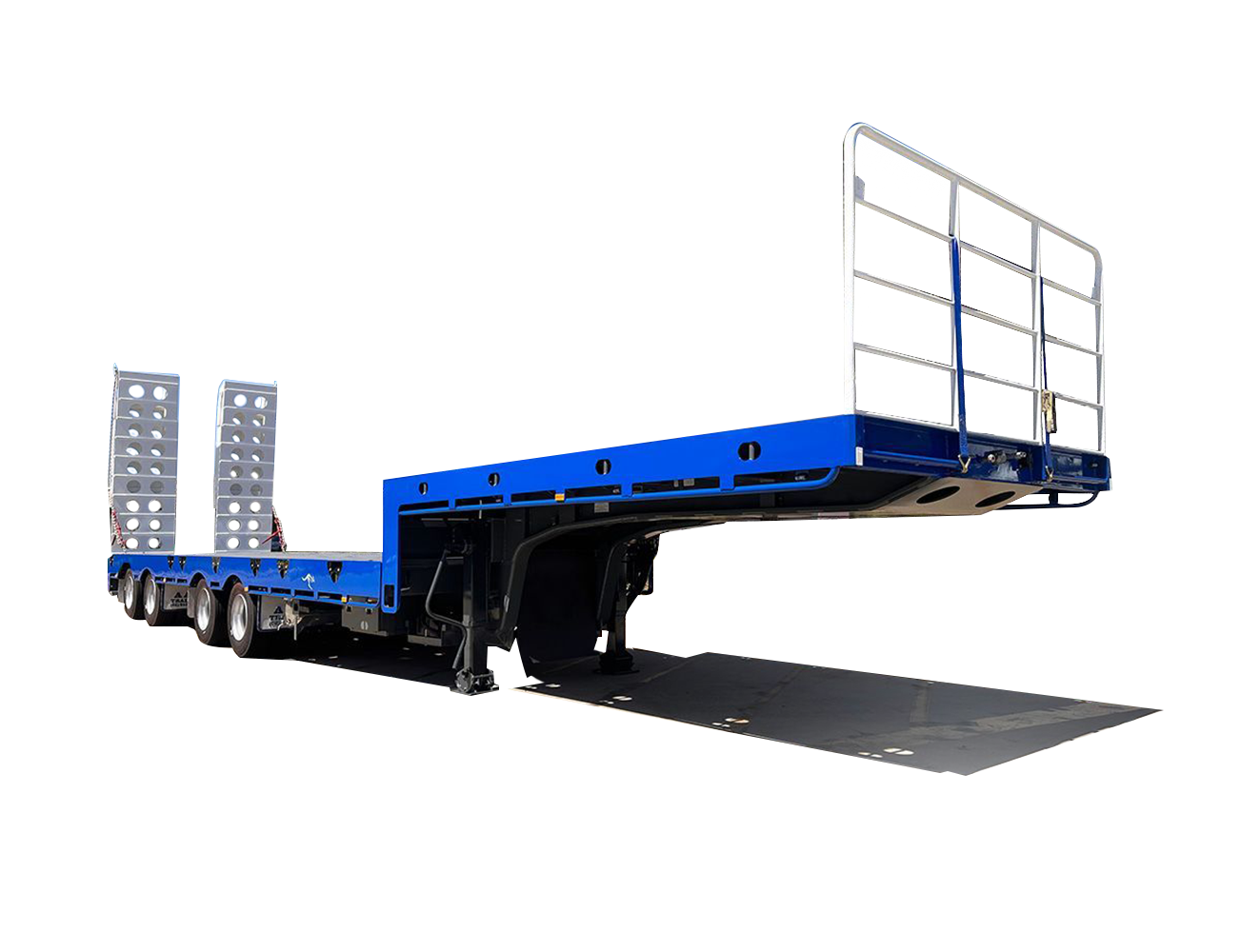

For maximum load capacity, the 45' Drop Deck Quad-Axle Deck Widener with Front Lift Up, Rear Steer Axle And Bi-fold Ramps is the ultimate choice. Equipped with bi-fold ramps, this trailer boasts an impressive ATM of 60 tonnes and a GTM of 36 tonnes. Ideal for transporting extremely heavy and wide loads. Engineered for stability and durability on the road.


AAA Trailers is proudly Australian owned and operated.


Additional info:

  • This unit comes with a 12-month warranty.
  • Pre- and post-sales service available.
  • We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
  • Additional charges will apply if you require trailer registration and transportation.
  • Rego and on-road cost not included.


Specifications Details
Capacity ATM: 60T
GTM: 36T
Approx tare weight: 14T
Length Full length 13.72m (including ramps)
Lower deck: 9.4m
Upper deck: 4m
Deck Widener 2500mm - 3500mm
Mainframe High-tensile steel grade
Floor 5mm steel chequer plate, forklift-rated
Kingpin Dual-position 50mm bolt-in (90mm optional)
Coaming 5-inch with tie rail
Brake kit EBS multi-volt 12/24V
Container pins 3-way
Gates Front gate: 1,200mm steel
Axles SAF 17.5” drum brake axles
Suspension SAF quad axle airbag
Landing legs K-Hitch 2-speed
Wheels 10/225 PCD dual steel rims (aluminium optional)
Tyres 235/75R17.5
Spare wheel carrier Spare wheel holder (spare wheel optional)
Lighting Full LED
Water tank 30L stainless steel
Toolboxes 2 steel with stainless steel “T” handles

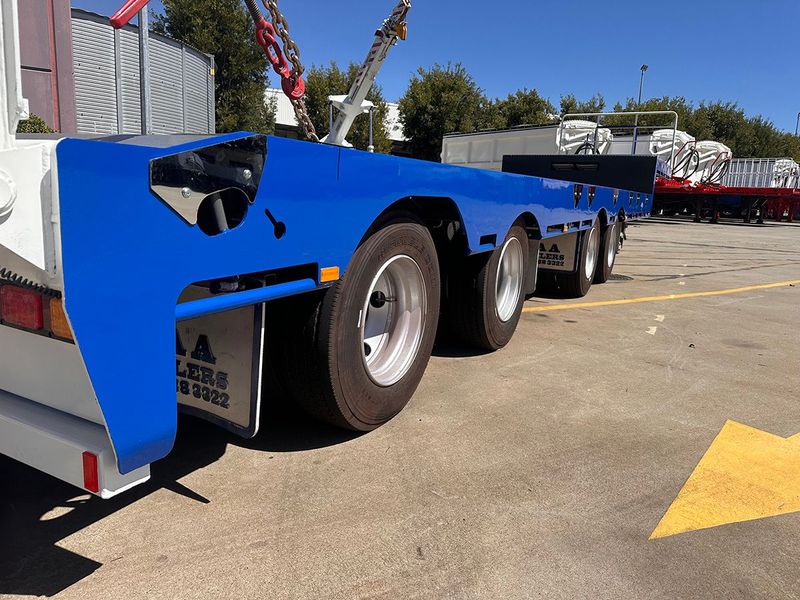

Mudguards Quarter guards front and rear with AAA Trailers mud flaps
Road train bracket Coupling, air, and electrical optional
Ramps

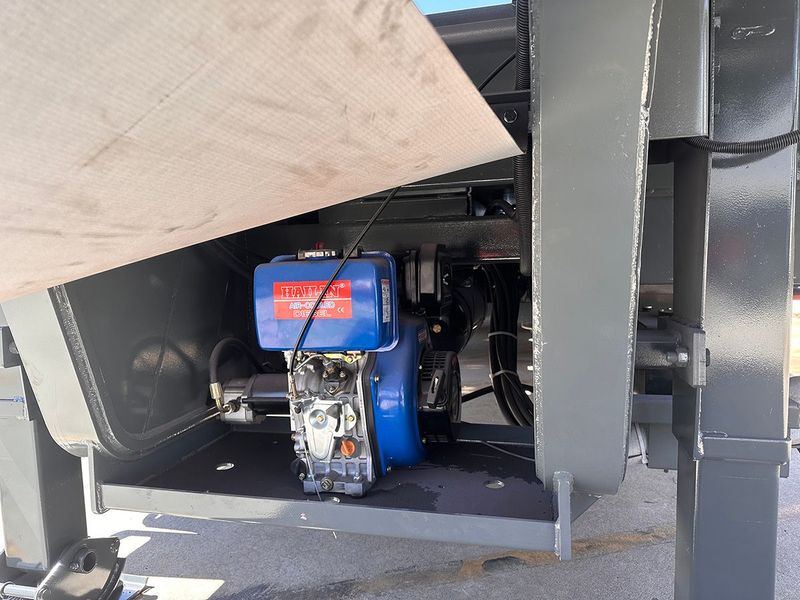

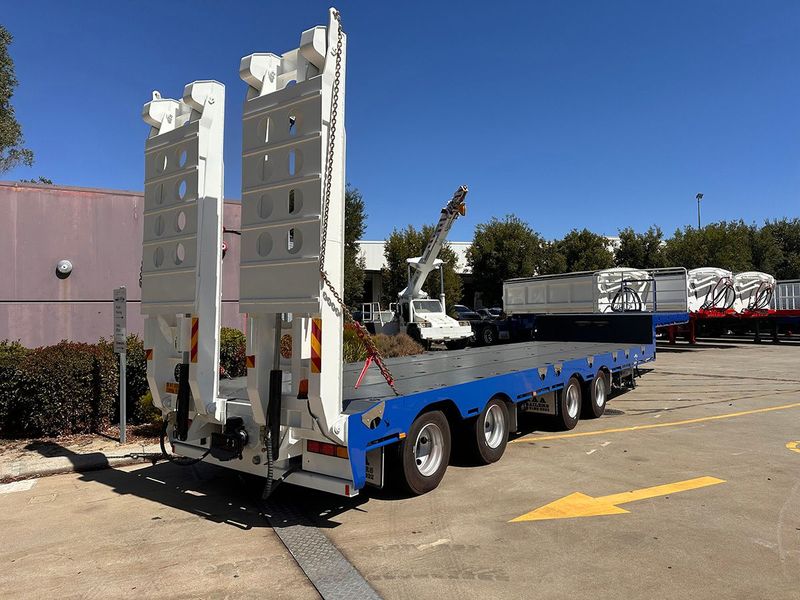

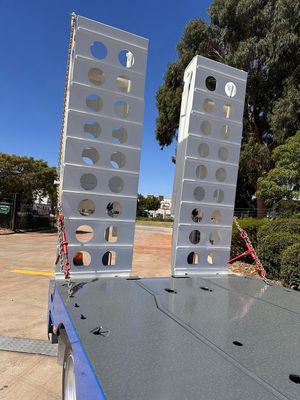

  • Bi-fold 60T rated ramps, diesel powerpack, to operate widener and ramps (hydraulics to truck optional)
  • 3 pc fold-down upper deck ramps
  • Slide-out upper deck neck ramps (optional)
Optional Extras
  • Road Train Kit
  • Ring Feeder
  • Custom Paint - Coaming Rails
  • Forward Fold Ramp Option
  • No Ramps
  • Hard Wired Flashing Beacon
  • Oversize Signs
  • Hub Odometer
  • Spare Wheel
  • 3 Piece Flip-Over Upper Deck Ramps

Returns and Warranty Policy

Show More
Save this product for later
Share this product with your friends
Pin it
AAA TRAILERS 45' DROP DECK QUAD-AXLE DECK WIDENER WITH FRONT LIFT UP, REAR STEER AXLE AND BI-FOLD RAMPS
Store / Drop Deck Trailers
You May Also Like
AAA TRAILERS 45' DROP DECK TRI-AXLE DECK WIDENER WITH BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK TRI-AXLE DECK WIDENER WITH BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK TRI-AXLE DECK WIDENER WITH BI-FOLD RAMPS
AU$85 000.00
AAA TRAILERS CURTAINSIDER DROP DECK B-TRAILER 22 PALLET
AAA TRAILERS CURTAINSIDER DROP DECK B-TRAILER 22 PALLET
AAA TRAILERS CURTAINSIDER DROP DECK B-TRAILER 22 PALLET
AU$115 000.00
AAA TRAILERS CURTAINSIDER DROP DECK A-TRAILER 12 PALLET
AAA TRAILERS CURTAINSIDER DROP DECK A-TRAILER 12 PALLET
AAA TRAILERS CURTAINSIDER DROP DECK A-TRAILER 12 PALLET
AU$108 000.00
AAA TRAILERS 45' DROP DECK EXTENDABLE WITH BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK EXTENDABLE WITH BI-FOLD RAMPS
AAA TRAILERS 45' DROP DECK EXTENDABLE WITH BI-FOLD RAMPS
AU$80 000.00

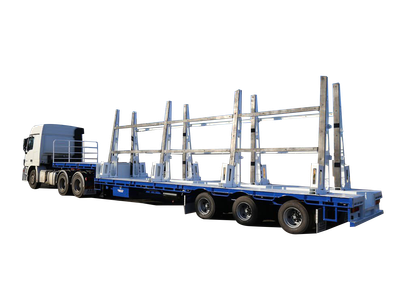

AAA TRAILERS 45' DROP DECK CONCRETE PANEL TRAILER
