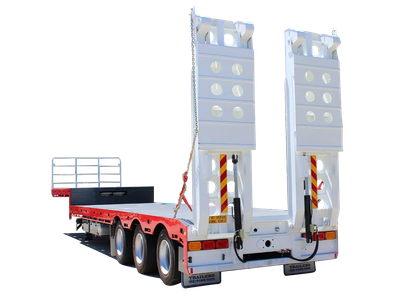

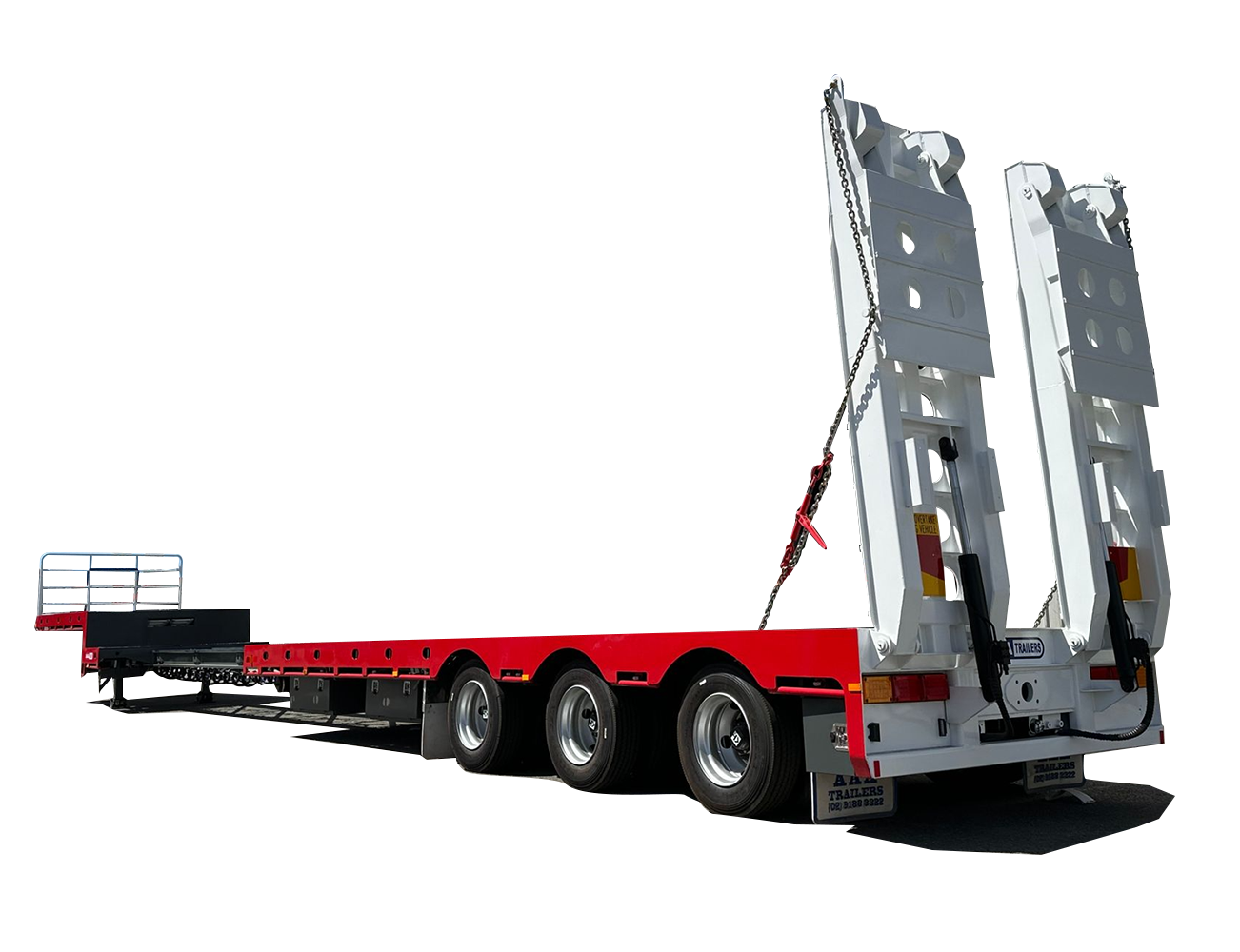

AAA TRAILERS 45' DROP DECK EXTENDABLE WITH BI-FOLD RAMPS
The 45ft Drop Deck Extendable with Bi-fold Ramps is designed for flexibility and heavy-duty hauling performance. Available in 22.5', 19.5', or 17.5' rims. With an ATM of 45-47 tonnes and a GTM of 20-27 tonnes. This extendable trailer adapts to your needs (up to 19,493mm), so it's perfect for those who need to haul varying load lengths and types.
AAA Trailers is proudly Australian owned and operated.
Additional info:
- This unit comes with a 12-month warranty.
- Pre- and post-sales service available.
- We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
- Additional charges will apply if you require trailer registration and transportation.
- Rego and on-road cost not included.
| Specifications | Details |
|---|---|
| Capacity | ATM: 47T GTM: 27T Approx tare weight: 11.7T - 12.5T |
| Length | Full length (closed): 13.72M Lower deck (closed): 9.4m Upper deck: 3.95m Extended length: 19.5m |
| Mainframe | High-tensile steel grade |
| Floor | 5mm steel chequer plate, forklift-rated |
| Kingpin | Dual-position 50mm bolt-in (90mm optional) |
| Coaming | 5-inch with tie rail |
| Brake kit | EBS multi-volt 12/24V |
| Container pins | 3-way |
| Gates | Front gate: 1,200mm steel Side gates: Side gate pockets (side gates and gate carrier optional) |
| Axles | K-Hitch 22.5”, 19.5” or 17.5” drum brake axles |
| Suspension | K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional) |
| Landing legs | K-Hitch 2-speed |
| Wheels | 10/285, 8/275 or 10/275 PCD dual steel rims (aluminium optional) |
| Tyres | 255/70R22.5, 260/70R19.5 or 235/75R17.5 |
| Spare wheel carrier | Dual (spare wheels optional) |
| Lighting | Full LED |
| Water tank | 30L stainless steel |
| Toolboxes | 2 steel with stainless steel “T” handles |
| Mudguards | Quarter guards front and rear with AAA Trailers mud flaps |
| Road train bracket | Coupling, air, and electrical optional |
| Ramps | Bi-fold with 12V electric power pack and N150 battery with built-in Anderson plug Slide-out upper deck neck ramps (flip-over neck ramps optional) |
| Optional Extras |
|
Frequently Asked Questions
How long does this trailer extend to?
Closed, the full length is 13.72m with a 9.4m lower deck and 3.95m upper deck. Extended, it reaches up to 19.5m, giving you the flexibility to haul longer loads without needing a dedicated long trailer.
What rim sizes does this trailer come in?
You can choose 22.5", 19.5", or 17.5" rims, each matched to the corresponding axle and tyre size (255/70R22.5, 260/70R19.5, or 235/75R17.5).
Can I add side gates to this trailer?
Side gate pockets come standard, with side gates and a gate carrier available as optional extras if you need them.
What kind of ramps come with this extendable trailer?
Bi-fold ramps run off a 12V electric power pack with an N150 battery and built-in Anderson plug, plus slide-out upper deck neck ramps. Flip-over neck ramps are available as an optional upgrade.
Do I need to sort out registration myself?
Yes, rego and on-road costs aren't included in the price. If you need the trailer registered or transported, that's arranged and charged separately.
How does the warranty work?
This extendable trailer is covered for 12 months against manufacturing defects and faulty workmanship under normal use. If something covered comes up in that window, AAA Trailers repairs or replaces it at no cost, with pre- and post-sales support available throughout.
Where can I find AAA Trailers in person?
Trailers are built at the Sydney, NSW and Perth, WA workshops with imported running gear and Australian Standard approved steel, and there's support Australia-wide across Sydney, Perth, impAdelaide, Melbourne, and Brisbane.
Is this trailer built to order or kept in stock?
Stock is generally available and ready to go. During a shortage, it can take up to three months from your deposit for one to be built.
Can I choose a specific colour for this trailer?
Colour changes are free. A more involved custom spec takes longer to complete since it's built from scratch, so get in touch to discuss what you need.
Is there a finance option for this trailer?
Yes, financing is available on this trailer and across the AAA range, and you're welcome to bring your own broker to inspect it beforehand.
