AAA TRAILERS 45' DROP DECK CONCRETE PANEL TRAILER

Name: 45ft Drop Deck Concrete Panel Trailer | AAA Trailers
SKU: 00004
Price: 89000.0 AUD
Availability: InStock

Store / Drop Deck Trailers

AU$89 000.00

Optional Extras (To be Quoted)

Road Train Kit

Ring Feeder

Custom Paint - Coaming Rails

Oversize Signs

Hub Odometer

Spare Wheel - Steel

Spare Wheel - Alloy

In stock

Product Details

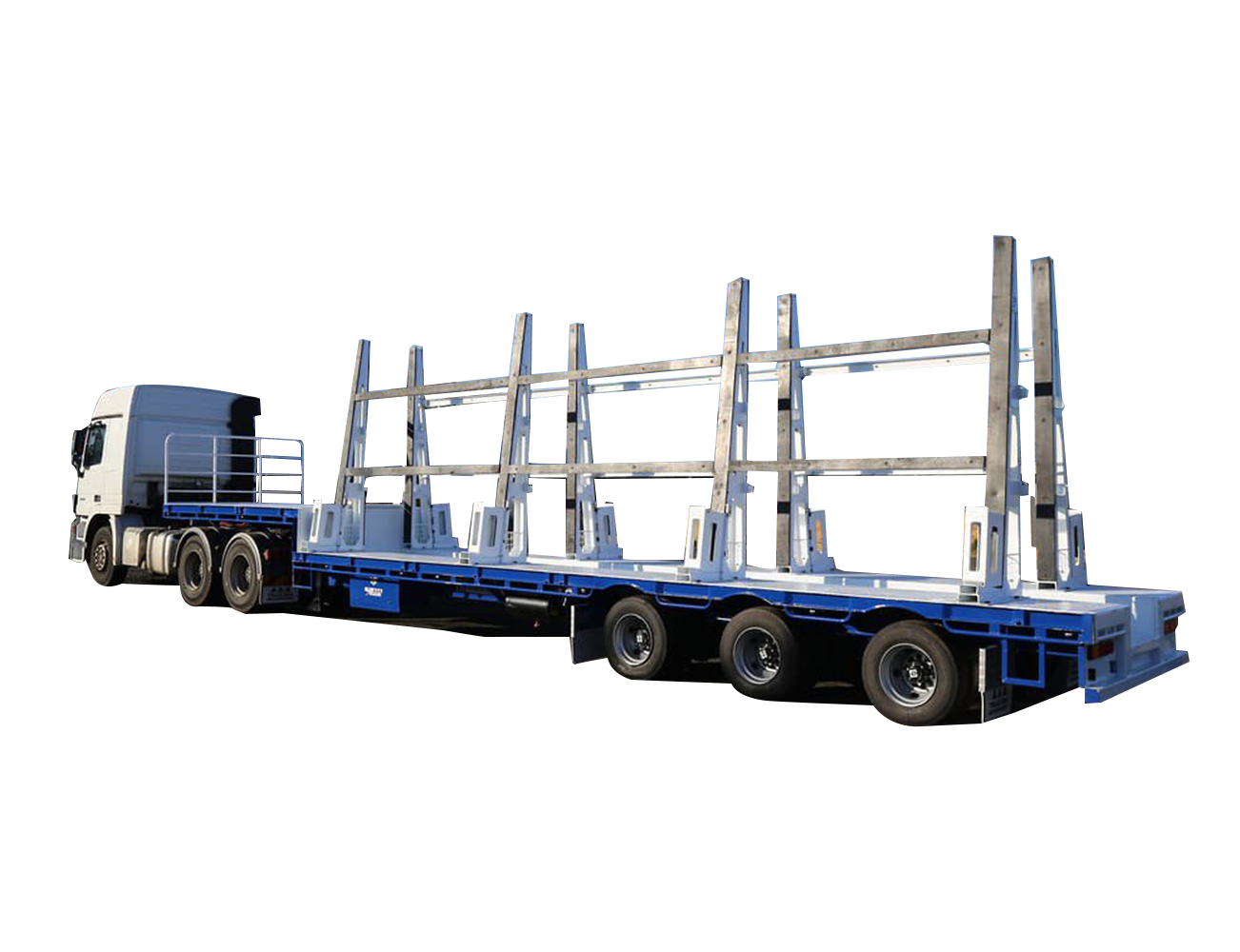

Specially designed for transporting concrete panels, the Drop Deck Concrete Panel 45ft comes with airbag suspension for smooth transit. It's built for durability and reliability like all the other trailers in AAA Trailers' catalogue. This trailer is the ideal solution for your concrete panel transport requirements across Australia.

AAA Trailers is proudly Australian owned and operated.

Additional info:

This unit comes with a 12-month warranty.
Pre- and post-sales service available.
We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
Additional charges will apply if you require trailer registration and transportation.
Rego and on-road cost not included.

Specifications	Details
Capacity	ATM: 47T GTM: 27T Approx tare weight: 10.3T
Length	Full length: 13.72m
Mainframe	High-tensile steel grade
Floor	5mm steel chequer plate, forklift-rated
Kingpin	Dual-position 50mm bolt-in (90mm optional)
Coaming	5-inch with tie rail
Brake kit	EBS multi-volt 12/24V
Container pins	3-way
Gates	Front gate: 1,200mm steel
Axles	K-Hitch 17.5” drum brake axles
Suspension	K-Hitch tri-axle airbag
Landing legs	K-Hitch 2-speed
Wheels	10/225 or 8/275 PCD dual steel (Optional Aluminum)
Spare wheel carrier	Dual (spare wheels optional)
Lighting	Full LED
Water tank	30LT Stainless steel
Toolboxes	2 steel with stainless steel “T” handles
Mudguards	Quarter guards front and rear with AAA Trailers mud flaps
Road train bracket	Coupling, air, and electrical optional
Optional Extras	Road Train Kit Ring Feeder Custom Paint - Coaming Rails Oversize Signs Hub Odometer Spare Wheel

Frequently Asked Questions

What makes this trailer suited to concrete panels?

It's purpose-built for concrete panel transport, running airbag suspension for a smoother ride that helps protect fragile or heavy panel loads in transit.

What's the payload capacity?

With a 47T ATM and roughly 10.3T tare weight, this trailer can carry a payload of around 36.7 tonnes.

What suspension does this trailer use?

K-Hitch tri-axle airbag suspension comes standard, chosen for the smoother, more controlled ride it gives when hauling concrete panels.

Is trailer registration included in the price?

No, rego and on-road costs sit outside the listed price. Registration and transport are quoted as an additional charge if required.

What does the warranty cover on this trailer?

A 12-month warranty applies to manufacturing defects and faulty workmanship under normal use, with AAA Trailers covering repair or replacement at no charge. Pre- and post-sales support is part of the package.

Where is this trailer built and supported?

AAA Trailers builds at the Sydney, NSW and Perth, WA workshops, using imported running gear and Australian Standard approved steel, with a support network spanning Sydney, Perth, Adelaide, Melbourne, and Brisbane.

How long is the wait for delivery?

Most orders are filled directly from available stock. During a shortage, allow around three months from your deposit before the trailer is built and ready.

Can I order this trailer in a custom colour?

Yes, at no extra charge. A fully custom build takes longer to complete given it's made from scratch, so get in touch with AAA Trailers to discuss your specification.

Is finance available for this trailer?

Yes, AAA Trailers provides finance options on this trailer and the wider range, and you can bring your own broker to inspect it before committing.
