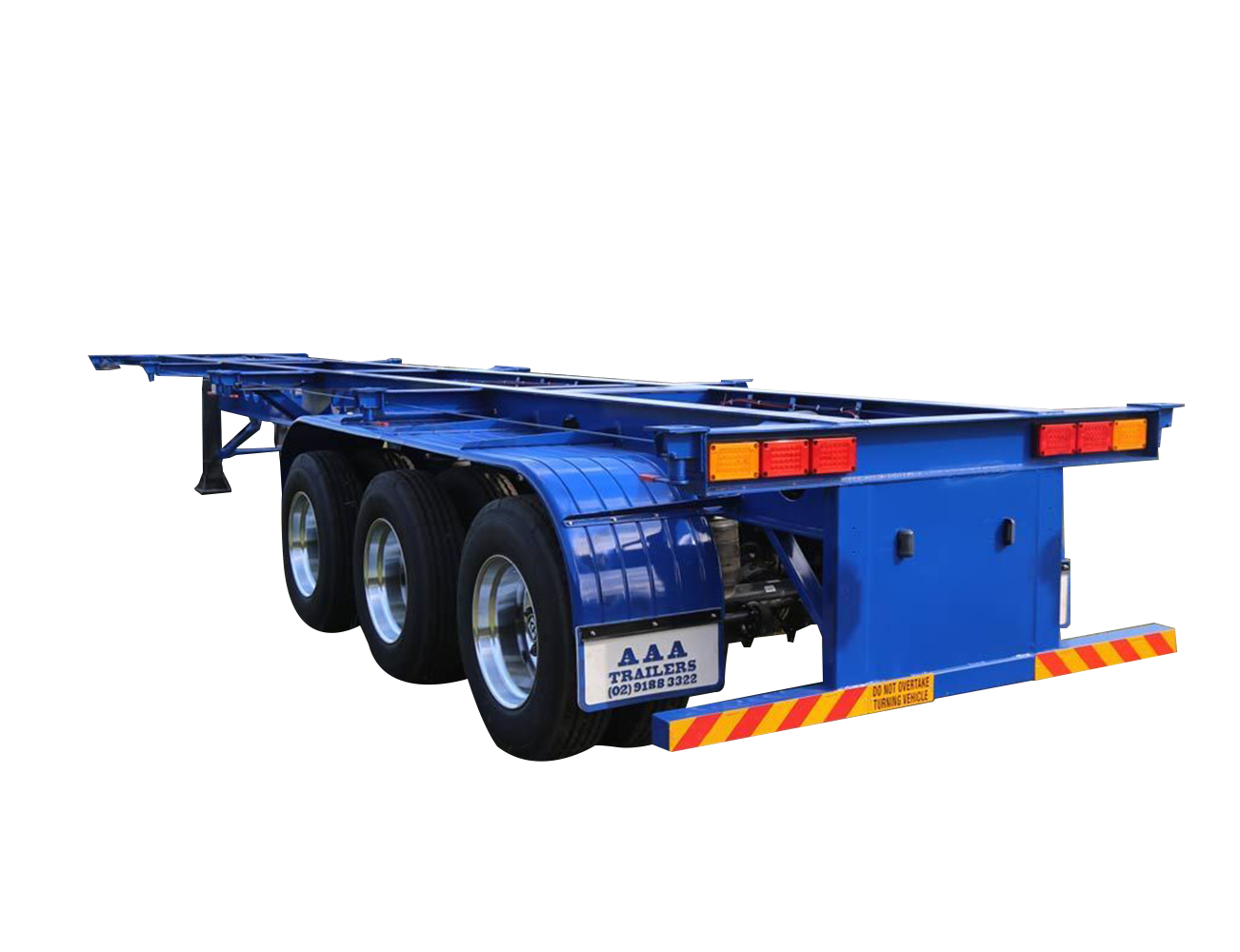

AAA Trailers 40ft Skeletal Trailer, rear view showing tri-axle configuration
+7
+6
+5
+4
+3
+2

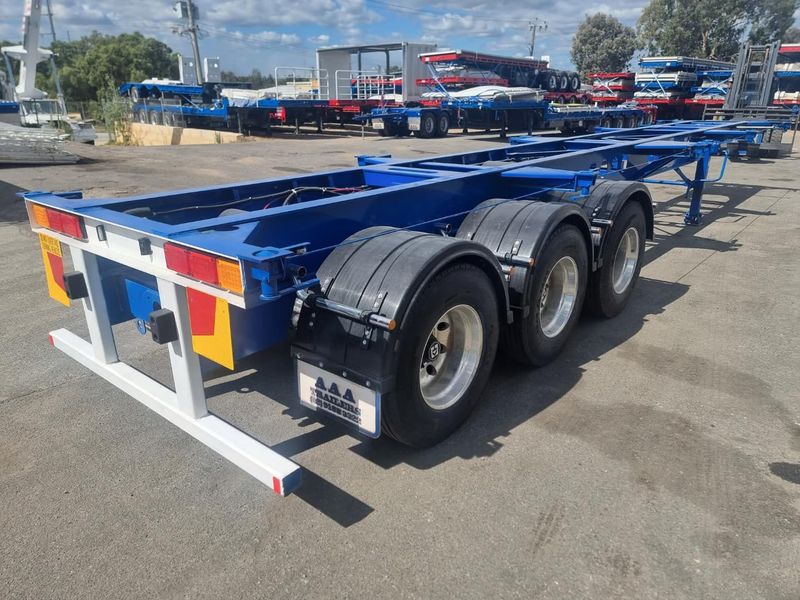

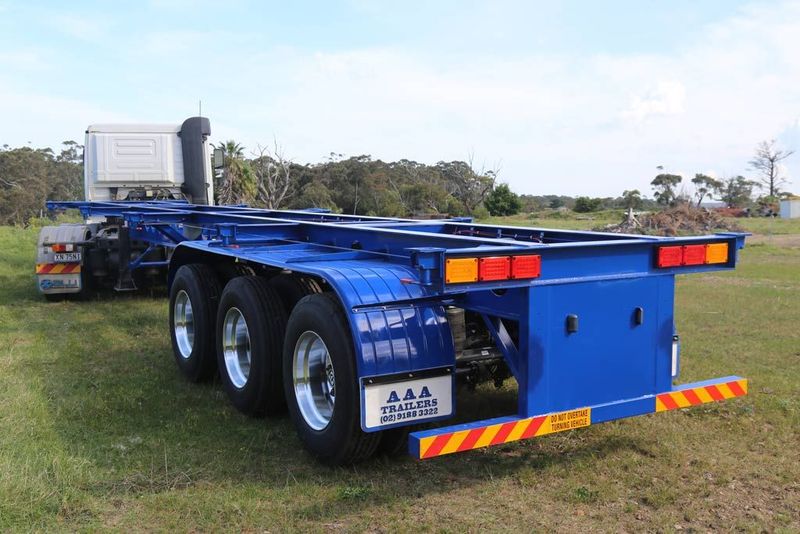

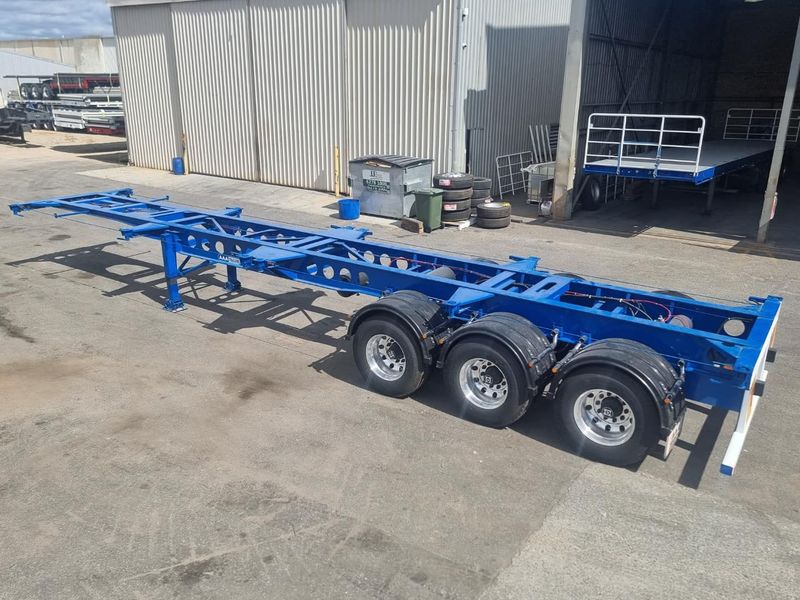

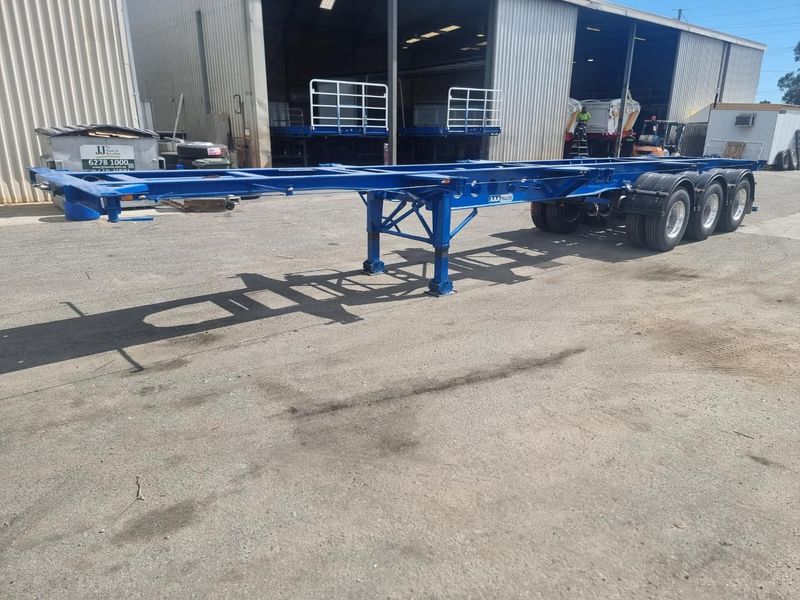

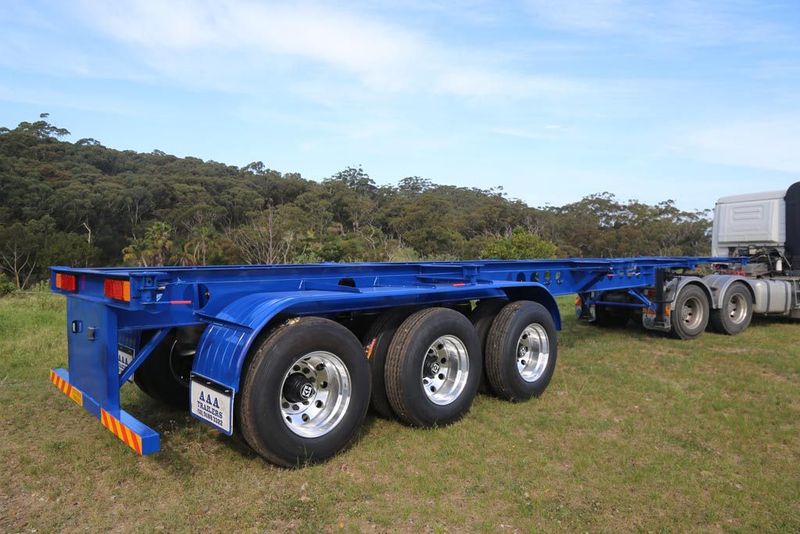

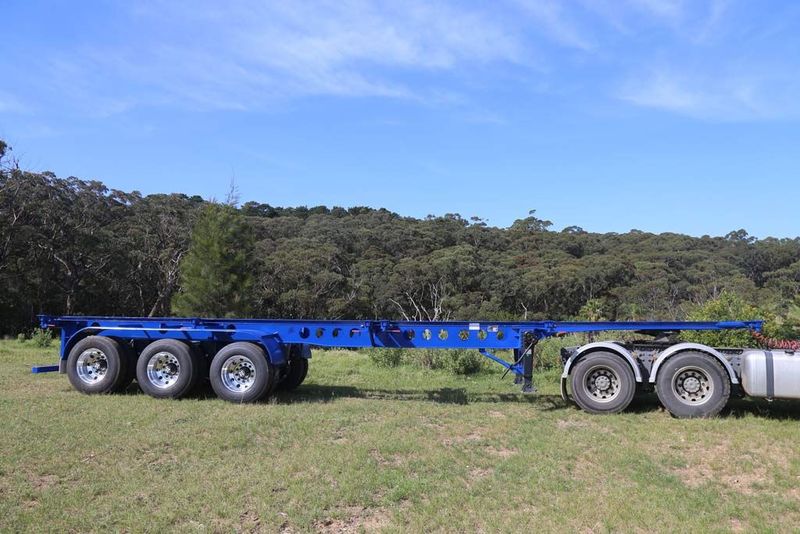

AAA TRAILERS 40' SKELETAL TRAILER

Store / Skeletal Trailers
AU$55 000.00
Optional Extras (To be Quoted)
In stock
Product Details

The AAA 40ft Skeletal trailer combines strength and versatility to meet even the most demanding hauling requirements. Measures 12.2m in length and 2.5m in width. Features high tensile steel grade mainframe and 3-way twist locks (1x40', 2x20', 1x20'). Equipped with K-Hitch tri-axle, airbag suspension, turntable, 2 position king pin, and 2-speed landing legs. Ideal for container transport.

AAA Trailers is proudly Australian owned and operated.


Additional info:

  • This unit comes with a 12-month warranty.
  • Pre- and post-sales service available.
  • We have locations across Australia, including Sydney, Perth, Adelaide, Melbourne, and Brisbane.
  • Additional charges will apply if you require trailer registration and transportation.
  • Rego and on-road cost not included.


Specifications Details
Capacity ATM: 47T
GTM: 23.5T
Approx tare weight: 5T
Length 12.2m
Mainframe High-tensile steel grade
Kingpin 50mm bolt-in (90mm optional)
Brake kit EBS multi-volt 12/24V
Container pins 3-way
Axles K-Hitch 22.5” drum brake axles
Suspension K-Hitch tri-axle airbag
Landing legs K-Hitch 2-speed
Wheels 10/285 PCD dual Alloy rims
Tyres 11R22.5
Lighting Full LED
Optional Extras
  • Road Train Kit
  • Ring Feeder
  • Hard Wired Flashing Beacon
  • Road Train / Long Vehicles Signs
  • Hub Odometer
  • Spare Wheel: Steel or Alloy

Frequently Asked Questions

What container sizes does this skeletal trailer take?

It's fitted with 3-way twist locks, accommodating one 40ft container, two 20ft containers, or one 20ft container in various configurations.

Does this trailer come with alloy wheels standard?

Yes, this skeletal trailer runs 10/285 PCD dual alloy rims as standard, rather than the steel-with-optional-alloy setup used on some of the other trailers in the range.

What's the payload capacity?

With a 47T ATM and roughly 5T tare weight, this trailer can carry a payload of around 42 tonnes, reflecting the lightweight skeletal design built for container work.

Is trailer registration included in the price?

No, rego and on-road costs sit outside the listed price. Registration and transport are quoted as an additional charge if required.

What does the warranty cover on this trailer?

Manufacturing defects and faulty workmanship under normal use are covered for 12 months, with AAA Trailers repairing or replacing affected parts at no charge and providing pre- and post-sales support.

Where is this trailer built and supported?

Manufactured at the Sydney, NSW and Perth, WA workshops using imported running gear and Australian Standard approved steel, with service support running across Sydney, Perth, Adelaide, Melbourne, and Brisbane.

How long is the wait for delivery?

This trailer is normally available from stock without a wait. In a shortage, expect up to three months from your deposit before it's built.

Is finance available for this trailer?

Yes, AAA Trailers finances this trailer and the rest of the range, and you're welcome to bring your own broker along beforehand.


Returns and Warranty Policy

Show More
Save this product for later
Share this product with your friends
Pin it
AAA TRAILERS 40' SKELETAL TRAILER
Store / Skeletal Trailers
You May Also Like
AAA Trailers 45ft Skeletal Trailer, front quarter view showing corner twist locks and tri-axle configuration

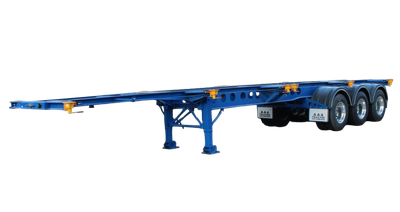

AAA TRAILERS 45' SKELETAL TRAILER
