AAA Trailers 40’ Skeletal Trailer in Melbourne

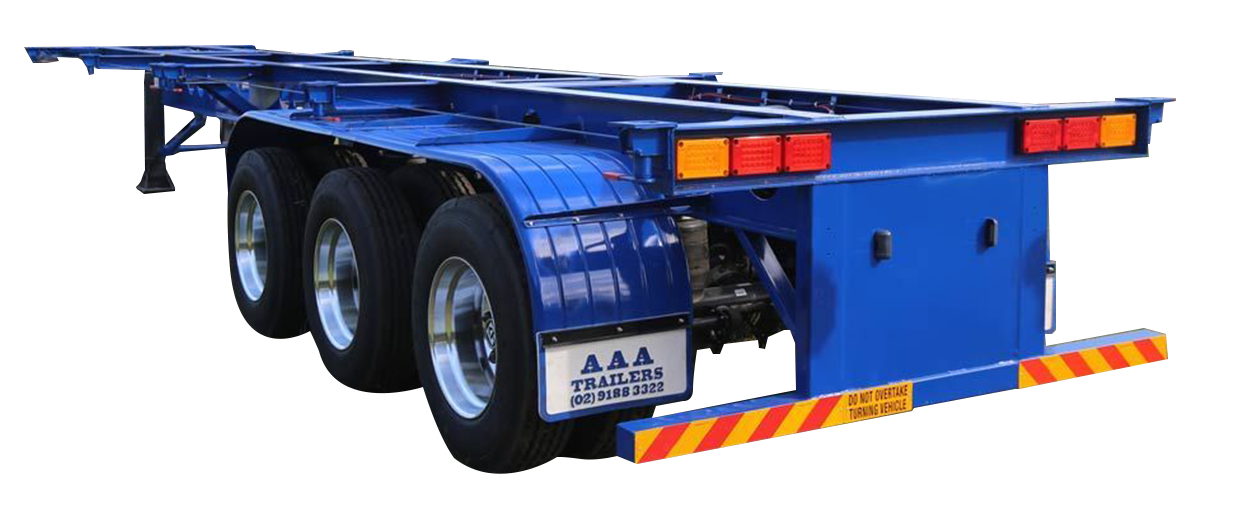

Overview: 40’ Skeletal Trailer

The AAA Trailers 40’ Skeletal Trailer is built for Melbourne operators who need a dependable workhorse to keep containers moving along busy freight corridors and long-haul routes across Victoria and anywhere in Australia. With a 47-tonne ATM and 23.5-tonne GTM, it’s engineered for serious payloads while maintaining stability and control under heavy-duty conditions.


Its high-tensile steel frame is the backbone of the build, delivering the strength to handle repeated loading cycles day after day. K-Hitch tri-axle airbag suspension and 22.5” drum brake axles give you the ride quality and control needed on both metro runs and interstate hauls. At 12.2 metres long, it’s fitted with a 50mm bolt-in kingpin (90mm option available), 3-way container pins for versatile setups, EBS multi-volt braking, and a full LED lighting system for all-weather visibility.


Standard gear includes K-Hitch 2-speed landing legs, 10/285 PCD dual alloy rims, and 11R22.5 tyres, with optional extras like a road train kit, ring feeder, hub odometer, spare wheel, flashing beacon, and long vehicle or road train signage so you can match the trailer to your exact fleet requirements.

Backed by 12-Month Warranty

47T

ATM

23.5T

GTM

12.2m

Length

SPECIFICATIONS

Category Details
ruler with arrow

Dimensions & Capacity

ATM: 47T

GTM: 23.5T

Tare Weight: Approx. 5T

Total Length: 12.2m
steel beam

Construction & Frame

Mainframe: High-tensile steel grade

Kingpin: 50mm bolt-in (90mm optional)
shaft

Axles, Suspension & Braking

Axles: K-Hitch 22.5” drum brake axles

Suspension: K-Hitch tri-axle airbag

Landing Legs: K-Hitch 2-speed

Brake Kit: EBS multi-volt 12/24V
wheel

Wheels & Tyres

Wheels: 10/285 PCD dual alloy rims

Tyres: 11R22.5
electric sign

Electrical, Lighting & Safety

Lighting: Full LED

Hub Odometer: Optional

Hard-Wired Flashing Beacon: Optional
gate

Gates & Load Handling

Container Pins: 3-way
document wtih gear and pen

Optional Extras

Road Train Kit

Ring Feeder

Hard Wired Flashing Beacon

Road Train / Long Vehicles Signs

Hub Odometer

Spare Wheel: Steel or Alloy

Get Your Skeletal Trailer in Melbourne Today

From Melbourne to major freight routes across Victoria and Australia, AAA Trailers can set you up with a skeletal trailer built to keep your operations moving. Our team will help you lock in the right setup for your work, handle the details, and make the process simple from start to finish.

What They Say About Our Truck Trailers

Why Choose AAA Trailers Skeletal Trailers in Melbourne?

Container-Ready Build

Twist locks and guides make transporting 20ft, 40ft, and 45ft containers simple and secure.

Strong Yet Lightweight

High-tensile steel frames with low tare weight for reliable container haulage.

Proven Running Gear

Outfitted with K-Hitch axles, tri-axle airbag suspension, and EBS braking for steady performance.

Durable Protection

Includes LED lighting, waterproof wiring looms, and anti-corrosion finishes for long service life.

Road Train Compatibility

Available with road train coupling kits for flexible multi-trailer use.

Frequently Asked Questions

  • Are the skeletal trailers new or used?

    Every AAA skeletal trailer is built brand new, never refurbished or second-hand. Each unit is assembled locally by experienced technicians in Australia and put through a full quality inspection before it’s ready to hit the freight corridors.

  • Do you offer financing options for the skeletal trailers?

    Yes. We offer competitive finance options to make adding a skeletal trailer to your fleet easier. You’re also welcome to involve your own finance broker for an independent inspection before purchase.

  • Can I customise the specifications of the skeletal trailers I order?

    Absolutely. You can choose a custom paint finish at no extra cost and add optional features to suit your freight requirements. Just note, custom builds require more production time than our ready-to-go Melbourne stock units.

  • Do you have a warranty policy for your skeletal trailers?

    Every skeletal trailer comes with a 12-month warranty covering defects in materials and workmanship under normal operating conditions. If an issue comes up in that period, we’ll organise fast repairs or replacement parts to get you moving again.

  • What are the delivery times for ordered skeletal trailers?

    Some trailers are available for immediate dispatch. For new builds, lead time is generally up to three months from the date your deposit is received.

  • Do you provide after-sales service and support?

    Yes. We’re here for the long haul to offer maintenance advice and technical support to keep your skeletal trailer performing reliably across Victoria or anywhere in Australia.
