FLAT DECKS

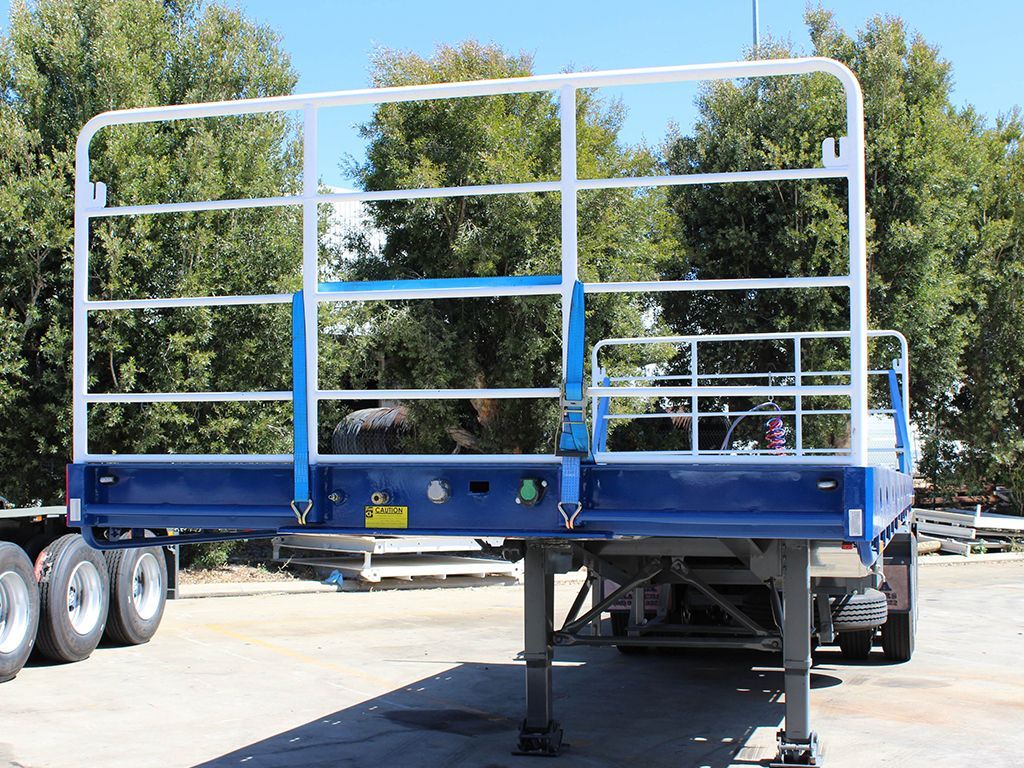

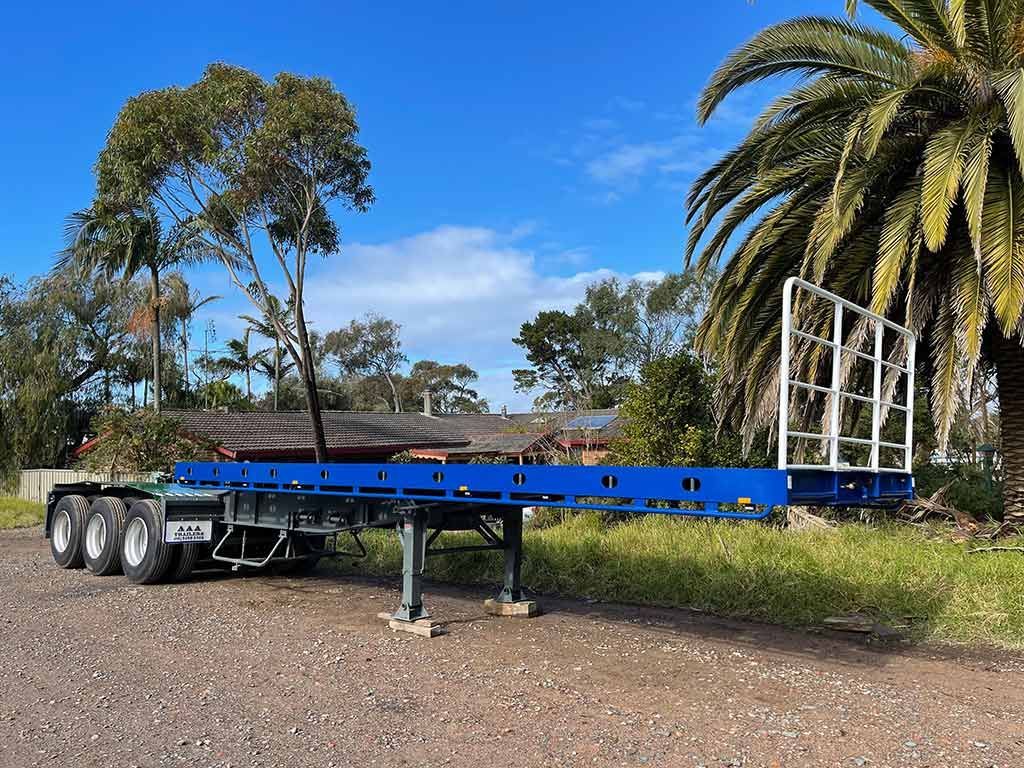

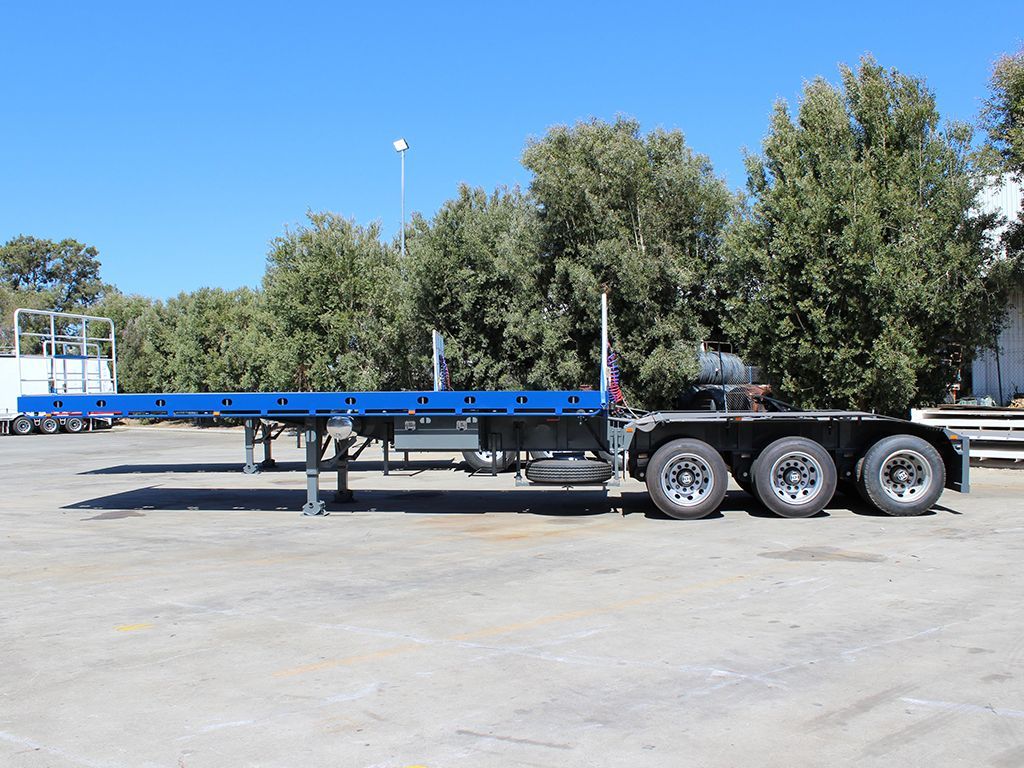

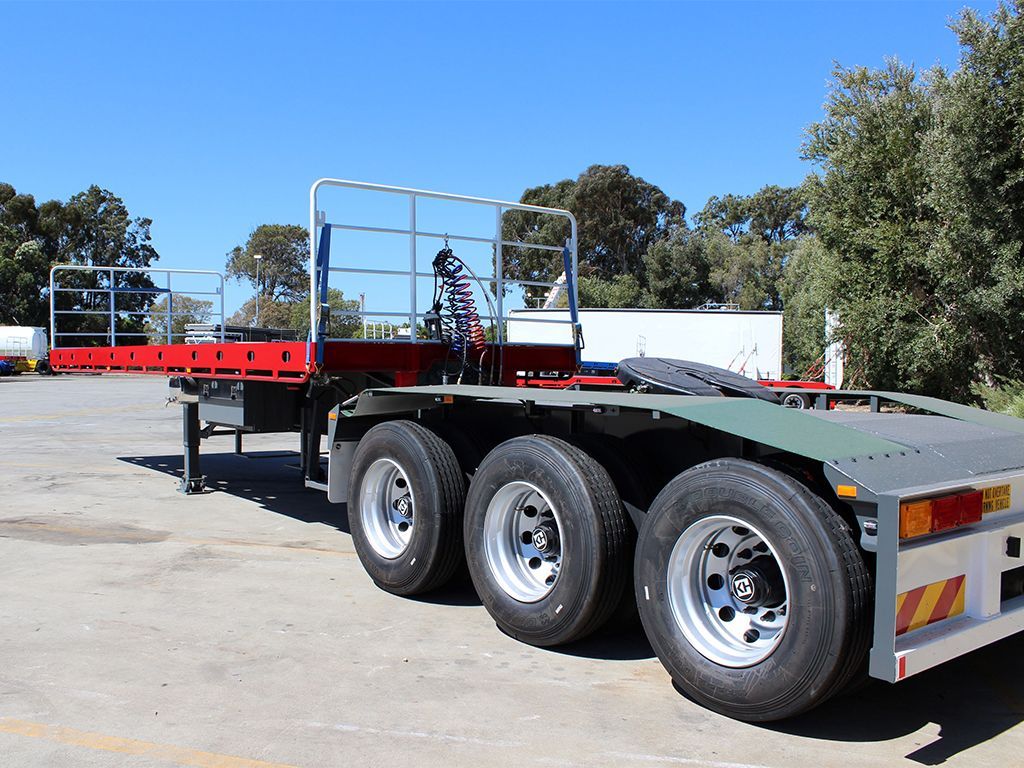

AAA Trailers – FLAT TOP LEAD (A) TRAILER - 12 PALLET

Specifications	Details
Capacity	ATM: 47T GTM: 23.5T Approx tare weight: 7.9T
Length	11.4m
Deck	7.4m
Mainframe	High-tensile steel grade
Floor	5mm steel chequer plate, forklift-rated
Turntable	K-Hitch 50mm bolt-in (90mm optional)
Kingpin	Dual-position 50mm bolt-in (90mm optional)
Coaming	5-inch with tie rail (C-channel optional)
Brake kit	EBS multi-volt 12/24V
Container pins	Standard 20ft
Gates	Front and rear 1,200mm steel Side gate pockets (optional side gates)
Axles	K-Hitch 22.5” drum brake axles
Suspension	K-Hitch tri-axle airbag
Landing legs	K-Hitch 2-speed
Wheels	10/285 PCD dual steel rims (aluminium optional)
Tyres	11R 22.5
Spare wheel carrier	Dual (spare wheels optional)
Wheels	Full LED
Water tank	30L stainless steel
Toolboxes	Dual (spare wheels optional)
Mudguards	Quarter guards front and rear with AAA Trailers mudflaps
Optional extras	Side Gates Custom Paint - Coaming Rails Hard Wired Flashing Beacon Road Train / Long Vehicles Signs Hub Odometer Spare Wheel: Steel or Alloy

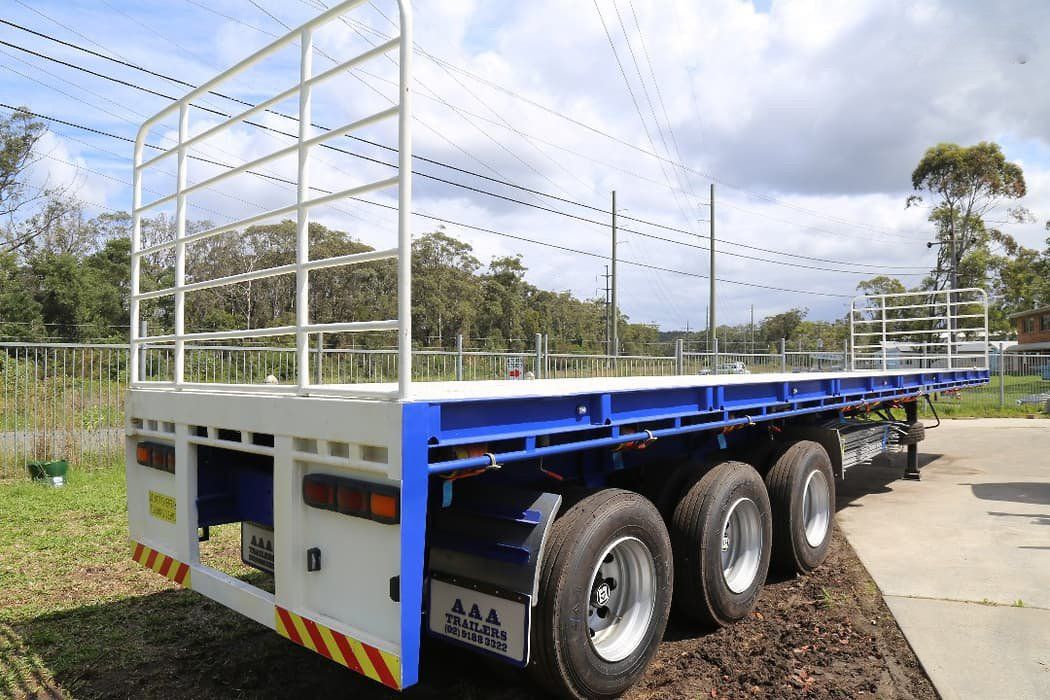

Specifications	Details
Capacity	ATM: 47T GTM: 23.5T Approx tare weight: 9T
Length	13.72m
Mainframe	High-tensile steel grade
Floor	5mm steel chequer plate, forklift-rated
Turntable	K-Hitch 50mm bolt-in (90mm optional)
Kingpin	Dual-position 50mm bolt-in (90mm optional)
Coaming	5-inch with tie rail (C-channel optional)
Brake kit	EBS multi-volt 12/24V
Container pins	3-way

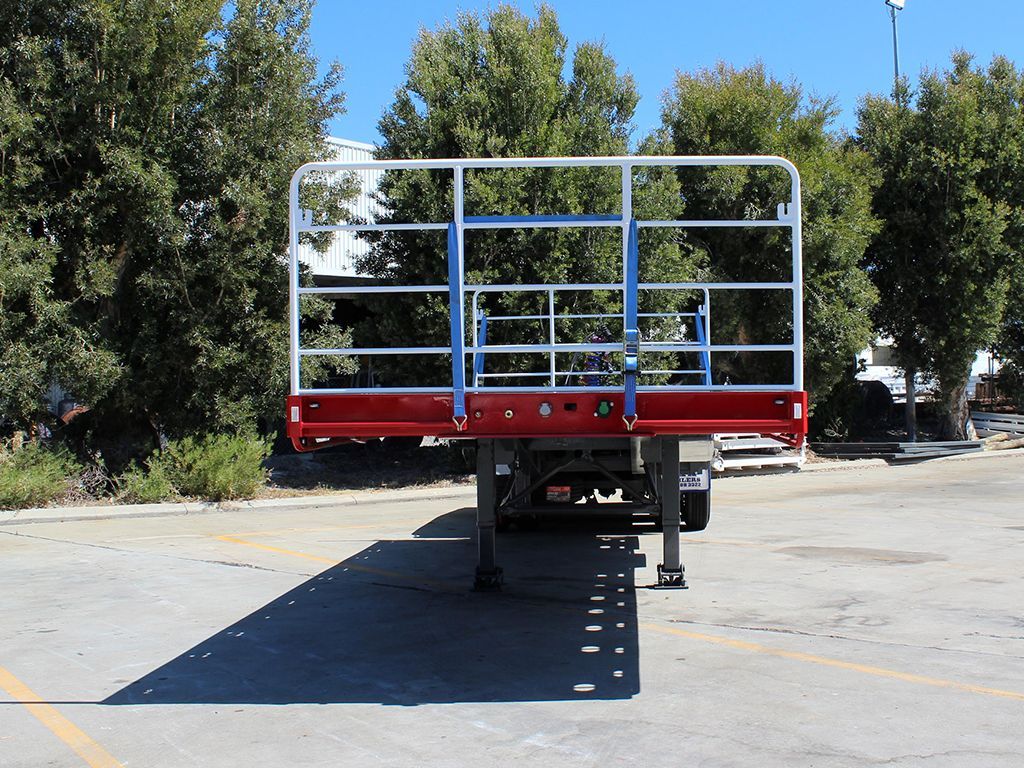

Gates	Front and rear 1,200mm steel Side gate pockets (optional side gates)
Axles	K-Hitch 22.5” drum brake axles
Suspension	K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)
Landing legs	K-Hitch 2-speed
Wheels	10/285 PCD dual steel rims (aluminium optional)
Tyres	11R22.5
Spare wheel carrier	Dual (spare wheels optional)
Lighting	Full LED
Water tank	30L stainless steel

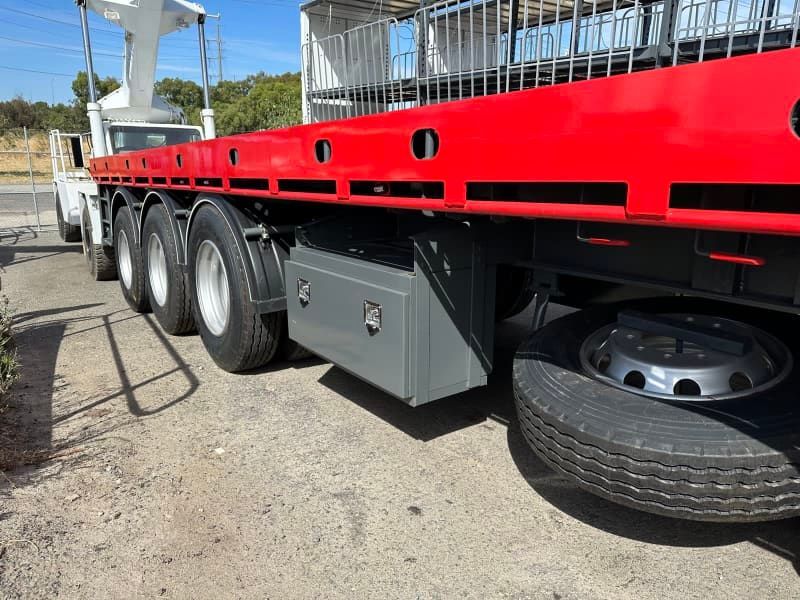

Toolboxes	2 steel with stainless steel “T” handles
Mudguards	Plastic radius guards with AAA Trailers mudflaps Quarter guards front and rear
Optional extras	Road Train Kit Ring Feeder Side Gates Custom Paint - Coaming Rails Hard Wired Flashing Beacon Road Train / Long Vehicles Signs Hub Odometer Spare Wheel: Steel or Alloy

Specifications	Details
Capacity	ATM: 47T GTM: 23.5T Approx tare weight: 11T

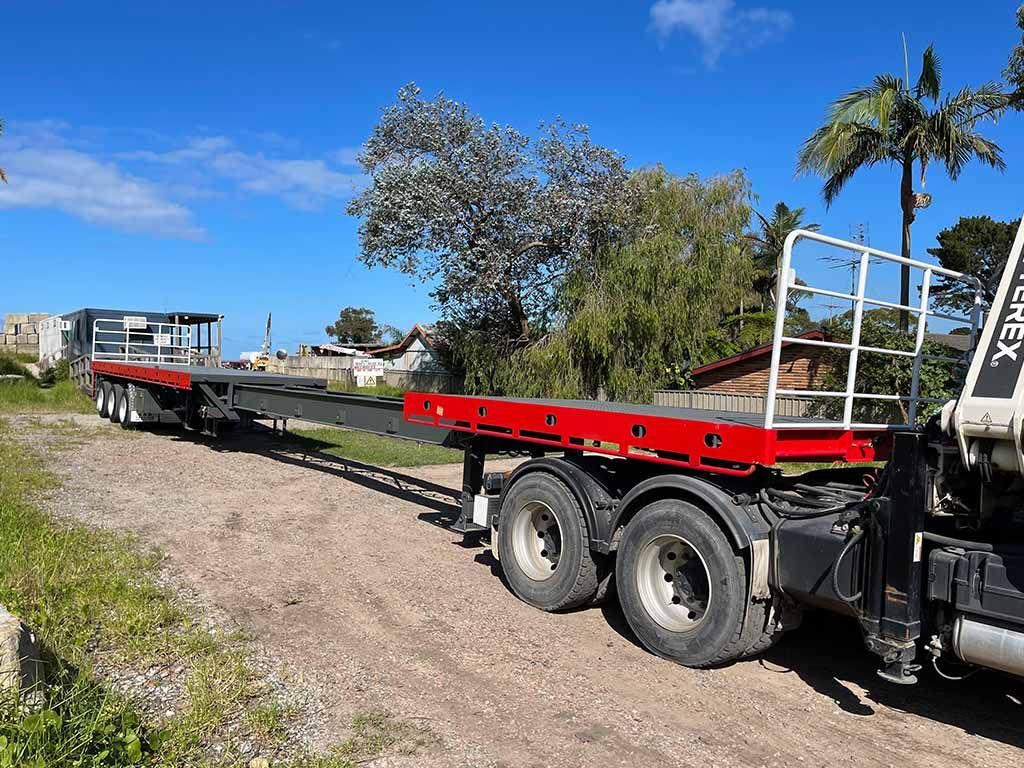

Length	13.72m (closed) 21.4m (extended)
Mainframe	High-tensile steel grade
Floor	5mm steel chequer plate, forklift-rated
Kingpin	Dual-position 50mm bolt-in (90mm optional)
Coaming	5-inch with tie rail (C Channel optional)
Brake kit	EBS multi-volt 12/24V
Container pins	3-way

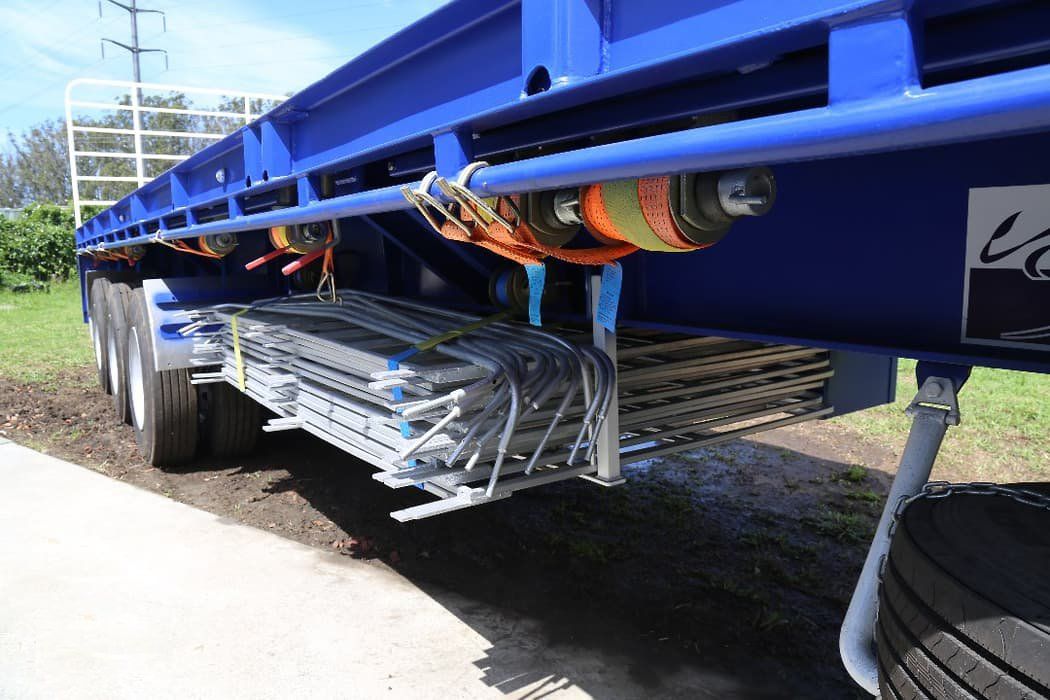

Gates	Front and rear 1,200mm steel Side gate pockets (side gates and gate carrier optional)
Axles	K-Hitch 22.5” drum brake axles
Suspension	K-Hitch tri-axle airbag
Landing legs	K-Hitch 2-speed
Wheels	10/285 PCD dual steel rims (aluminium optional)
Tyres	11R22.5
Spare wheel carrier	Dual (spare wheels optional)
Lighting	Full LED
Water tank	30L stainless steel
Toolboxes	2 steel with stainless steel “T” handles
Mudguards	Plastic radius guards with AAA Trailers mudflaps Quarter guards front and rear
Optional extras	Road Train Kit Ring Feeder Side Gates Custom Paint - Coaming Rails Hard Wired Flashing Beacon Oversize Signs Hub Odometer Spare Wheel: Steel or Alloy

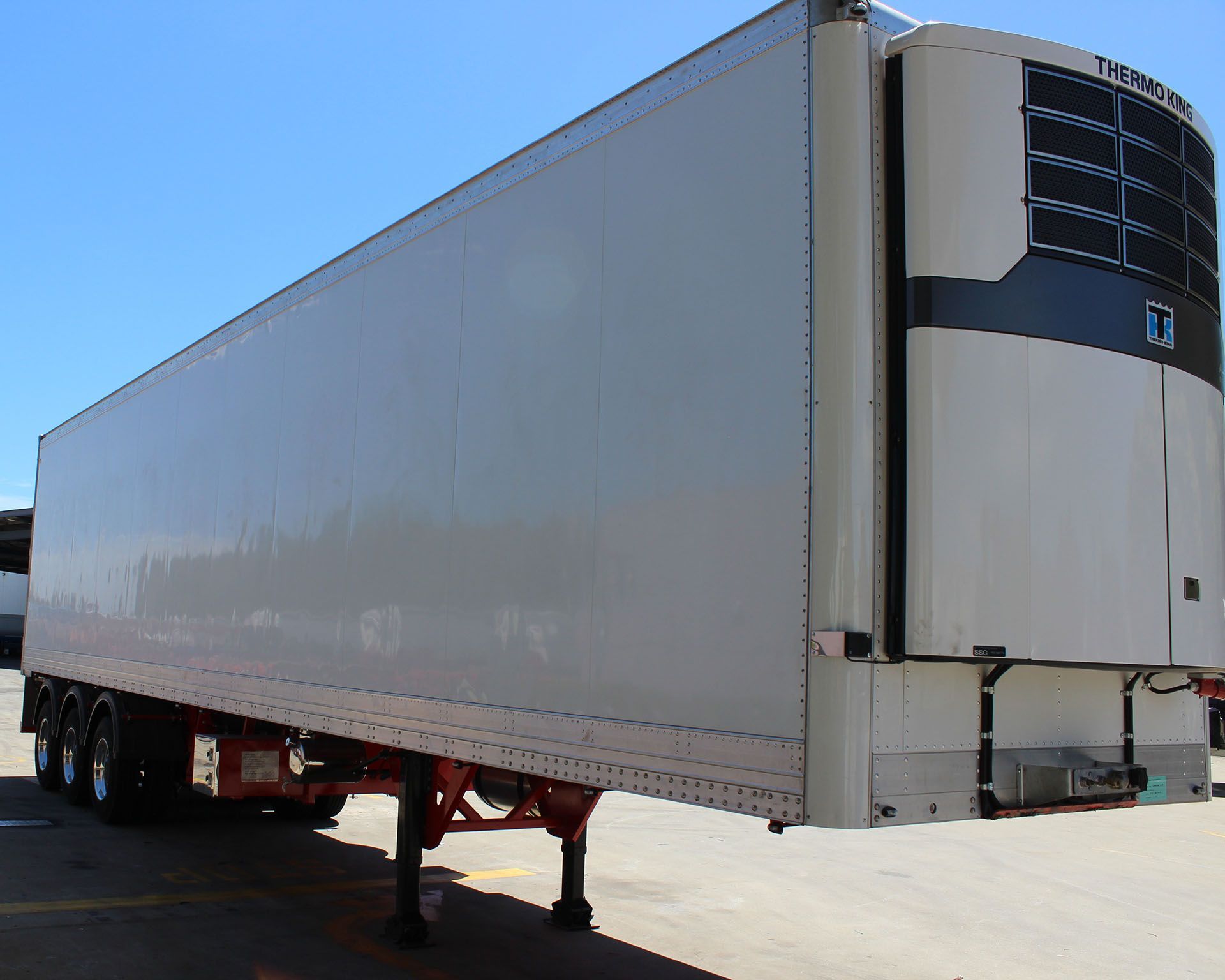

Specfications	Details
Capacity	ATM: 47T GTM: 23.5T Approx tare weight: 9.3T
Length	13.72m

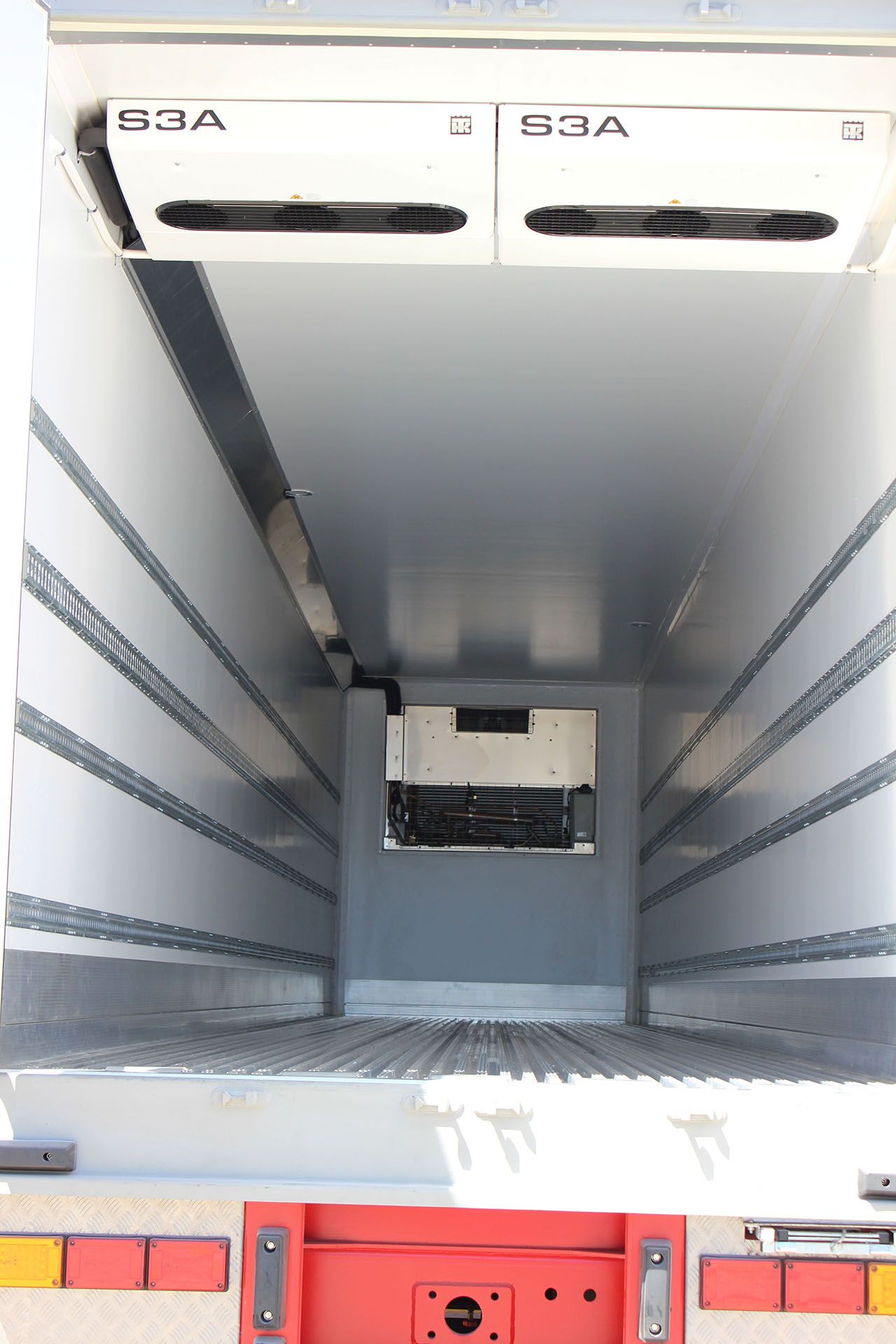

Refrigerated Unit	Thermo King Unit of Choice Single Zone/Dual Zone
Mainframe	High-tensile steel grade
Floor	HD Extruded Duct Aluminium Floor

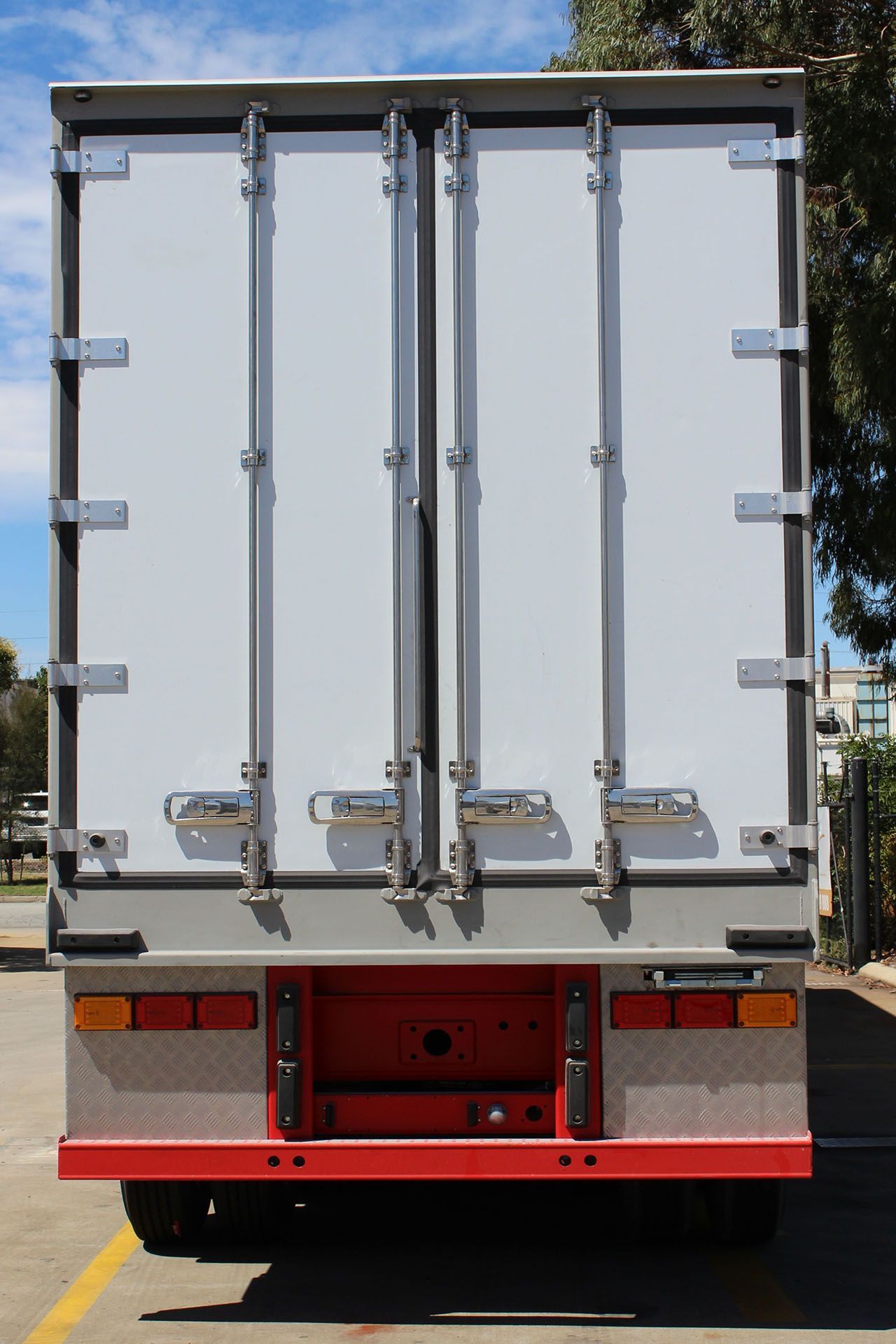

Walls	Aluminium Panel with Polyurethane Insulation Side Wall Insulation 45mm Roof, Floor, Front Wall Insulation 100mm Rear Door Insulation 76mm
Loading Bars	Loading Bars for Double Stacking pallets
Kingpin	Dual-position 50mm bolt-in (90mm optional)
Brake kit	EBS multi-volt 12/24V
Axles	K-Hitch 22.5” drum brake axles
Suspension	K-Hitch tri-axle airbag
Landing legs	K-Hitch 2-speed
Wheels	10/285 PCD dual steel rims (aluminium optional)
Tyres	11R22.5
Spare wheel carrier	Dual (spare wheels optional)
Lighting	Full LED
Water tank	30L stainless steel
Toolboxes	Steel with stainless steel “T” handles for storing Loading Bars
Mudguards	Plastic radius guards with AAA Trailers mudflaps, quarter guards front and rear
Optional extras	Road train bracket, coupling, air, and electrical
