Drop Deck Trailers

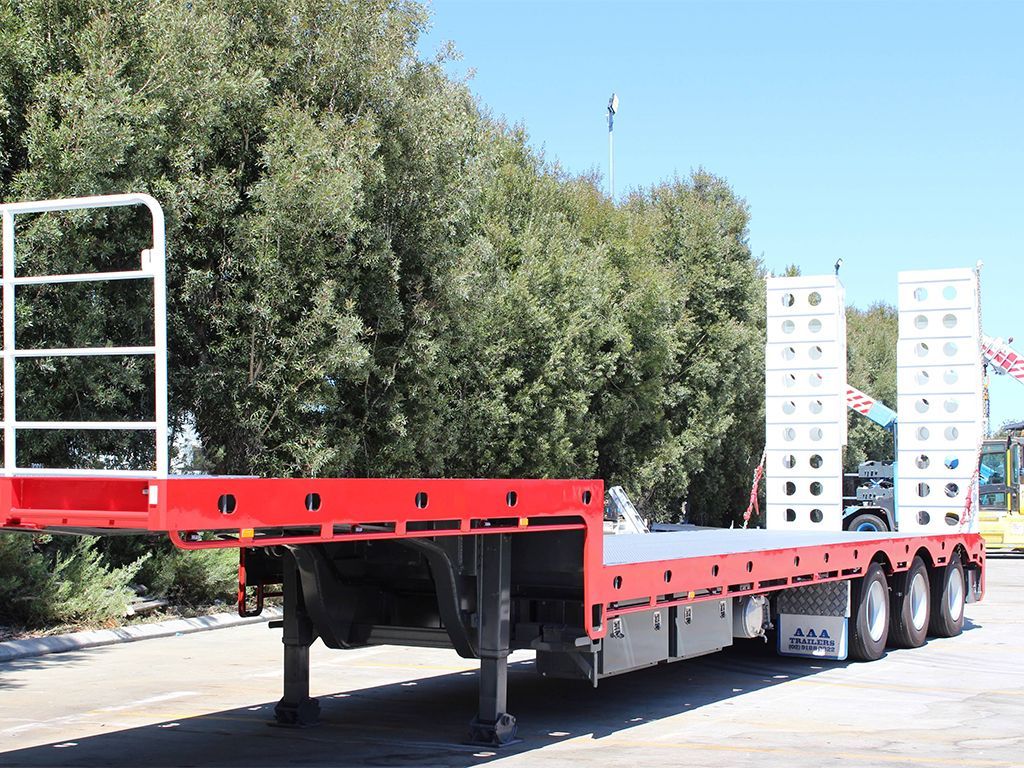

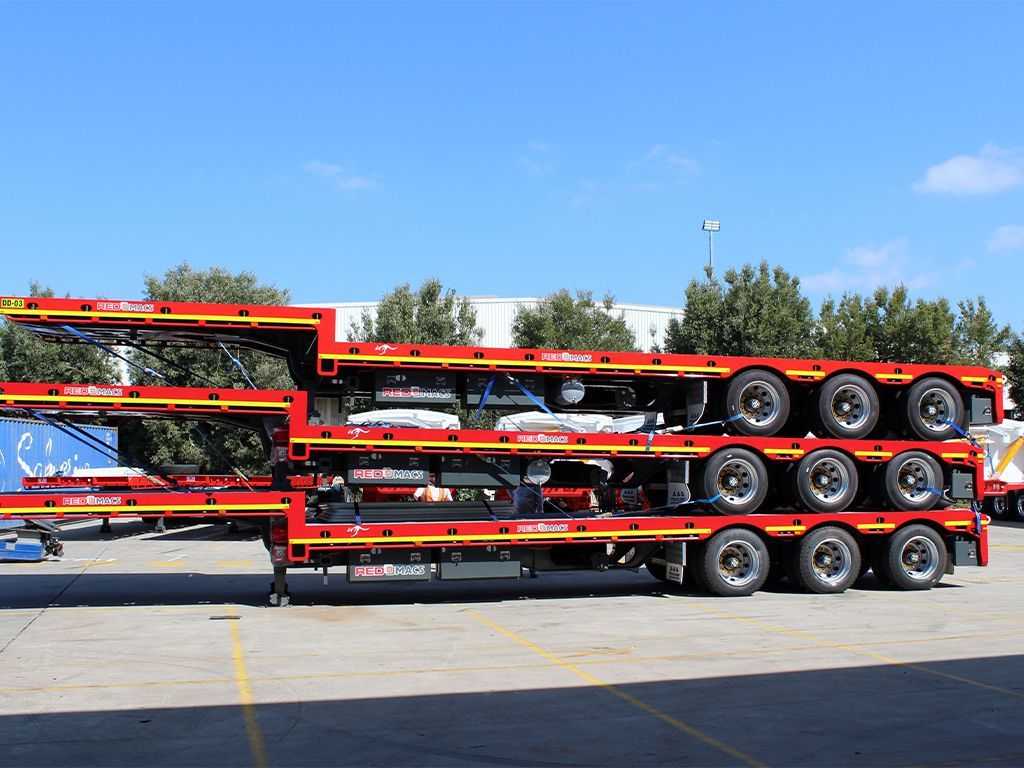

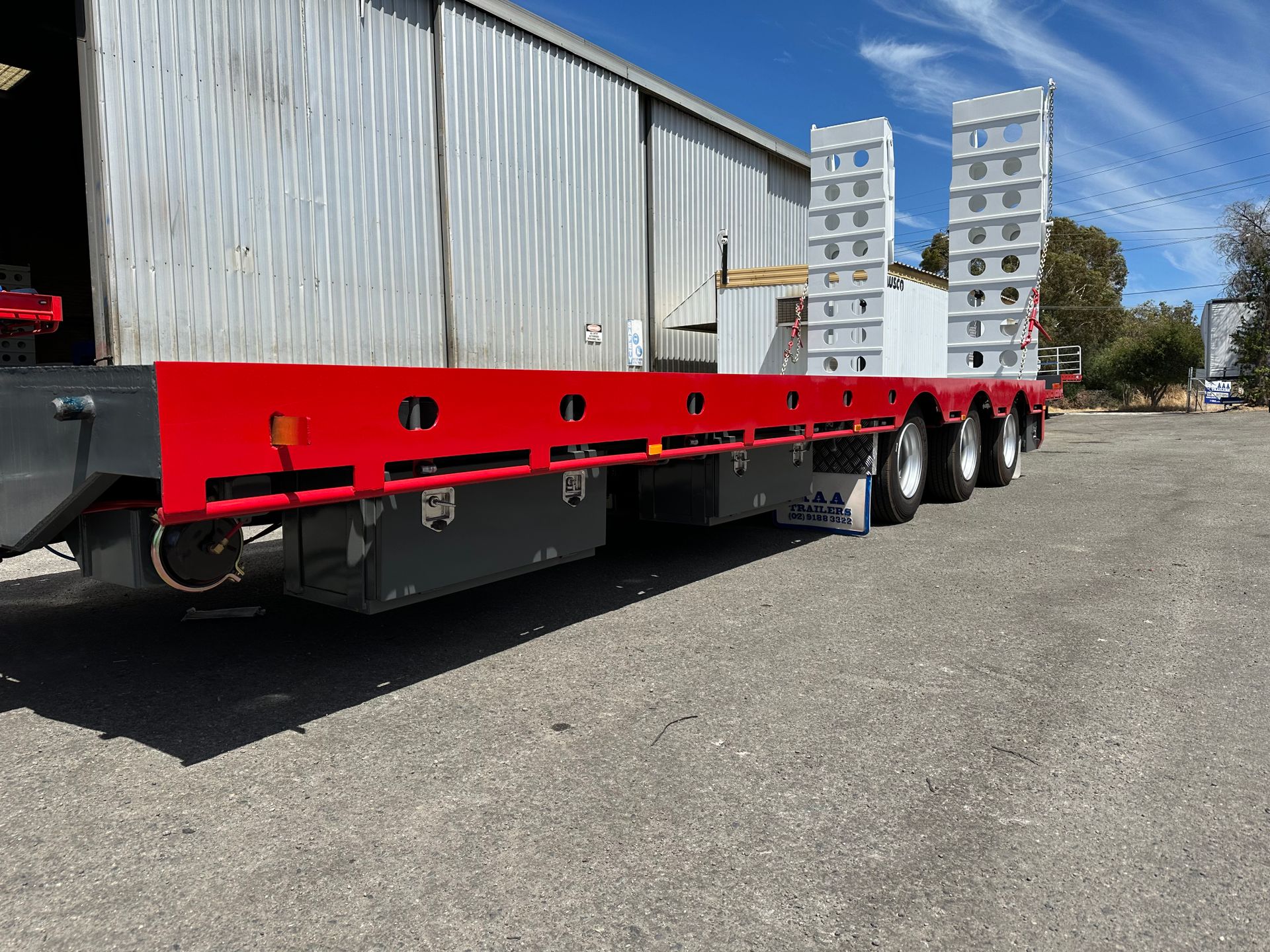

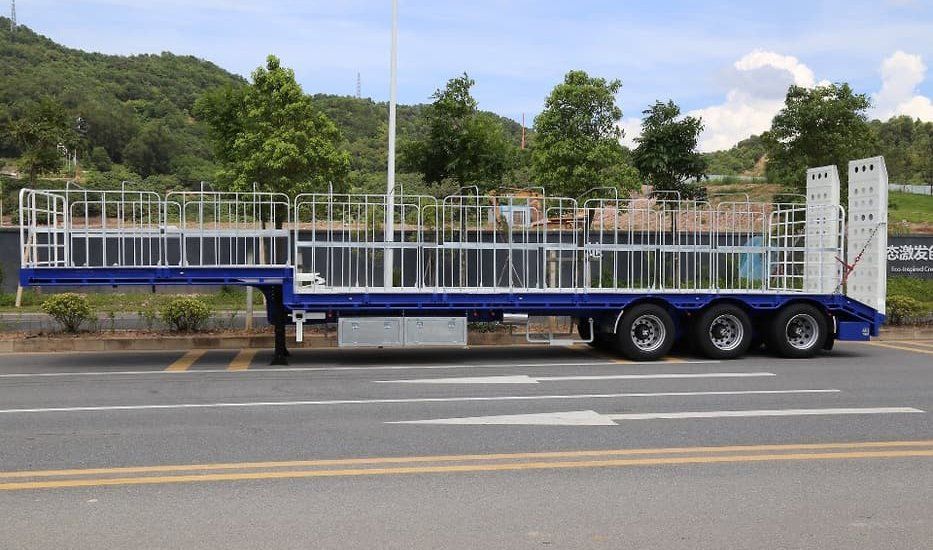

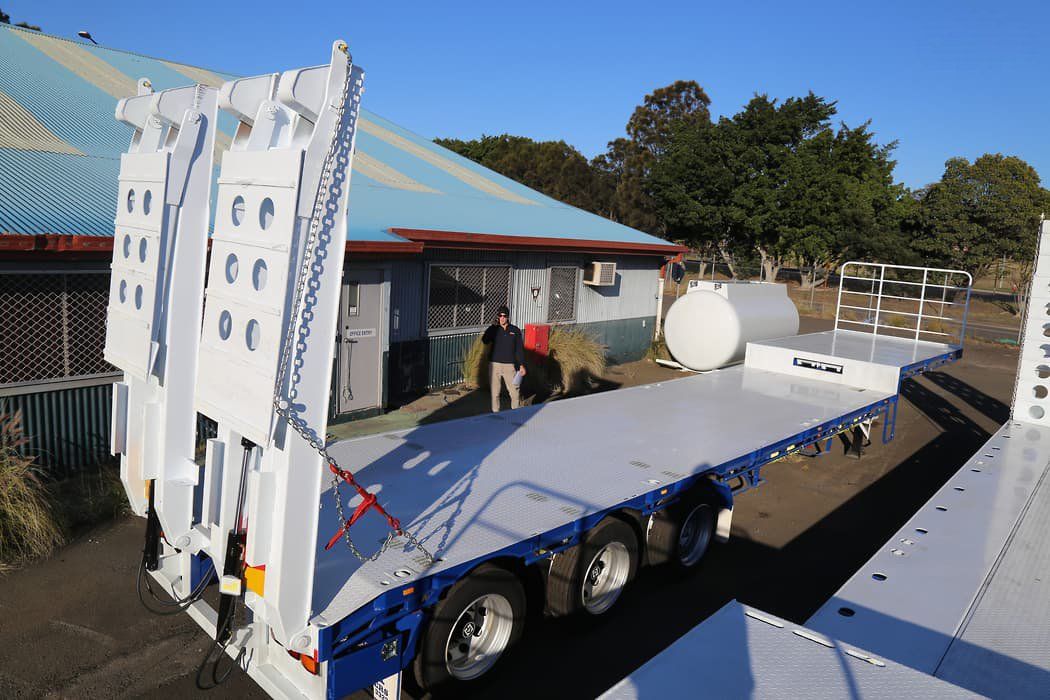

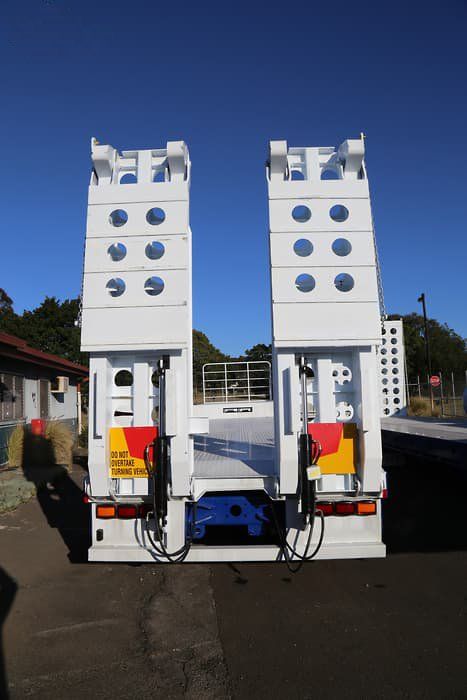

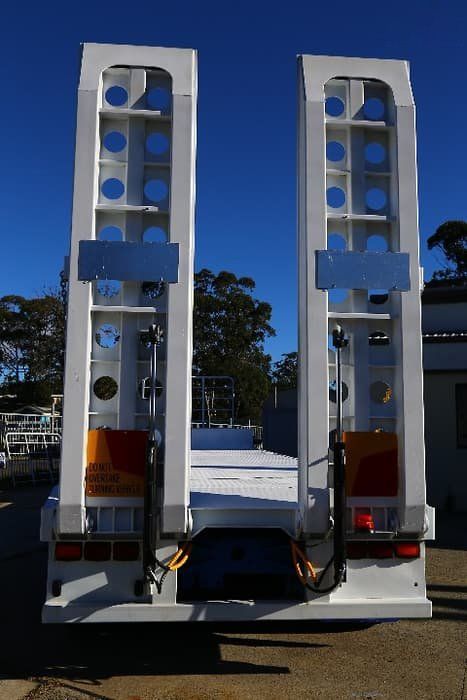

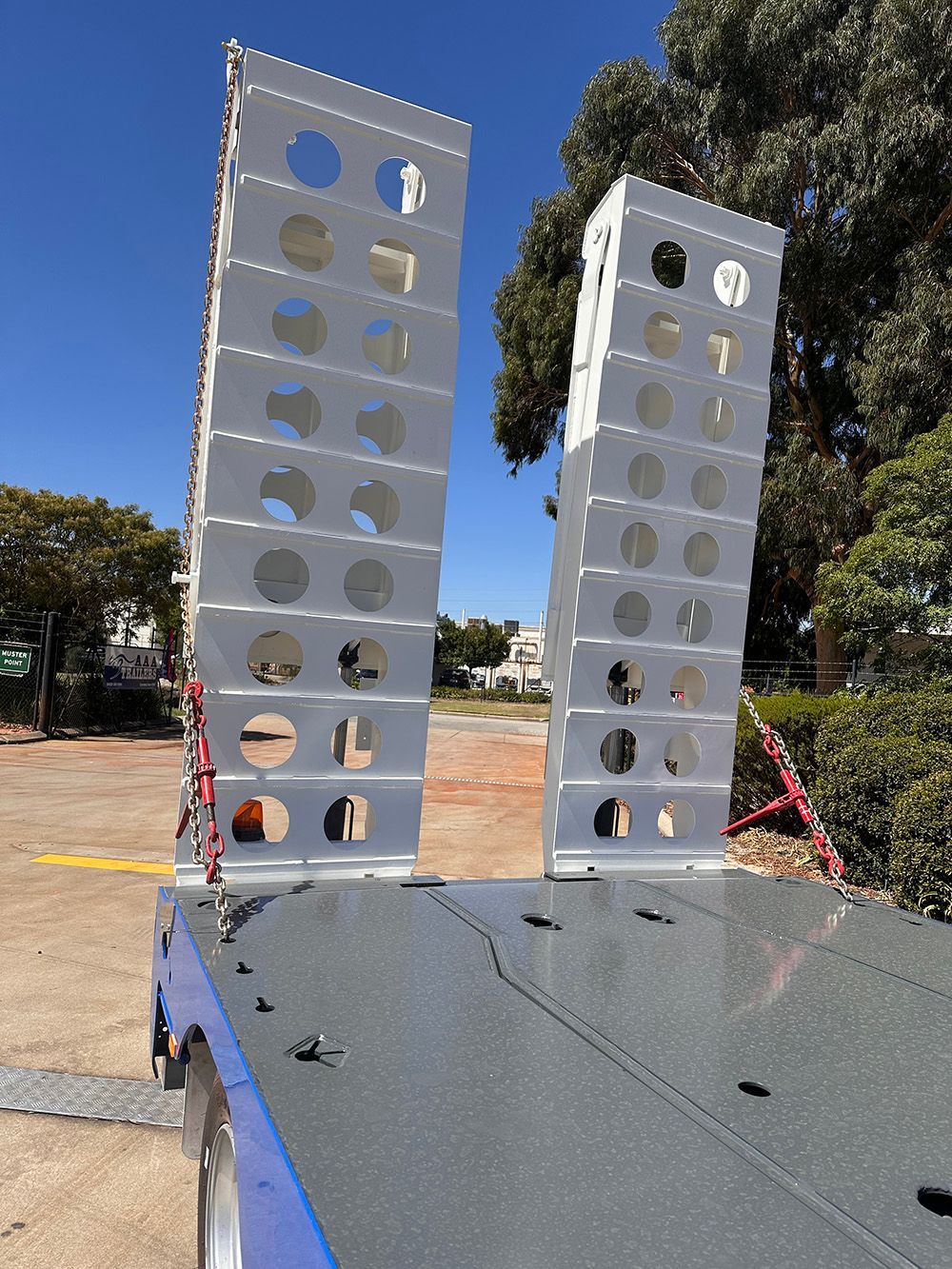

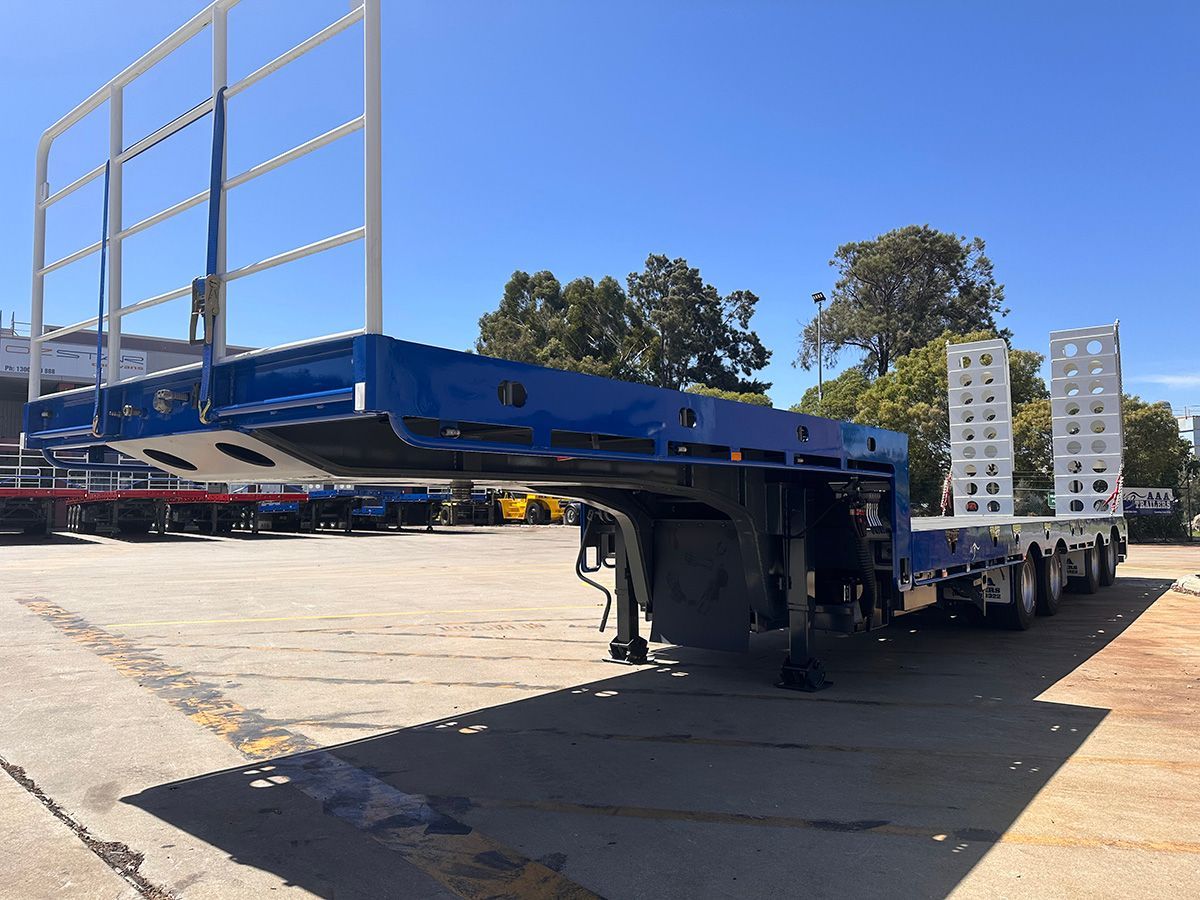

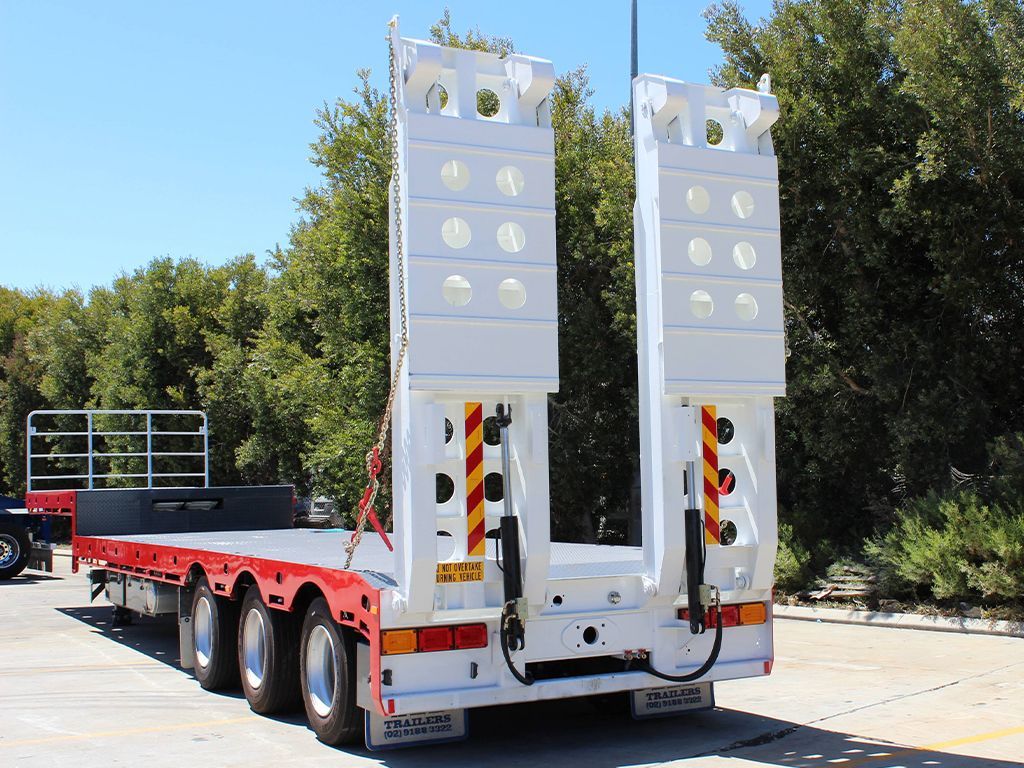

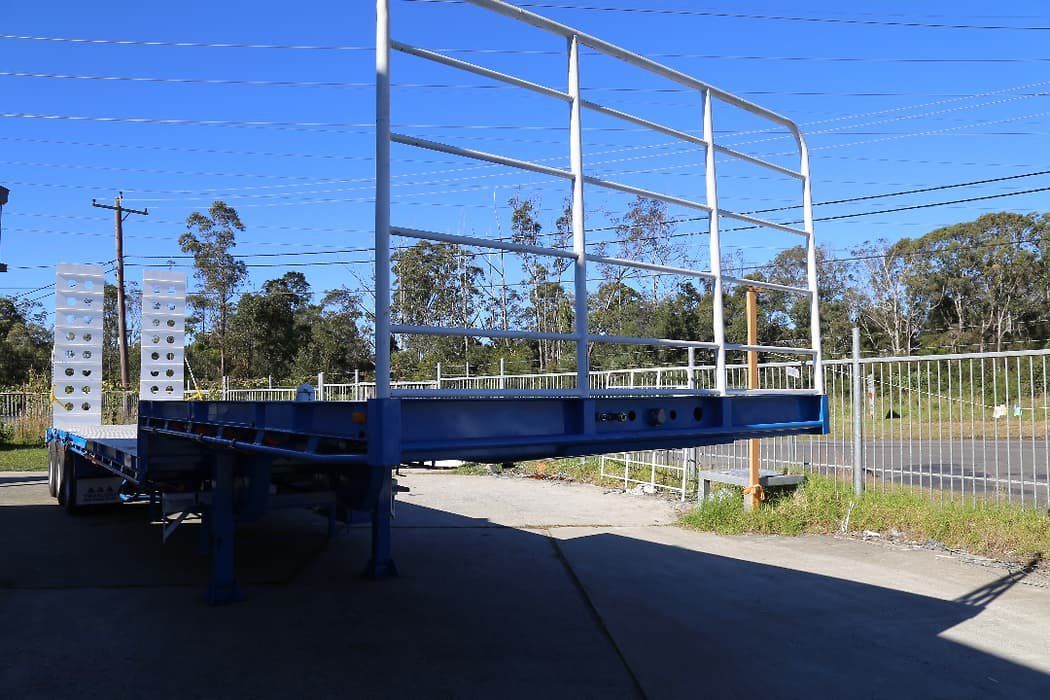

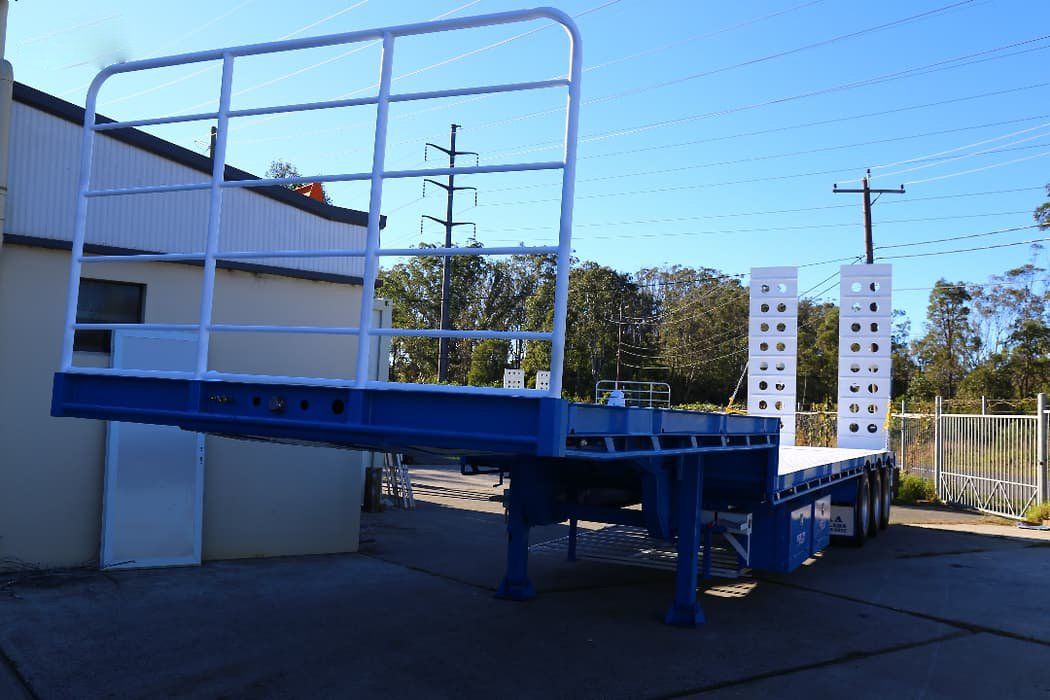

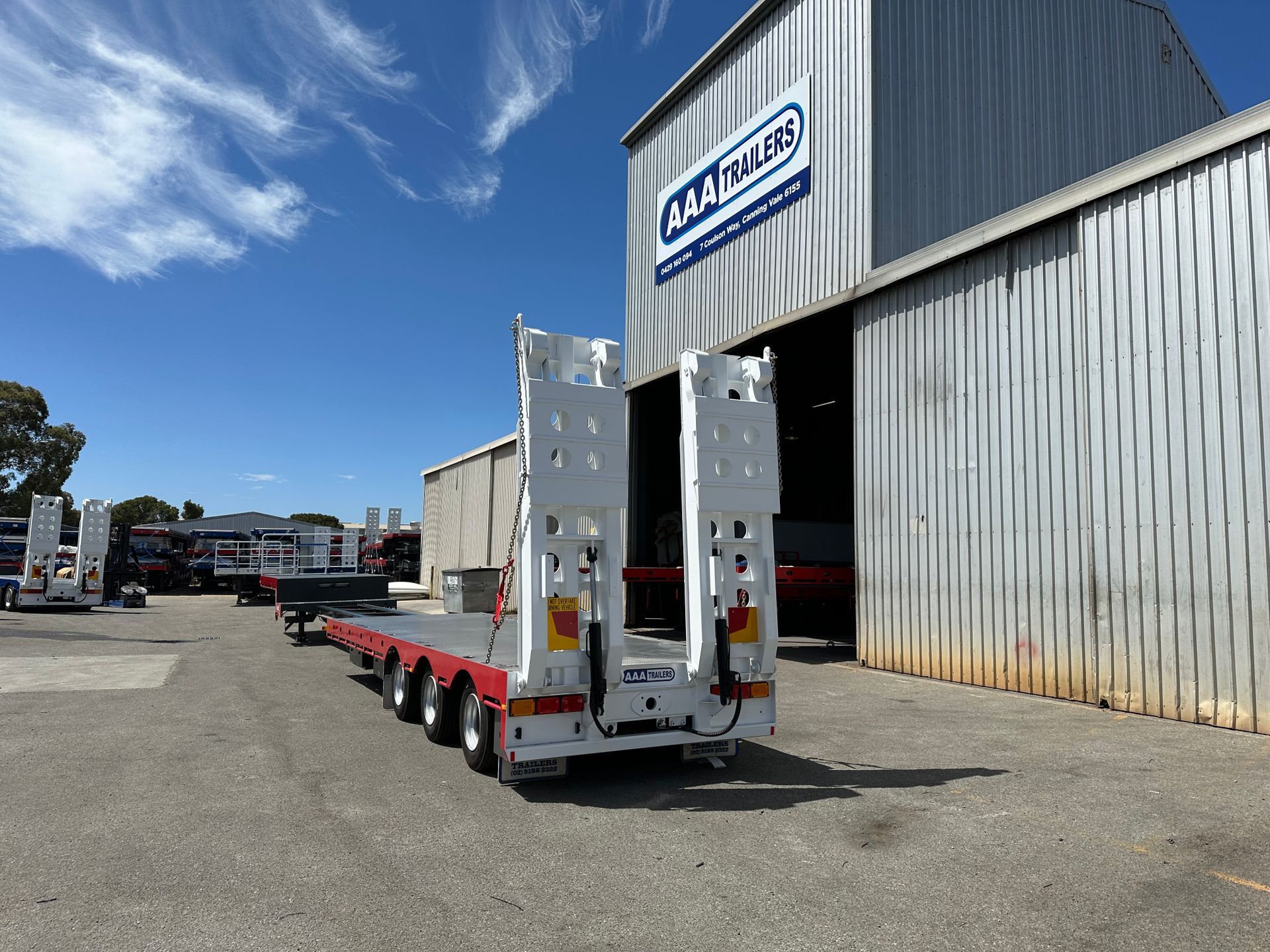

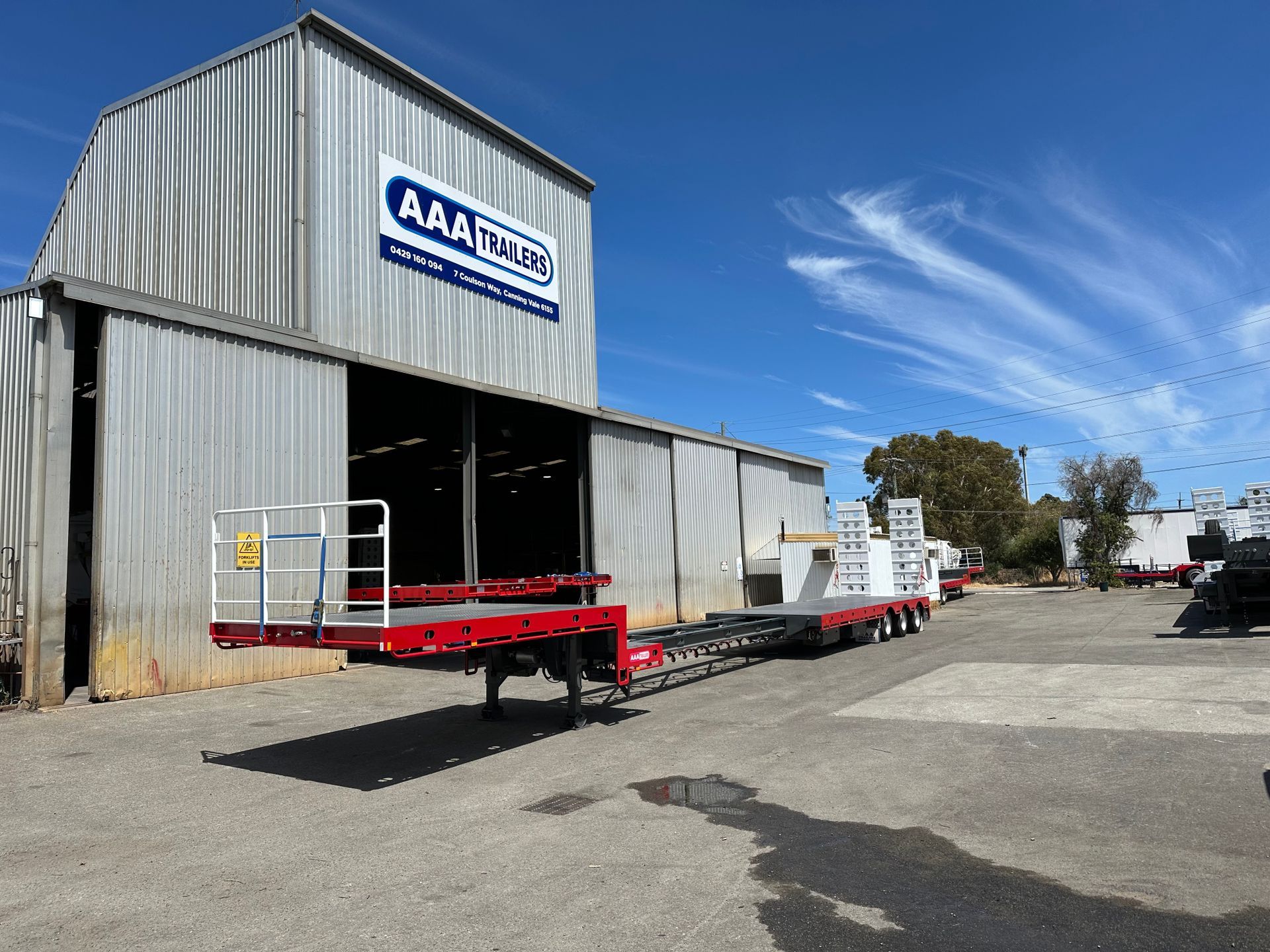

AAA Trailers 45' DROP DECK WITH BI-FOLD RAMPS

Specifications Details

Capacity

ATM: 47T

GTM: 27T

Approx tare weight: 10.7T

Length

Full length: 13.72m (including ramps)

Lower deck: 9.4m

Upper deck: 3.95m

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Kingpin

Dual-position 50mm bolt-in (90mm optional)

Coaming

5-inch with tie rail or C Channel with Tie Rail

Brake kit

EBS multi-volt 12/24V

Container pins

3-way

Gates

Front gate: 1,200mm steel

Side gates: Side gate pockets (side gates optional)

Suspension

K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)

Axles

K-Hitch 22.5” or 19.5” drum brake axles

Landing legs

K-Hitch 2-speed

Wheels

10/285 or 8/275 PCD dual steel rims (aluminium optional)

Tyres

255/70R22.5 or 265/70R19.5

Spare wheel carrier

Dual (spare wheels optional)

Lighting

Full LED

Water tank

30L stainless steel

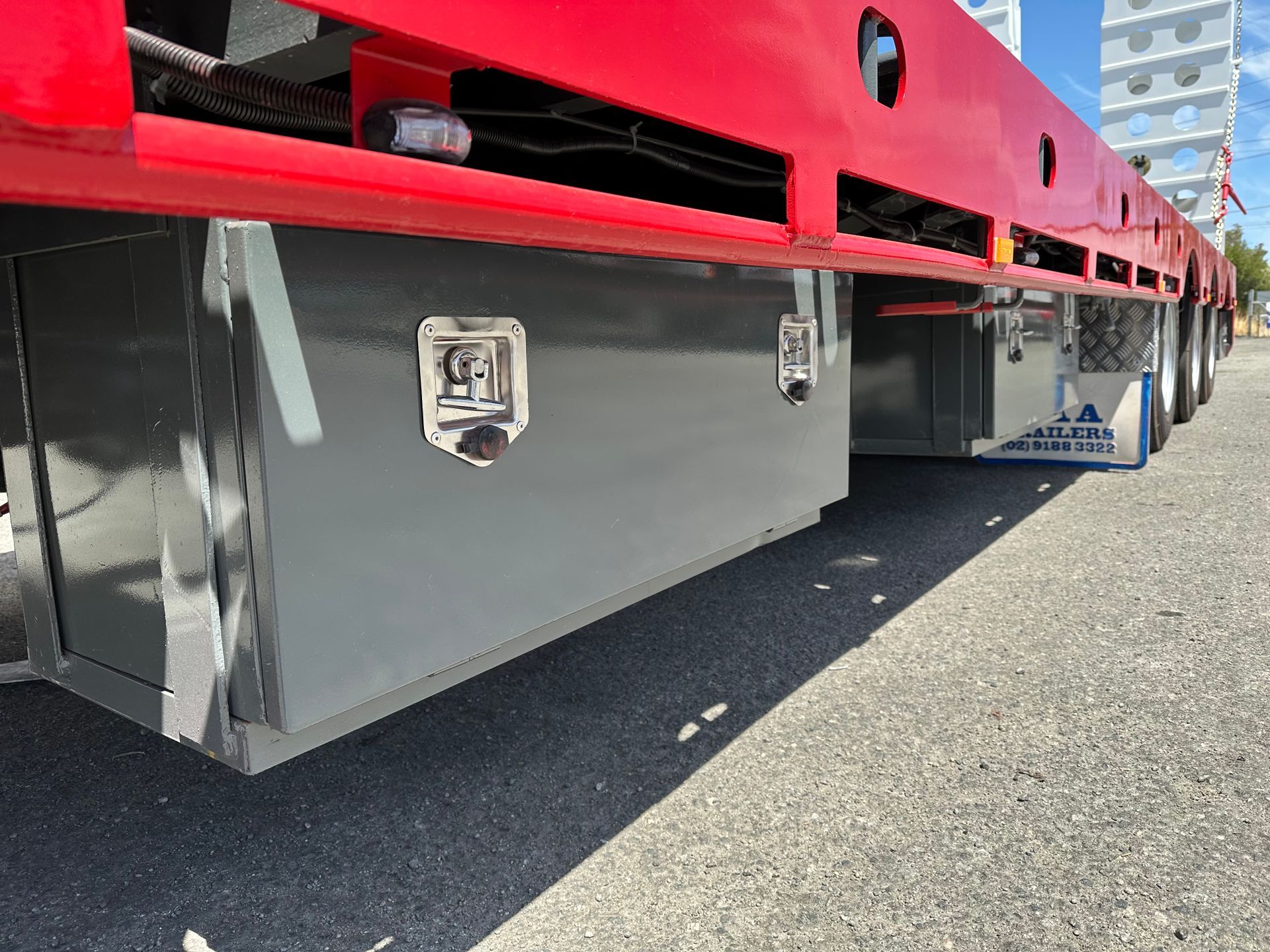

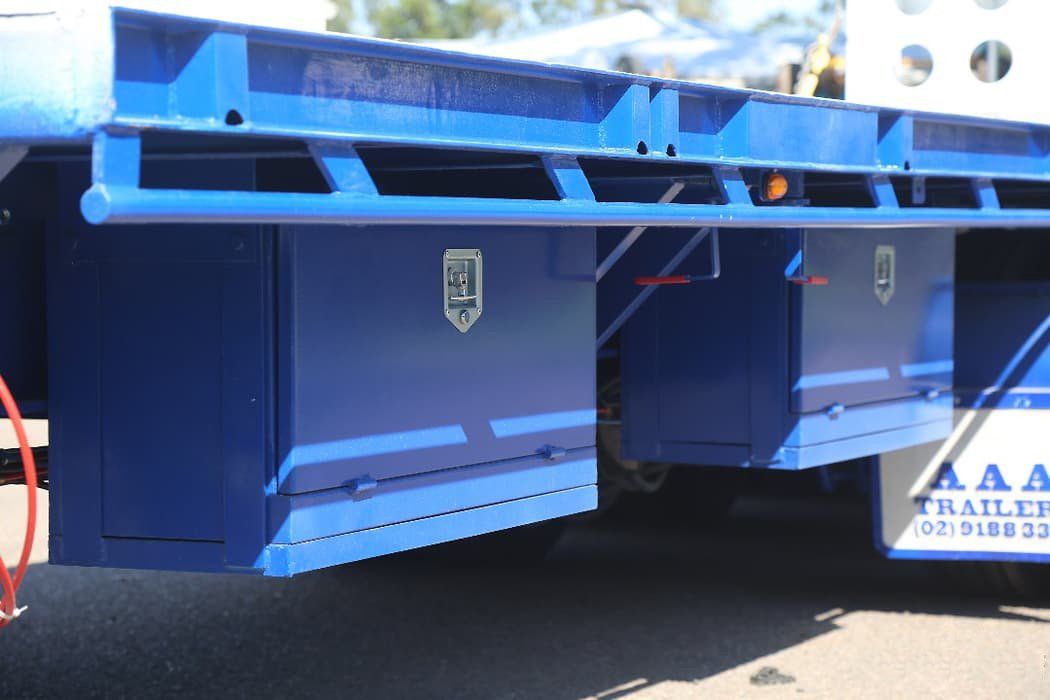

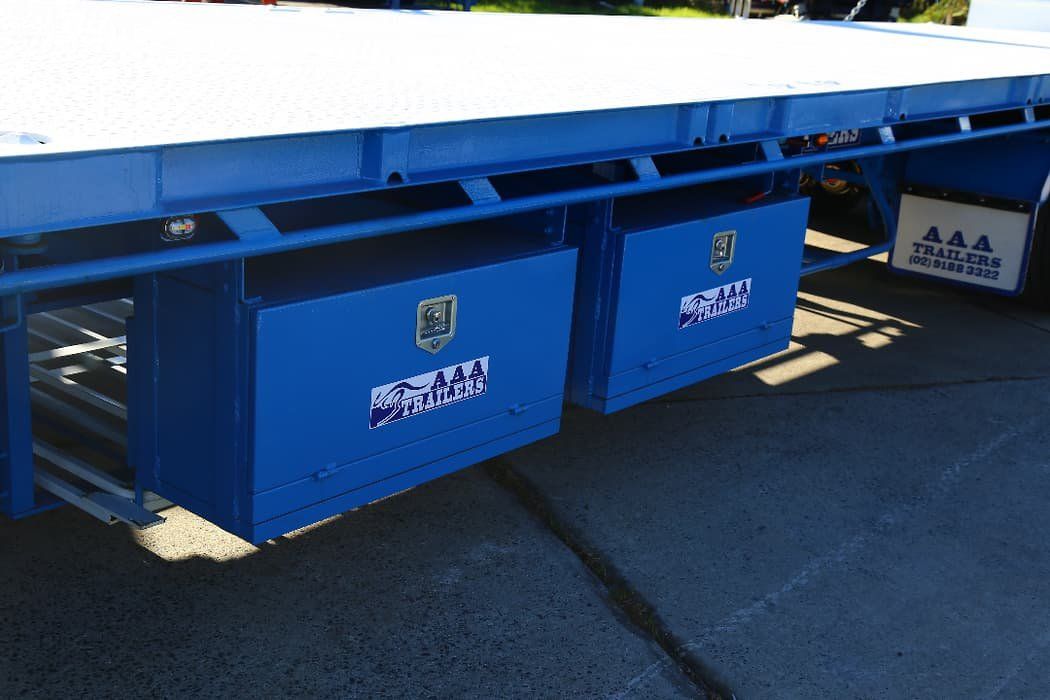

Toolboxes

2 steel with stainless steel “T” handles

Mudguards

Quarter guards front and rear with AAA Trailers mud flaps

Road train bracket

Coupling, air, and electrical optional

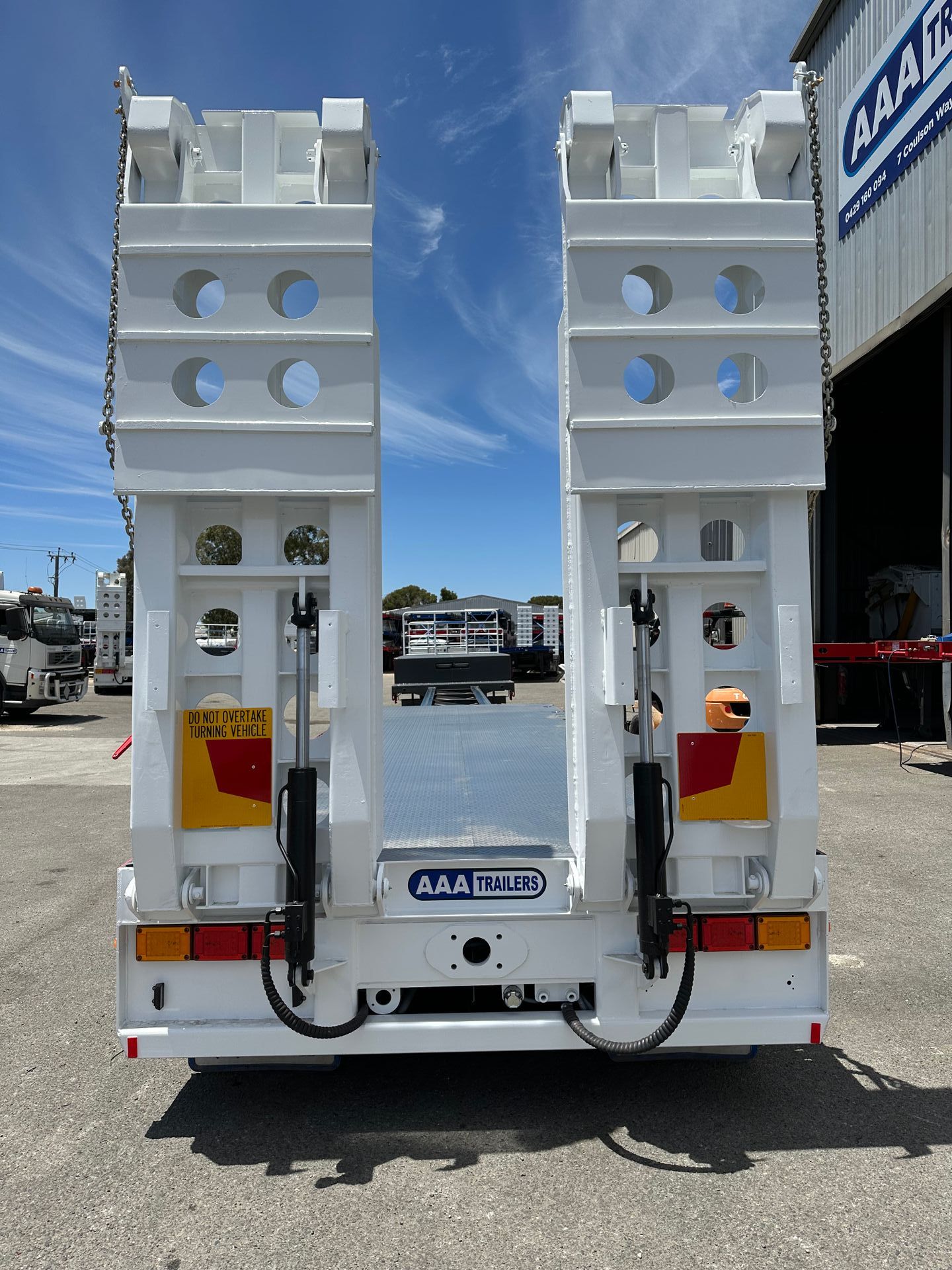

Ramps
  • Bi-fold with 12V electric power pack and N150 battery with built-in Anderson plug
  • 3 pc fold-down upper deck ramps
  • Slide-out upper deck ramps Optional
  • Forward Fold Ramps Optional

Optional Extras
  • Road Train Kit
  • Ring Feeder
  • Side Gates
  • Custom Paint - Coaming Rails
  • Forward Fold Ramp Option
  • No Ramps
  • Hard Wired Flashing Beacon
  • Road Train / Long Vehicles Signs
  • Hub Odometer
  • Spare Wheel: Steel or Alloy
  • 3 Piece Flip-Over Upper Deck Ramps
Get A Quote

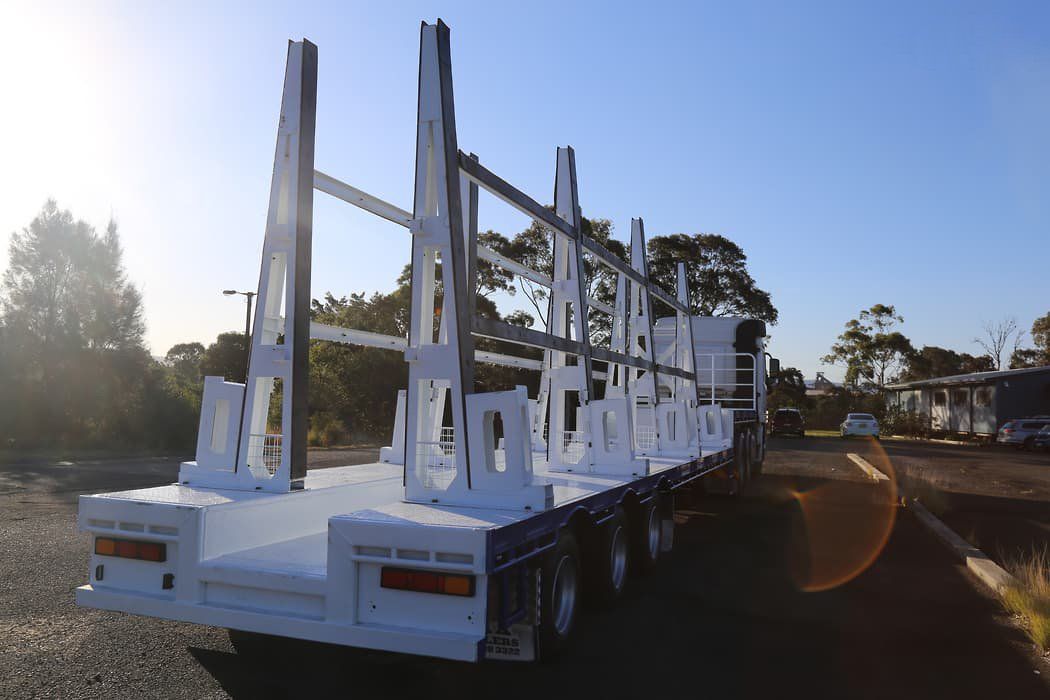

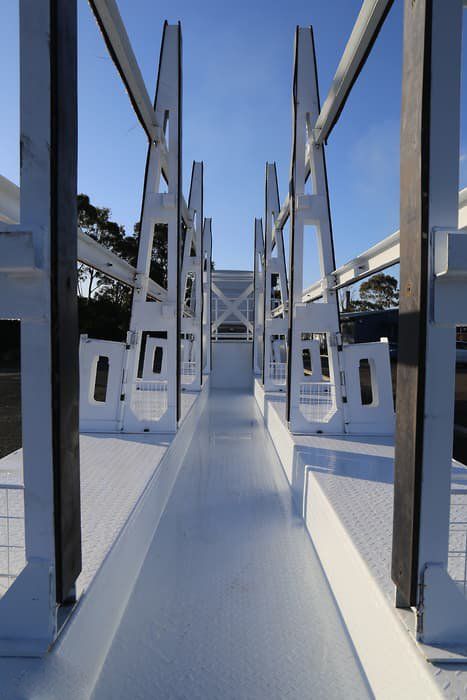

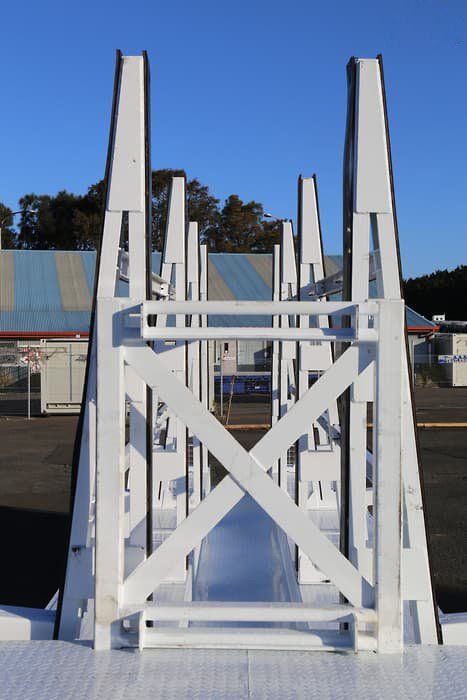

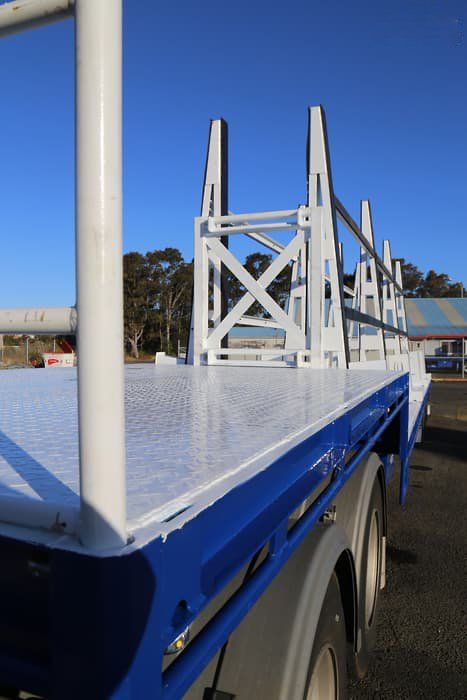

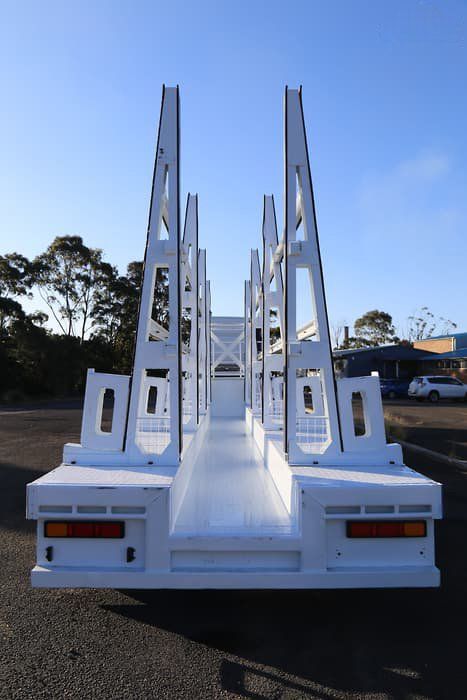

AAA TRAILERS 45' DROP DECK CONCRETE PANEL TRAILER

Specifications Details

Capacity

ATM: 47T

GTM: 27T

Approx tare weight: 10.3T

Length

Full length: 13.72m

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Kingpin

Dual-position 50mm bolt-in (90mm optional)
Coaming 5-inch with tie rail
Brake kit EBS multi-volt 12/24V
Container pins 3-way
Gates Front gate: 1,200mm steel
Axles K-Hitch 17.5” drum brake axles
Suspension

K-Hitch tri-axle airbag
Landing legs

K-Hitch 2-speed
Wheels

10/225 PCD dual steel
Spare wheel carrier Dual (spare wheels optional)
Lighting Full LED
Water tank

30LT Stainless steel
Toolboxes

2 steel with stainless steel “T” handles
Mudguards

Quarter guards front and rear with AAA Trailers mud flaps
Road train bracket

Coupling, air, and electrical optional

Optional Extras
  • Road Train Kit
  • Ring Feeder
  • Custom Paint - Coaming Rails
  • Oversize Signs
  • Hub Odometer
  • Spare Wheel: Steel or Alloy
Get A Quote

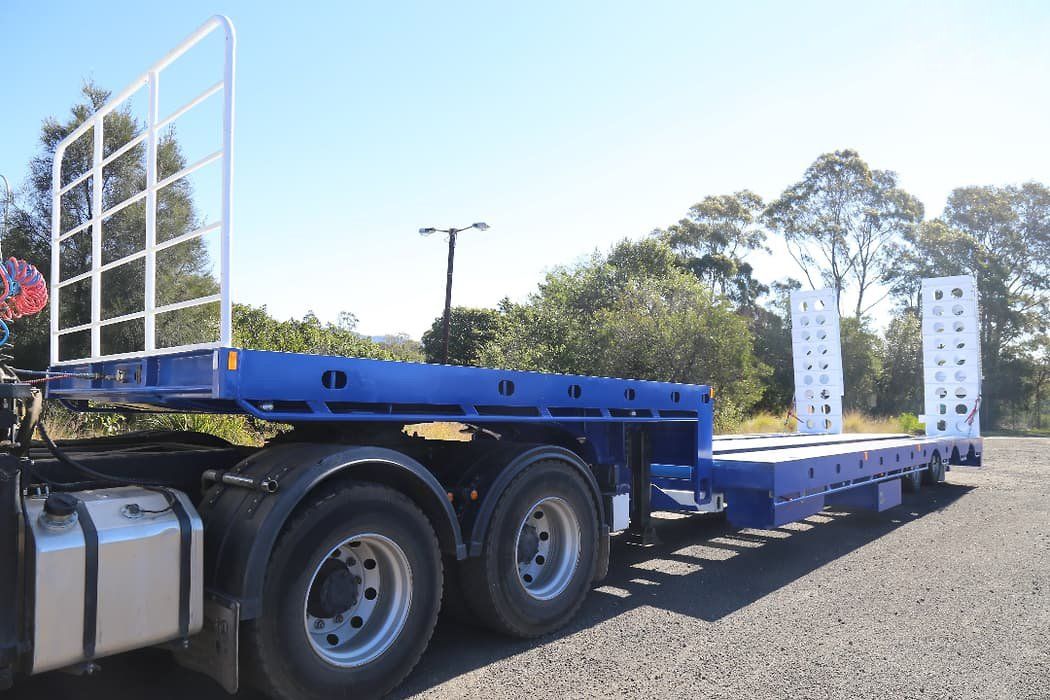

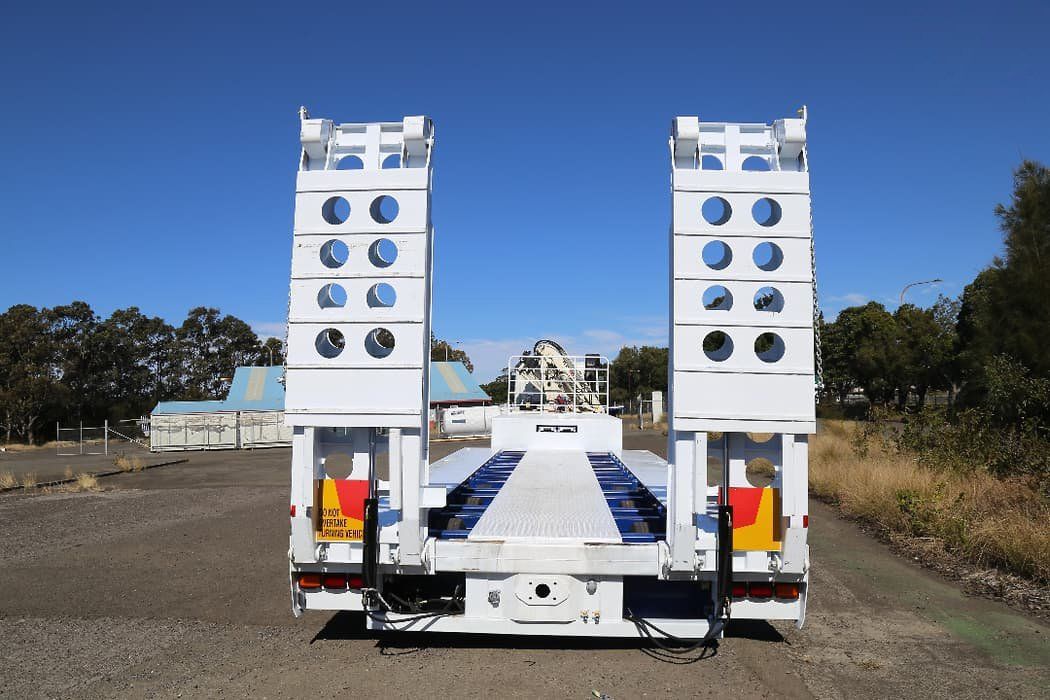

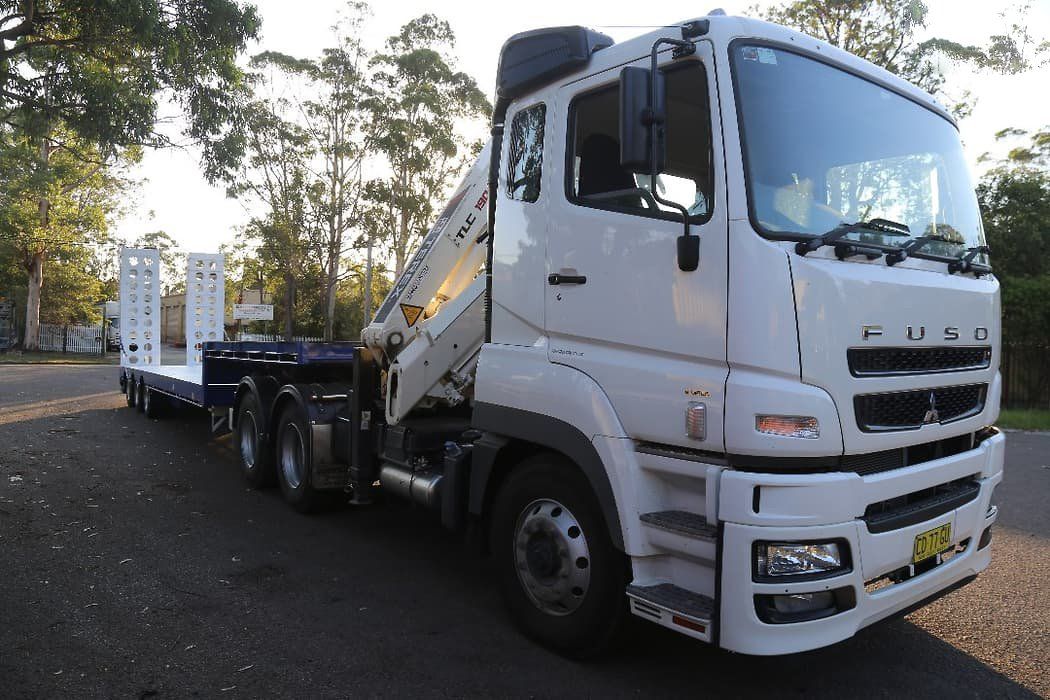

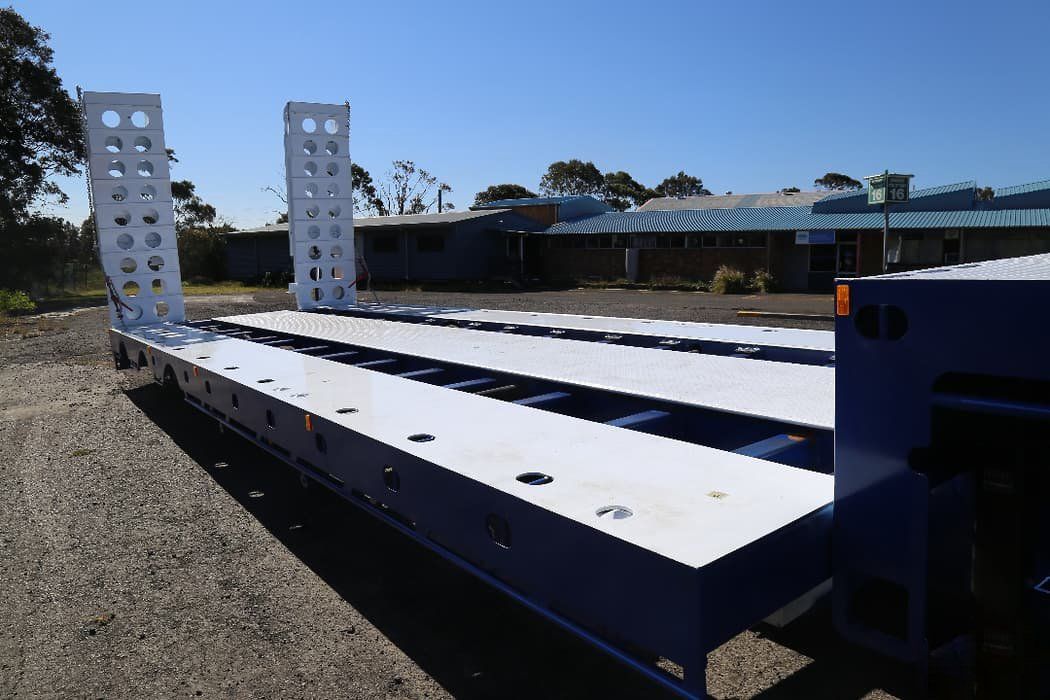

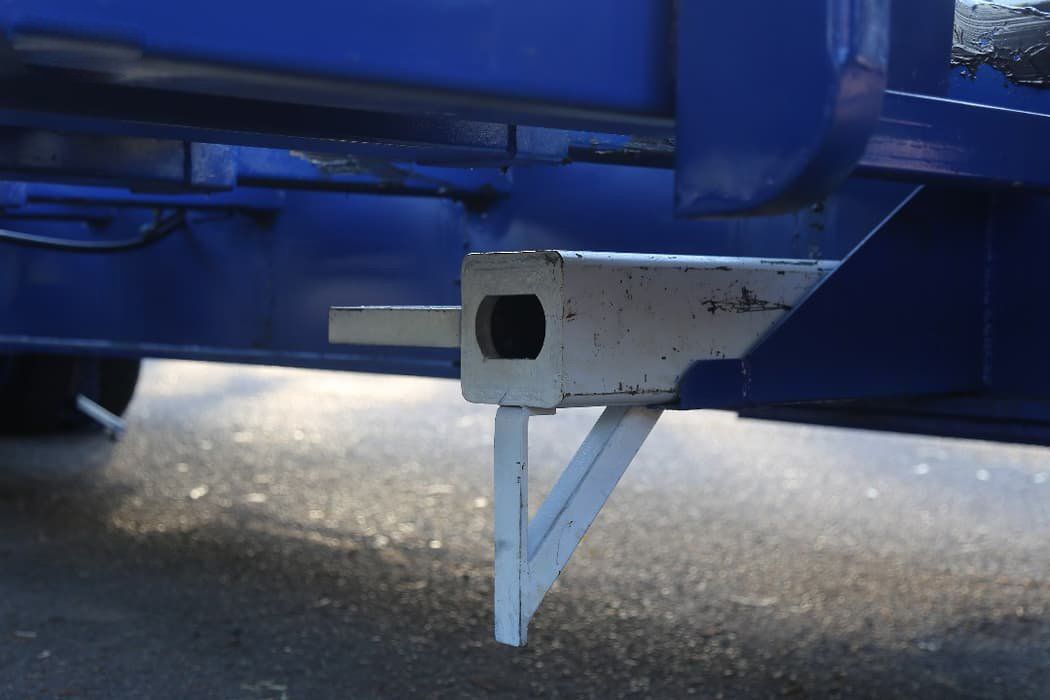

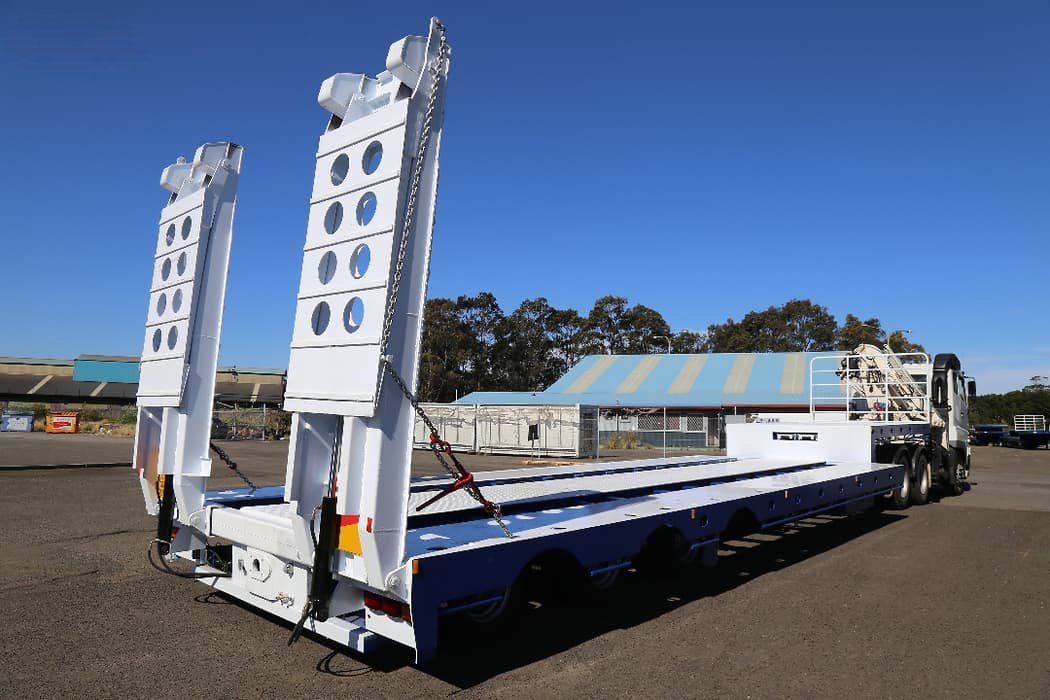

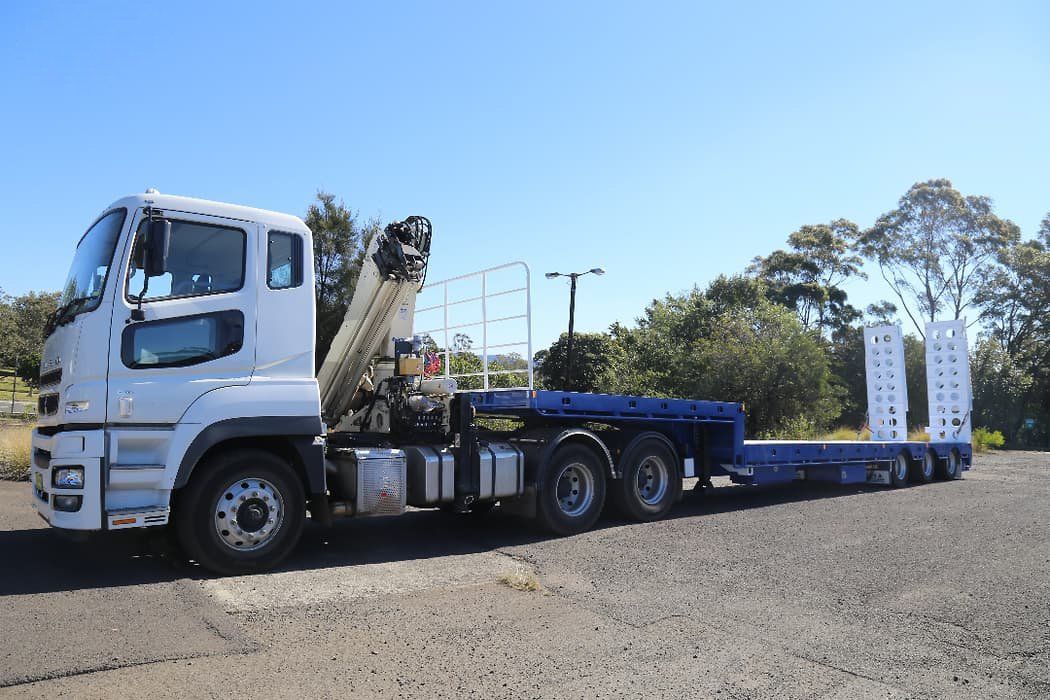

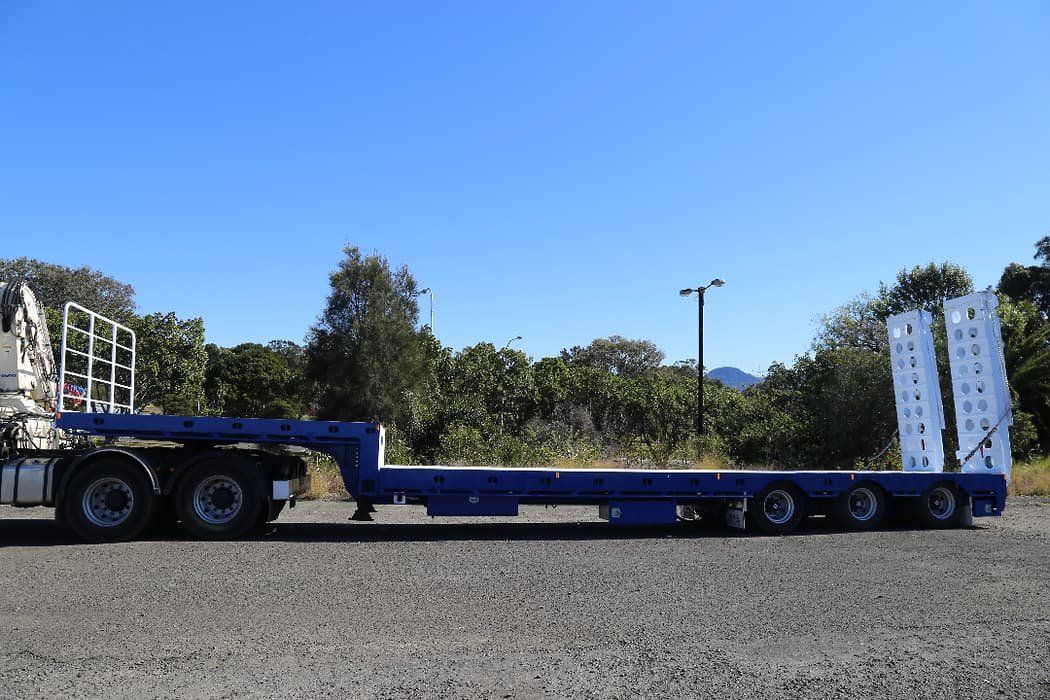

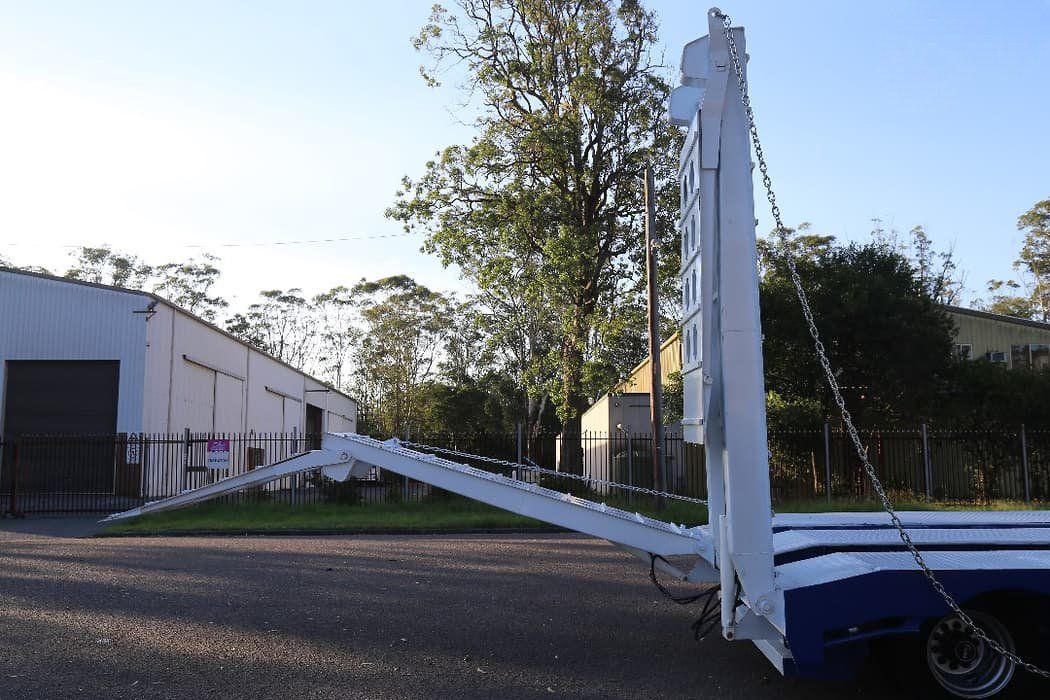

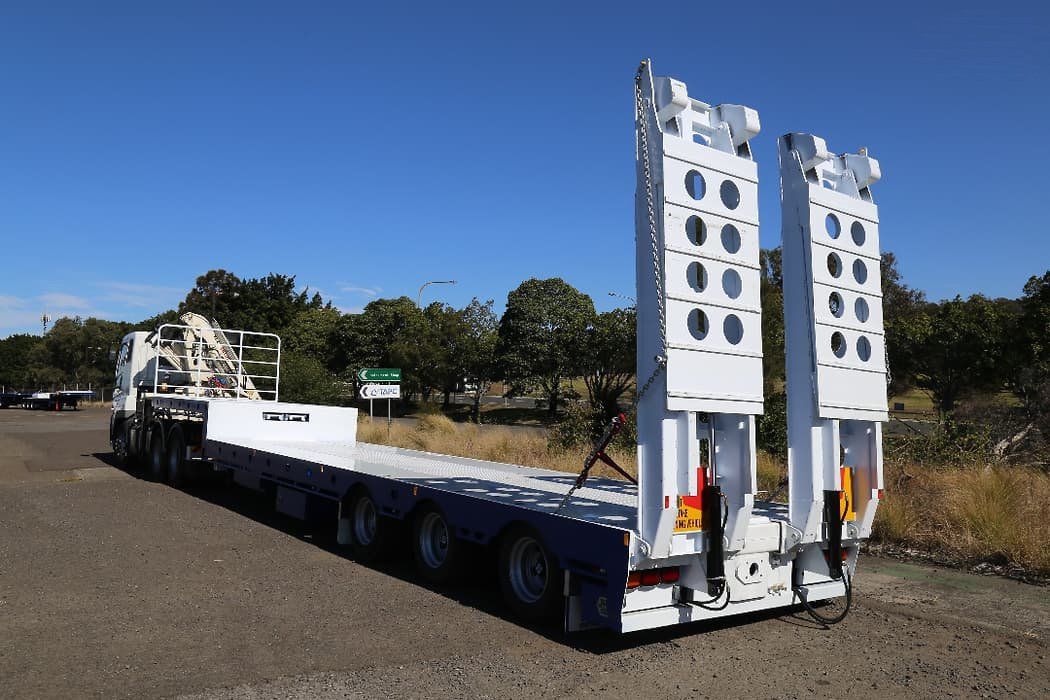

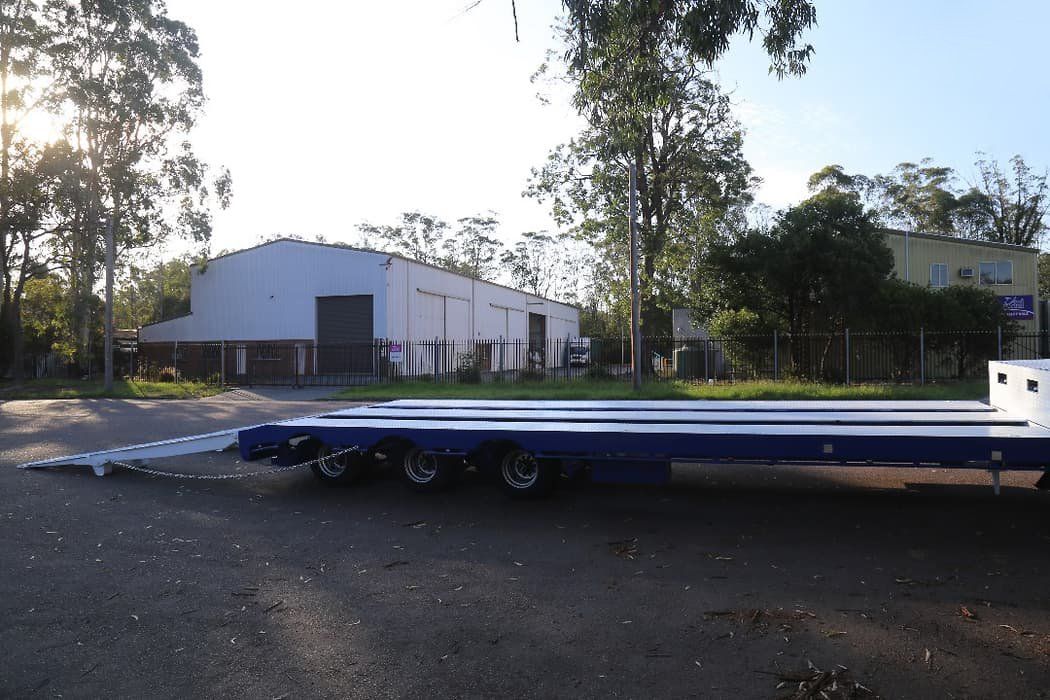

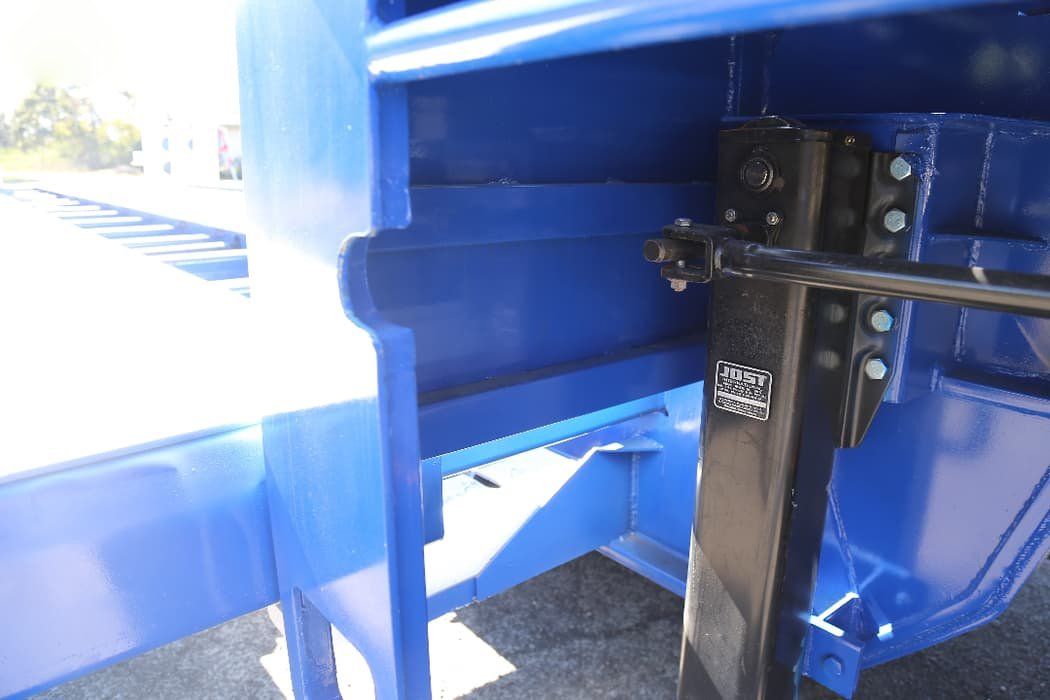

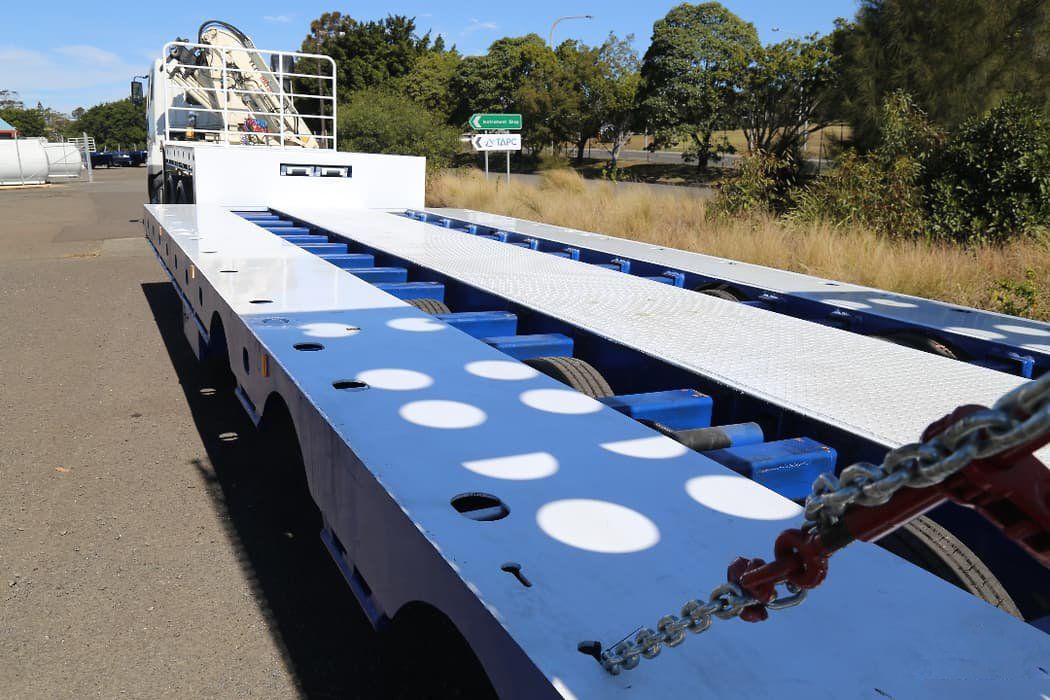

AAA TRAILERs 45' Tri Axle Drop Deck Widener With Bi-Fold Ramps

Specifications Details
Capacity

ATM: 47T

GTM: 27T

Approx tare weight: 12.5T

Length

Full length: 13.72m (including ramps)

Lower deck: 9.4m

Upper deck: 3.95m

Deck Widener 2500mm - 3500mm

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Kingpin

Dual-position 50mm bolt-in (90mm optional)

Coaming

5-inch with tie rail
Brake kit

EBS multi-volt 12/24V
Container pins 3-way

Gates

Front gate: 1,200mm steel

Axles

K-Hitch 19.5” or 17.5” drum brake axles
Suspension

K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)
Landing legs K-Hitch 2-speed
Wheels

10/275 or 8/275 PCD dual steel rims (aluminium optional)
Tyres

265/70R19.5 or 235/75R17.5
Spare wheel carrier

Dual (spare wheels optional)
Lighting

Full LED

Water tank

30L stainless steel

Toolboxes

 2 steel with stainless steel “T” handles

Mudguards

Quarter guards front and rear with AAA Trailers mud flaps
Road train bracket Coupling, air, and electrical optional
Ramps

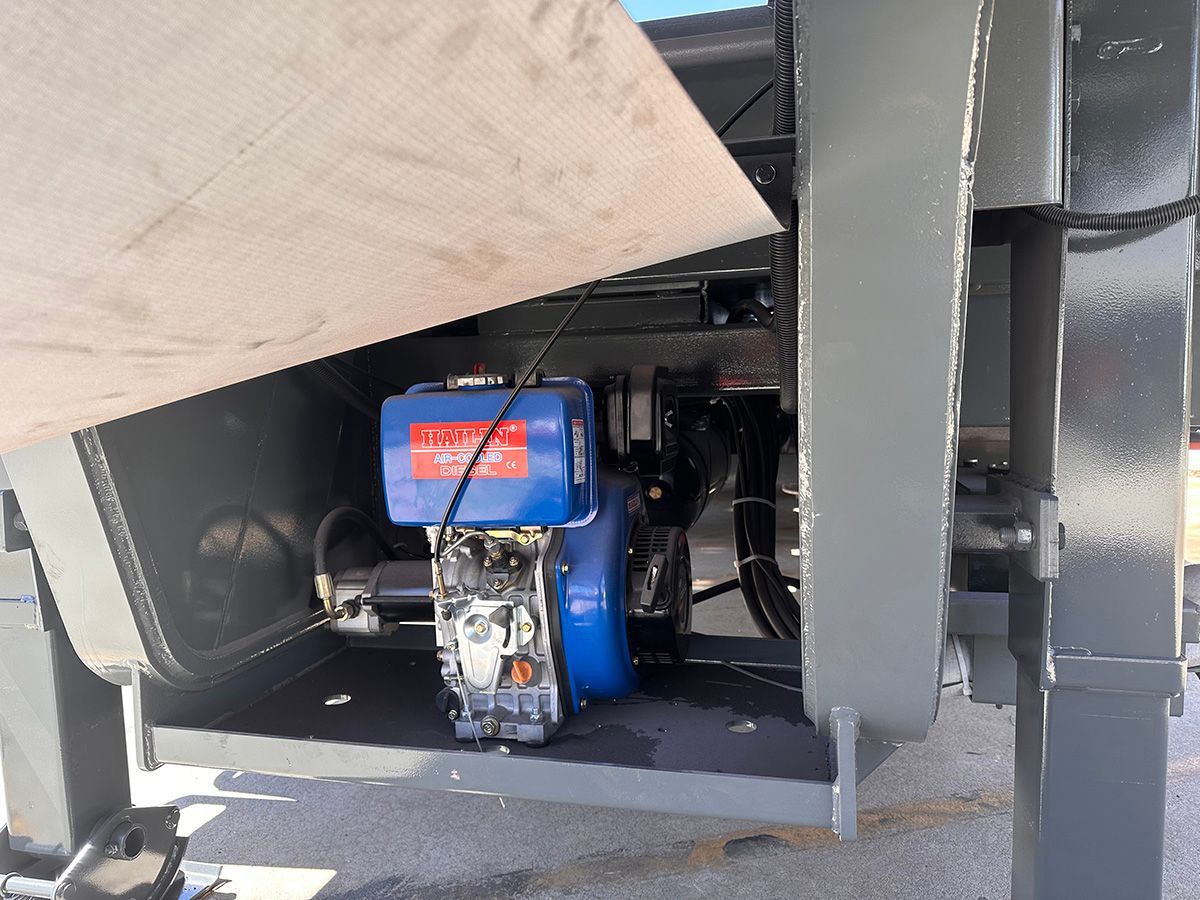

  • Bi-fold ramps with diesel powerpack (hydraulics to truck optional)
  • 3 pc fold-down upper deck ramps
  • Slide-out upper deck neck ramps (optional)

Optional Extras
  • Road Train Kit
  • Ring Feeder
  • Custom Paint - Coaming Rails
  • Forward Fold Ramp Option
  • No Ramps
  • Hard Wired Flashing Beacon
  • Oversize Signs
  • Hub Odometer
  • Spare Wheel:Steel or Alloy
  • 3 Piece Flip-Over Upper Deck Ramps
Get A Quote

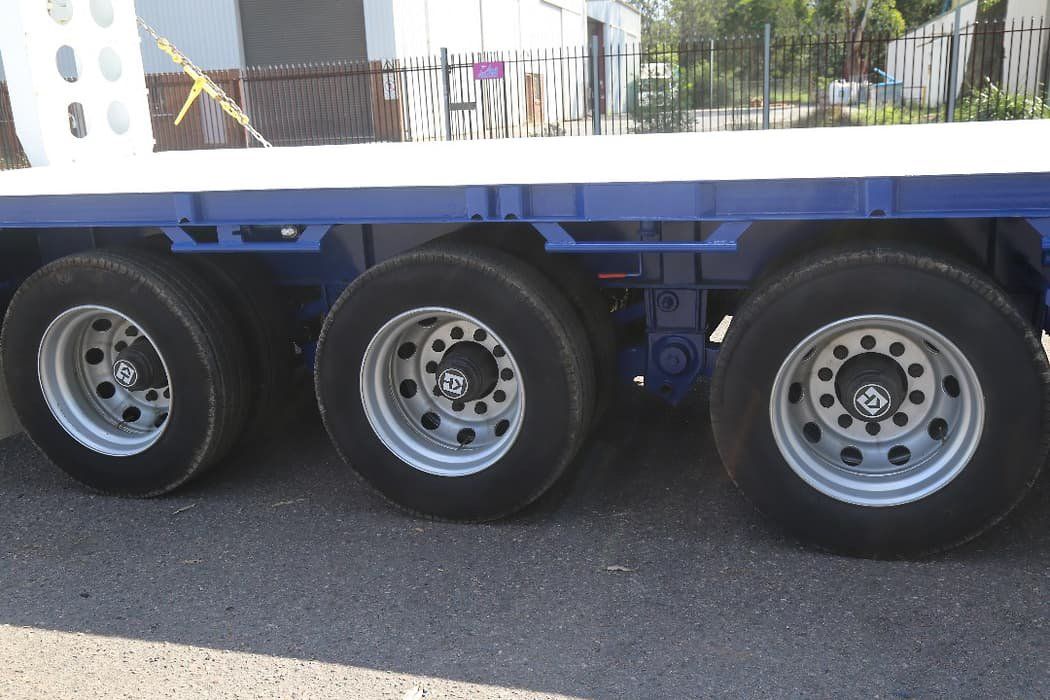

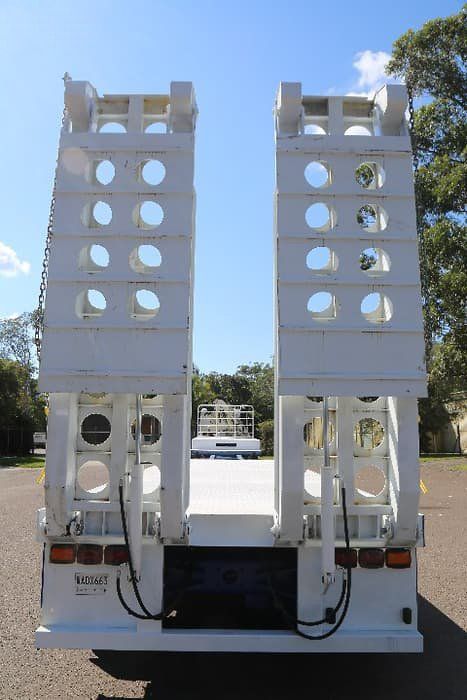

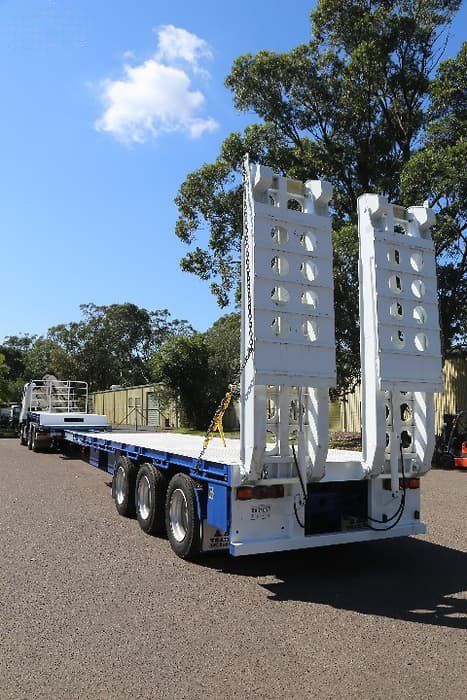

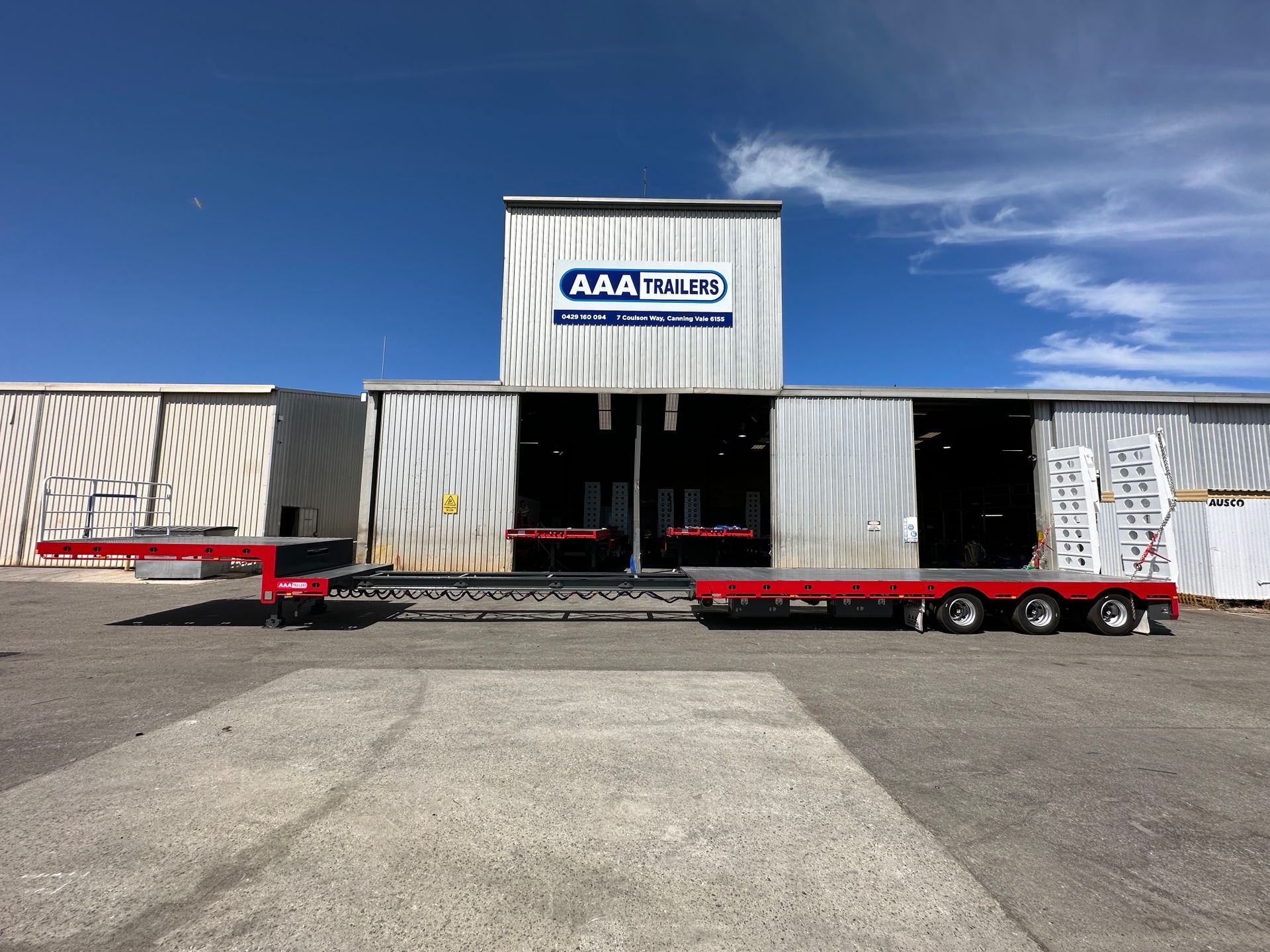

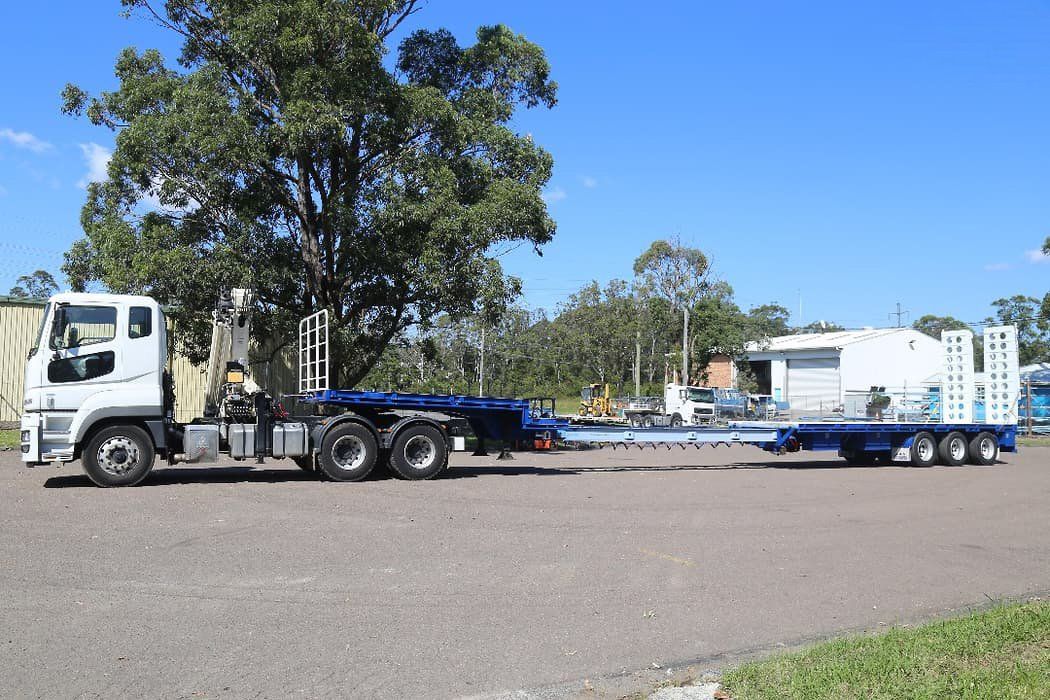

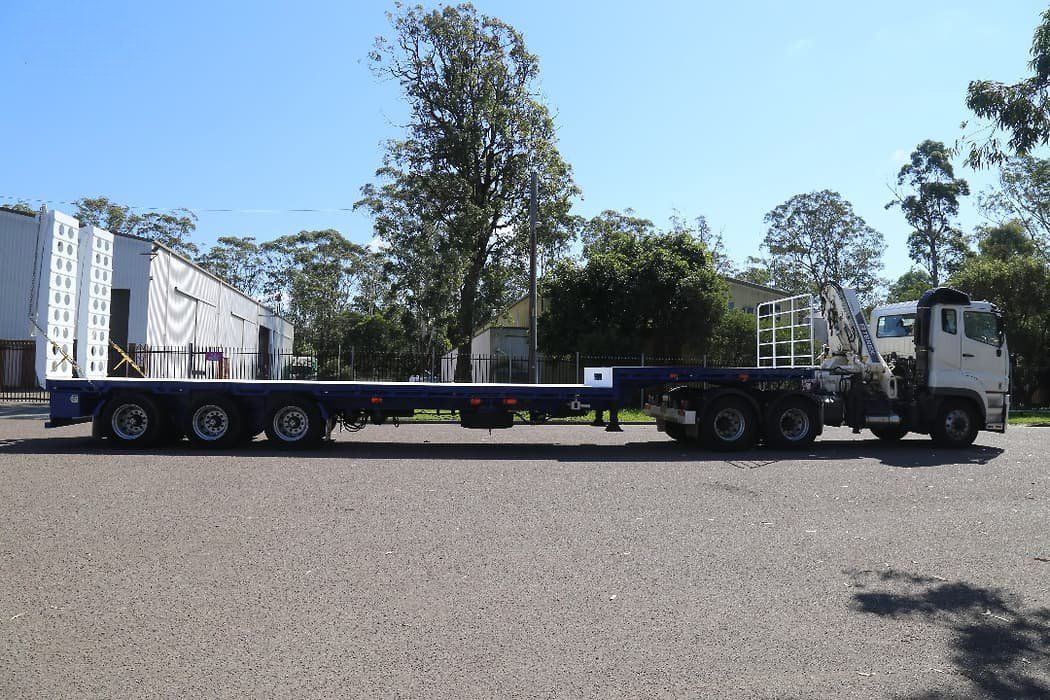

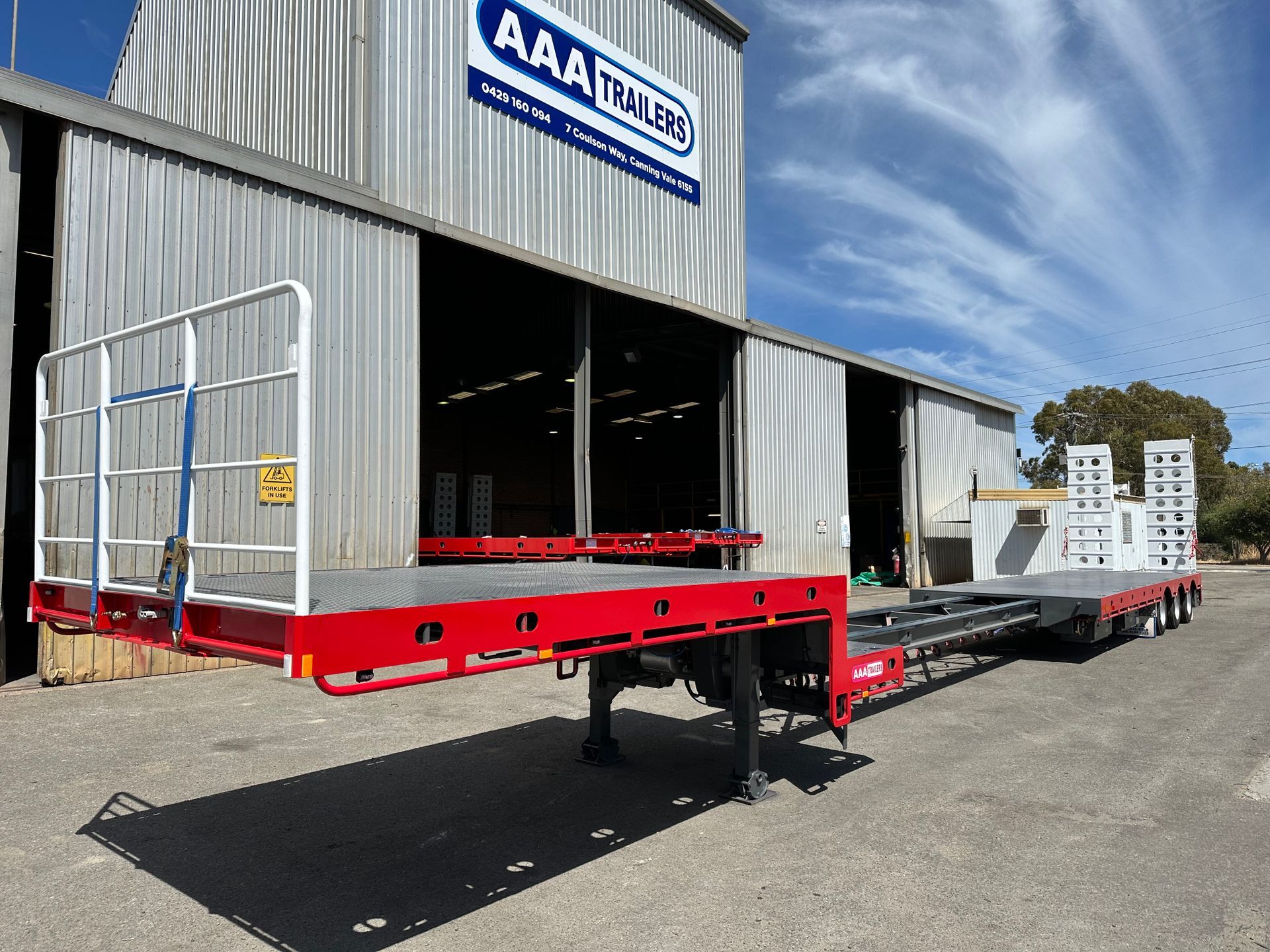

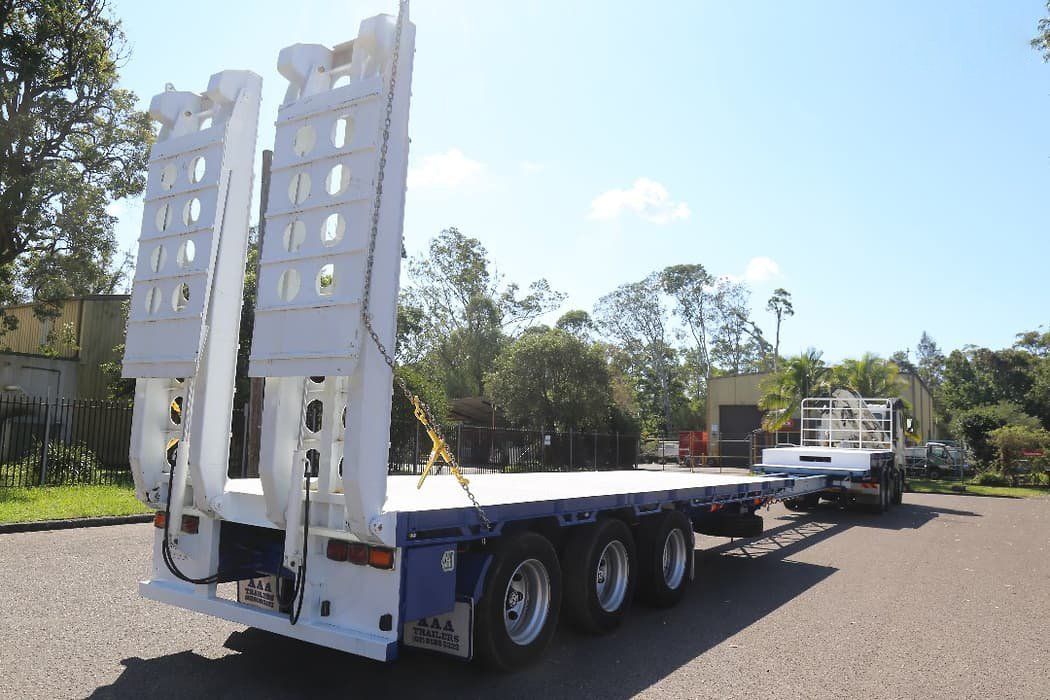

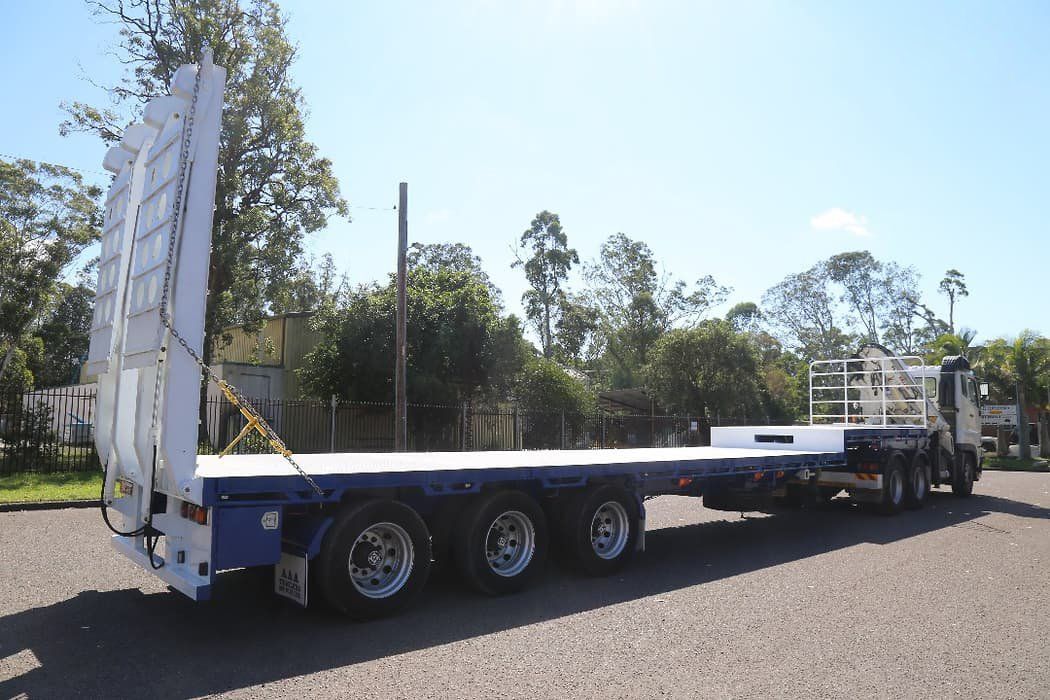

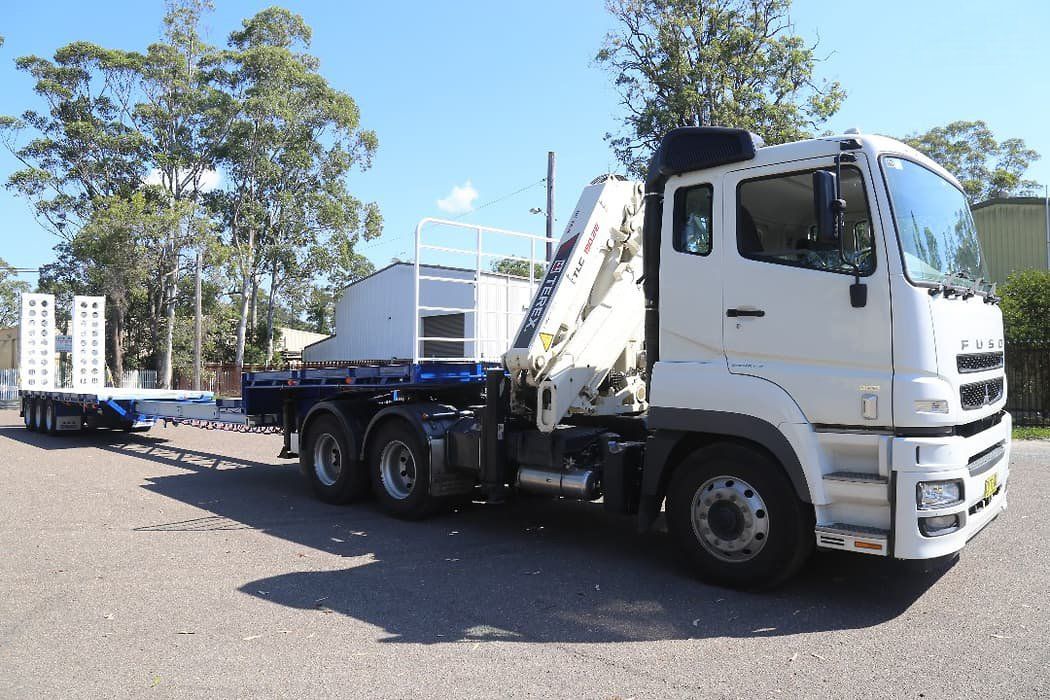

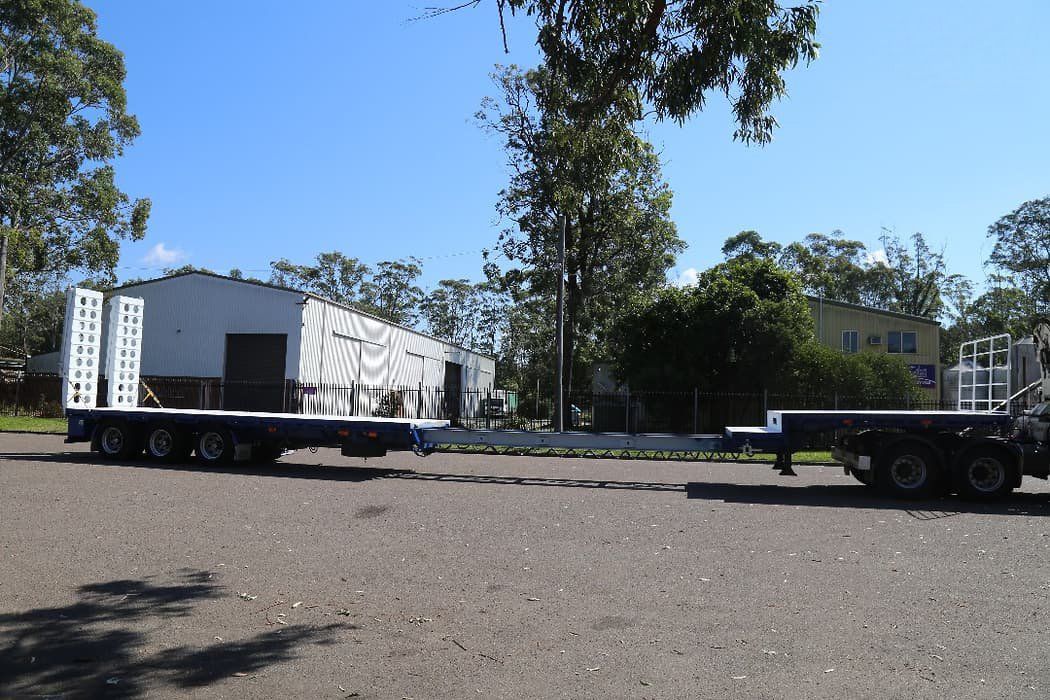

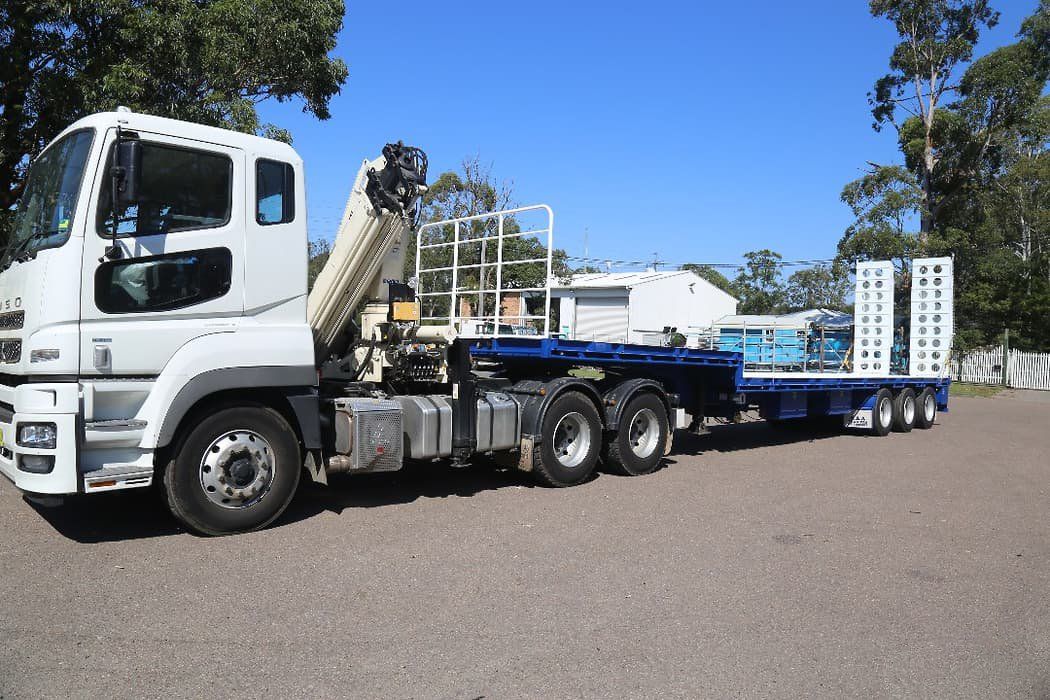

AAA TRAILERs 45' Drop Deck Extendable WITH BI-FOLD RAMPS

Specifications Details

Capacity

ATM: 47T

GTM: 27T

Approx tare weight: 11.7T - 12.5T

Length

Full length (closed): 13.72M

Lower deck (closed): 9.4m

Upper deck: 3.95m

Extended length: 19.5m

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Kingpin

Dual-position 50mm bolt-in (90mm optional)

Coaming

5-inch with tie rail

Brake kit

EBS multi-volt 12/24V

Container pins

3-way

Gates

Front gate: 1,200mm steel

Side gates: Side gate pockets (side gates and gate carrier optional)

Suspension

K-Hitch tri-axle airbag (FUWA FW520 8-leaf spring optional)

Axles

K-Hitch 22.5”, 19.5” or 17.5” drum brake axles

Landing legs

K-Hitch 2-speed

Wheels

10/285, 8/275 or 10/275 PCD dual steel rims (aluminium optional)

Tyres

255/70R22.5, 260/70R19.5 or 235/75R17.5

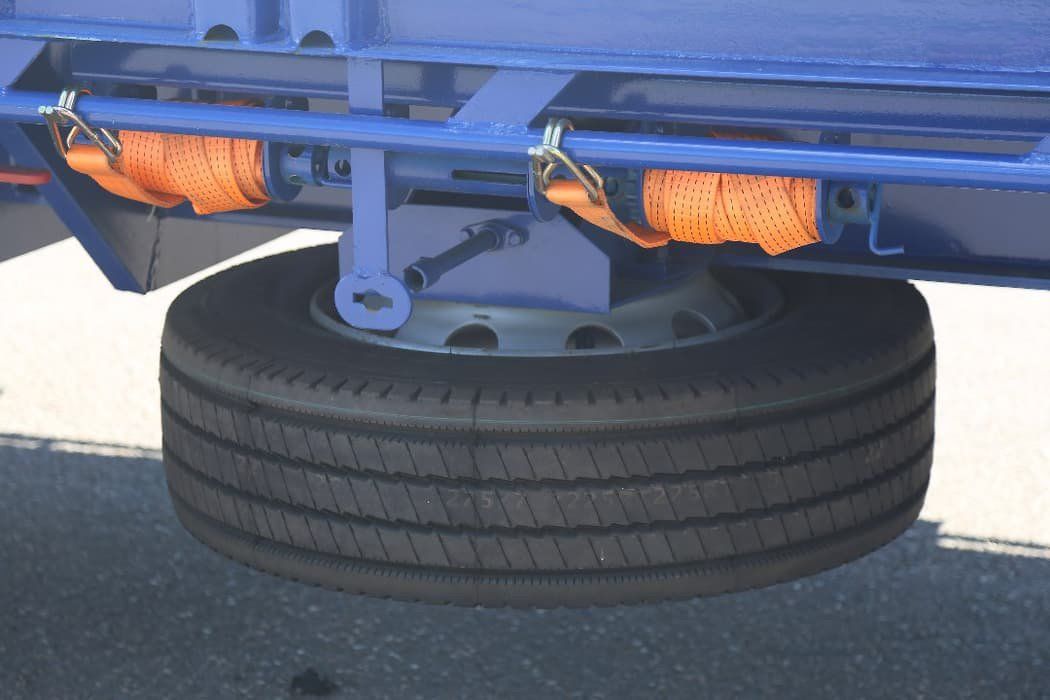

Spare wheel carrier

Dual (spare wheels optional)

Lighting

Full LED

Water tank

30L stainless steel

Toolboxes

2 steel with stainless steel “T” handles

Mudguards

Quarter guards front and rear with AAA Trailers mud flaps

Road train bracket

Coupling, air, and electrical optional

Ramps
  • Bi-fold with 12V electric power pack and N150 battery with built-in Anderson plug
  • Slide-out upper deck neck ramps (flip-over neck ramps optional)

Optional Extras
  • Road Train Kit
  • Ring Feeder
  • Side Gates
  • Custom Paint - Coaming Rails
  • Forward Fold Ramp Option
  • No Ramps
  • Hard Wired Flashing Beacon
  • Oversize Signs
  • Hub Odometer
  • Spare Wheel: Steel or Alloy
  • 3 Piece Flip-Over Upper Deck Ramps
Get A Quote

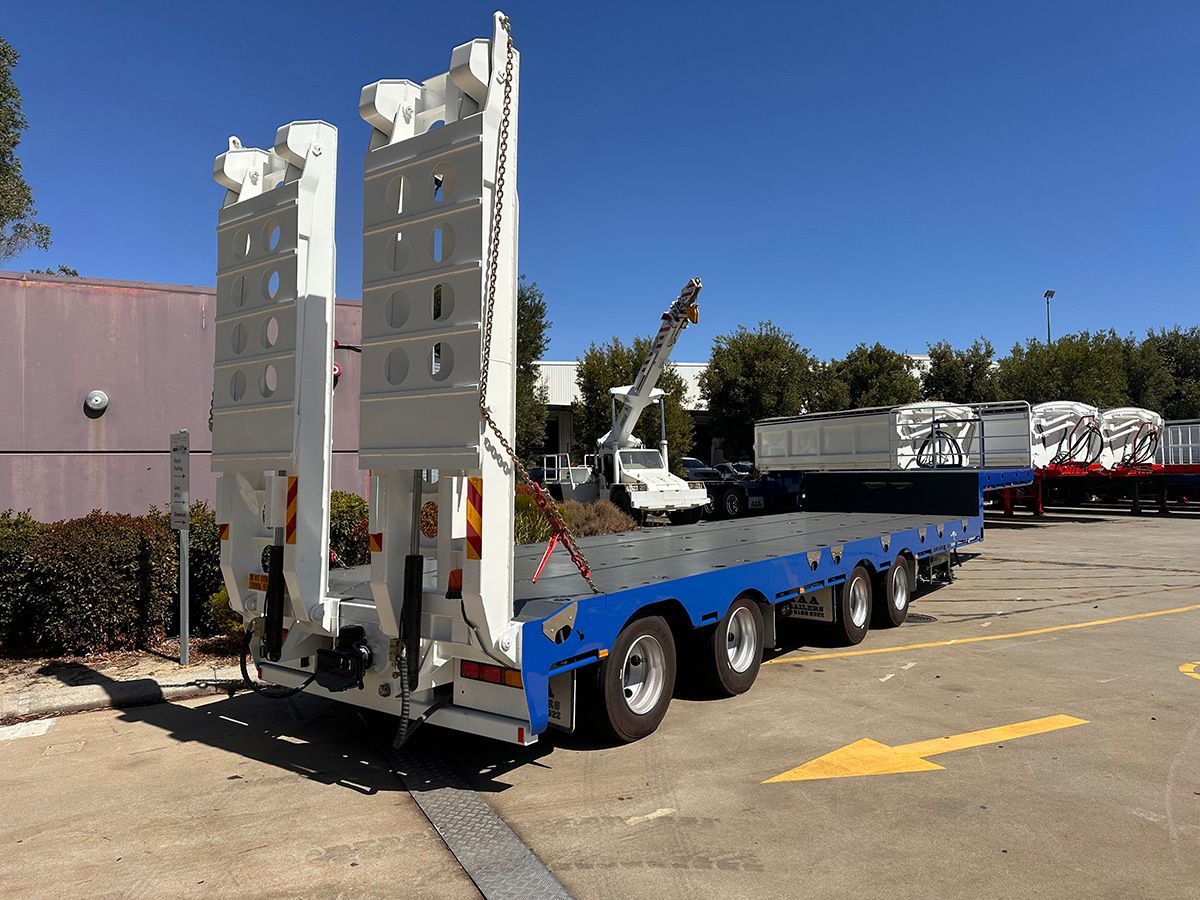

AAA TRAILERs 45' Quad-axle Drop Deck Widener WITH FRONT LIFT UP And rear steer axle

Specifications Details

Capacity

ATM: 60T

GTM: 36T

Approx tare weight: 14T

Length

Full length 13.72m (including ramps)

Lower deck: 9.4m

Upper deck: 4m

Deck Widener 2500mm - 3500mm

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Kingpin

Dual-position 50mm bolt-in (90mm optional)

Coaming

5-inch with tie rail

Brake kit

EBS multi-volt 12/24V

Container pins

3-way

Gates

Front gate: 1,200mm steel

Axles

SAF 17.5” drum brake axles

Suspension

SAF quad axle airbag

Landing legs

K-Hitch 2-speed

Wheels

10/225 PCD dual steel rims (aluminium optional)

Tyres

235/75R17.5

Spare wheel carrier

Spare wheel holder (spare wheel optional)

Lighting

Full LED

Water tank

30L stainless steel

Toolboxes

2 steel with stainless steel “T” handles

Mudguards

Quarter guards front and rear with AAA Trailers mud flaps

Road train bracket

Coupling, air, and electrical optional

Ramps
  • Bi-fold 60T rated ramps, diesel powerpack, to operate widener and ramps (hydraulics to truck optional)
  • 3 pc fold-down upper deck ramps
  • Slide-out upper deck neck ramps (optional)

Optional Extras
  • Road Train Kit
  • Ring Feeder
  • Custom Paint - Coaming Rails
  • Forward Fold Ramp Option
  • No Ramps
  • Hard Wired Flashing Beacon
  • Oversize Signs
  • Hub Odometer
  • Spare Wheel or Steel or Alloy
  • 3 Piece Flip-Over Upper Deck Ramps
Get A Quote

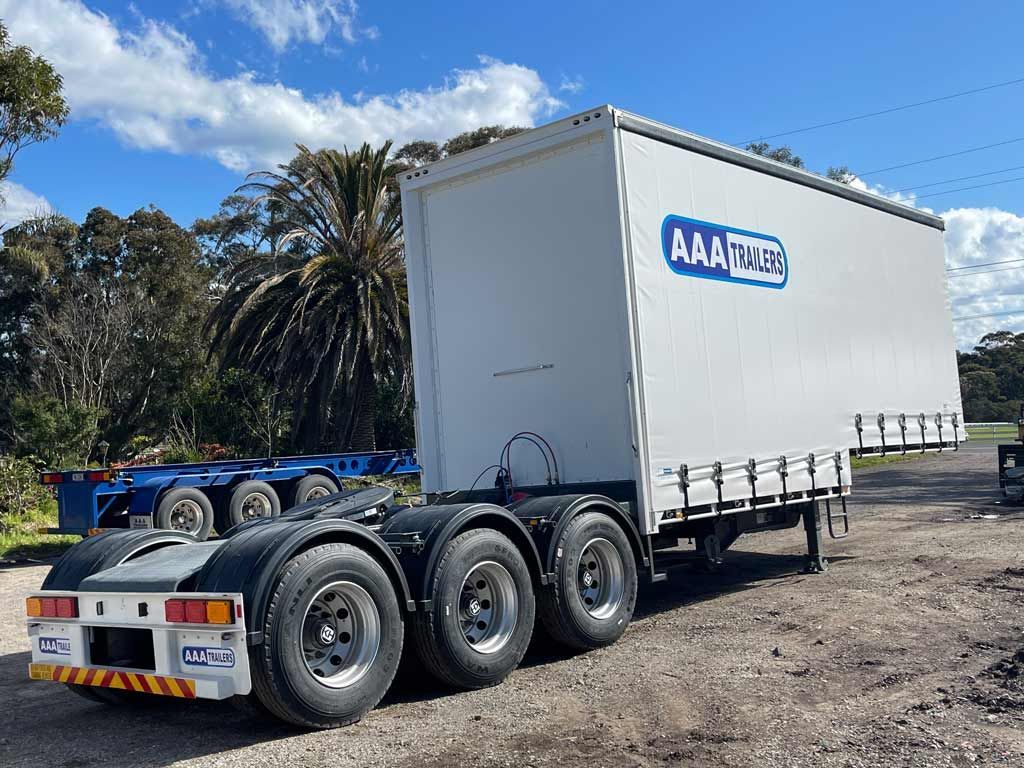

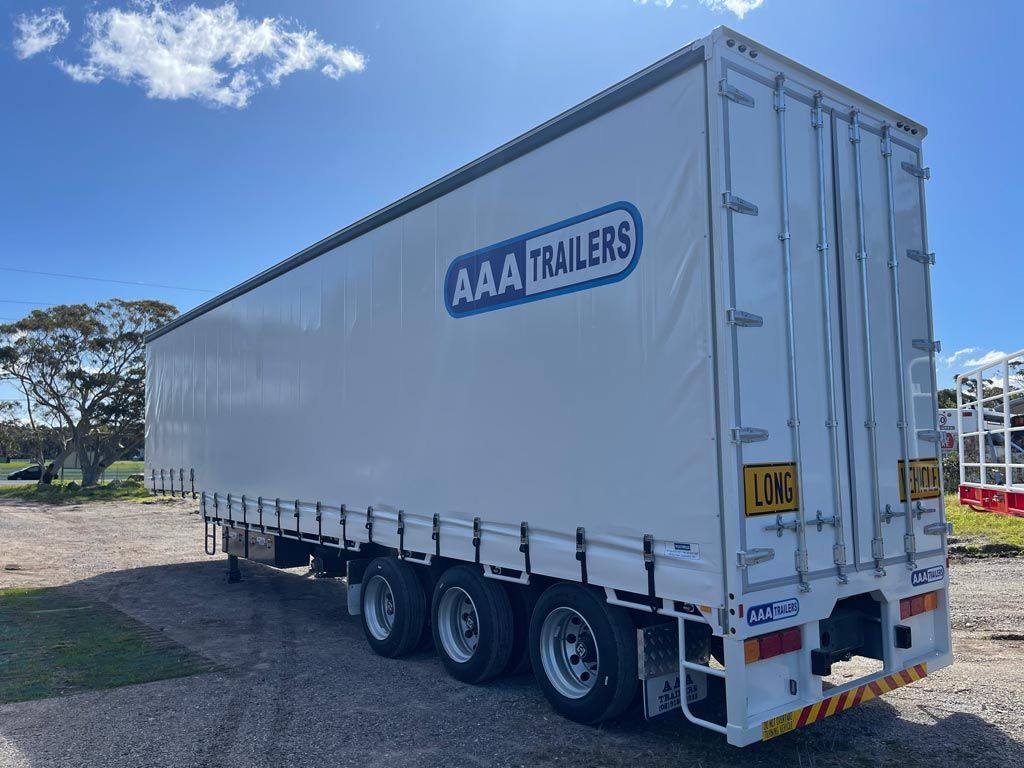

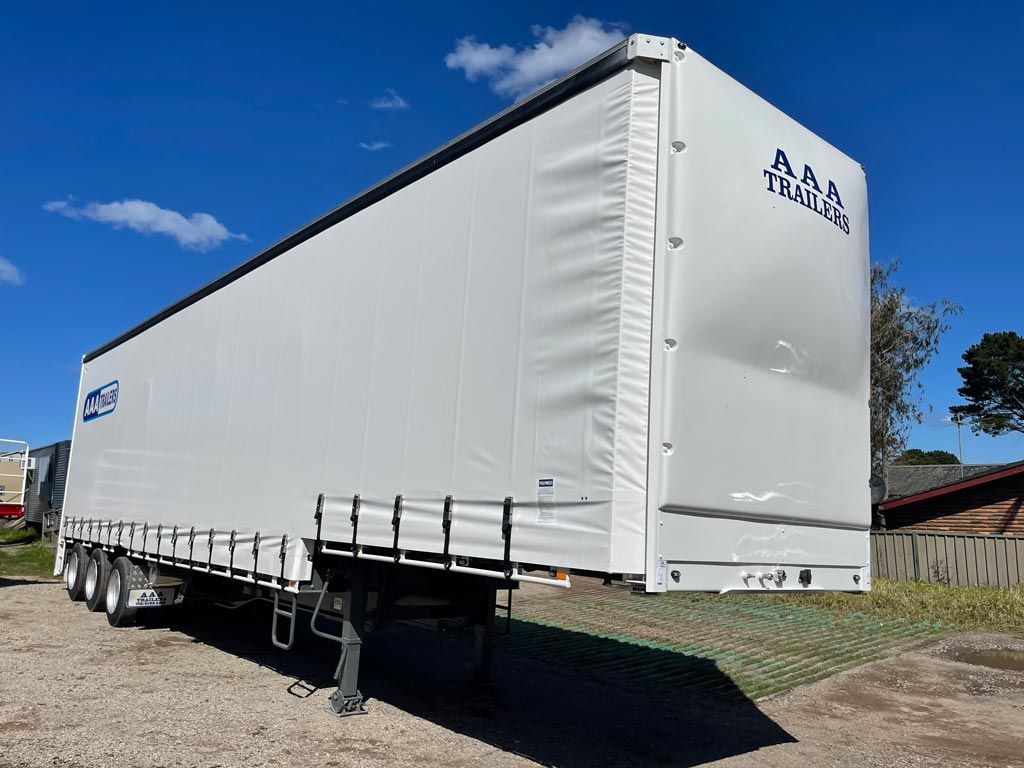

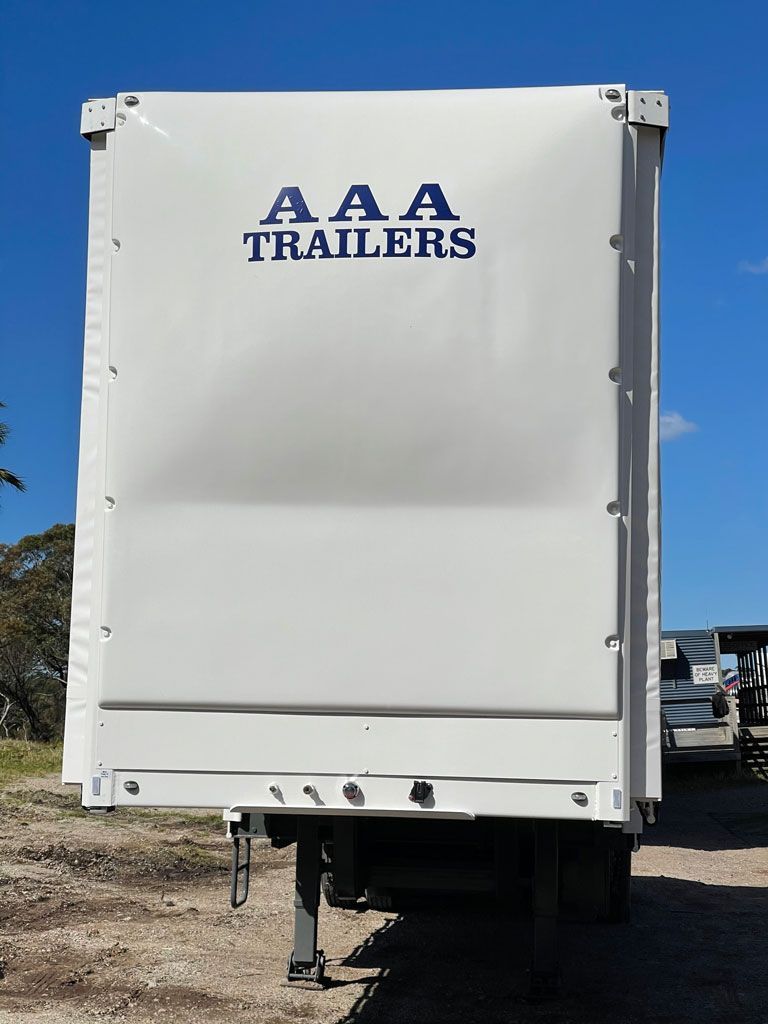

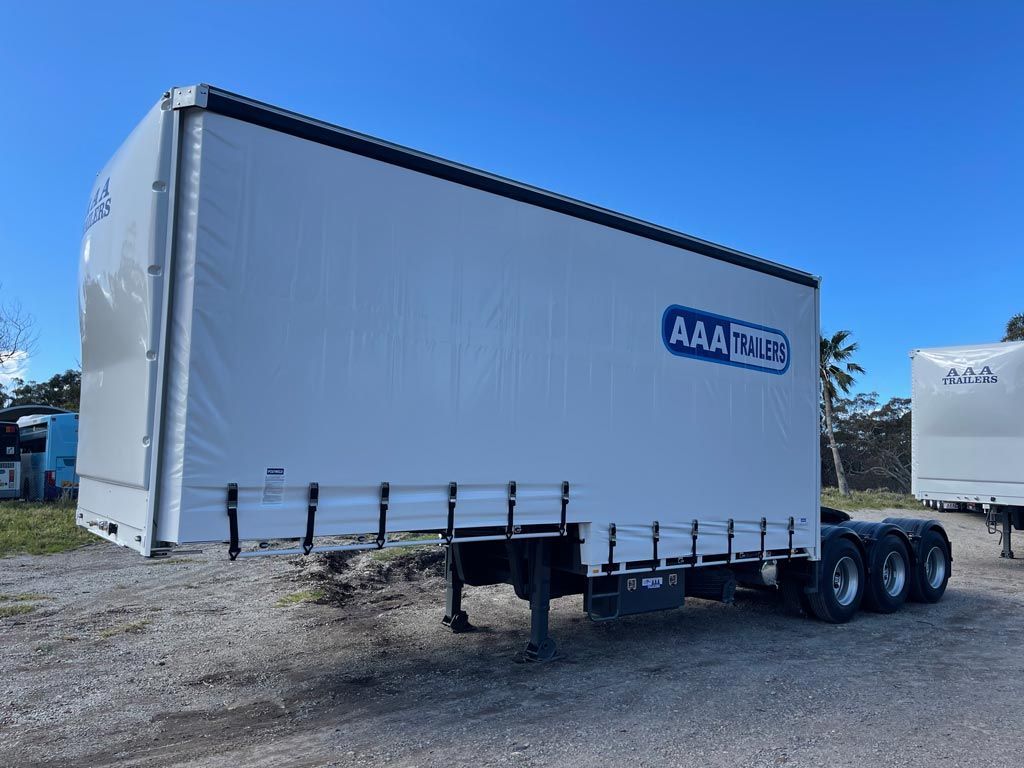

AAA TRAILERS CURTAINSIDER – DROP DECK LEAD (A) TRAILER 12 PALLET

Specifications Details

Capacity

ATM: 47T

GTM: 23.5T

Approx tare weight: 8.9T

Length

11.7m

Deck

7.6m

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Coaming

C-channel with tie rail

Brake kit

EBS multi-volt 12/24V

Gates

Side gate pockets with hanging aluminium side gates

Axles

K-Hitch 22.5” drum brake axles

Suspension

K-Hitch tri-axle airbag

Landing legs

K-Hitch 2-speed

Turntable

K-Hitch 50mm bolt in (90mm optional)

Kingpin

Dual-position 50mm bolt in (90mm optional)

Wheels

10/285 PCD dual steel rims (aluminium optional)

Tyres

11R22.5

Spare wheel carrier

Dual (spare wheels optional)

Lighting

Full LED

Water tank

30L stainless steel

Toolboxes

1 steel with stainless steel “T” handles

Mudguards

Plastic radius guards with AAA Trailers mudflaps

Curtains

Polyweld load restraint, single base colour

Optional extras
  • Road Train Kit
  • Ring Feeder
  • Custom Paint - Coaming Rails
  • Road Train / Long Vehicles Signs
  • Hub Odometer
  • Spare Wheel: teel or Alloy
  • Custom Curtains: To be Quoted
Get A Quote

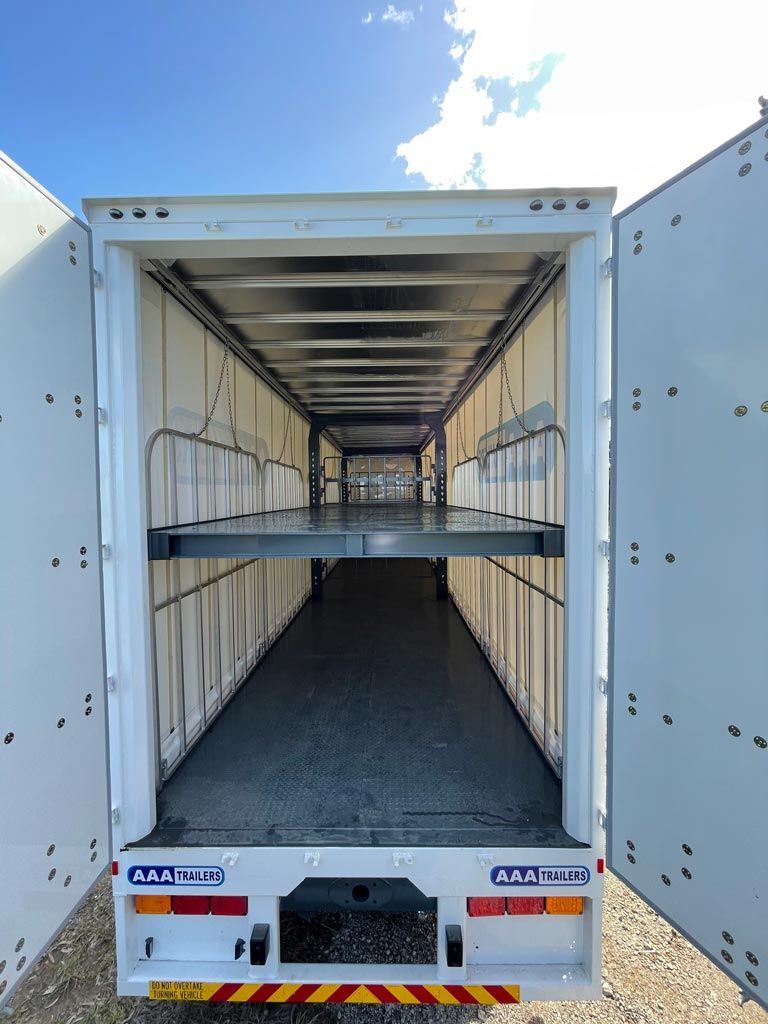

AAA TRAILERS CURTAINSIDER – DROP DECK-B TRAILER 22 PALLET

Specifications Details

Capacity

ATM: 47T

GTM: 23.5T

Approx tare weight: 10.5T
Length 13.8m
Mainframe High-tensile steel grade
Floor 5mm steel chequer plate, forklift-rated
Kingpin Dual-position 50mm bolt-in (90mm optional)
Coaming C-channel with tie rail
Brake Kit EBS multi-volt 12/24V
Gates Side gate pockets with hanging aluminium side gates
Axles K-Hitch 22.5” drum brake axles
Suspension K-Hitch tri-axle airbag
Landing Legs K-Hitch 2-speed
Wheels 10/285 PCD dual steel rims (aluminium optional)
Tyres 255/70R22.5
Spare Wheel Carrier Dual (spare wheels optional)
Lighting Full LED
Water Tank 30L stainless steel
Toolboxes 2 steel with stainless steel “T” handles
Mudguards Plastic radius guards with AAA Trailers mudflaps
Curtains Polyweld load restraint, single base colour
Optional Extras
  • Road Train Kit
  • Ring Feeder
  • Custom Paint - Coaming Rails
  • Road Train / Long Vehicles Signs
  • Hub Odometer
  • Spare Wheel: teel or Alloy
  • Custom Curtains: To be Quoted
Get A Quote

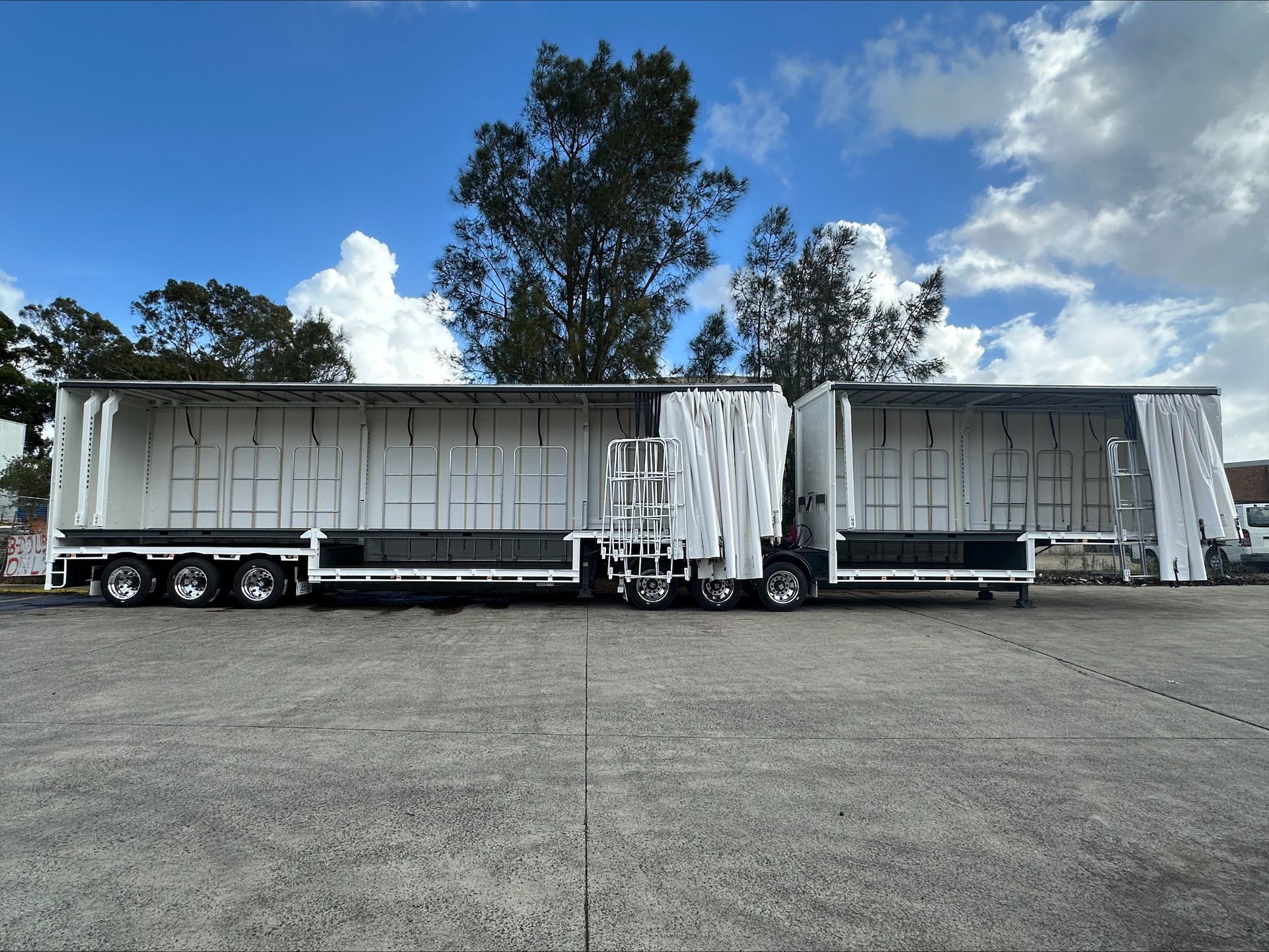

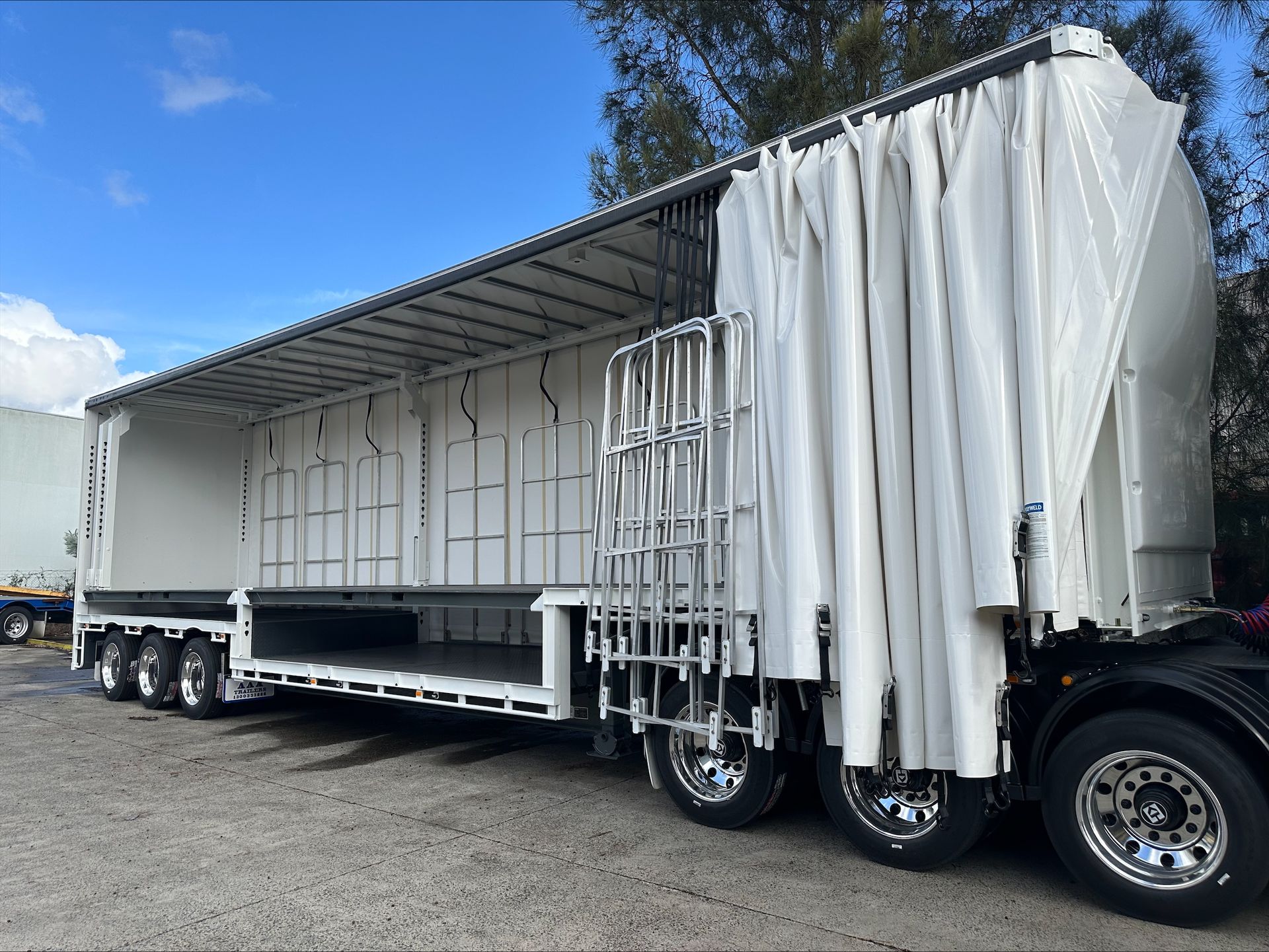

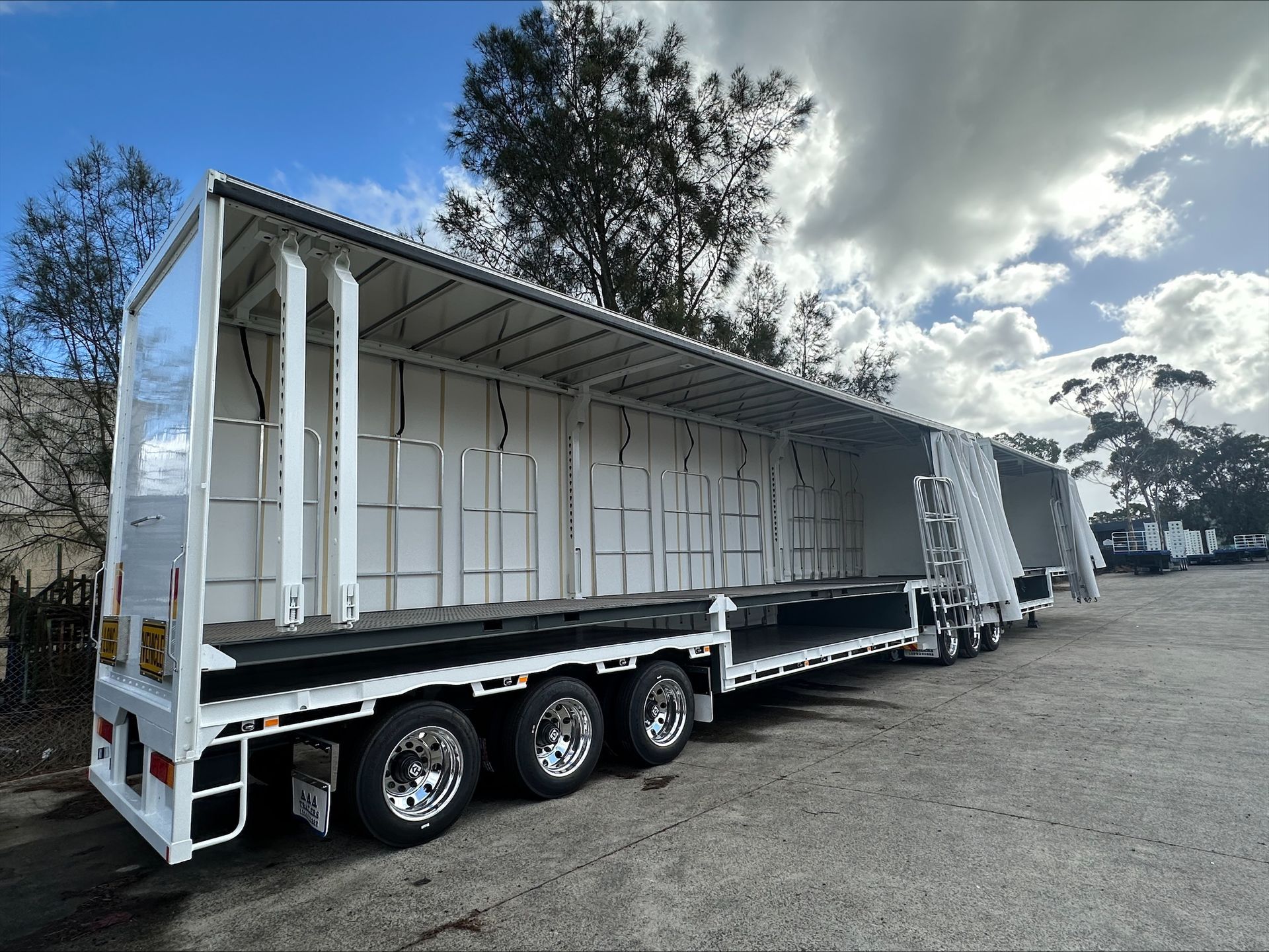

AAA Trailers – Drop Deck Curtain Sider lEAD (A) Trailer (with Rolling Posts & Removable Uprights)

Engineered for adaptability and performance, this 12-pallet A-trailer combines the structural strength of a drop deck design with the convenience of rolling curtain posts and removable uprights. Built with high-tensile steel and forklift-rated floors, it’s the ideal solution for freight operators seeking superior access, loading versatility, and proven durability.

Specifications Details

Capacity

ATM: 47T

GTM: 23.5T

Approx tare weight: 8.9T

Total Length

11.7m

Deck Length

7.6m
Curtainsider Style

Drop Deck with Rolling Curtain Posts

Main Uprights

Removable uprights for flexible freight access

Mainframe

High-tensile steel grade

Floor

5mm steel chequer plate, forklift-rated

Coaming

C-channel with tie rail

Curtains

Polyweld load restraint, single base colour

Axles

K-Hitch 22.5” drum brake axles

Suspension

K-Hitch tri-axle airbag

Landing legs

K-Hitch 2-speed

Turntable

K-Hitch 50mm bolt in (90mm optional)

Kingpin

Dual-position 50mm bolt in (90mm optional)

Wheels

10/285 PCD dual steel rims (aluminium optional)

Tyres

11R22.5

Spare wheel carrier

Dual (spare wheels optional)

Lighting

Full LED

Water tank

30L stainless steel

Toolboxes

1 steel with stainless steel “T” handles

Mudguards

Plastic radius guards with AAA Trailers mudflaps

Gates

Side gate pockets with hanging aluminium side gates

Optional extras
  • Road Train Kit
  • Ring Feeder
  • Custom Paint - Coaming Rails
  • Road Train / Long Vehicles Signs
  • Hub Odometer
  • Spare Wheel: Steel or Alloy
  • Custom Curtains: To be Quoted
Get A Quote

AAA TRAILERS – DOUBLE DROP DECK CURTAIN SIDER B-TRAILER (WITH ROLLING POSTS & REMOVABLE UPRIGHTS)

Our 22-pallet B-trailer is built to meet the heavy-duty demands of long-haul freight. With a longer body and increased pallet capacity, this trailer offers full flexibility thanks to rolling curtain posts and removable main uprights—ideal for fast-loading environments and awkward or oversized freight.

Specifications Details

Capacity

ATM: 47T

GTM: 23.5T

Approx tare weight: 10.5T

Total Length

 13.8m

Curtainsider Style

Double Drop Deck with Rolling Curtain Posts

Main Uprights

Removable uprights for open-sided loading
Mainframe High-tensile steel grade
Floor 5mm steel chequer plate, forklift-rated
Coaming C-channel with tie rail
Curtains Polyweld load restraint, single base colour

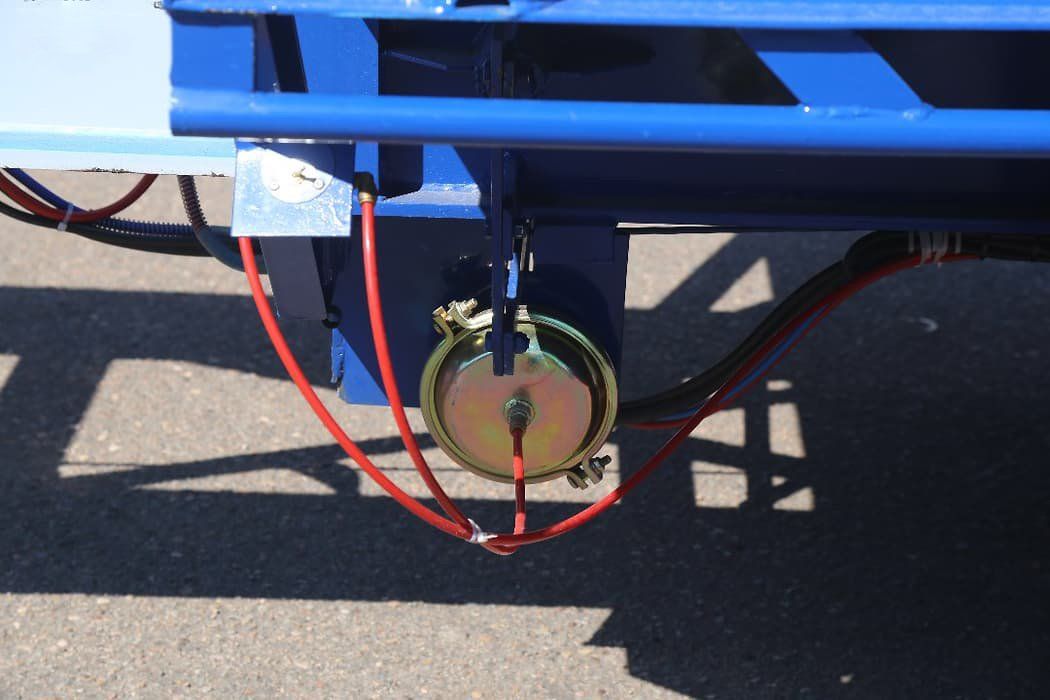

Axles K-Hitch 22.5” drum brake axles
Suspension K-Hitch tri-axle airbag
Kingpin Dual-position 50mm bolt-in (90mm optional)
Landing Legs K-Hitch 2-speed
Wheels 10/285 PCD dual steel rims (aluminium optional)
Tyres 255/70R22.5
Spare Wheel Carrier Dual (spare wheels optional)
Lighting Full LED
Water Tank 30L stainless steel
Toolboxes 2 steel with stainless steel “T” handles
Mudguards Plastic radius guards with AAA Trailers mudflaps
Gates Side gate pockets with hanging aluminium side gates
Optional Extras
  • Road Train Kit
  • Ring Feeder
  • Custom Paint - Coaming Rails
  • Road Train / Long Vehicles Signs
  • Hub Odometer
  • Spare Wheel: teel or Alloy
  • Custom Curtains: To be Quoted
Get A Quote
